Unlock OBD1 Codes: Your DIY Diagnostic Guide

Decoding Your Classic Car's Check Engine Light: A DIY Approach

Owning a classic car, particularly one from the mid-1990s or earlier, often comes with a unique set of challenges and rewards. While the rumble of a vintage engine is undeniably satisfying, so too is the ability to understand and address its occasional quirks. One such quirk that can leave owners scratching their heads is the illuminated "Check Engine" light. For those with vehicles equipped with the On-Board Diagnostics first generation (OBD1) system, the good news is that deciphering these warning lights doesn't always require an expensive diagnostic tool. This guide will walk you through effective, DIY methods to read OBD1 trouble codes, empowering you to take charge of your classic car's health.

Understanding OBD1 Codes: The Basics

Before delving into the practical steps, it's essential to grasp what OBD1 codes are. Unlike the standardized OBD2 system found in most modern vehicles, OBD1 codes are manufacturer-specific. This means a particular issue, like a faulty throttle position sensor, might trigger a different code on a Ford Mustang compared to a Honda Civic. These codes are typically alphanumeric, consisting of two or three digits, and may sometimes include a letter. Because of this variability, having the correct repair manual or a reliable online resource for your specific make and model is crucial for accurate interpretation. It's also worth noting that not all older vehicles are equipped with an OBD1 system. If your car predates the widespread adoption of onboard diagnostics, you might need to rely on more traditional diagnostic methods.

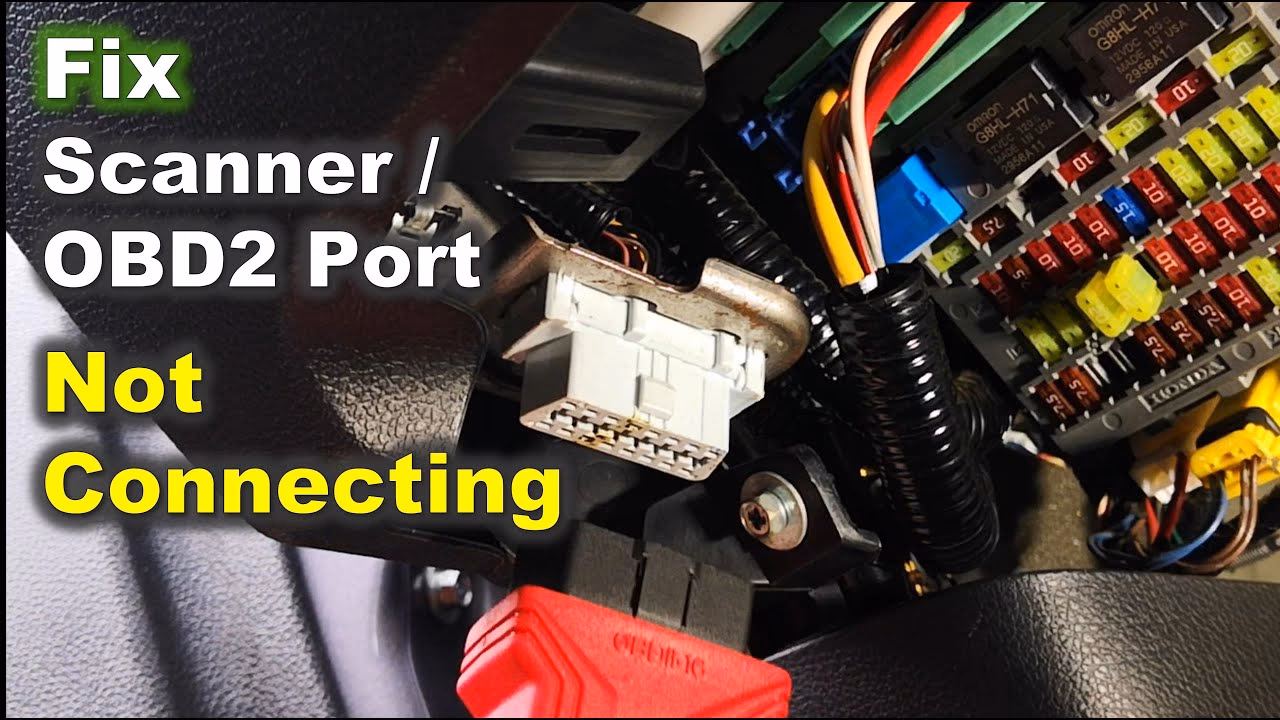

Can You Read a Check Engine Code Without a Scanner?

The short answer is: it depends. If your vehicle's "Check Engine" light bulb is burnt out or simply won't illuminate, reading any fault code, even with a scanner, becomes impossible. For OBD1 vehicles, reading fault codes without a dedicated scanner is achievable, provided your odometer display is functioning correctly. For OBD2 vehicles, while scanners are the standard, there are methods to retrieve codes using the odometer display, but this is generally not applicable to OBD1 systems in the same way.

Reading OBD1 Codes: Three Simple DIY Methods

For the classic car enthusiast who prefers a hands-on approach, several cost-effective methods allow you to retrieve OBD1 codes without relying on a professional scanner. These techniques are generally applicable to a wide range of vehicles from the 1980s and 1990s, including popular makes from Chevrolet, Ford, Honda, Dodge, and many others.

Method 1: The Test Light and Jumper Wire Technique

This method leverages the diagnostic port of your OBD1 system to communicate with the vehicle's computer. The core principle involves creating a temporary short circuit between specific pins in the diagnostic port, prompting the "Check Engine" light to flash out the diagnostic codes. What you'll need:* A test light (also known as a logic probe or circuit tester) * A jumper wire or a sturdy paper clip * Your vehicle's repair manual or an online code list for your specific make and model. Steps:1. Locate the Diagnostic Port: The OBD1 diagnostic port is typically found under the dashboard, often on the driver's side. It might be hidden behind a plastic cover that you'll need to remove. 2. Identify the Correct Pins: Consult your repair manual to identify the specific pins that need to be connected. For many OBD1 systems, this involves connecting pins labeled 'A' and 'B' or similar designated terminals. Careful identification is key here. 3. Insert the Jumper Wire: Securely insert one end of your jumper wire into the designated diagnostic port terminal (e.g., Pin A). 4. Prepare the Test Light: Connect one end of your test light to the other end of the jumper wire. Connect the other end of the test light to a good chassis ground (an unpainted metal surface). 5. Turn the Ignition On: Turn your car's ignition key to the "ON" position, but do not start the engine. This powers up the vehicle's electronic control unit (ECU). 6. Observe the Flashes: The "Check Engine" light should now begin to flash. The flashes will occur in sequences, with a brief pause between individual flashes and a longer pause between different codes. For example, two flashes, a pause, then three flashes, indicates code 23. Count these flashes carefully. 7. Record and Interpret: Note down the flash sequences. Refer to your vehicle-specific code list or repair manual to translate these flash counts into diagnostic trouble codes (DTCs).

Method 2: The Paper Clip Simplicity

This method is a more rudimentary version of Method 1, relying on a common household item. What you'll need:* A sturdy paper clip* Your vehicle's repair manual or an online code list. Steps:1. Locate the Diagnostic Port: As with Method 1, find the diagnostic port under your dashboard. 2. Prepare the Paper Clip: Straighten out a paper clip, leaving a small loop at one end to make it easier to handle. 3. Bridge the Pins: Insert one end of the straightened paper clip into the designated diagnostic port terminal (e.g., Pin A). Then, carefully use the looped end to bridge the connection to the other required terminal (e.g., Pin B). 4. Turn the Ignition On: Turn the ignition key to the "ON" position, but do not start the engine. 5. Count the Flashes: Observe the "Check Engine" light. It will flash in sequences, indicating the DTCs. Count the flashes meticulously, noting the pauses between flashes and codes. 6. Decode the Codes: Cross-reference the flash counts with your vehicle's specific OBD1 code chart to identify the fault.

Method 3: Using an OBD1 Scanner

While the goal is to avoid scanners, it's worth mentioning that dedicated OBD1 scanners offer a more streamlined and less error-prone experience. These scanners are designed to communicate directly with the OBD1 port and display the codes numerically, eliminating the need for manual counting. Steps:1. Connect the Scanner: Plug the OBD1 scanner into the diagnostic port. 2. Turn Ignition On: Turn the ignition key to the "ON" position. 3. Follow Scanner Prompts: The scanner will typically guide you through the process of retrieving codes. Follow the on-screen instructions. 4. Record and Interpret: The scanner will display the DTCs directly. Record these codes and consult your repair manual or a reliable online database for their meanings.

Common OBD1 Codes (Illustrative Examples)

While OBD1 codes are not universal, here are a few examples to illustrate their nature. Always consult your specific vehicle's manual for accurate code definitions.

Note: These are simplified examples. Actual OBD1 codes and their descriptions can be more complex and vary significantly.

Resetting OBD1 Codes: Clearing the Faults

Once you've identified and rectified the issue causing the "Check Engine" light, you'll want to clear the stored codes. Here are a few common methods: * Disconnecting the Jumper: Sometimes, simply disconnecting the jumper wire or paper clip while the codes are being displayed can reset the system. * Fuse Pull: Locate the fuse box and identify the fuse related to the ECU or engine management system. Removing this fuse for 15-30 seconds can reset the ECU. Be cautious not to pull the wrong fuse. * Battery Disconnect: Disconnecting the negative battery cable for a period (often 15-30 minutes or longer) will reset the ECU and clear all stored codes. Remember to reconnect it securely afterward. It is imperative to address the underlying problem before resetting the codes. Simply clearing them without a fix will likely result in the "Check Engine" light returning, potentially masking a more serious issue.

Frequently Asked Questions (FAQs)

Q1: Can I read OBD1 codes without the "Check Engine" light being on?Typically, the diagnostic process is initiated when the "Check Engine" light illuminates. However, some diagnostic procedures might allow for a code retrieval even if the light isn't currently illuminated, but this is less common for OBD1 systems. Q2: My "Check Engine" light is flashing constantly. What does that mean?A constant, rapid flashing of the "Check Engine" light often indicates a severe misfire or a condition that could quickly damage your catalytic converter. It's crucial to address this immediately and avoid driving the vehicle if possible. Q3: Are OBD1 codes the same for all cars?No, OBD1 codes are manufacturer-specific. A code for a particular problem on a Ford will differ from the code for the same problem on a Honda. Always consult a repair manual or a reliable online database for your specific vehicle model. Q4: What if I can't find the diagnostic port?Consult your vehicle's owner's manual or a service manual. The location can vary significantly between makes and models. Common locations include under the dashboard, in the engine bay, or even near the fuse box.

Final Thoughts

Diagnosing issues with your classic car doesn't have to be a mystery. By understanding and utilising these simple DIY methods for reading OBD1 codes, you can gain valuable insights into your vehicle's performance and take proactive steps towards its maintenance and repair. Remember, patience and accuracy in counting flashes are key. If you're ever unsure, consulting a professional mechanic is always a wise decision. Happy motoring!
