Fitting New Brake Calipers: A Comprehensive Guide

Can you put new brake calipers on a torn wheel assembly?

The short answer to whether you can install new brake calipers on a 'torn' wheel assembly is a definitive no, if by 'torn' you mean damaged or compromised in any structural way. The wheel assembly is a critical component of your vehicle's braking system, and any damage to its integrity, including the mounting points for the caliper, would make it unsafe to proceed with any brake work. However, if by 'torn' you simply mean disassembled or in a state of being worked on (i.e., the wheel is off and the caliper is accessible), then yes, this guide will walk you through the process of replacing your brake calipers. It's essential to ensure all parts are in good condition before starting. If you suspect any damage to your wheel hub, brake disc, or surrounding components, it is highly recommended to seek professional advice before attempting this repair.

Installing new brake calipers on your car can seem like a daunting task, but with the right guidance and a methodical approach, it’s a job many DIY enthusiasts can undertake. Safety, however, is paramount. If you've never performed this task before, it's strongly advised to have an experienced mechanic or a knowledgeable friend nearby to offer guidance. This is not a job to be rushed; meticulous attention to detail is crucial, especially when it comes to bleeding the brakes correctly at the end. This process is vital for your own safety and the effective performance of your braking system.

Understanding Your Brake Calipers

Brake calipers are a fundamental part of your vehicle's disc brake system. They house the brake pads and, when you apply the brakes, hydraulic pressure forces the caliper's piston(s) to clamp down on the brake disc (rotor). This friction is what slows and stops your vehicle. Over time, calipers can seize due to rust, corrosion, or wear and tear, leading to reduced braking efficiency, uneven wear on brake pads and rotors, and potentially pulling to one side when braking. Replacing worn or seized calipers is essential for maintaining optimal braking performance and safety.

Tools and Materials You'll Need

Before you begin, ensure you have all the necessary tools and materials. This will make the process smoother and safer.

Step-by-Step Installation Guide

Step 1: Preparation and Wheel Removal

Begin by ensuring your vehicle is parked on a level surface. Engage the parking brake and place wheel chocks behind the wheels on the opposite end of the vehicle you'll be working on for added safety. Locate the wheel you'll be working on and slightly loosen the lug nuts while the wheel is still on the ground. This prevents the wheel from spinning when you try to loosen them later. Next, use your car jack to raise the vehicle at the designated jacking point for that corner. Once raised, place a sturdy jack stand securely under the axle or a strong frame point to support the vehicle. Never rely solely on the jack. Now, you can fully loosen and remove the lug nuts, and then carefully remove the wheel, setting it aside.

Step 2: Removing the Old Caliper

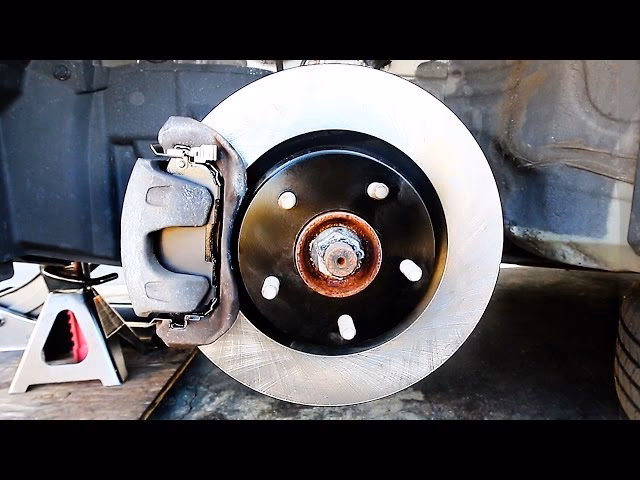

With the wheel removed, you'll have access to the brake caliper. Place a suitable container or pan beneath the caliper to catch any dripping brake fluid. The brake fluid line connects to the caliper. You'll need to disconnect this. Using the correct size wrench, carefully loosen the bolt that secures the brake fluid line to the caliper. Be prepared for some brake fluid to drain out. Once the line is disconnected, you might want to plug it temporarily with a clean rag or a dedicated brake line plug to minimise further fluid loss and prevent contamination. Next, locate the bolts that mount the caliper to the steering knuckle. These are often behind the caliper. Remove these mounting bolts. Sometimes, the caliper can be heavy, so be ready to support its weight. Once the bolts are removed, carefully slide the old brake caliper off the brake disc and mounting bracket. If it's stuck, you might need to gently pry it or tap it with a rubber mallet. Set the old caliper aside.

Step 3: Preparing the New Caliper and Installing New Pads

Before fitting the new caliper, it's crucial to prepare it. Often, new calipers come with protective caps on the brake line fitting and piston(s). Remove these carefully. You'll need to compress the piston(s) back into the caliper body to make room for the new, thicker brake pads. This is where the caliper brake piston tool comes in handy. Insert the tool into the caliper and slowly turn the handle to retract the piston. If you don't have this tool, you might be able to use a large C-clamp, but be very careful not to damage the piston or the caliper housing. Ensure the piston is fully retracted. While the caliper is off, it's the ideal time to replace your brake pads. Slide the old brake pads out of the caliper bracket or caliper itself. Clean the caliper bracket with a wire brush to remove any rust or debris. Fit the new brake pads into the bracket, ensuring they are seated correctly. Some pads come with new hardware clips; ensure these are also installed if provided.

Step 4: Mounting the New Caliper

Now, you're ready to install the new caliper. Before attaching it, it's a good practice to lubricate the caliper mounting bolts with a small amount of brake grease or anti-seize compound. This will help prevent them from seizing in the future. Slide the new caliper over the brake disc and onto the caliper bracket, aligning the mounting bolt holes. Reinstall the mounting bolts and tighten them securely. It's highly recommended to use a torque wrench to tighten these bolts to the manufacturer's specified torque setting. Consult your vehicle's service manual for the correct torque. Once the caliper is securely mounted, reconnect the brake fluid line to the new caliper. Again, lubricate the fitting slightly and tighten the bolt. Do not overtighten, as this can damage the fitting or the brake line. Ensure the brake line is routed correctly and not kinked.

Step 5: Bleeding the Brake System

This is a critical step for ensuring proper brake function and safety. Air trapped in the brake lines will result in a spongy brake pedal and significantly reduced braking power. You will need a second person for this process. First, check the brake fluid level in the master cylinder reservoir under the bonnet. Top it up with the correct type of brake fluid if necessary. Ensure the reservoir cap is securely on. Attach one end of the rubber tubing from your bleeder kit to the bleeder valve on the caliper you just worked on. Place the other end of the tubing into the collection bottle, ensuring the end of the tube remains submerged in a small amount of clean brake fluid at the bottom of the bottle. This prevents air from being drawn back into the system.

With the bleeder valve closed, have your assistant get into the car and pump the brake pedal several times. They should then hold the pedal down firmly. While they are holding the pedal down, carefully open the bleeder valve on the caliper (usually a quarter to half turn). You will see brake fluid and potentially air bubbles flow through the tubing into the collection bottle. Once the fluid stops flowing, close the bleeder valve before your assistant releases the brake pedal. Instruct your assistant to release the pedal. Repeat this process – pump, hold, open valve, close valve, release pedal – until no more air bubbles are seen coming through the tubing and the fluid flowing is clean. Keep an eye on the master cylinder reservoir level throughout this process and top it up as needed to prevent it from running dry, which would introduce more air into the system. Once bleeding is complete, securely close the bleeder valve and remove the tubing.

Step 6: Replacing the Wheel and Final Checks

With the caliper installed and the brake system bled, you can now put the wheel back on. Mount the wheel onto the studs and hand-tighten the lug nuts. Carefully lower the vehicle off the jack stands. Once the wheel is firmly on the ground, use your lug wrench to tighten the lug nuts in a star pattern to ensure the wheel is seated evenly. It's best to re-torque them after a short drive. Repeat the entire process for the brake caliper on the other side of the same axle. It is generally recommended to replace brake calipers in pairs (both front or both rear) to ensure even braking performance.

Important Considerations and Best Practices

• Never reuse old brake pads when installing new calipers. The new pads are designed to mate with the rotor, and old pads may have already bedded into the old caliper.
• Check the brake fluid type specified for your vehicle and use only that type. Mixing different types can damage the brake system.
• Inspect brake hoses and lines for any signs of cracking, swelling, or damage. If any damage is found, they should be replaced before proceeding.
• Lubricate the caliper slide pins and mounting bracket contact points with high-temperature brake lubricant to ensure smooth operation and prevent future seizing.
• Torque specifications are crucial. Over-tightening can strip threads or crack components, while under-tightening can lead to loose parts and unsafe braking.
• Test your brakes in a safe area at low speed before driving normally. Ensure the brake pedal feels firm and the car stops effectively.

Frequently Asked Questions

Q1: How long does it take to replace brake calipers?

For an experienced mechanic, replacing a pair of brake calipers can take anywhere from 1 to 3 hours. For a DIYer doing it for the first time, it could take significantly longer, potentially 4-6 hours or more, depending on your mechanical aptitude and the complexity of your vehicle.

Q2: Can I drive with a bad brake caliper?

Driving with a bad brake caliper is extremely dangerous. A seized or leaking caliper can lead to significantly reduced braking power, uneven braking, and in severe cases, complete brake failure. It can also cause excessive wear on brake pads and rotors. It is strongly advised to address caliper issues immediately.

Q3: Do I need to replace brake rotors when replacing calipers?

It's not always mandatory, but it's highly recommended, especially if your rotors are worn below their minimum thickness, are heavily grooved, or have signs of warping. Replacing pads and rotors together ensures optimal performance and longevity of the new components.

Q4: What happens if you don't bleed the brakes properly?

If the brakes are not bled correctly, air will remain in the brake lines. This air is compressible, unlike brake fluid. When you press the brake pedal, the air will compress before the fluid does, resulting in a 'spongy' or soft brake pedal feel and significantly diminished braking effectiveness. In extreme cases, the pedal may go all the way to the floor with little to no braking action.

Q5: Should I replace calipers in pairs?

Yes, it is strongly recommended to replace brake calipers in pairs for the same axle (e.g., both front calipers or both rear calipers). This ensures that both sides of the axle apply braking force equally, preventing uneven braking, steering pull, and premature wear on other brake components.

By following this comprehensive guide, you can confidently undertake the task of replacing your brake calipers, ensuring the safety and reliability of your vehicle's braking system. Remember, if at any point you feel unsure or uncomfortable, it's always best to consult a professional mechanic.
