Mastering Curved Car Body Patching

Rust is the bane of any car enthusiast or daily driver, often creeping into the most inconvenient and visually prominent areas of our vehicles. While the immediate thought might be to replace an entire rusted body panel, this can be an incredibly costly affair, especially when dealing with professional body shops. Thankfully, for those willing to roll up their sleeves and invest a little time, patching a rusted area, even a curved one, is a highly viable and economical alternative. This guide will walk you through the intricacies of creating and fitting patch panels, covering both traditional welding methods and modern no-weld solutions, empowering you to restore your car's integrity and aesthetic appeal.

Patch Panel vs. Full Panel Replacement: The Economic Reality

When faced with rust, particularly in localised spots without collision damage, the decision often boils down to replacing the entire panel or opting for a patch repair. Body shops, driven by efficiency and profit, will almost always recommend full panel replacement. While their labour time might be reduced, the combined cost of a new panel and painting can quickly escalate, often pushing the repair out of budget for many car owners.

For the DIY enthusiast, especially one with decent welding skills, fabricating and welding in a patch panel offers significant savings. It’s a more time-consuming process, requiring patience and precision, but the financial rewards are undeniable. It's a testament to the fact that with the right approach and tools, you can achieve professional results without the hefty price tag.

If you're new to automotive body repair, a MIG welding machine is an excellent starting point. It's generally considered the easiest welding process to learn and is relatively inexpensive to acquire. With minimal practice, most individuals can produce strong, good-looking welds suitable for bodywork.

Traditional Patch Panel Fabrication: A Welded Approach

The traditional method for repairing rusted body panels involves cutting out the affected area, fabricating a new piece of metal (the patch panel), and welding it into place. This process demands attention to detail at every stage.

Preparation is Key: Bare Metal and Marking

Before any cutting begins, the first crucial step is to bring the affected panel down to bare metal. A Dual Action (D/A) sander is highly effective for this task, quickly removing paint and surface rust. Alternatively, an angle grinder fitted with a wire brush attachment can also be used to remove loose rust and debris. Once the surface is clean, use masking tape to mark out the area you intend to cut. A good rule of thumb is to extend your cut line at least one inch beyond any visible rust-through, ensuring you remove all compromised metal while preserving as much good metal as possible.

Cutting and Removing the Rusty Section

Cutting out damaged sheet metal can be accomplished using several tools. An air compressor powering a cut-off wheel is a popular and efficient method. Once the rusted section is removed, an air sander can be used to further clean the surrounding area down to bare metal. Start with a 36-grit sanding disc to quickly remove material, then refine the exposed area with a 60 or 80-grit disc. The goal is a clean, shiny, rust-free surface ready for the patch.

Crafting Your Patch Panel Template

With the rusted area removed, the next critical step is to create a precise template for your patch panel. Cardboard, easily cut with scissors, makes an ideal template material. Take careful measurements of the opening and transfer them to the cardboard. It's always best to start with a slightly larger template than you think you'll need, then slowly trim it down for a perfect fit. Remember, it's far easier to remove metal than to add it!

Once your cardboard template is perfected, trace its shape onto your chosen sheet metal. Use a fine marker and remember to add a small allowance, perhaps an 1/8th of an inch, to your cut line for final trimming. When cutting the sheet metal, whether with hand-held snips or power shears, proceed slowly, cutting and checking the fit frequently. The aim is to achieve a gap of no more than 1/8th of an inch around the entire patch.

Welding Techniques: Butt Weld vs. Lap Weld

For optimal results and longevity, a butt weld is the preferred method for joining sheet metal panels. This involves aligning the edges of the original panel and the patch panel side-by-side, creating a flush joint. While a lap weld (where one panel overlaps the other) is easier to execute, it creates a crevice where moisture can collect, inevitably leading to future rust issues. An overlapping joint acts as a moisture trap, compromising the repair's long-term integrity.

Welding new metal to old can be challenging, especially when the original metal has been thinned by grinding away rust. Burning through the old, thinner metal is a common concern. Practice on scrap pieces of similar thickness is highly recommended before tackling your actual car.

Choosing the Right Metal for Your Patch

You can purchase new sheet metal stock or, if available, use a clean piece of panel from a donor car. The most important factor is ensuring the patch panel metal is of the same thickness (gauge) as the original car body panel. A digital caliper or a sheet metal thickness gauge can accurately measure this. For classic American cars, body panels are typically 20 or 22 gauge, while pre-1970s vehicles often featured slightly thicker 18 or 20 gauge metal.

Patching Curved Car Body Areas: A Skillful Endeavour

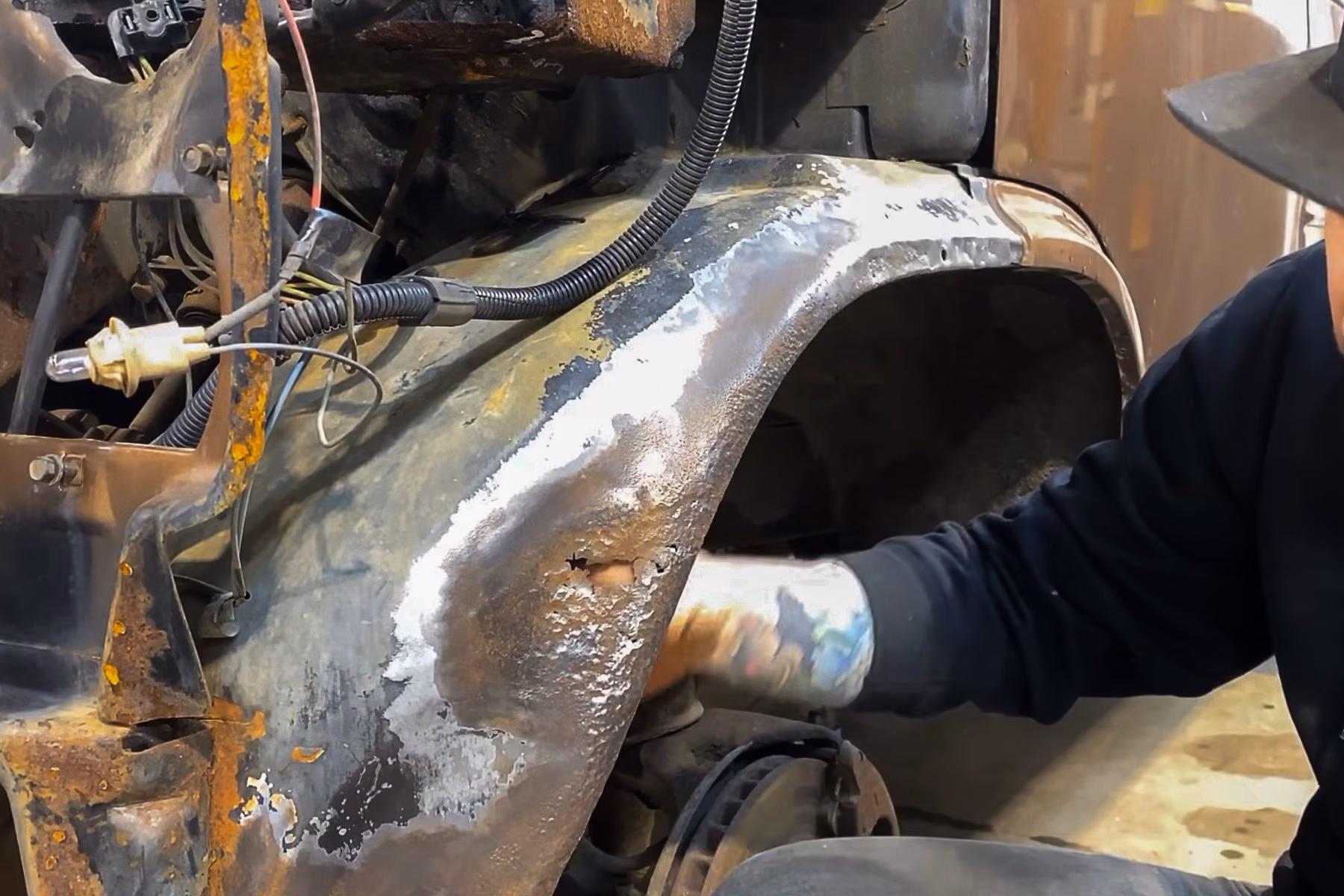

The core question: Can a car body be patched in a curved area? The answer is an emphatic yes, but it demands more time, skill, and careful planning than a simple flat patch. Curved areas, such as wheel arches, fender contours, or door skins, require the patch panel to precisely mimic the original panel's complex shapes.

Before cutting into a curved section, take ample time to study the damaged area and visualise the entire repair process. You might find it beneficial to remove a slightly larger section than just the rusted part, especially if it provides better access for welding and shaping. A larger cut-out can sometimes facilitate a cleaner and easier butt weld in a tricky curved spot.

Fabricating Curved Patch Panels: The Art of Shaping

The key to successful curved panel patching lies in accurately reproducing the original contours. This is where the process becomes more artisanal:

• Templates are Paramount: Beyond just the outer shape, you'll need to capture the multiple contours of the curved area. Master metal fabricator Leonard Schrock, for example, uses multiple thin strips of metal (often called 'tin' templates) formed precisely to the various curves (top, front, rear) of a wheel opening. Each template is marked with its exact position to ensure accurate reproduction.
• Tracing and Cutting: Place your oversized flat sheet metal stock against the curved opening and carefully trace the shape. For a wheel arch, if the inner fender is still intact, it can serve as a guide, as the inner and outer panels must meet perfectly. Once traced, highlight your cut line with masking tape for precision before using power shears or hand snips.
• Shaping the Lip (if applicable): For areas like wheel arches, a lip is often required. This also needs to be shaped. Schrock's technique involves bending the cut metal strip over his knee, working from the ends towards the centre to avoid kinks, and constantly comparing it to the outer panel for a perfect match.
• Pounding and Forming Contours: This is the most artistic part. Secure thick bar stock with clamps along the edge of the new panel where you intend to form sharper bends. This acts as a guide and braces the surrounding metal. Use tools like duckbill pliers for sharper angles. For smoother curves and to level out the panel, a body hammer with a convex face is invaluable. Continuously compare your evolving patch panel to your thin metal templates to ensure you're matching the original body lines.
• Joining Inner and Outer Sections: For complex areas like quarter panels, you might fabricate an inner fender lip and an outer quarter panel section separately, then weld them together. This approach can make shaping easier and result in a stronger overall piece. Once shaped, align the pieces, draw a line to mark the weld path, and tack weld them slowly, working from top to bottom, hammering and adjusting as you go to maintain the flush fit.

This meticulous process ensures that the fabricated patch panel seamlessly integrates with the existing bodywork, maintaining the vehicle's original lines and structural integrity. The ability to fabricate custom panels means that specific parts, like a passenger side quarter panel, can be precisely replicated to fit any location on the vehicle, regardless of whether a reproduction part is available.

No-Weld Panel Repair Kit: An Alternative Approach

For those without welding equipment, or for repairs where welding is impractical, no-weld panel repair kits offer a permanent and structurally sound alternative. These kits typically utilise strong panel adhesives combined with mechanical fasteners.

Components of a No-Weld Kit

A typical no-weld panel repair kit includes:

• Panel Flanger (often 5/8")
• Dimpling Pliers
• Compression Pliers
• Blind Holders (e.g., 1/8")
• Side Grips
• Panel Adhesive with caulk gun adapter

Step-by-Step No-Weld Repair Instructions

1. Surface Preparation: Remove all paint from the damaged area, exposing 1-2 inches of corrosion-free bare metal around the damage. Use a stripping disc or D/A sander with 180-grit paper. Scribe cut lines at least 2 inches from the damage.
2. Cutting and Flanging: Cut out the damaged section along your scribe lines using a nibbler or shear. Then, use the panel flanger to create a neat, accurate flange around the opening. Adjust the flanger to ensure the flange is deep enough for a flush repair. Test with a scrap piece of metal of the same gauge.
3. Patch Panel Creation: Layout the dimensions of your cut-out area on cardboard, transfer to your patch panel metal (ensuring it's the same gauge as the original), and cut to shape. Trim carefully for a level and flush fit against the flange.
4. Rivet Pattern Layout: Lay out the rivet pattern on your patch panel. For #4 flush rivets, space them 3/4" to 1" apart, starting at a corner to ensure the panel lies flat. Use aluminum rivets for aluminum panels and steel rivets for steel panels.
5. Drilling and Deburring: Clamp the patch panel in place, ensuring it's flush. Drill 1/8" rivet holes, starting from a corner, using blind holders to secure the panel as you drill. Remove clamps and deburr all holes for a flush final repair.
6. Dimpling Holes: Use the dimpling pliers to countersink (dimple) all holes in both the patch panel and the original panel. Practice on scrap metal first. After dimpling, you may need to straighten panel edges with a hammer and dolly/anvil.
7. Test Fit: Install the patch panel using blind holders. It should be flush and follow contours. Adjust edges or dimple depth if needed.
8. Adhesive Application (Crucial Step!): The supplied panel adhesive typically has a short working time (e.g., 30 minutes) and the mixing tip is not reusable. Clean the flanged area thoroughly with prep solution or lacquer thinner. Attach the mixing tip to the two-part adhesive tube, insert into a standard caulk gun. Squeeze a small amount onto cardboard to check for an even, dark grey mix. Apply a 1/4" bead of adhesive along the centre of the rivet line on the original panel.
9. Installation and Riveting: Install the patch panel, using blind holders in every hole, ensuring it's flush. Adhesive will squeeze out, which can be smoothed later. Remove blind holders one at a time, replacing each with a rivet. Start riveting from a corner or radius to maintain flushness.
10. Final Smoothing and Curing: Use a body filler spreader to smooth the excess adhesive. This adhesive layer provides excellent corrosion protection. Allow at least 4 hours for the adhesive to set before sanding. For full cure, allow 24 hours before applying fillers, primers, or topcoats. Sand the area smooth, apply filler if necessary, then self-etch primer, and finish as usual.

Comparison: Welded vs. No-Weld Patching

Both methods offer effective repairs, but cater to different needs and skill sets:

Frequently Asked Questions About Patch Panels

Is it difficult to patch a curved area on a car body?

Patching a curved area is more challenging than a flat surface but definitely achievable for a diligent DIYer. It requires greater precision in creating templates, careful shaping of the metal using hammers, dollies, and specialised pliers, and patience to match the original contours. The key is to take your time and frequently compare your work against existing body lines and templates.

What tools are essential for a DIY patch panel repair?

For welded repairs, you'll need a MIG welder, an angle grinder with wire brush and cut-off wheels, a D/A sander, metal snips, body hammers, and dollies. For no-weld repairs, a dedicated no-weld panel repair kit, a caulk gun, and sanding equipment are essential.

Can I patch rust without welding?

Absolutely! No-weld panel repair kits offer a robust and permanent solution for patching rust without the need for welding. They use strong panel adhesives and mechanical fasteners like rivets to create a durable repair, making it accessible even if you don't own a welder.

How long does a patch panel repair typically last?

If executed correctly with proper surface preparation, quality materials, and effective corrosion protection, both welded and no-weld patch panel repairs can last for many years, often for the remaining lifespan of the vehicle. The longevity largely depends on the quality of the workmanship and the environment the car is exposed to.

What type of metal should I use for a patch panel?

Always use sheet metal of the same thickness (gauge) as the original car body panel. This ensures a consistent appearance and structural integrity. For most car bodywork, 20 or 22 gauge steel is common, though older vehicles might use 18 gauge. Ensure the metal is clean and free of rust or contaminants.

Can a patch panel fit a specific side, like the passenger side?

Yes, custom-fabricated patch panels can be made to fit any specific side or area of the car, whether it's the passenger side, driver's side, or a particular section of a quarter panel. The beauty of fabricating your own panels is that you can precisely tailor them to the unique requirements of your vehicle, regardless of whether a pre-made reproduction part is available.

Conclusion

Tackling car body rust with a patch panel repair, even on challenging curved areas, is a rewarding endeavour that saves significant money. Whether you opt for the traditional welded approach or the innovative no-weld kit, the satisfaction of restoring your vehicle's appearance and structural integrity yourself is immense. With careful planning, the right tools, and a methodical approach, you can achieve professional-quality results right in your own garage, ensuring your car looks its best and remains rust-free for years to come. Embrace the challenge, and enjoy the fruits of your labour!
