The Art of Brake Pad Manufacturing Unveiled

Brake pads are arguably one of the most critical safety components on any vehicle. They are the unsung heroes that, at your command, transform kinetic energy into thermal energy, bringing your car to a safe and controlled stop. But have you ever paused to consider the complex journey these vital parts undertake from raw materials to the sophisticated components nestled within your braking system? This article will take you through the meticulous process of how a modern brake pad, complete with its essential backing plate, is crafted, ensuring optimal performance and safety on the road.

Understanding the Braking System: How It Works

Before we dive into the manufacturing of brake pads, it's essential to grasp their role within the broader braking system. When you press the brake pedal, hydraulic fluid is pushed through lines to the calipers. Inside the calipers, pistons push the brake pads against the spinning brake discs (rotors). The friction generated between the pad and the disc slows down and eventually stops the wheel. This seemingly simple action relies on a precise interplay of components, with the brake pad being at the forefront of the kinetic energy conversion.

The Manufacturing Journey: Crafting the Brake Pad

The creation of a high-quality brake pad is a testament to modern engineering and material science. It’s a multi-stage process, meticulously controlled to meet stringent safety and performance standards.

The Foundation: Stamping the Backing Plate

The journey begins with high-grade steel. This steel is precisely stamped into the distinctive shape of a brake pad backing plate. This isn't just any piece of metal; it's the structural backbone of the brake pad. After stamping, each backing plate undergoes rigorous analysis to ensure it meets OEM specifications. This initial quality control is paramount, as the backing plate must be perfectly flat, dimensionally accurate, and possess the necessary rigidity to withstand the immense forces and temperatures it will encounter during braking. A well-designed backing plate ensures even pressure distribution across the friction material, prevents warping, and contributes significantly to noise reduction.

The Secure Bond: NRS Mechanical Attachment

Following the initial stamping and inspection, the brake pad backing plate proceeds to the NRS press. Here, a crucial step occurs: the creation of a mechanical attachment for the friction material. Unlike traditional methods that rely solely on adhesives, NRS (Noise Reduction Shim) technology incorporates a unique array of hooks or studs directly onto the backing plate. When the friction material is later applied, these hooks mechanically interlock with the material, creating an incredibly strong and durable bond. This innovative approach significantly reduces the risk of delamination, a common failure point in older designs, especially under extreme heat or heavy braking conditions. It's a key factor in enhancing the overall safety and longevity of the brake pad.

Protection and Longevity: The Galvanisation Process

Once the mechanical attachment features are formed, the backing plates undergo a vital galvanisation process. Galvanised coatings, typically zinc, are applied to the steel backing plate to provide superior corrosion resistance. Given the harsh environment brake pads operate in – exposed to water, road salt, grime, and extreme temperature fluctuations – protection against rust is essential. A corroded backing plate can compromise the integrity of the pad, lead to uneven wear, and potentially seize within the caliper, impairing braking performance. This step ensures the structural integrity of the backing plate is maintained throughout the pad's lifespan, even in the most challenging UK weather conditions.

The Stopping Power: Adding the Friction Material

The final, and perhaps most critical, stage is the addition of the brake pad friction material. This material is a complex composite, carefully formulated from a blend of fibres, binders, fillers, and metallic particles. The specific composition dictates the pad's performance characteristics, such as stopping power, noise levels, dust production, and wear rate. Common types include:

• Organic Non-Asbestos (NAO) Pads: Quieter and less abrasive on rotors, ideal for everyday driving.
• Semi-Metallic Pads: Offer excellent braking performance and heat dissipation, but can be noisier and produce more dust.
• Ceramic Pads: Known for quiet operation, low dust, and excellent performance across a wide temperature range, though often at a higher cost.

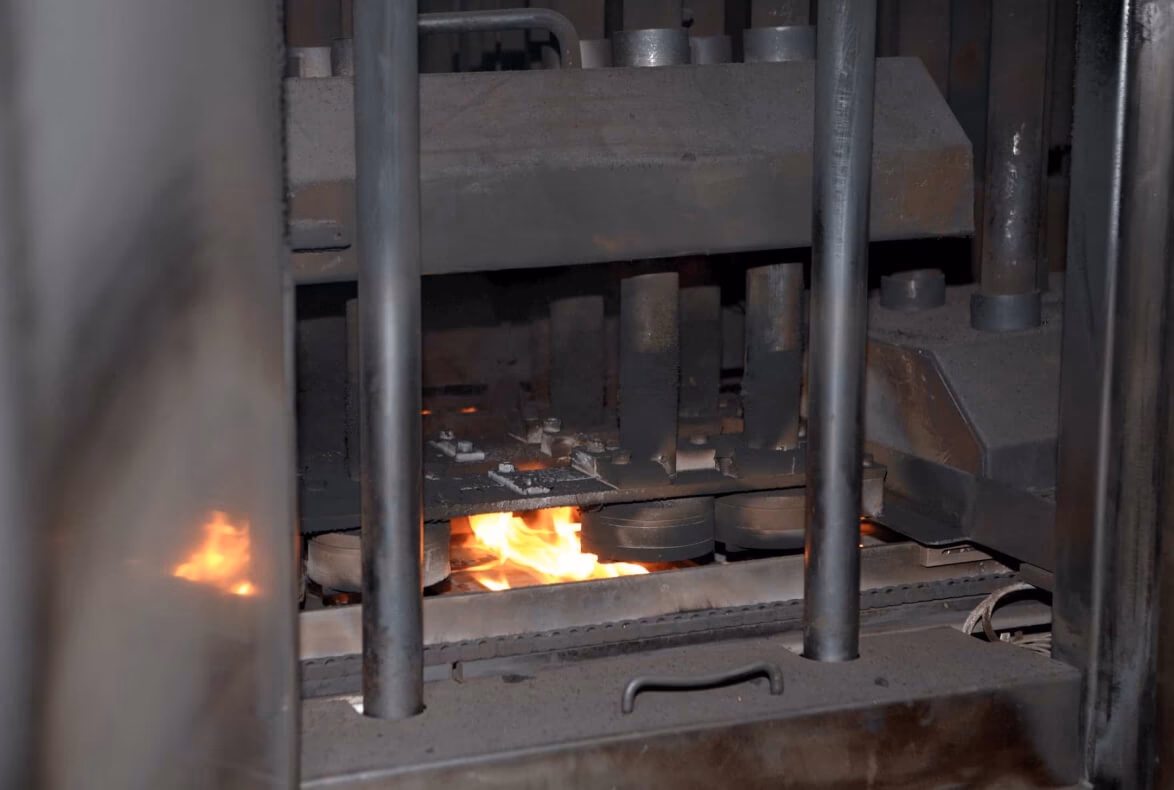

The friction material compound is compressed onto the galvanised backing plate, often under immense pressure and heat, to create a solid, integral unit. The mechanical hooks from the NRS process embed deeply into this material, reinforcing the bond. After curing, the pads are ground to precise tolerances and may have shims or chamfers added to further reduce noise and improve performance.

Quality Control and Rigorous Testing

The manufacturing process doesn't end with assembly. Every batch of brake pads undergoes extensive quality control and rigorous testing to ensure they meet, and often exceed, industry standards and OEM specifications. This includes:

• Shear Strength Testing: To verify the integrity of the bond between the friction material and the backing plate.
• Dynamometer Testing: Simulating real-world braking conditions, including extreme heat, cold, and wet environments, to assess stopping power, fade resistance, and wear characteristics.
• Noise, Vibration, and Harshness (NVH) Testing: To ensure the pads operate quietly and smoothly.
• Material Composition Analysis: Confirming the precise blend of friction materials.
• Dimensional Accuracy Checks: Using advanced laser and optical systems to ensure perfect fitment.

This exhaustive testing regime is what guarantees the reliability and safety of the brake pads fitted to your vehicle.

Comparison: NRS Technology vs. Traditional Bonding Methods

The NRS technology mentioned earlier represents a significant advancement in brake pad manufacturing, particularly concerning the attachment of the friction material to the backing plate. Here's a comparison to highlight its advantages over older, traditional adhesive-only bonding methods:

NRS technology provides a more robust and reliable connection, which translates directly into enhanced safety and extended service life for the brake pads. This mechanical bond ensures that the friction material remains firmly attached to the backing plate, even during severe braking events or when operating at elevated temperatures, providing consistent performance when you need it most.

Handling Brake Pads: Tips for Performance & Longevity

Proper handling and installation are crucial for maximising the performance and lifespan of your new brake pads:

• Storage: Store brake pads in a dry, temperate environment, away from direct sunlight or extreme temperature fluctuations. Keep them in their original packaging until ready for installation to prevent contamination.
• Cleanliness: Before installation, ensure the caliper, rotor, and hub surfaces are meticulously clean. Any dirt, rust, or old grease can lead to uneven pad wear, noise, or reduced braking performance.
• Lubrication: Apply a thin layer of high-temperature brake lubricant to the caliper guide pins and the back of the brake pad's backing plate (where it contacts the caliper piston or bracket). Avoid getting lubricant on the friction material or rotor surface.
• Bedding-In: After installation, follow the manufacturer's 'bedding-in' procedure. This typically involves a series of moderate stops from increasing speeds to properly transfer a layer of friction material to the rotor surface. This process optimises performance, reduces noise, and prevents brake judder.
• Even Replacement: Always replace brake pads as a set on an axle (both front or both rear). Replacing only one side can lead to uneven braking and pulling.

Troubleshooting Common Brake Pad Issues

Even with high-quality brake pads, issues can sometimes arise. Here's a quick guide to common problems and their potential causes:

Squealing or Grinding Noise

• Squealing: Often caused by vibration between the pad and caliper/rotor. Can be due to worn pads (wear indicator), improper installation, lack of lubricant on contact points, or cheap pads without proper shims. Solutions include proper bedding-in, lubricating contact points, or replacing worn pads.
• Grinding: A serious sound, usually indicating metal-on-metal contact. This means the friction material is completely worn away, and the backing plate is grinding against the rotor. Immediate replacement is necessary to prevent severe rotor damage.

Vibration or Pulsation Through the Pedal

• This often suggests issues with the brake rotors, such as warping or uneven wear. However, it can also be exacerbated by unevenly worn brake pads or a caliper issue. Inspect both pads and rotors; often, both need attention.

Reduced Braking Performance (Brake Fade)

• This occurs when the brakes lose effectiveness, usually after repeated heavy braking. It can be due to overheating of the friction material (exceeding its temperature limits) or boiling of brake fluid. Ensure you are using the correct type of brake pad for your driving style and vehicle, and consider upgrading to pads with higher heat resistance if you frequently experience fade.

Uneven Pad Wear

• If one pad on an axle wears significantly faster than the other, or if a pad wears unevenly across its surface, it often points to a problem with the brake caliper (e.g., a seized piston or guide pin) or the rotor. A full brake inspection is required to diagnose and rectify the underlying issue.

Frequently Asked Questions (Q&A)

How often should brake pads be replaced?

There's no fixed interval, as it depends heavily on driving style, vehicle type, and environment. Generally, front brake pads last between 30,000 to 70,000 miles, while rear pads can last longer, often 50,000 to 100,000 miles. Always refer to your vehicle's owner's manual and have your brakes inspected regularly by a qualified mechanic.

Can I replace brake pads myself?

While it is possible for a competent DIY enthusiast with the right tools and knowledge, brake replacement is a critical safety task. Incorrect installation can lead to brake failure. If you're not confident, it's always best to have them replaced by a professional.

What are the signs of worn brake pads?

Common signs include a squealing or grinding noise when braking, a visual inspection showing less than 3mm of friction material remaining, a soft or spongy brake pedal, the brake warning light illuminating on your dashboard, or your car pulling to one side when braking.

Are expensive brake pads always better?

Not necessarily "better" in all contexts, but they often offer superior performance characteristics like better heat resistance, quieter operation, less dust, and longer lifespan. The "best" pad depends on your driving needs and vehicle. For everyday driving, standard OEM quality pads are usually sufficient, while performance drivers might benefit from higher-spec options.

What is "bedding-in" and why is it important?

Bedding-in (or break-in) is a process of carefully applying new brake pads and rotors to transfer a thin, even layer of friction material from the pad to the rotor surface. This process optimises braking performance, reduces noise, and prevents judder by creating a uniform contact surface, ensuring consistent friction and heat dissipation.

What's the difference between ceramic, semi-metallic, and organic pads?

• Organic (NAO): Made from natural materials (e.g., glass, rubber, carbon compounds). Quieter, less abrasive on rotors, good for everyday driving, but can wear faster and have lower heat resistance.
• Semi-Metallic: Composed of 30-65% metals (e.g., copper, iron, steel wool) mixed with organic fillers. Offer excellent stopping power and heat dissipation, durable, but can be noisier and produce more dust.
• Ceramic: Made from ceramic fibres, fillers, and bonding agents. Known for quiet operation, very low dust, and stable performance across a wide temperature range, often considered a premium option.

Conclusion

The humble brake pad is far from a simple component. Its creation involves intricate engineering, advanced material science, and stringent quality control, from the initial stamping of the steel backing plate to the precise application of the friction material and the innovative NRS technology for a secure bond. Understanding this complex manufacturing journey highlights the dedication to safety and performance that goes into every brake pad fitted to our vehicles. Regular maintenance and choosing quality components are paramount to ensuring your car's stopping power remains as reliable as the day it rolled off the production line.
