Mastering Fuel Injection Pump Adjustment

For any diesel engine owner, understanding the heart of the fuel system – the fuel injection pump – is paramount. This intricate component is responsible for delivering precisely metered amounts of fuel to each cylinder at the exact right moment, under immense pressure. Its accurate adjustment is not just about optimising performance; it's fundamental to your engine's health, fuel economy, and emissions compliance. A misadjusted pump can lead to a host of problems, from sluggish performance and excessive smoke to severe engine damage. While some basic adjustments might seem straightforward, the precision required often means this task is best left to experienced professionals.

The fuel injection pump is the brain of a diesel engine's fuel delivery system. Unlike petrol engines, diesel engines rely on compression ignition, meaning fuel must be injected into the cylinder at the precise moment the air is sufficiently compressed and hot enough to ignite the fuel. The pump ensures this happens with incredible accuracy, controlling both the timing of injection and the volume of fuel delivered. Without this precision, the combustion process becomes inefficient, leading to a cascade of negative effects.

Signs Your Fuel Injection Pump Needs Attention

Your vehicle often provides clear indicators when its fuel injection pump is not operating within optimal parameters. Recognising these signs early can prevent more significant issues:

• Excessive Exhaust Smoke: This is one of the most common and visible signs.
• Black Smoke: Often indicates too much fuel or insufficient air for combustion, possibly due to over-fuelling or retarded timing.
• White Smoke: Can suggest unburnt fuel, often due to very retarded timing, low compression, or cold starting issues.
• Blue Smoke: Typically points to oil burning, but in some cases, severe injection issues can exacerbate it.
• Poor Fuel Economy: If your engine is suddenly consuming more fuel than usual for the same mileage, an incorrectly adjusted pump could be the culprit.
• Reduced Power and Acceleration: A lack of responsiveness or a noticeable drop in power, especially under load, suggests the engine isn't getting the right amount of fuel at the right time.
• Hard Starting: Particularly in cold weather, an incorrectly timed pump can make starting very difficult.
• Rough Idling or Stalling: An unstable idle, excessive vibration, or the engine cutting out at idle can be symptoms of poor fuel delivery or timing.
• Engine Knocking or Pinging: A sharp, metallic knocking sound, especially under acceleration, can indicate excessively advanced injection timing.
• Engine Overheating: While less common, severely retarded timing can lead to higher exhaust gas temperatures and potential overheating.

Understanding the Core Adjustments

Adjusting a fuel injection pump primarily revolves around two critical parameters: timing and fuel delivery (volume). A third, simpler adjustment is for idle speed, and more complex systems may involve governor settings.

1. Injection Timing

This is arguably the most critical adjustment. Injection timing refers to the precise moment, relative to the piston's position, when fuel is injected into the cylinder. It's measured in degrees of crankshaft rotation Before Top Dead Centre (BTDC) on the compression stroke. Getting this wrong can severely impact engine performance and longevity.

• Static Timing: This is performed with the engine off. It involves setting the initial injection point using specific tools like a dial indicator or a timing pin, usually relative to a mark on the crankshaft pulley or flywheel. It establishes the basic timing relationship between the pump and the engine.
• Dynamic Timing: This is performed with the engine running, often using a specialised timing light or diagnostic equipment that senses the actual injection event. Dynamic timing takes into account factors like engine speed and load, providing a more accurate real-world timing setting. This is crucial for electronic pumps or for fine-tuning mechanical pumps.

2. Fuel Delivery (Volume)

This adjustment controls the amount of fuel injected into each cylinder per power stroke. It directly influences engine power output, fuel economy, and exhaust emissions. Adjusting fuel volume is significantly more complex than timing and is almost exclusively performed on a specialist test bench.

• On a Test Bench: Fuel injection pumps are calibrated on a dedicated test bench that simulates engine operating conditions. This allows technicians to precisely measure and adjust the fuel flow rate at various RPMs and load settings. This level of precision cannot be achieved with the pump fitted to the engine.
• Impact: Too much fuel leads to black smoke, poor economy, and potential engine wash-down (diluting oil). Too little fuel leads to a lack of power and potentially higher exhaust temperatures.

3. Idle Speed

This is the simplest adjustment, typically controlled by an idle speed screw on the pump or accelerator linkage. It sets the minimum engine speed when the accelerator pedal is released. While straightforward, it should only be adjusted after timing and fuel delivery are correct.

4. Governor Settings

The governor within the fuel injection pump controls the engine's speed under varying loads, preventing over-speeding and maintaining a steady RPM. While governor settings are factory-set and rarely require adjustment for general use, they can be modified for specific industrial applications or performance tuning, but this requires expert knowledge.

Tools and Precision: Why it Matters

Attempting to adjust a fuel injection pump without the correct tools and a thorough understanding of the process is highly inadvisable. Precision is paramount. Essential tools for timing adjustment typically include:

• Dial Indicator: Used for static timing on many pumps to measure the lift of the pump plunger.

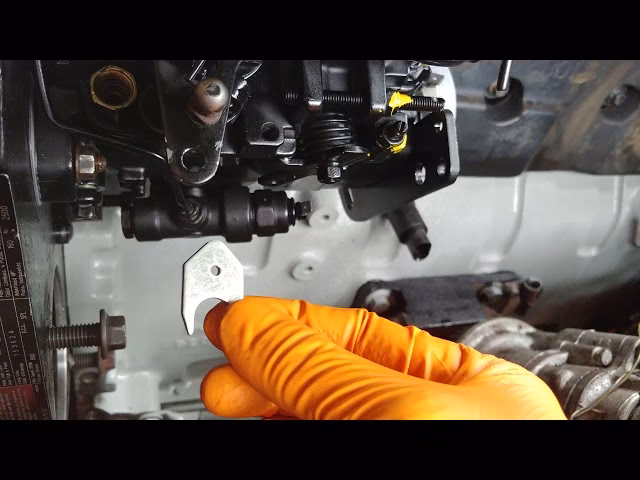

• Specific Timing Pins or Locking Tools: Required to lock the engine at Top Dead Centre (TDC) or a specific timing mark.
• Special Wrenches/Spanners: For loosening and tightening pump mounting bolts and fuel lines.
• Feeler Gauges: For checking clearances on some older systems.
• Workshop Manual: Absolutely essential for specific make and model procedures and specifications.

The consequences of incorrect adjustment range from minor inefficiencies to catastrophic engine failure. Even a single degree of timing error can lead to a noticeable drop in performance or an increase in harmful emissions. Incorrect fuel volume can lead to engine overheating, piston damage, or a 'runaway' engine in severe cases.

The Step-by-Step (Simplified) Guide to Static Timing Adjustment

Please note: This is a general guide. Always consult your specific vehicle's workshop manual for precise instructions and specifications. If you are not confident, seek professional help.

1. Safety First: Ensure the vehicle is on level ground, the engine is cool, the parking brake is engaged, and the battery is disconnected to prevent accidental starting.
2. Locate Timing Marks: Identify the timing marks on the crankshaft pulley, flywheel, or camshaft, and the corresponding marks on the engine block.
3. Bring Engine to TDC: Rotate the crankshaft manually (usually via a bolt on the pulley) until the engine is at or near Top Dead Centre (TDC) for cylinder number one on its compression stroke. Use the timing pin or marks to confirm.
4. Access the Pump: Depending on the pump type, you may need to remove covers or certain components to access the timing port.
5. Install Dial Indicator: For pumps designed for dial indicator timing, remove the plug on the pump body (often on the rear or side) and carefully screw in the dial indicator with the appropriate extension.
6. Find Zero Point: Rotate the engine slightly backwards and then forwards again, watching the dial indicator. Find the lowest point on the dial, set the dial to zero at this point.
7. Rotate to Specified Timing Mark: Slowly rotate the crankshaft forward to the specified timing mark (e.g., 10 degrees BTDC). As you rotate, the dial indicator will show a specific lift.

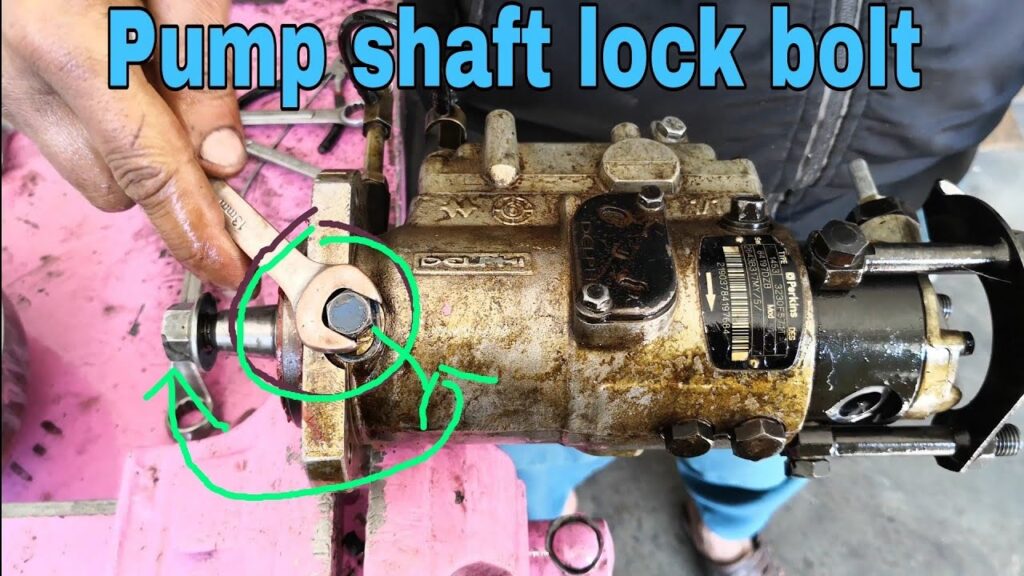

8. Adjust Pump Position: Loosen the pump's mounting bolts. Gently rotate the body of the fuel injection pump (often with a rubber mallet or by hand) until the dial indicator shows the manufacturer's specified lift reading for that timing mark.
9. Secure and Recheck: Once the correct lift is achieved, carefully tighten the pump mounting bolts. Recheck the timing by rotating the engine through a full cycle and verifying the dial indicator reading at the specified timing mark.
10. Reconnect and Test: Reconnect anything that was removed, reconnect the battery, and start the engine. Listen for smooth operation, check for any leaks, and monitor exhaust smoke.

This process requires a steady hand, patience, and absolute adherence to manufacturer specifications. Even slight deviations can have adverse effects.

When to Call in the Professionals

While the concept of adjusting a fuel injection pump might seem like a DIY challenge, the reality is that for most modern diesel engines, and especially for fuel volume adjustments, professional intervention is highly recommended. Here's why:

• Specialised Equipment: Accurate fuel volume adjustment requires a dedicated test bench, an expensive piece of equipment not available to the average home mechanic.
• Expertise: Diesel fuel systems are complex. Professionals have extensive training and experience with various pump types and their intricate internal mechanisms.
• Diagnostic Tools: Modern diesel engines often require sophisticated diagnostic software to read fault codes, monitor live data, and sometimes even electronically adjust parameters.
• Risk of Damage: Incorrect adjustments can lead to costly damage to the fuel pump itself, injectors, or even internal engine components (e.g., pistons, valves).
• Warranty: Tampering with the fuel system can void your vehicle's warranty.

If you're experiencing severe symptoms like persistent smoke, significant power loss, or unusual engine noises, it's always best to consult a reputable diesel specialist. They possess the knowledge and tools to diagnose the root cause accurately and perform the necessary adjustments safely and effectively.

Benefits of a Properly Adjusted Fuel Injection Pump

Investing in correct fuel injection pump adjustment or professional service yields significant returns:

• Improved Fuel Efficiency: Precisely timed and metered fuel means less waste and more miles per gallon.
• Restored Engine Power: Your engine will deliver its intended horsepower and torque, making driving more enjoyable and safer.
• Reduced Emissions: A clean burn means fewer harmful pollutants are released into the atmosphere, helping your vehicle pass emissions tests.
• Smoother Engine Operation: Reduced knocking, vibration, and a stable idle contribute to a more comfortable driving experience.
• Extended Engine Life: Correct combustion prevents undue stress and wear on engine components, prolonging the lifespan of your valuable asset.

Symptoms of Incorrect Fuel Injection Timing

Frequently Asked Questions (FAQs)

Can I adjust my fuel injection pump at home?

While some basic static timing adjustments might be possible for experienced DIY mechanics with the correct tools and a detailed workshop manual, adjusting fuel delivery (volume) requires a specialist test bench. For anything beyond basic timing, or if you lack confidence, professional assistance is strongly advised.

How often does a fuel injection pump need adjustment?

Fuel injection pumps generally do not require routine adjustment. They are typically adjusted during engine overhaul, pump replacement, or when specific symptoms of misadjustment (e.g., excessive smoke, poor performance) become apparent. Modern common rail systems often self-adjust electronically.

What are the risks of incorrect adjustment?

The risks are significant and can include severe engine damage (e.g., damaged pistons, valves, or turbocharger), drastically reduced engine life, poor fuel economy, excessive emissions, and a significant loss of power. It can turn a simple adjustment into a very costly repair.

What's the difference between static and dynamic timing?

Static timing is set with the engine off, typically using a dial indicator to measure pump plunger lift relative to engine position. Dynamic timing is performed with the engine running, using specialised equipment to measure the actual injection event in real-time, accounting for various engine operating conditions.

How much does a professional fuel injection pump adjustment cost?

The cost varies significantly depending on the vehicle make and model, the type of pump, the complexity of the adjustment, and the labour rates of the workshop. It can range from a few hundred pounds for a basic timing adjustment to considerably more if the pump needs to be removed for a full bench test and calibration. Always obtain a quote from a reputable diesel specialist.
