Mastering SRAM Guide R Brake Installation

When it comes to mountain biking, having reliable and powerful brakes isn't just a luxury; it's an absolute necessity. SRAM Guide R hydraulic disc brakes are renowned for their exceptional stopping power, smooth modulation, and consistent performance across diverse riding conditions. Whether you're navigating challenging descents or precise technical trails, these brakes offer the control you need. However, to truly unlock their potential and ensure long-term reliability, meticulous installation, precise adjustment, and diligent maintenance are paramount.

This detailed guide has been crafted to walk you through every critical aspect of setting up your SRAM Guide R brakes. From the initial mounting of components to fine-tuning for optimal feel and understanding routine care, we'll provide expert steps to ensure your braking system operates at its absolute peak performance. By following these instructions, you'll gain the confidence and control that only a perfectly installed and maintained braking system can provide.

Essential Tools for the Task

Before you begin the installation or any maintenance procedures on your SRAM Guide R brakes, gather the following tools. Having them readily accessible will streamline the process and prevent unnecessary interruptions:

• T25 Torx Wrench: Crucial for tightening clamp bolts on your brake levers and mounting bolts for your rotors. Ensure it's a good quality tool to prevent stripping bolt heads.
• SRAM Hydraulic Hose-Cutting Tool: While not always necessary if your hoses are pre-cut to length, this tool ensures a perfectly clean, square cut for optimal hose integrity and bleed performance should you need to shorten them.
• New Olives and Barbs: Essential consumables if you shorten your brake hoses. These tiny components create the seal within the compression fitting, so always use new ones after cutting.
• SRAM Bleed Kit: Absolutely vital for bleeding your brakes. This kit typically includes syringes, hoses, and various fittings specific to SRAM DOT fluid systems.
• DOT 5.1 Brake Fluid: Only use DOT 5.1 fluid with SRAM Guide R brakes. Never use mineral oil, as it will cause irreparable damage to the system's seals and components.
• Isopropyl Alcohol: For cleaning rotors and pads. It evaporates quickly and leaves no residue, making it ideal for brake components.
• Lint-Free Rags: Essential for cleaning and wiping away excess fluid without leaving fibres that could contaminate braking surfaces.
• Torque Wrench: While a T25 Torx wrench is listed, a torque wrench with a T25 bit is highly recommended for achieving precise torque specifications, preventing over-tightening or under-tightening of bolts.

Installing Your SRAM Guide R Disc Brakes: A Step-by-Step Guide

Step 1: Mounting the Brake Calipers

The brake caliper is the heart of your braking system, housing the pistons and pads that grip the rotor. Begin by aligning the caliper with the designated post-mount on your bicycle frame or fork. SRAM Guide R brakes are designed primarily for post-mount systems, but they can be adapted to flat-mount frames or forks using the correct adapter. Carefully insert the mounting bolts through the caliper and into the frame/fork mounts. At this stage, only thread the bolts in loosely. Do not fully tighten them yet; precise caliper alignment, which is critical for rub-free operation, will be performed later once the wheel and rotor are installed.

Step 2: Installing the Brake Levers

Your brake levers are your primary interface with the braking system, so their position is crucial for comfort and control. Slide the brake levers onto your handlebars, ensuring they are on the correct side (front brake lever on the left for UK riders, rear brake lever on the right). Position them at an angle that feels natural and comfortable for your hands and wrists, allowing easy reach and full lever pull without stretching or discomfort. Many riders prefer the lever to align with their index finger when their hand is naturally resting on the grip. Once you've found your ideal position, use your T25 Torx wrench to tighten the clamp bolts. Refer to your owner's manual for the exact torque specification, but generally, a range of 4–6Nm is recommended. Tighten them evenly to avoid stressing the clamp.

Step 3: Attaching the Brake Hose

This step requires precision to ensure a leak-free system. If your brake hose is too long and needs shortening, it's imperative to use a dedicated SRAM hydraulic hose-cutting tool. This tool ensures a perfectly clean, square cut, which is vital for the integrity of the hydraulic seal. A ragged cut can lead to leaks or poor braking performance. After cutting, install a new olive and barb onto the hose end. The olive compresses to form a seal, and the barb ensures fluid flow. Insert the prepared hose end into the brake lever's compression fitting. Tighten the compression fitting bolt firmly, ensuring the hose is securely seated and no fluid can escape. This is a critical seal point.

Step 4: Installing the Rotors

The brake rotor is the disc that the brake pads clamp onto. Place the disc rotor onto the wheel hub, paying close attention to any directional arrows on the rotor itself. These arrows indicate the direction of wheel rotation and are important for optimal cooling and performance. Secure the rotor using either six rotor bolts (for 6-bolt rotors) or a lockring (for Centerlock rotors). If using 6-bolt rotors, tighten the bolts in a star pattern. This method ensures even pressure distribution, which helps to prevent rotor warping and promotes consistent braking. Again, refer to the manufacturer's torque specifications for these bolts, typically around 5-6Nm.

Step 5: Aligning the Calipers

Proper caliper alignment is essential for quiet, rub-free braking and optimal performance. With the wheel and rotor now installed, slightly loosen the caliper mounting bolts (the ones you initially left loose in Step 1). Now, firmly squeeze the brake lever and hold it down. While holding the lever, carefully tighten the caliper mounting bolts evenly. The pressure from the lever will naturally centre the caliper over the rotor. Once the bolts are snug, release the lever and spin the wheel. Check for any rotor rub. If you hear or feel rubbing, loosen the bolts slightly and repeat the squeeze-and-tighten process. Sometimes, a very slight manual adjustment after the lever method is needed to achieve perfect alignment.

Adjusting Your SRAM Guide R Brakes for Optimal Feel

Once your brakes are installed, fine-tuning them to your personal preference is the next crucial step for a comfortable and responsive ride.

Lever Reach Adjustment

The SRAM Guide R brakes feature a convenient Lever Reach Adjust dial. This allows you to customise the distance between the brake lever blade and the handlebar, accommodating different hand sizes and riding preferences. To bring the lever closer to the handlebar, turn the dial clockwise. This is often preferred by riders with smaller hands or those who prefer to brake with fewer fingers. To increase the reach, moving the lever further from the handlebar, turn the dial counterclockwise. Experiment with this adjustment to find the position that offers the most comfortable and confident grip for your braking style.

Pad Contact Adjustment (Not Available on Guide R)

It's important to note that unlike some higher-end SRAM Guide models (such as the Guide RSC or Ultimate), the Guide R does not feature a dedicated pad contact adjustment. This means you cannot adjust the point in the lever's travel where the pads engage the rotor. Instead, achieving the correct pad clearance and a firm lever feel on the Guide R relies heavily on proper caliper alignment and, most importantly, thorough brake bleeding. If your lever feels spongy or engages too close to the bar, it's likely an indication that your system requires a bleed rather than an adjustment that isn't present on this model.

Maintaining Your SRAM Guide R Brakes

Regular maintenance is key to prolonging the life of your SRAM Guide R brakes and ensuring consistent, reliable performance on every ride.

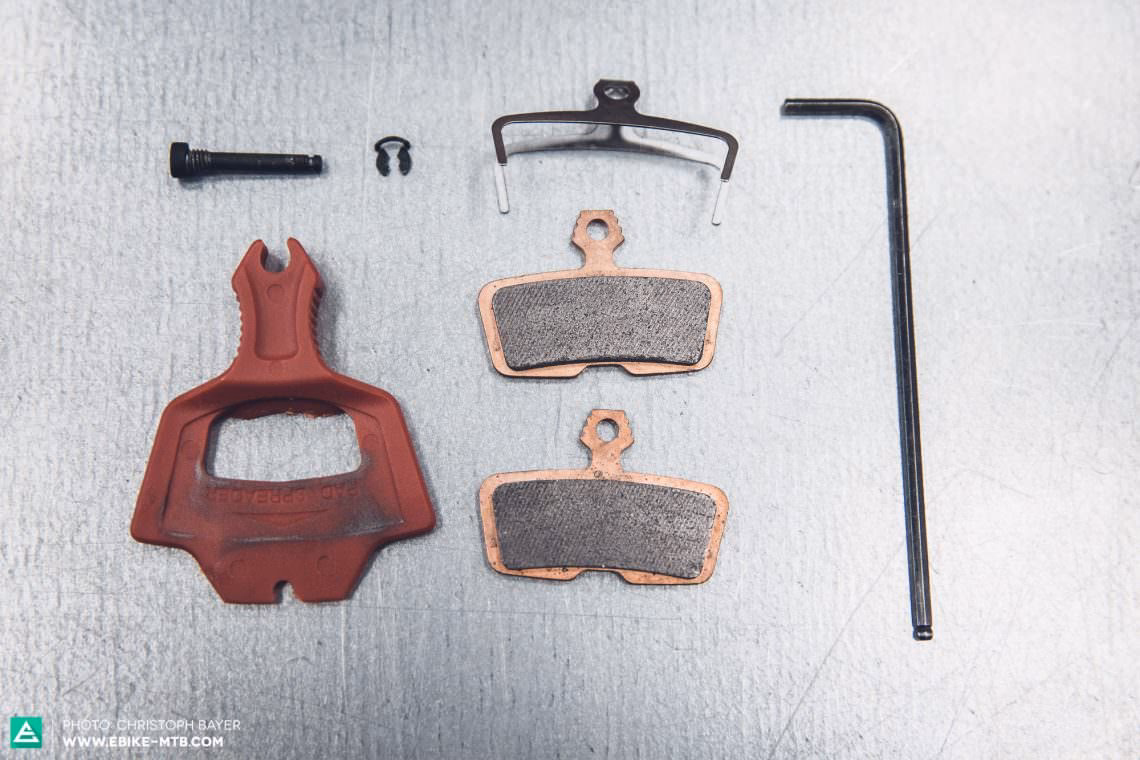

Cleaning the Rotors and Pads

Contamination is the enemy of quiet, powerful braking. Regularly use isopropyl alcohol and a clean, lint-free rag to clean your rotors. Spray the alcohol directly onto the rotor and wipe thoroughly. It's vital to avoid touching the braking surface of the rotor with bare hands, as the oils from your skin can easily contaminate the pads, leading to squealing and reduced braking power. If your brake pads become contaminated (often indicated by glazing or persistent noise even after rotor cleaning), they may need to be lightly sanded with fine-grit sandpaper to remove the glazed surface, or, more often, replaced entirely. Clean pads and rotors are fundamental for effective braking.

Bleeding the Brakes

SRAM Guide R brakes utilise DOT 5.1 fluid, which is hygroscopic, meaning it absorbs moisture from the air over time. This moisture absorption lowers the fluid's boiling point and can lead to a spongy lever feel and reduced braking performance, especially during long descents where heat builds up. Therefore, a yearly brake bleed is highly recommended to ensure consistent performance and system longevity. To bleed your brakes, attach the SRAM bleed kit syringes to the lever and caliper bleed ports. Carefully push fresh DOT 5.1 fluid through the system from the caliper to the lever, ensuring all air bubbles are expelled. Follow the specific instructions provided with your SRAM bleed kit. After bleeding, close the bleed ports securely and clean any excess fluid from the system and surrounding components.

Troubleshooting Common SRAM Guide R Brake Issues

Even with proper installation and maintenance, you might encounter minor issues. Here's how to diagnose and resolve some common problems:

Brakes Feel Spongy or Weak

This is perhaps the most common issue with hydraulic disc brakes. A spongy or weak lever feel almost always indicates that there is air trapped within the hydraulic system. Air is compressible, unlike brake fluid, which leads to a soft lever. The solution is to bleed the system thoroughly to remove all air bubbles and ensure a firm, responsive lever feel. Ensure you're using fresh DOT 5.1 fluid during the bleed process.

Brakes Are Noisy (Squealing or Grinding)

Noisy brakes can be incredibly annoying and often indicate a problem. Squealing is most commonly caused by contamination of the rotor or brake pads by oil, grease, or other debris. Start by thoroughly cleaning both your rotors and brake pads with isopropyl alcohol and a lint-free rag. Ensure your hands do not touch the braking surfaces. If the issue persists, your brake pads may be permanently contaminated or glazed and will need to be replaced. Grinding noises often suggest worn-out brake pads, meaning the backing plate is contacting the rotor, which requires immediate pad replacement.

Brake Lever Feels Sticky or Slow to Return

If your brake lever doesn't snap back crisply after being pulled, or feels sluggish, there could be a few culprits. Firstly, check for contaminated brake fluid, which can become sludgy over time. Performing a complete brake bleed with fresh DOT 5.1 fluid is often the solution. Secondly, inspect the lever pivot point for dirt buildup or lack of lubrication. Clean the pivot thoroughly and apply a small amount of appropriate grease if necessary, ensuring not to get any on the lever blade itself.

Comparing SRAM Guide R to Similar Models

Understanding where the Guide R fits within the SRAM lineup can help you appreciate its specific strengths and consider potential upgrade paths if your riding style evolves.

SRAM Guide R vs. SRAM Guide RS

The Guide R is the entry point into the Guide series, offering excellent stopping power and the essential Lever Reach adjustment. It's a fantastic choice for riders seeking reliable performance without breaking the bank. The Guide RS, on the other hand, steps up by adding SRAM's SwingLink™ technology. SwingLink provides a more progressive lever feel, meaning the pads engage the rotor more quickly, but then the power ramps up smoothly throughout the rest of the lever travel. This often translates to better modulation and a more controlled braking experience for experienced riders.

SRAM Guide R vs. SRAM Code R

While both are SRAM hydraulic disc brakes, the Guide R and Code R are designed for fundamentally different riding disciplines. The Guide R is lighter and perfectly suited for trail riding, cross-country, and lighter enduro applications, where a balance of power and weight is desired. The Code R, however, is built for pure, unadulterated stopping power. Featuring larger pistons and a more robust design, it's the go-to brake for downhill racing, aggressive enduro riding, and powerful e-mountain bikes where maximum heat dissipation and sustained braking force are paramount.

Conclusion

Proper installation, meticulous adjustment, and diligent maintenance of your SRAM Guide R hydraulic disc brakes are not just recommendations; they are fundamental practices that will significantly enhance your riding experience. By following the detailed steps outlined in this guide, from initial mounting and precise Caliper Alignment to fine-tuning your lever reach, you ensure your braking system is operating at its absolute best.

Remember, regular Bleeding with DOT 5.1 fluid, keeping your rotors and pads impeccably clean, and addressing any troubleshooting issues promptly will keep your brakes in top shape for years of reliable, confident riding. Investing the time in these processes will pay dividends in safety, control, and enjoyment on every trail you conquer.

Frequently Asked Questions (FAQs)

1. How often should I bleed my SRAM Guide R brakes?

SRAM recommends bleeding your brakes at least once a year. However, you should also perform a bleed anytime you notice a spongy lever feel, reduced power, or if the fluid appears discoloured, as these are signs of air or contamination in the system.

2. What brake fluid does SRAM Guide R use?

SRAM Guide R brakes strictly require DOT 5.1 brake fluid. It is crucial never to use mineral oil, as it is chemically incompatible with the seals and components designed for DOT fluid, leading to rapid system failure.

3. How do I stop my SRAM Guide R brakes from squealing?

Squealing is often caused by contaminated rotors or pads. Begin by thoroughly cleaning both with isopropyl alcohol and a clean, lint-free rag. If the squealing persists, the brake pads are likely contaminated beyond cleaning and should be replaced.

4. Can I upgrade my SRAM Guide R levers to a higher-end model?

Yes, the brake levers are generally interchangeable within the Guide series. You can swap Guide R levers with Guide RS, RSC, or Ultimate levers to gain features like SwingLink technology for improved modulation, provided the hose connection is compatible.

5. What size rotors are compatible with SRAM Guide R?

SRAM Guide R brakes are compatible with a range of rotor sizes, typically including 160mm, 180mm, and 200mm. The appropriate rotor size depends on your riding style, body weight, and the type of terrain you ride. Larger rotors offer more power and better heat dissipation.

6. How do I align the calipers properly?

To align the calipers, first loosen the two caliper mounting bolts slightly. Then, firmly squeeze the brake lever to centre the caliper over the rotor. While holding the lever, tighten the mounting bolts evenly. Release the lever and check for any rotor rub. If rubbing occurs, repeat the process, making minor adjustments as needed until the rotor spins freely.
