Motorcycle Fuel Injector Cleaning Guide

Your motorcycle's fuel injectors are vital components, ensuring the precise delivery of fuel into the engine for optimal combustion. Over time, these delicate parts can become clogged with carbon deposits, varnish, and other contaminants, leading to a range of performance issues. Understanding when and how to clean your fuel injectors is crucial for maintaining your bike's health and ensuring a smooth, powerful ride. This comprehensive guide will walk you through the process, from identifying the need for cleaning to performing the task yourself.

Why Clean Your Motorcycle Fuel Injectors?

Fuel injectors, much like the carburettors of older bikes, are responsible for atomising fuel and spraying it into the combustion chamber. Modern fuel injection systems are highly sophisticated, but even the cleanest fuel can leave behind residues. These residues can build up on the injector nozzle, hindering the spray pattern and the amount of fuel delivered. This can result in:

• Reduced Fuel Efficiency: When injectors are clogged, the engine may run too lean or too rich, both of which negatively impact your miles per gallon.
• Decreased Power and Acceleration: An uneven or insufficient fuel spray means the engine isn't receiving the optimal fuel-air mixture, leading to sluggish performance and a noticeable loss of power.
• Rough Idling: Clogged injectors can cause inconsistent fuel delivery at low RPMs, resulting in an uneven or rough idle.
• Difficulty Starting: In severe cases, blocked injectors can make it difficult for the engine to start, especially when cold.
• Engine Misfires: If an injector is severely blocked, it may not deliver any fuel at all, leading to misfires and a rough-running engine.
• Increased Emissions: Inefficient combustion due to dirty injectors can lead to higher levels of harmful emissions.

When Should You Clean Your Fuel Injectors?

There's no single fixed schedule for cleaning motorcycle fuel injectors, as it depends on several factors, including the quality of fuel you use, your riding habits, and the specific make and model of your motorcycle. However, you should consider cleaning them if you experience any of the symptoms mentioned above. A good general guideline is to consider a cleaning every 15,000 to 20,000 miles, or if you notice a significant drop in performance or fuel economy. Some riders also opt for a preventative cleaning every few years, even if they haven't noticed any obvious issues, to ensure peak performance.

Types of Fuel Injector Cleaning

There are two primary methods for cleaning fuel injectors:

1. In-Tank Fuel Additives: These are the easiest and most common method. You simply add a bottle of fuel injector cleaner to your fuel tank. As the fuel circulates, the cleaning agents work to dissolve deposits. While convenient, these are generally less effective for heavily clogged injectors.
2. Professional or DIY Cleaning Methods: This involves removing the injectors from the motorcycle and cleaning them directly, either with specialised equipment or through a more hands-on process. This method is significantly more effective for tackling stubborn blockages.

How to Clean Your Motorcycle Fuel Injectors (DIY Method)

While professional cleaning is an option, many riders can tackle this task themselves with a bit of patience and the right tools. This guide will focus on a common DIY approach that involves removing the injectors. If you're not comfortable with this level of mechanical work, it's always best to consult a qualified mechanic.

Tools and Materials You'll Need:

• New O-rings and seals for the injectors (highly recommended)
• Fuel injector cleaner solution (e.g., Berryman B-12 Chemtool, Sea Foam, or a dedicated injector cleaner)
• Small, stiff brush (like a toothbrush or brass brush)
• Fine-grit sandpaper or emery cloth (optional, for stubborn deposits)
• Compressed air or a can of carb cleaner with a straw attachment
• Small container or jar
• Clean rags
• Screwdrivers and wrenches
• Service manual for your motorcycle (essential for specific procedures)
• Safety glasses and gloves

Step-by-Step Cleaning Process:

1. Preparation and Safety:

Before you begin, ensure your motorcycle is on a stable surface and the engine is cool. Wear safety glasses and gloves to protect yourself from fuel and cleaning chemicals. It's also wise to have a fire extinguisher nearby, as you'll be working with flammable liquids.

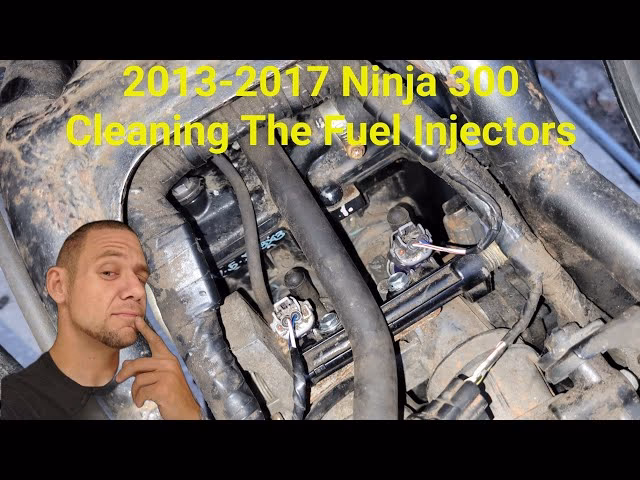

2. Accessing the Fuel Injectors:

This is the most bike-specific part of the process. You'll need to consult your motorcycle's service manual. Generally, you'll need to:

• Remove the fuel tank to gain access to the fuel rail and injectors.
• Disconnect the fuel lines and electrical connectors to the injectors. Be careful not to damage the connectors.
• Unbolt or unclip the fuel rail, which holds the injectors in place.

3. Removing the Fuel Injectors:

Once the fuel rail is accessible, carefully pull it away from the engine. The injectors should slide out of the fuel rail. Note the orientation of each injector. You may need to gently pry them out if they are stuck.

4. Cleaning the Injectors:

This is where the actual cleaning happens. For a thorough clean:

• Initial Cleaning: Use a clean rag to wipe off any loose debris from the exterior of the injectors.
• Soaking: Place the injectors in a small container with your chosen fuel injector cleaner solution. Allow them to soak for the time recommended by the cleaner's manufacturer (often a few hours or overnight).
• Scrubbing: After soaking, use a small brush to gently scrub away any remaining deposits, especially around the nozzle. For very stubborn carbon buildup, you might carefully use a small piece of fine-grit sandpaper or emery cloth on the nozzle tip, but be extremely gentle to avoid damaging the precise spray pattern.
• Flushing: This is a critical step for effective cleaning. You can use a can of carb cleaner with a straw attachment. Connect the straw to the injector's inlet and spray the cleaner through it. You should see a strong, atomised spray coming from the nozzle. This helps clear internal passages.
• Compressed Air: After flushing, blow compressed air through the injector to dry it and remove any remaining debris.

5. Inspecting and Replacing Seals:

It's highly recommended to replace the O-rings and seals on your fuel injectors whenever you remove them. These seals are critical for preventing fuel leaks and ensuring proper sealing. Old, hardened seals can lead to vacuum leaks or fuel spills. Clean the injector housing on the fuel rail and install the new seals onto the injectors before reinstallation.

6. Reinstallation:

Carefully reinsert the cleaned injectors back into the fuel rail, ensuring they are oriented correctly. Reattach the fuel rail to the engine, making sure all connections are secure. Reconnect the fuel lines and electrical connectors. Reinstall the fuel tank.

7. Testing:

Once everything is reassembled, turn on the ignition and listen for the fuel pump. Check for any fuel leaks around the injectors and fuel lines. Start the engine and let it idle. Listen for any unusual noises and observe if the idle is smoother than before. Take your motorcycle for a short test ride, paying attention to acceleration and overall performance.

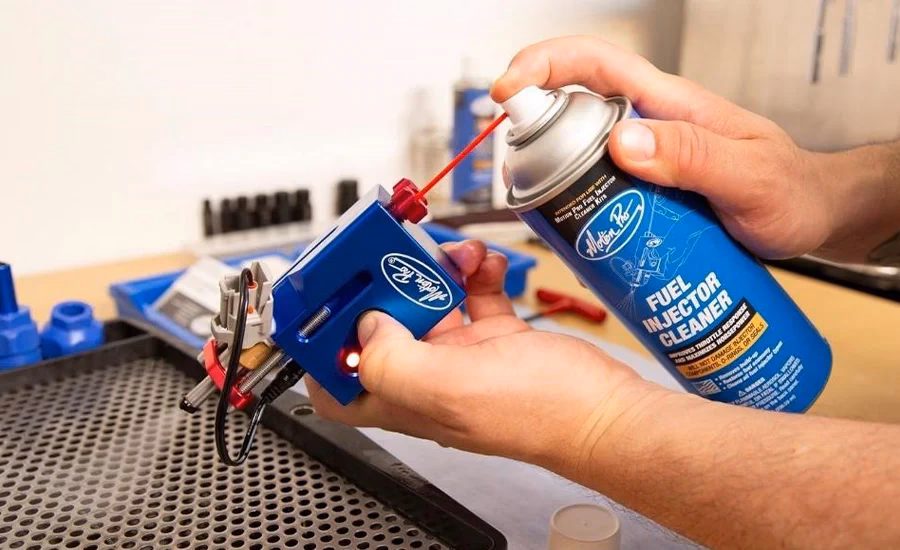

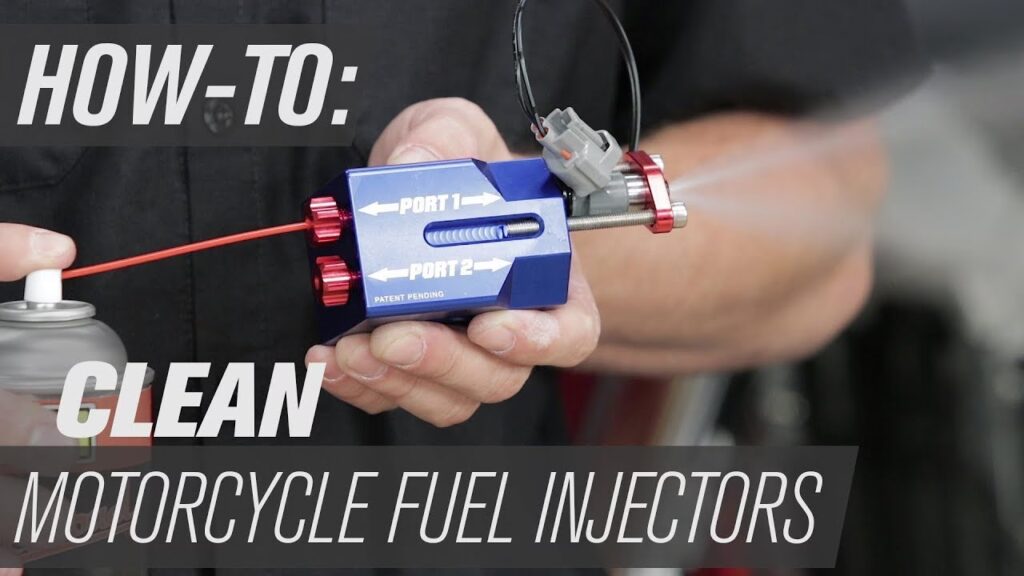

How to Clean a Motion Pro Fuel Injector (and Similar Brands)

While the general principles apply, specific brands like Motion Pro often offer specialised cleaning kits or solutions designed for ease of use. These kits might include adaptors to connect a cleaning fluid reservoir directly to the injector, allowing it to be run with pressurised cleaner. The core idea remains the same: to force a cleaning solution through the injector under pressure to dislodge deposits. Always follow the manufacturer's instructions for any specific cleaning kit you use.

Frequently Asked Questions (FAQs)

Q1: Can I just use a fuel additive to clean my injectors?

A1: Yes, fuel additives are a convenient first step and can be effective for minor deposits. However, for more significant clogs, a more thorough cleaning method, like the DIY removal and cleaning process, is often necessary.

Q2: How often should I use fuel injector cleaner additives?

A2: It's generally recommended to use a fuel injector cleaner additive every few thousand miles, or at least once a year, as a preventative measure. Check the product's instructions for specific recommendations.

Q3: Do I really need to replace the O-rings?

A3: It's highly advisable. O-rings are inexpensive and crucial for preventing leaks. They can become brittle with age and heat, and reusing old ones significantly increases the risk of fuel leaks, which can be dangerous.

Q4: What happens if I damage a fuel injector during cleaning?

A4: Damaging a fuel injector can lead to poor performance, misfires, or even complete failure. If you're unsure about any step, it's best to stop and seek professional help. Replacing a fuel injector can be costly.

Q5: Can I use brake cleaner or carb cleaner to clean injectors internally?

A5: While some people do use carb cleaner with a straw attachment for flushing, it's generally best to use a cleaner specifically designed for fuel injectors. These cleaners are formulated to be safe for the internal components and seals of the injector. Always check the compatibility of any cleaner with injector materials.

Conclusion

Keeping your motorcycle's fuel injectors clean is an essential part of regular maintenance that can significantly impact your bike's performance, efficiency, and longevity. By understanding the signs of clogged injectors and knowing how to address them, you can ensure your motorcycle continues to deliver a thrilling and reliable ride. Whether you opt for a simple additive or a more involved DIY cleaning, a little attention to your fuel system will go a long way.
