Is Your Steering Rack on the Blink? Spotting the Signs of Trouble
The steering rack is a critical component of your vehicle's steering system, translating the rotational motion of the steering wheel into the lateral movement of your wheels. When it starts to falter, it can significantly impact your driving experience and, more importantly, your safety. Recognizing the symptoms of a failing steering rack is crucial for timely repairs and preventing more serious issues. This guide will walk you through the common indicators of a worn or damaged steering rack and provide practical advice on how to identify them.
Understanding the Steering Rack
At its core, a steering rack is a metal bar with teeth that mesh with a pinion gear connected to your steering column. As you turn the steering wheel, the pinion gear rotates, causing the rack to move left or right. This movement is then transferred to the wheels via tie rods. Steering racks can be filled with oil or grease, which typically doesn't require regular changing. However, they are susceptible to leaks, contamination from grit, and general wear and tear over time.
Common Symptoms of a Bad Steering Rack
Several tell-tale signs can indicate that your steering rack is not performing as it should. Paying attention to these can save you from potential roadside trouble.
1. Loose or Excessive Play in the Steering Wheel
One of the most common symptoms is a feeling of looseness or excessive play in the steering wheel. This means you can turn the steering wheel a noticeable amount before the front wheels actually respond. A healthy steering system should feel direct and responsive.
How to Check: With the engine running and the car on a level surface, have a helper slowly turn the steering wheel back and forth. Stand in front of the car and observe the front wheels. If you can turn the steering wheel more than half an inch (approximately 13mm) before the wheels begin to move, there's likely excessive play. This play can be in the rack itself, the tie rod ends, or other steering components.
2. Stiff or Difficult Steering
If you find yourself having to exert more effort than usual to turn the steering wheel, especially at low speeds or when stationary, it could be a sign of a steering rack issue. This can sometimes be caused by a lack of lubrication or internal damage within the rack.
How to Check: Simply try steering the vehicle. Does it feel unusually heavy? If the steering feels stiff, it might indicate that the rack has lost some of its lubricating fluid. Topping up the fluid and cleaning the rack and its protective covers (gaiters) might temporarily alleviate the stiffness. If this happens, look for signs of oil leaks around the rack.
3. Noises When Turning the Steering Wheel
Unusual noises such as clunking, knocking, or grinding when you turn the steering wheel are often indicators of worn internal components within the steering rack or associated parts.
How to Check: While driving at low speeds, turn the steering wheel from lock to lock. Listen carefully for any unusual sounds. A clunking noise might suggest worn ball joints or tie rod ends, while a grinding or groaning sound could point towards a problem within the rack itself or its mounting points.
4. Leaks From the Steering Rack
The steering rack is typically sealed, but leaks can occur, often from worn seals or damaged gaiters. These leaks will usually be oil or grease escaping from the rack assembly.
How to Check: Inspect the steering rack and its surrounding components for any signs of fluid leaks. You might see oily or greasy patches, often mixed with dirt, on the rack itself or on the ground beneath the front of the car. Damaged gaiters are a common cause of leaks, as they allow contaminants in and lubricant out.
5. Vibrations Through the Steering Wheel
While vibrations can be caused by many things (like unbalanced wheels or worn tyres), persistent vibrations felt through the steering wheel, especially when turning, could be linked to a faulty steering rack.
How to Check: Pay attention to any unusual vibrations felt in the steering wheel while driving, particularly when making turns. If these are accompanied by other symptoms like looseness or noise, it strengthens the case for a steering rack problem.
Performing a Steering Rack Inspection
A thorough inspection of your steering rack can often be done at home with a bit of care and the right safety precautions. Remember, safety is paramount when working on or under a vehicle.
Safety First: Preparing for Inspection
Before you get under your car, ensure it's safely supported. If you need to get underneath, raising the front of the car is often necessary. However, it's crucial to retain the weight on the wheels if possible, or to use proper axle stands. Never work under a car supported only by a jack.
- Level Surface: Ensure the car is on a flat, level surface.
- Handbrake: Apply the handbrake firmly.
- Wheel Chocks: Place chocks behind the rear wheels.
- Gear Selection: For rear-wheel drive cars, select a gear (or 'Park' for automatics).
- Axle Stands: If raising the car, use sturdy axle stands placed under strong frame members. Never rely solely on a jack.
- Wheel Ramps: If using wheel ramps, ensure they are stable and positioned correctly under the wheels.
Checking for Play: Measuring Steering Wheel Movement
This is a key test to identify excessive wear. You'll need a helper for this.
- Mark the Wheel: Make a chalk mark on the rim of the steering wheel.
- Helper's Role: Have your helper sit in the driver's seat and slowly turn the steering wheel back and forth.
- Your Role: Stand where you can clearly see the track rods (the arms connecting the rack to the steering arms on the wheels).
- Call Out: Instruct your helper to stop turning the wheel the moment you see the track rod move.
- Measure Movement: Use your finger as a reference point on the chalk mark to gauge how much the steering wheel moved before the wheels responded.
What to Look For: If the steering wheel moves more than 1/2 inch (13mm) before the wheels start to turn, there is excessive play. This indicates wear either in the steering rack itself or in the connecting components like the tie rod ends.
Inspecting the Steering Rack and Mountings
With the car safely supported and the wheels pointing straight ahead:
- Visual Inspection: Get underneath the car and visually inspect the steering rack. Look for any signs of damage, cracks, or fluid leaks.
- Gaiter Inspection: The steering rack has rubber covers called gaiters on each end. These protect the internal components from dirt and moisture. Check these gaiters thoroughly for cracks, tears, or signs of leakage. A holed gaiter can quickly lead to rack failure. You can often temporarily repair a holed gaiter with a plastic bag and tape, but this is only a temporary fix.
- Clamping Bolts: Ensure the bolts that clamp the steering rack to the vehicle's chassis are tight. Loose clamping bolts can lead to excessive movement and noise.
Checking the Pinion and Column
The steering column connects to the steering rack via a pinion gear.
- Pinion Cover: Check the gasket on the steering pinion cover for damage and ensure the cover-retaining bolts are tight. You can tighten these yourself.
- Pinion Shaft: Grasp the steering column shaft (where it enters the rack assembly) and try to move it up and down, and side to side. If there's significant play, it could indicate worn bearings or a loose connection. If the splined joint to the steering shaft moves, try tightening the pinch bolt. If the pinion shaft itself moves excessively, it's time for a garage visit.
Gaiter Inspection: A Closer Look
The protective gaiters are vital. Their condition can tell you a lot about the health of the steering rack.
- Cleaning: Clean the gaiters thoroughly using a degreaser suitable for rubber. Avoid harsh solvents like paraffin or petrol, which can damage the rubber.

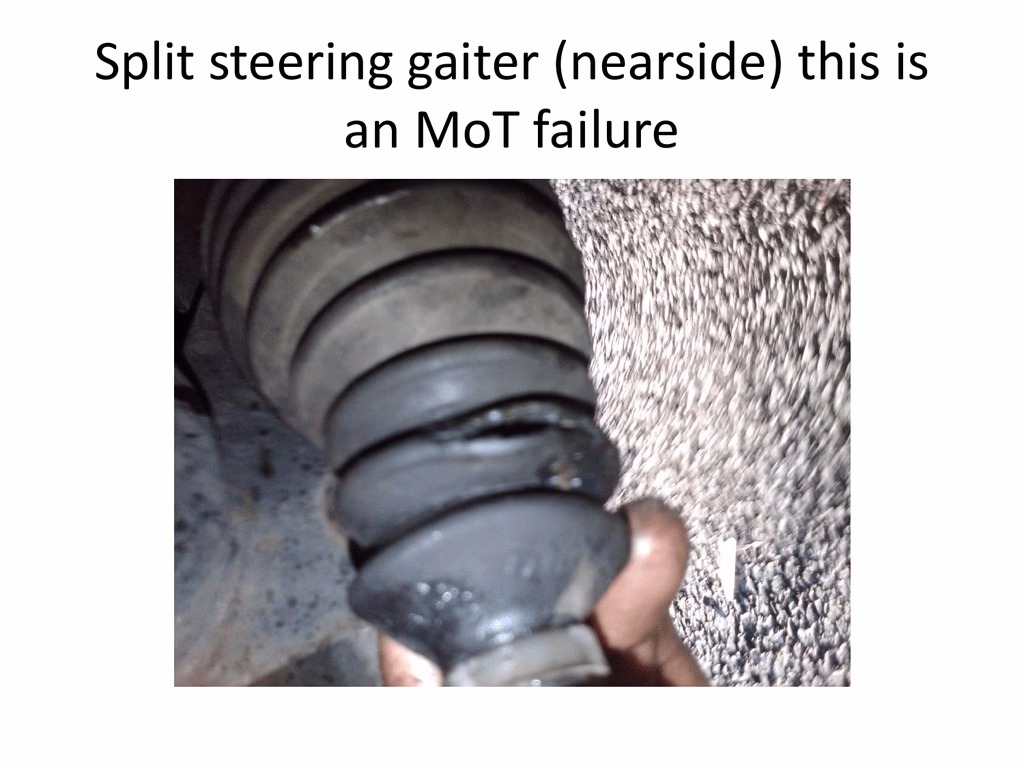

- Cracks and Tears: Inspect the entire length of the gaiter for any cracks, splits, or chafing. Pay close attention to the ridges and ends, where cracks are most common. Squeeze the gaiter gently to see if any hidden cracks open up.
- Twisting: Ensure the gaiters are not twisted. A twisted gaiter can lead to premature failure. If twisted, loosen the inner clip, straighten the gaiter, and refasten the clip securely. Replace wire clips with screw-type clips for a better seal.
- Clips: The clips holding the gaiters in place should be tight but not so tight as to cut into the rubber. Check for corrosion on the clips; rusty clips should be replaced. Ensure the clips are positioned correctly – the outer end of the gaiter is critical for preventing overstretching.
When to Call a Garage
While some basic checks can be performed at home, many steering rack issues require professional attention. Generally, you should consult a garage if:
- You suspect internal damage to the rack (e.g., grinding noises, significant internal play).
- The steering rack needs adjustment or replacement.
- There are oil leaks from the rack assembly that cannot be attributed to simple gaiter issues.
- You are uncomfortable performing any of the inspection or repair tasks.
Steering Rack Wear: A Comparative Look
It's helpful to understand how steering rack wear manifests compared to other steering system faults.
| Symptom | Potential Cause (Steering Rack) | Other Potential Causes |
|---|---|---|
| Excessive Play in Steering Wheel | Worn rack teeth, worn pinion gear, loose mounting bolts | Worn ball joints, worn tie rod ends, loose steering column U-joint |
| Stiff Steering | Low fluid level, internal rack damage, worn seals | Low power steering fluid, worn power steering pump, stiff steering column U-joint |
| Noises When Turning | Internal rack damage, worn rack mounts | Worn ball joints, worn tie rod ends, worn strut top mounts, low power steering fluid |
| Fluid Leaks | Damaged gaiters, worn rack seals | Leaking power steering hoses, leaking power steering pump |
Frequently Asked Questions (FAQ)
Q1: Can a bad steering rack affect my braking?
A1: While a faulty steering rack doesn't directly impact your braking system's hydraulic components, significant steering issues can make it difficult to control the vehicle, indirectly affecting your ability to brake safely. If steering is compromised, braking effectiveness can be severely reduced.
Q2: How long does a steering rack typically last?
A2: The lifespan of a steering rack can vary greatly depending on driving conditions, maintenance, and the quality of the unit. However, many steering racks can last for well over 100,000 miles. Regular checks of the gaiters and fluid levels can help prolong its life.
Q3: Is it safe to drive with a failing steering rack?
A3: Driving with a failing steering rack is generally not recommended. Excessive play or stiffness can make the vehicle unpredictable and difficult to control, significantly increasing the risk of an accident. It's best to address the issue as soon as possible.
Q4: What is the difference between a steering rack and power steering?
A4: The steering rack is a mechanical component that translates steering input into wheel movement. Power steering is a system that assists the driver in turning the wheel, typically using hydraulic fluid or electric motors. Many modern steering racks incorporate power steering assistance.
Q5: Can I replace the steering rack myself?
A5: Replacing a steering rack is a complex and safety-critical job that usually requires specialized tools and knowledge. While some experienced DIY mechanics might attempt it, it's generally recommended to have this work carried out by a qualified garage.
Conclusion
Your steering system is your primary connection to the road. By understanding the signs of a failing steering rack and knowing how to perform basic checks, you can ensure your vehicle remains safe and responsive. Don't ignore symptoms like looseness, stiffness, or unusual noises – they are your car's way of telling you it needs attention. Prioritizing these checks can prevent minor issues from escalating into major, costly repairs and keep you and your passengers safe on your journeys.
