Mastering Bicycle Wheel Truing: A Complete Guide

If you find yourself with a wobbly bicycle wheel, fear not! A misaligned wheel can significantly impact your riding experience, leading to inefficiency, discomfort, and even safety concerns. This comprehensive guide will walk you through the precise steps of truing a bicycle wheel that’s out of alignment, ensuring a smooth and steady ride. While the process requires a little patience and a few basic tools, mastering wheel truing is a valuable skill for any cyclist, saving you time and money on workshop visits. So, grab your spoke wrench and let's get your wheels spinning perfectly!

Inspecting Your Wheel for Underlying Issues

Before you even think about adjusting spokes, a thorough inspection of your bicycle wheel is paramount. Identifying any pre-existing damage or issues can prevent frustration and further problems down the line. This initial assessment will guide your truing efforts.

Checking for Visible Damage to the Rim and Spokes

Begin by giving your wheel a good visual once-over. Look closely at the rim for any signs of cracks, dents, or severe bends. A severely damaged rim might be beyond truing and could require replacement. Similarly, inspect each spoke. Are any visibly bent, twisted, or broken? Are there any cracks around the spoke holes on the rim or the hub flange? If you spot any structural damage – especially to the rim – it is absolutely crucial to address this first. Attempting to true a wheel with a compromised rim or broken spokes is futile and potentially dangerous, as it compromises the wheel's integrity.

Detecting Loose or Unevenly Tensioned Spokes

Spoke tension is the backbone of a strong, true wheel. Loose spokes are a common culprit for wobbles. To check for loose spokes, gently squeeze adjacent pairs of spokes together with your fingers, working your way around the entire wheel. Pay attention to the 'feel' and 'sound' – a good, consistent tension will feel firm, and when plucked, a well-tensioned spoke will produce a consistent pitch (though perfect pitch matching requires a tensiometer). If any spokes feel significantly looser or tighter than their neighbours, they will certainly need adjustment. Uneven tension can lead to stress points and premature wheel failure.

Assessing for Axle Misalignment

Sometimes, a wobbly wheel isn't about the spokes or rim but the axle's position within the fork or frame. To check for axle misalignment, first, ensure your bike is stable, either in a work stand or flipped upside down. Spin the wheel slowly and observe the gap between the brake pads (or the fork blades/chainstays) and the rim. If this gap consistently changes in width as the wheel rotates, it could indicate that the axle is not seated correctly or the quick-release/thru-axle skewer isn't tightened evenly. Ensure the wheel is fully seated in the dropouts and the skewer is tightened firmly and symmetrically before proceeding with spoke adjustments.

Essential Tools and Preparation for Truing

Having the right tools is half the battle when it comes to effective wheel truing. Proper preparation ensures a smooth and efficient process.

Gathering Your Essential Truing Kit

To successfully true your bicycle wheel, you'll need a few key pieces of equipment. The most critical is a spoke wrench, which comes in various sizes to match different spoke nipple dimensions. Ensure you have the correct size for your wheel to avoid stripping the nipples. A dedicated truing stand is highly recommended as it provides a stable and precise platform, allowing for accurate measurements and adjustments. While not strictly necessary for basic truing, a truing stand significantly simplifies the process. Additionally, a bicycle pump is useful for checking and adjusting tyre pressure, and a rag or towel will help keep the rim clean and free of debris, which can interfere with accurate readings. For advanced truing, a dishing tool and a spoke tensiometer are invaluable, though not essential for a first-timer.

Securing the Wheel Properly for Stability

Before any adjustments, your wheel must be absolutely secure. If you're using a truing stand, mount the wheel firmly using the quick-release or axle adapters. Ensure it's snugly seated and spins freely without any lateral play. If you don't have a truing stand, your bike frame can serve as a makeshift alternative. Secure the bike in a stable position – ideally upside down or in a bike repair stand – so the wheel can spin freely. Use the brake pads or zip ties attached to the fork/stays as makeshift gauges. The stability of your setup directly impacts the accuracy of your truing efforts, so take your time to get this right.

Understanding Spoke Dynamics for Effective Truing

The art of wheel truing lies in manipulating spoke tension. Understanding how each spoke influences the rim's position is fundamental.

The Critical Role of Spoke Tension in Wheel Integrity

Every spoke in your wheel plays a vital role in distributing the load and maintaining the wheel's shape. They are under tension, pulling the rim towards the hub. When spokes are tightened, they pull the rim closer to the hub in that specific area; when loosened, they allow the rim to move away. The goal is to achieve a balanced tension across all spokes, which creates a strong, stiff, and true wheel. Uneven tension is the primary cause of wobbles and can lead to premature spoke or rim failure. Incremental adjustments are key – a quarter or half turn of the spoke wrench can make a significant difference.

Identifying Specific Problem Areas: Lateral and Radial Runout

Once your wheel is spinning freely, it's time to identify where the problems lie. Spin the wheel slowly and observe it closely. You're looking for two main types of runout:

• Lateral Runout (Side-to-Side Wobble): This is when the rim moves from left to right as it spins. Use the truing stand's callipers or your makeshift brake pad/zip tie gauges to pinpoint the exact areas where the rim deviates. Mark these spots with a piece of chalk or a sticker.
• Radial Runout (Up-and-Down Bumps): This refers to high or low spots on the rim, where it moves closer or further from the hub. Observe the top and bottom of the rim as it spins relative to a fixed point (like the truing stand's radial gauge or your fork crown). Again, mark any noticeable high or low spots.

It's generally recommended to address lateral runout first, as correcting it often influences radial alignment, making the latter easier to tackle afterwards.

Adjusting Spokes: The Fundamental Principle

With problem areas identified, you can begin adjusting. Remember:

• To move the rim towards a spoke: Tighten that spoke's nipple.
• To move the rim away from a spoke: Loosen that spoke's nipple.

For lateral truing, if the rim deviates to the left, tighten the spokes on the right side of the wheel (pulling it back to the right) and/or slightly loosen spokes on the left side (allowing it to move right). For radial truing, if there's a high spot, loosen the spokes in that area; if there's a low spot, tighten the spokes in that area. Always make small adjustments – a quarter to a half turn at most – and re-check frequently. It's a dance of tightening and loosening, finding the perfect balance.

Leveraging the Truing Stand for Precision

A dedicated truing stand transforms wheel truing from a tricky guessing game into a precise, manageable task.

Setting Up Your Wheel in the Truing Stand

The truing stand provides a stable and accurate reference point. Attach your wheel securely to the stand, ensuring the quick-release or thru-axle is properly tightened. The wheel should sit squarely in the stand and spin freely without any rubbing or resistance. Most truing stands have adjustable arms or callipers that can be brought close to the rim to act as gauges, making it much easier to visualise even minute deviations.

Calibrating the Truing Stand for Accurate Readings

Once the wheel is mounted, adjust the truing stand's gauges. Position the lateral gauges (the side arms) so they are very close to the rim, but not touching it. Spin the wheel to find the closest point of contact, then back off the gauge slightly so it just clears the rim. Do the same for the radial gauge (the top/bottom arm). This calibration establishes your reference points for identifying high/low spots and side-to-side wobbles. The closer the gauges are, the more precise your adjustments can be.

Correcting Lateral Runout: Eliminating Side-to-Side Wobble

Lateral truing is often the first step in bringing a wobbly wheel back to life.

Pinpointing Lateral Deviations with Precision

Spin the wheel slowly and observe the rim's movement against the lateral gauges of your truing stand. Identify the exact points where the rim deviates most significantly to the left or right. Mark these "hot spots" with a piece of chalk or a small sticker. A systematic approach is best: focus on one wobble at a time, making small adjustments and re-checking.

Lateral Adjustment Techniques: Pulling the Rim True

To correct a lateral wobble, you'll be adjusting spokes on opposite sides of the wheel.

• If the rim bulges to the left, you need to pull it back to the right. To do this, tighten the spokes on the right side of the wheel in that area. Simultaneously, you can slightly loosen the spokes on the left side to allow the rim to move more easily.
• If the rim bulges to the right, you need to pull it back to the left. Tighten the spokes on the left side of the wheel in that area, and/or slightly loosen spokes on the right side.

Always make adjustments in small increments, typically no more than a quarter to a half turn of the spoke nipple at a time. Adjust 2-3 spokes around the peak of the wobble for best results.

Monitoring Progress and Refinement

After each small adjustment, spin the wheel again and observe the effect. Has the wobble reduced? Has it shifted? Continue this iterative process, making tiny tweaks and re-checking, until the lateral runout is minimised. Aim for the rim to spin smoothly with minimal deviation against the lateral gauges. Don't be discouraged if it takes several rounds of adjustments; precision takes time.

Addressing Radial Runout: Smoothing Out Bumps

Once lateral truing is complete, turn your attention to radial runout – the up-and-down imperfections.

Spotting Radial Imperfections: High and Low Spots

With the lateral wobble mostly resolved, spin the wheel again and observe the rim's movement against the radial gauge (the top or bottom sensor) of your truing stand. Identify any high spots (where the rim moves closer to the hub) or low spots (where it moves further away). Mark these areas. These are often more subtle than lateral wobbles, so careful observation is key.

Radial Adjustment Strategies: Levelling the Rim

Correcting radial runout involves adjusting spokes around the circumference of the wheel.

• If there's a high spot (the rim bulges outwards), you need to pull that section closer to the hub. To do this, tighten the spokes in that specific area.
• If there's a low spot (the rim dips inwards), you need to push that section outwards. To do this, loosen the spokes in that specific area.

Again, use small, incremental adjustments. For radial truing, you often adjust multiple spokes (3-5) around the problem area to distribute the tension evenly. Be mindful not to introduce new lateral wobbles as you adjust radially.

Achieving Even Spoke Tension Across the Wheel

Throughout the radial truing process, it's crucial to maintain or achieve even spoke tension. After making radial adjustments, periodically check the tension of adjacent spokes by squeezing them together. They should feel consistently firm. Uneven tension can lead to a wheel that goes out of true quickly, even if it looks perfect initially. For the ultimate precision, a spoke tensiometer can measure the actual tension in each spoke, allowing you to fine-tune for optimal balance and durability. While an advanced tool, it’s invaluable for building and maintaining strong wheels.

The Crucial Step: Checking and Correcting Wheel Dish

Beyond lateral and radial truing, ensuring your wheel has the correct "dish" is paramount for proper bike performance and handling. A wheel's wheel dish refers to the symmetrical positioning of the rim relative to the hub flanges. A correctly dished wheel ensures the rim is perfectly centred in the frame or fork. Incorrect dish can lead to the tyre rubbing against the frame/fork, poor braking performance, and uneven handling.

What Exactly is Wheel Dish?

Imagine a straight line running through the centre of your bike's frame. For a wheel to be properly dished, its rim must be perfectly centred on this line, equidistant from the frame or fork blades on both sides. Due to the cassette (on the rear wheel) or disc brake rotor (on both wheels), spokes on one side of the wheel are often shorter and at a steeper angle than on the other side. This creates a "dish" or offset. If this offset isn't correct, the wheel will sit crookedly in the frame, even if it's perfectly true laterally and radially.

How to Check Dish Alignment Without a Dedicated Dish Tool

While a dedicated dishing tool offers the highest accuracy, you can get a reasonable assessment using simple methods:

1. The "Flip Test": True your wheel laterally and radially as much as possible first. Then, mount the wheel in your bike's frame or truing stand. Note its position relative to the chainstays or fork blades. Now, remove the wheel, flip it 180 degrees (so the drive side is now on the non-drive side, and vice-versa), and remount it. If the rim is perfectly dished, its position relative to the frame/fork should be identical to its original position. If it's closer to one side than the other after flipping, your dish is off. For example, if it was closer to the left chainstay initially, and after flipping it's closer to the right chainstay, the dish needs adjustment.
2. Using a Straight Edge and Ruler: Lay a long, straight edge (like a metal ruler or a piece of wood) across the rim, touching both edges. Then, measure the distance from the straight edge to the locknut (the outer nut on the axle) on both sides of the wheel. The measurements should be identical. If they differ, the dish is off.

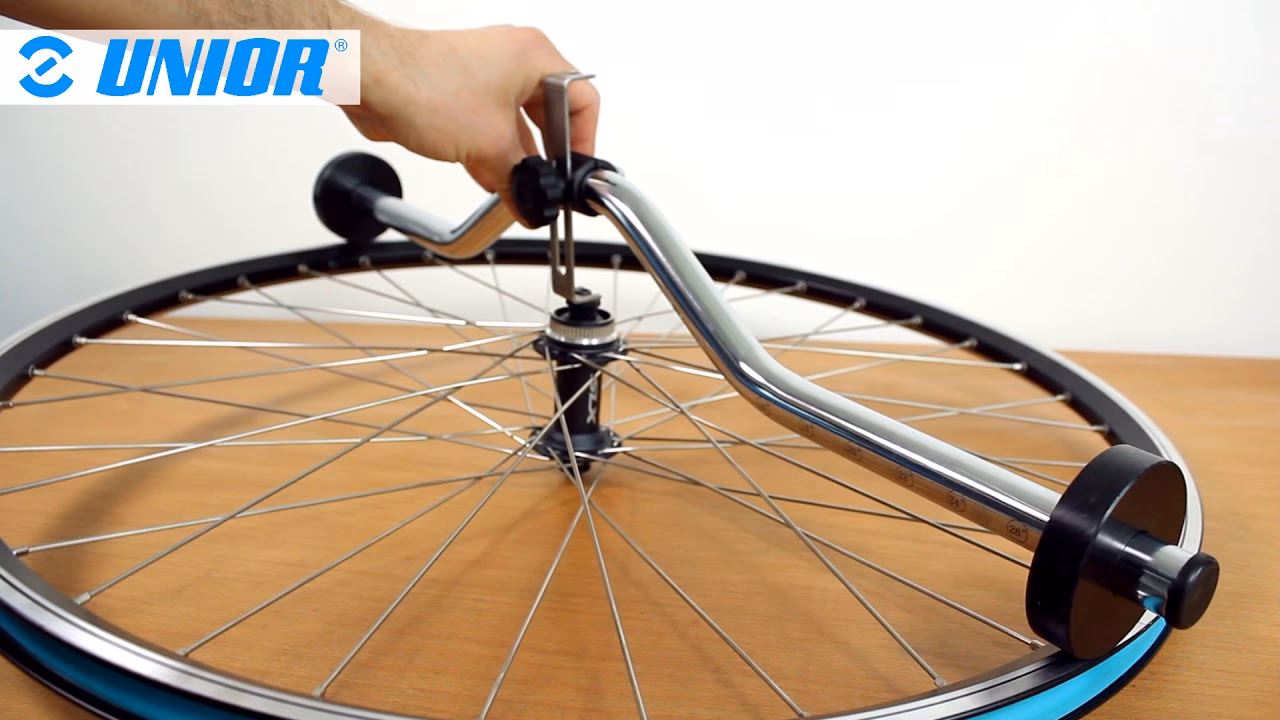

How to Check Dish Alignment with a Dedicated Dish Tool

For the most accurate dish measurement, especially when building a wheel or after significant truing, a dishing tool (also known as a dishing gauge) is invaluable.

1. Prepare the Tool: Most dishing tools have an adjustable central rod and two outer contact points. Place the tool on one side of your wheel, ensuring the two outer points rest firmly on the rim. Adjust the central rod until it just touches the locknut (or axle end) on that side.
2. Flip and Compare: Without changing the central rod's setting, flip the dishing tool over to the other side of the wheel. Place the outer points on the rim again. If the central rod now touches the locknut on this side, your wheel is perfectly dished. If there's a gap between the rod and the locknut, or if the rod is pressing against the locknut, your dish is off.
3. Measure the Discrepancy: If there's a gap, use a feeler gauge or a ruler to measure the precise distance. This measurement tells you exactly how much your dish is off.

A dishing tool ensures your rim is centred between the hub's locknuts, which translates to perfect centering within your bike's frame or fork.

Correcting Dish Misalignment: Balancing the Tension

Correcting dish involves adjusting the overall tension balance between the left and right sides of the wheel.

• If the rim needs to move towards the left (i.e., it's currently too far to the right), you need to tighten all the spokes on the left side of the wheel, and/or loosen all the spokes on the right side.
• If the rim needs to move towards the right (i.e., it's currently too far to the left), you need to tighten all the spokes on the right side of the wheel, and/or loosen all the spokes on the left side.

Make these adjustments gradually, working around the entire circumference of the wheel. For instance, if you need to pull the rim left, tighten each left-side spoke by a quarter turn, then re-check. Repeat until the dish is corrected. Remember, these adjustments will also affect lateral runout and radial runout, so you'll likely need to go back and fine-tune those aspects after correcting the dish. It's often an iterative process of dish, lateral, then radial, then dish again until everything is spot-on.

Iterative Truing: Patience is Your Best Tool

Truing a wheel is rarely a one-and-done job. It's an iterative process that requires patience and a methodical approach.

Frequent Alignment Checks Throughout the Process

As you make adjustments, especially when dealing with dish, lateral, and radial runout simultaneously, continually re-check all three aspects. A change in spoke tension to correct one issue can sometimes introduce or exacerbate another. Spin the wheel frequently, observe its behaviour against your gauges, and verify your progress. This constant feedback loop is crucial for success.

The Power of Small, Incremental Adjustments

Resist the urge to make large, drastic turns of the spoke wrench. Small, incremental adjustments – typically no more than a quarter to a half turn at a time – give you much better control. It's easier to correct a slight over-adjustment from a small turn than a major one. This slow and steady approach prevents overcorrection, which can lead to a frustrating cycle of chasing wobbles around the rim.

Repeating the Process Until the Wheel is Truly Perfect

You'll likely find yourself going back and forth between lateral, radial, and dish adjustments multiple times. This is normal. The goal is to gradually reduce all forms of runout to an acceptable minimum. A perfectly true wheel is the aim, but a "good enough" wheel for riding is often achievable with a reasonable amount of effort. Continue the process until the wheel spins smoothly with no noticeable wobbles or bumps, and the dish is correct.

Dealing with Damaged Spokes: When to Replace

Sometimes, truing isn't enough. A damaged spoke compromises the wheel's integrity and must be replaced.

Recognizing a Compromised Spoke

During your initial inspection or even during the truing process, you might identify spokes that are beyond simple adjustment. Look for:

• Visibly Bent Spokes: Spokes that have a permanent bend or kink.
• Cracked or Frayed Spokes: Especially near the hub flange or nipple.
• Broken Spokes: Obviously, a broken spoke needs immediate replacement.
• Stripped Nipples: If the spoke wrench slips and rounds off the nipple, or if the nipple won't turn, it may be stripped and needs replacing along with the spoke.

A damaged spoke cannot hold tension correctly and will prevent the wheel from being properly trued or staying true. Replace it before proceeding.

The Spoke Replacement Process

Replacing a spoke is a straightforward but delicate operation:

1. Deflate Tyre: If the tyre is inflated, deflate it to give you access to the nipple.
2. Remove Nipple: Use your spoke wrench to unscrew the nipple from the damaged spoke. If the nipple is stripped, you might need to cut the spoke.
3. Remove Damaged Spoke: Carefully pull the old spoke out from the hub flange.
4. Source New Spoke: Ensure you get a replacement spoke of the exact same length, gauge (thickness), and bend (J-bend or straight pull) as the original. Bicycle shops can help measure and source.
5. Install New Spoke: Thread the new spoke through the correct hole in the hub flange, following the existing lacing pattern (over/under other spokes).
6. Attach Nipple: Guide the spoke through its hole in the rim and thread a new nipple onto it.
7. Initial Tensioning: Tighten the new spoke's nipple until it has some tension, but don't overtighten. It should feel roughly similar to its neighbours.
8. Re-True the Wheel: The new spoke will have thrown the wheel out of true. You'll now need to go through the entire truing process (lateral, radial, and dish) again to incorporate the new spoke evenly into the wheel's tension profile.

This is where patience truly pays off, as integrating a new spoke can significantly alter the wheel's balance.

Final Checks for a Perfect Ride

Once you're satisfied with the trueness and dish of your wheel, a few final checks ensure it's ready for the road.

Testing the Wheel’s Alignment with a Road Test

The ultimate test of your truing efforts is on the road. Inflate your tyre to the recommended pressure. Take your bike for a short test ride on a smooth, flat surface. Pay close attention to how the bike feels. Does it track straight? Are there any vibrations, wobbles, or signs of instability? Check for any rubbing against brake pads, forks, or chainstays. If you notice any issues, return to your truing stand and make further fine-tune adjustments.

Ensuring Proper and Even Wheel Tension

Before concluding, perform a final check of the overall spoke tension. Squeeze adjacent pairs of spokes around the entire wheel. Listen for consistent 'ping' sounds if plucking them. While a tensiometer provides precise readings, a consistent feel and sound across all spokes on each side of the wheel indicate good tension balance. Even tension is critical for the wheel's longevity and ability to hold its true shape under riding stresses.

A Comprehensive Structural Inspection for Hidden Issues

Finally, give the entire wheel assembly one last thorough inspection. Look for any new cracks or stresses that might have developed during the truing process, particularly around spoke holes or the hub flanges. Check that all spoke nipples are fully seated and that no spoke threads are visible past the nipple. Ensure the quick-release or thru-axle is securely tightened. Addressing any potential structural issues now can prevent future problems and ensure your wheel is not only true but also safe and durable for countless miles.

Truing a bicycle wheel is a rewarding skill that becomes easier and more intuitive with practice. Don't be discouraged by the initial complexity; each adjustment brings you closer to a perfectly true wheel. With the right tools, a methodical approach, and a good dose of patience, you'll soon be enjoying the benefits of a smooth, stable, and efficient ride. Happy cycling!

Frequently Asked Questions About Wheel Truing and Dish

Q: How often should I check my bicycle wheels for trueness?

A: It's a good practice to check your wheels for trueness periodically, especially if you ride frequently, encounter rough terrain, or notice any wobbles. For casual riders, a check every few months or after a particularly bumpy ride is advisable. Enthusiastic cyclists or those riding off-road might want to check more frequently, perhaps once a month or after any significant impact.

Q: Can I true a wheel without a dedicated truing stand?

A: Yes, you can. Your bike frame can serve as a makeshift truing stand. You can use the brake pads as lateral gauges (adjusting them close to the rim) and zip ties attached to the fork or chainstays for both lateral and radial reference points. While less precise than a dedicated stand, it's certainly possible to achieve a good level of trueness with patience and careful observation.

Q: What's the main difference between lateral and radial truing?

A: Lateral truing addresses the side-to-side wobbles of the rim, ensuring it doesn't move left or right as it spins. Radial truing addresses the up-and-down bumps or dips in the rim, ensuring it's perfectly round and equidistant from the hub all the way around. Both are crucial for a perfectly true wheel.

Q: When should I replace a spoke instead of just tightening it?

A: Replace a spoke if it is visibly bent, twisted, cracked, broken, or if its nipple is stripped and cannot be adjusted. Also, if a spoke consistently loses tension or feels dead compared to its neighbours, it might be fatigued and should be replaced. Attempting to true a wheel with a compromised spoke is a temporary fix at best and can lead to more significant issues.

Q: What is "dish" and why is it so important for my bike?

A: "Wheel dish" refers to the symmetrical centering of the rim between the hub's locknuts (and thus, within your bike's frame or fork). Because of components like the rear cassette or disc brake rotors, spokes on one side of the wheel are often at a different angle than the other, creating an inherent "dish" or offset. Correct dish is vital because it ensures your wheel sits perfectly straight in your bike. Incorrect dish can cause the tyre to rub against the frame, lead to uneven braking, and negatively affect your bike's handling and stability, making it pull to one side.

Q: Can uneven spoke tension cause problems even if the wheel looks true?

A: Absolutely. A wheel can appear perfectly true laterally and radially but still have highly uneven spoke tension. This is a common issue. Uneven tension creates stress points, where some spokes are overloaded while others are under-stressed. This significantly weakens the wheel, making it prone to breaking spokes, developing cracks around spoke holes, or going out of true very quickly. Consistent, even tension across all spokes on each side of the wheel is crucial for durability and long-term stability.

Q: How can I tell if my spoke nipples are stripped?

A: A stripped spoke nipple will usually feel very loose, spin freely without affecting the spoke tension, or the spoke wrench will slip and round off the edges of the nipple. If you can't get the nipple to turn or hold tension, it's likely stripped and needs to be replaced.

Q: Is it possible to over-tighten spokes? What happens if I do?

A: Yes, it is very possible to over-tighten spokes. Over-tightening can lead to several problems: it can pull the rim out of shape, cause spokes to break (especially at the J-bend or nipple), or even crack the rim around the spoke holes. It also makes the wheel excessively stiff and uncomfortable to ride. Always make small adjustments and avoid forcing the nipple.
