Mercedes 7G-Tronic Fluid & Filter Change

Transform Your Mercedes 7-Speed: A Comprehensive Fluid and Filter Change Guide

Your Mercedes-Benz, particularly those equipped with the sophisticated 7-speed automatic transmission known as the 7G-Tronic (developed after 2003), is a marvel of modern engineering. This transmission offers enhanced performance, quicker gear changes, and improved fuel efficiency, making your driving experience smoother and more economical. While Mercedes-Benz might suggest this transmission is 'sealed for life' and requires no servicing, this is a notion that many seasoned mechanics and car enthusiasts would debate. In reality, regular maintenance, specifically changing the transmission fluid and filter every 60,000 miles, can significantly prolong the life of this complex unit and ensure its optimal performance for years to come. This guide will walk you through the process of changing the transmission fluid and filter on your 7G-Tronic, a task that, while requiring specific parts and a bit of care, is entirely achievable in your own garage.

Why Regular Transmission Fluid Changes Matter

Over time, automatic transmission fluid (ATF) degrades. It loses its lubricating properties, can become contaminated with microscopic metal particles from wear, and its viscosity can change. This degradation can lead to increased friction, heat build-up, and premature wear on critical internal components such as clutches, seals, and torque converter. By replacing the old, worn-out fluid and the clogged filter, you are essentially giving your transmission a new lease of life, ensuring smoother shifts, better heat dissipation, and preventing potential costly repairs down the line. Think of it as an oil change for your engine, but for your gearbox – equally vital for longevity.

Essential Parts You'll Need

To successfully complete this task, gathering the correct parts is paramount. Using the wrong fluid or filter can cause significant damage. Always refer to your vehicle's owner's manual or consult a Mercedes-Benz specialist to confirm the exact part numbers for your specific model year.

Tools You'll Need

Having the right tools will make the job significantly easier and safer. Precision is key, especially when it comes to tightening bolts and filling the fluid.

• 722.9 Transmission Fluid Adapter Filler Adapter: This is a specialised tool required to connect your fluid pump to the transmission's filler port.
• Fluid Transfer Pump: Either a manual or electric pump is needed to fill the transmission with new fluid.
• 6mm Allen Key Socket: For removing the transmission drain plug.
• 10mm Allen Key Socket: For removing the transmission pan bolts.
• Socket Extension: To reach the pan bolts comfortably.
• Universal Joint (for sockets): May be necessary for certain bolt access points, depending on your vehicle's configuration.
• Flathead Screwdriver: For manipulating the overflow pipe.
• MB-specific Scan Tool or IR Thermometer: Crucial for accurately measuring the transmission fluid temperature, which is vital for correct level checking.
• Oil Drain Pan: A large capacity pan to catch the old transmission fluid.
• Torque Wrench: Essential for tightening bolts to the correct specifications, preventing leaks or damage.
• Jack Stands: For safely supporting the vehicle.
• Jack: To lift the vehicle.
• Gloves and Safety Glasses: For personal protection.
• Brake Cleaner and Rags: For cleaning mating surfaces.

Before You Begin: Safety First!

Working on vehicles requires a strong emphasis on safety. Transmission fluid can be hot and may cause skin irritation, so always wear appropriate gloves and safety glasses. Ensure the vehicle is securely supported on jack stands, never relying solely on a jack. The transmission fluid can also be quite warm, posing a burn risk. Be mindful of this when draining the fluid.

Important Note: This procedure will only replace the fluid in the transmission pan, which accounts for approximately 40% of the total transmission fluid capacity. A full flush would require more specialised equipment and potentially more fluid.

Step-by-Step Procedure

1. Prepare the Vehicle: Safely jack up all four wheels of your Mercedes-Benz. It is imperative that the vehicle remains as level as possible throughout the process. Using a hydraulic lift is ideal. If using jack stands, ensure they are positioned correctly on the vehicle's designated support points and that the car is stable and level.
2. Access the Transmission Pan: Depending on your specific model, you may need to remove the entire underbody splash guard or just a rear section to gain access to the transmission pan. Typically, this involves removing several screws using an 8mm socket.
3. Drain the Old Fluid: Position your oil drain pan directly beneath the transmission drain plug, located at the lowest point of the transmission pan. Using a 6mm Allen key socket, carefully loosen and remove the drain plug. You'll notice that only a portion of the fluid will drain out initially due to an overflow pipe situated just above the drain hole. Once the initial flow stops, use a flathead screwdriver to gently push the overflow pipe upwards into the transmission. This action will allow the remaining fluid in the pan to drain out.
4. Remove the Transmission Pan: With the fluid drained, locate the eight bolts securing the transmission pan to the gearbox housing. You will need a 10mm Allen key socket and an extension for this task. Loosen and remove these bolts. As you remove the last bolt, carefully support the pan. Lower it slowly and steadily, being cautious not to tip it, as a small amount of residual fluid will still be present.

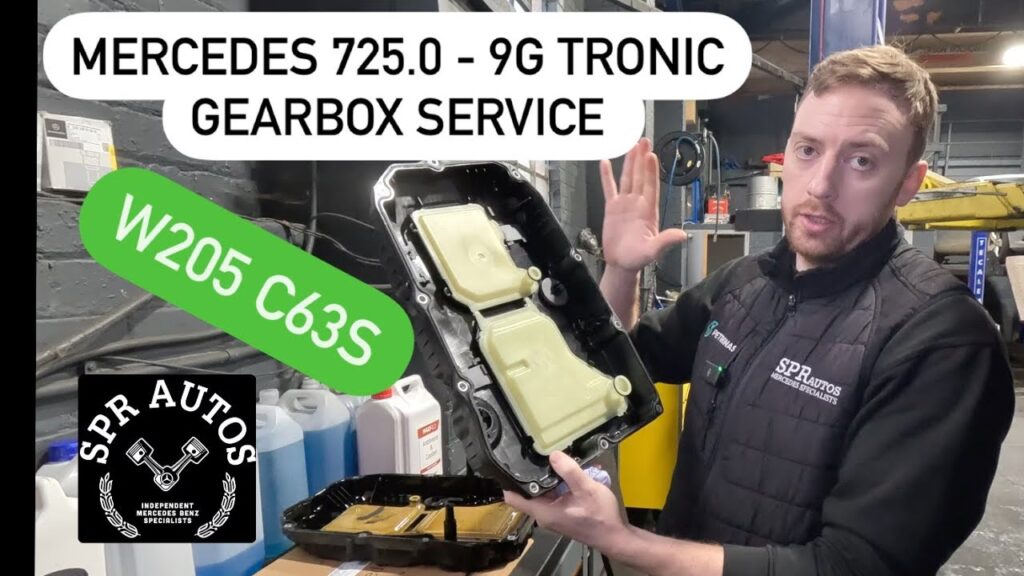

5. Replace the Filter and Clean Components: Carefully pull down and remove the old transmission filter. It usually snaps into place and might require a bit of wiggling. Once the filter is removed, take the transmission pan and remove the old gasket and the overflow pipe. Locate the two disc-shaped magnets within the pan. These magnets collect metallic debris. Thoroughly clean both magnets and the inside of the pan, ensuring no metal shavings or debris remain.
6. Install New Parts: Fit the new magnets and the overflow pipe back into their original positions in the clean transmission pan. Ensure the new pan gasket is seated correctly and securely. Install the new transmission filter by pushing it firmly into its receptacle on the control valve body until it clicks into place.
7. Clean Mating Surfaces: Using brake cleaner and clean rags, meticulously clean the mating surface on the gearbox housing where the transmission pan attaches. This ensures a clean surface for the new gasket to seal against.
8. Reinstall the Transmission Pan: Carefully raise the transmission pan back into position against the gearbox housing. Reinstall the eight pan bolts and tighten them using a torque wrench to a snug 3 lb-ft. Do not overtighten these bolts, as the aluminum pan and housing can be easily damaged.

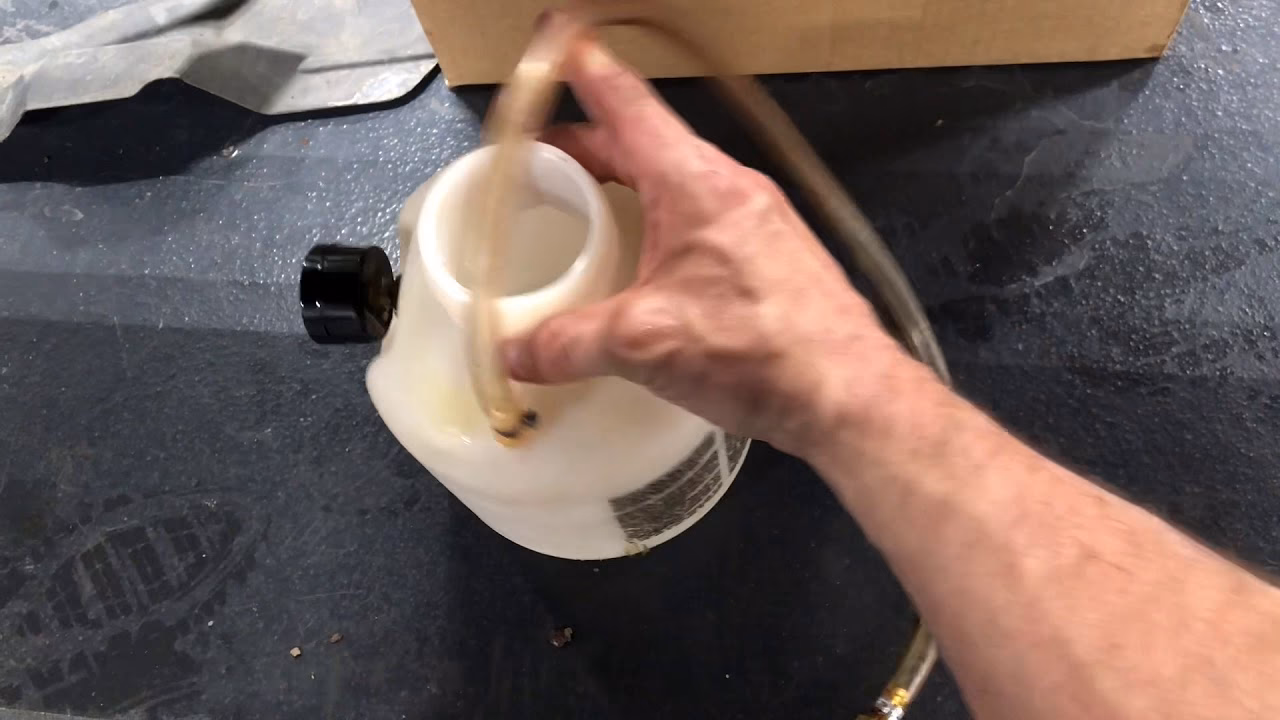

9. Refill with New Fluid: Connect your fluid transfer pump to the transmission's filler port using the 722.9 transmission fluid adapter. If using a manual pump, fill it with approximately five litres (quarts) of the specified transmission fluid (ATF 236.15). If using an electric pump, connect it to a 12-volt power source and place the intake hose into a container filled with the correct ATF. Open the valve on the pump and begin transferring the fluid.
10. Initial Fill and Level Check Preparation: Once approximately five litres of fluid have been transferred, close the pump valve. The crucial step for setting the correct fluid level involves monitoring the transmission fluid temperature. The target temperature is 45 °C (113 °F). You can achieve this by starting the engine and letting it idle. Allow the engine to run until the transmission fluid reaches this temperature. This temperature reading is critical and can be obtained using a Mercedes-Benz specific diagnostic scan tool or an infrared (IR) thermometer pointed at the transmission housing.
11. Setting the Correct Fluid Level: With the transmission fluid at the target temperature of 45 °C, shift the gear selector through all positions (P, R, N, D, etc.) and back again, pausing briefly in each. This ensures the new fluid circulates throughout the transmission. Once the temperature is stable at 45 °C, return to the underside of the vehicle. Carefully disconnect the filler adapter. At this point, excess fluid should begin to drain from the overflow port. Allow the fluid to drain until the flow reduces to a slow, steady drip.
12. Final Steps: If no fluid drains out, it indicates the level may be too low. In this case, you'll need to add a small amount of fluid and repeat the level-checking process. Once the drainage has nearly stopped, quickly reinstall the transmission drain plug, complete with its new washer. Tighten the drain plug to the specified torque of 17 lb-ft using your torque wrench. Finally, reinstall any splash guards or other components that were removed earlier.

Frequently Asked Questions

Where is the dipstick to measure the transmission fluid level?

The Mercedes-Benz 7-speed (722.9) transmission is designed without a traditional dipstick or dipstick tube. The transmission fluid level is checked and adjusted via the overflow port, which is accessed through the drain plug hole, but only when the fluid is at the correct operating temperature (45 °C).

What type of transmission fluid should I use?

It is absolutely critical to use only Mercedes-Benz approved transmission fluid that meets the 236.15 specification. The recommended fluid is often labelled as ATF 134 FE. Brands like Shell and Fuchs produce fluids that meet this specification. Using the incorrect fluid can lead to severe transmission damage.

How much transmission fluid do I need?

You will typically need around 6 quarts (approximately 5.5 litres) of transmission fluid for this service. However, it's best to purchase slightly more in case of spills or if you need to top up during the level-checking process.

Can I do this if I don't have a lift?

Yes, you can perform this service without a lift, provided you have sturdy jack stands and can safely elevate all four wheels of the vehicle to ensure it is level. However, a lift greatly simplifies access and improves safety.

What is the overflow pipe for?

The overflow pipe is a crucial component that helps in setting the correct transmission fluid level. It allows excess fluid to drain out when the transmission is at the correct temperature and the fluid reaches its designed level, preventing overfilling.

A Note on Transmission Applications

The 7G-Tronic transmission has been widely used across various Mercedes-Benz models, including:

• CLK, SLK, SL, R-Class, ML, C-Class, CLS, and GL models.
• Specific model years range from the early 2000s (e.g., 2003) up to the present day for some variants.

While this list provides a good overview, it's always best to confirm your specific vehicle's compatibility with the 7G-Tronic transmission and the required service procedures.

Performing this transmission fluid and filter change yourself can save you a considerable amount of money compared to dealership labour costs. By following these detailed steps and using the correct parts and tools, you can confidently maintain your Mercedes-Benz 7G-Tronic, ensuring its continued smooth operation and longevity.
