Motorbike Fork Oil Change: Time & Tips

Maintaining your motorbike's front suspension is crucial for both safety and ride comfort. Often overlooked, the fork oil inside your front forks plays a pivotal role in damping, absorbing bumps, and ensuring stable handling. Over time, this oil degrades, leading to a noticeable decline in your bike's performance. If you've noticed your front end feeling spongy, diving excessively under braking, or simply not handling as precisely as it once did, it’s likely time for a fork oil change. But how involved is this process? Do you need to remove the entire fork assembly, and how long can you expect the job to take? Let's delve into the intricacies of front fork maintenance, exploring the methods, timeframes, and essential tips to get your ride feeling brand new again.

Why is Fresh Fork Oil So Important for Your Motorbike?

Your motorbike's front forks are complex hydraulic systems designed to absorb shocks and vibrations from the road. Inside each fork leg, fork oil (also known as suspension fluid) works with springs to control the compression and rebound of the suspension. This damping action is what smooths out your ride, keeps your tyres in contact with the road, and provides stability during braking and cornering.

Over thousands of miles, the fork oil undergoes significant stress. It's constantly heated and cooled, churned, and subjected to pressure. This process causes the oil to break down, losing its viscosity and lubricating properties. It can become contaminated with microscopic metal particles from internal wear, and air can get entrained, leading to a loss of damping efficiency. When this happens, you might experience:

• Excessive Fork Dive: The front end dips too much and too quickly when you apply the brakes.
• A harsh or "clunky" ride: Small bumps feel more pronounced, and the suspension doesn't absorb impacts effectively.
• Poor rebound: The forks might "spring back" too quickly after compression, leading to a bouncy feel.
• Reduced stability: Especially noticeable during cornering or at higher speeds.
• General vagueness in handling: The bike doesn't feel as precise or responsive.

Changing your fork oil is a relatively inexpensive way to dramatically improve your bike's handling and safety. It restores the damping characteristics, ensuring your suspension performs as the manufacturer intended.

To Remove or Not to Remove: Two Approaches to Changing Fork Oil

There are two primary methods for changing your motorbike's fork oil: either by completely removing the fork legs from the bike or by performing the change with the forks still in place. Each method has its advantages and disadvantages, largely depending on your bike model, the tools you have available, and your desired level of thoroughness.

Method 1: Full Fork Removal and Oil Change

This is often considered the most thorough approach, especially if you suspect worn fork seals or wish to inspect internal components. It allows for complete drainage of old oil and easier, more accurate refilling.

Step-by-Step Guide for Fork Removal and Oil Change:

1. Preparation: Safely lift the front of your motorbike so the front wheel is off the ground. A paddock stand or a sturdy lift under the engine is essential. Ensure the bike is stable.
2. Brake System Disconnection: You'll need to remove the front wheel, which means disconnecting the brake calipers. You don't necessarily need to drain the entire brake system unless you're planning a brake fluid change concurrently. Simply unbolt the calipers and tie them securely out of the way, ensuring no strain on the brake lines.
3. Remove Mudguard and Wheel: Unbolt and remove the front mudguard, then proceed to remove the front wheel.

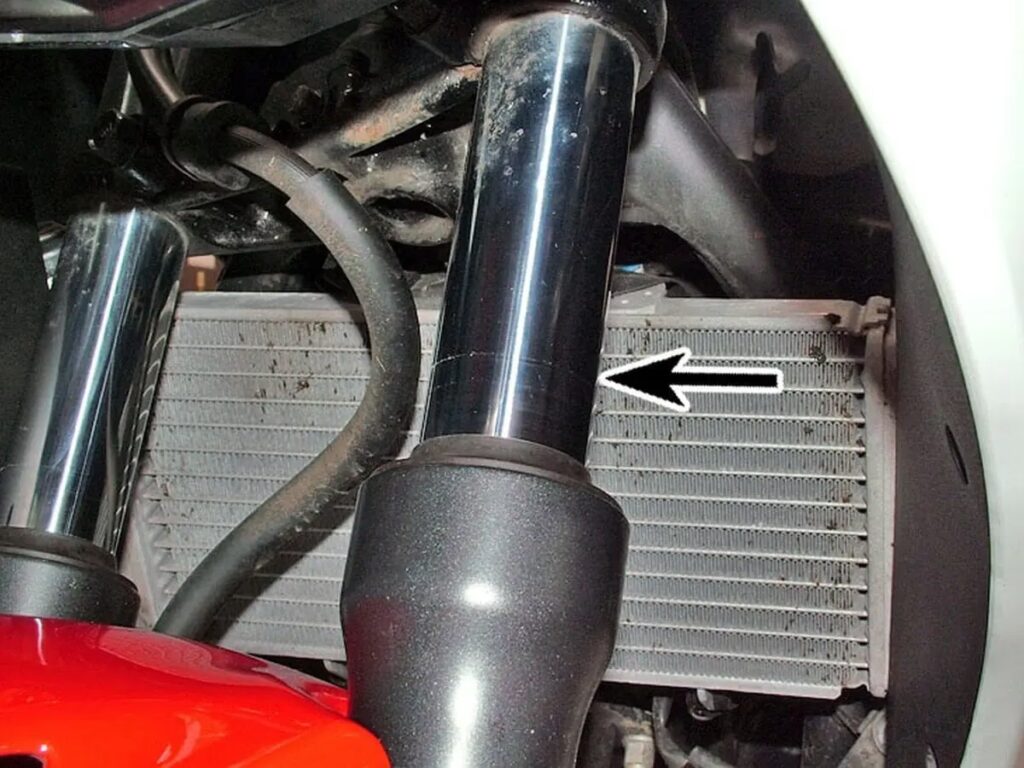

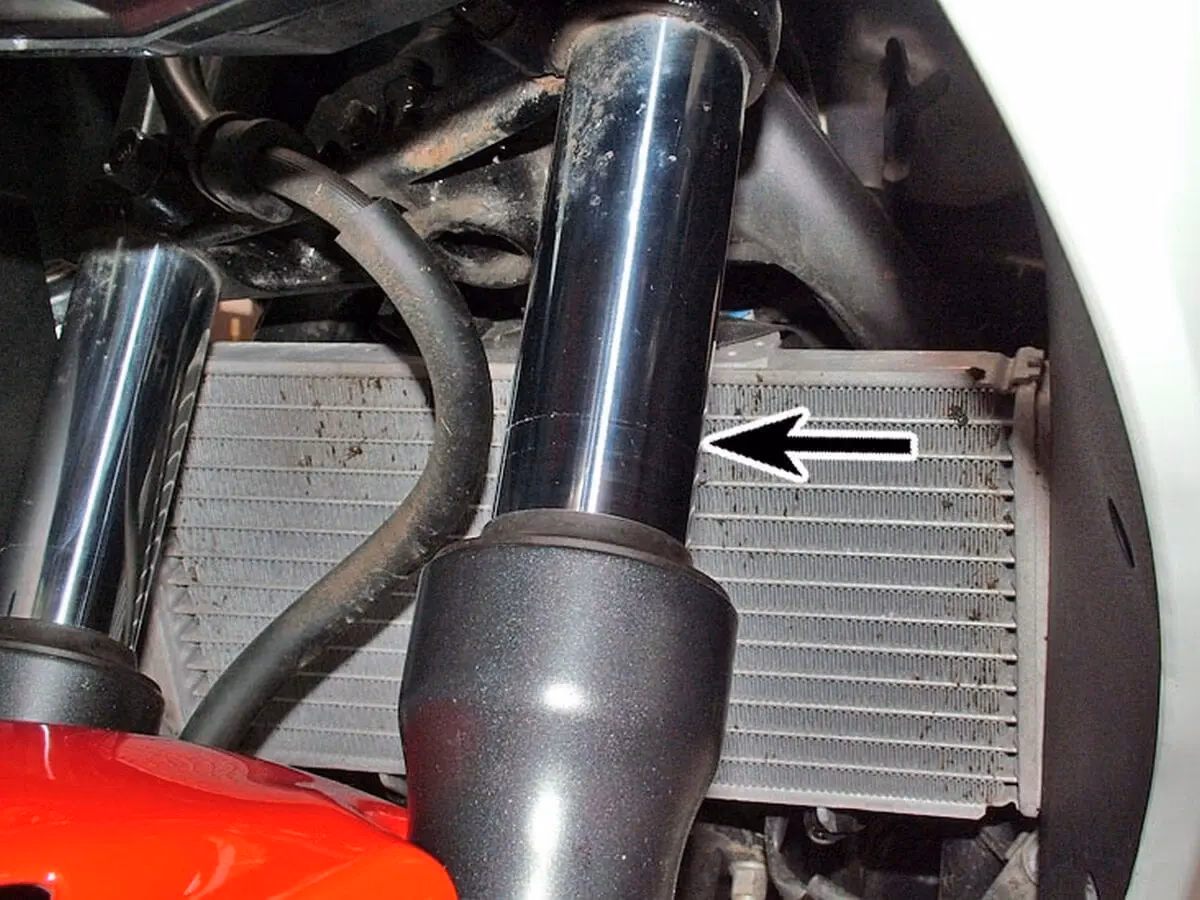

4. Mark Fork Position: Before loosening anything, use a marker pen or a pencil to clearly mark the exact position where each fork leg meets the bottom of the triple clamp. Note which fork is left and which is right. This ensures correct reassembly and maintains your bike's geometry.
5. Loosen Triple Clamps: Loosen the bolts on both the upper and lower triple clamps that secure the fork legs.
6. Slide Forks Out: Carefully slide each fork leg downwards and out of the triple clamps. Be mindful of any cables or hoses.
7. Drain Old Oil: With the fork leg removed, undo the top bolt (often under spring pressure, so be cautious). Invert the fork leg to drain the old, dark fluid into a suitable container. Pump the stanchion up and down several times to expel as much old oil as possible. Some forks may also have a drain screw at the bottom; if so, use this for a more complete drain.
8. Inspect and Clean (Optional but Recommended): If you're going this far, it's an excellent opportunity to prise off the dust seals and inspect the main fork seals for any signs of leakage or cracking. Even if they're not leaking, many mechanics recommend replacing them as a preventative measure. Clean the internal components and stanchions thoroughly.
9. Refill with New Oil: With the fork fully compressed (unless your manual states otherwise), pour in the new fork oil (of the correct weight/viscosity) to the specified capacity as per your bike's service manual.
10. Bleed Air Bubbles: Slowly pump the fork stanchion up and down multiple times to remove any trapped air bubbles. Allow the oil to settle for a few minutes.
11. Check Air Gap: This is critical for accurate filling. The air gap is the distance from the top of the fork tube (with the spring out and fork fully compressed) to the top of the oil level. Use a fork oil level tool or a homemade equivalent (e.g., a syringe with a marked tube) to precisely set this gap according to your manual. Adjust oil volume as necessary.
12. Reassemble: Carefully reassemble the fork internals, ensuring the top bolt is securely fastened.
13. Reinstallation: Slide the fork legs back into the triple clamps, aligning them with your earlier marks. Tighten the triple clamp bolts to the manufacturer's torque specifications.
14. Reattach Components: Reinstall the front wheel, mudguard, and brake calipers.
15. Bleed Brakes & Test: If you disconnected brake lines or if it's been a while, bleed your front brake system to ensure firm lever feel. Take a slow, careful test ride, gently applying the brakes to ensure everything is functioning correctly before gradually increasing speed and confidence.

Method 2: In-Situ Fork Oil Change (Without Removal)

This method is quicker and less disruptive, suitable if your fork seals are confirmed to be in good condition and you primarily want to refresh the oil. It avoids the need to remove the wheel or calipers, though thorough drainage can be more challenging.

Step-by-Step Guide for In-Situ Oil Change:

1. Elevate the Front End: Just like with the full removal method, the front wheel must be off the ground and the bike stable.
2. Access Top Bolts: On some bikes, you may need to remove the handlebars or loosen them and rotate them slightly to gain access to the fork top bolts.
3. Loosen Top Bolts: Carefully loosen (but do not remove yet) the top bolts on each fork leg. Be aware they might be under spring pressure.
4. Drain Old Oil: If your forks have drain screws at the bottom, carefully open these and allow the old oil to drain into a container. Pump the forks gently to help expel more oil. If there are no drain screws, you'll need to fully remove the top bolt and then use a large syringe with a long, thin tube to suck out as much old oil as possible from the top. Pumping the forks while siphoning can help.
5. Refill and Bleed: Once drained (or siphoned), refill with the new oil. Pump the forks slowly several times to remove air bubbles.
6. Check Air Gap: As with the full removal method, accurately measure and adjust the air gap (distance from oil level to top of fork tube, with spring out and fork compressed) using a suitable tool, ensuring it matches your service manual's specifications.
7. Reassemble: Reinstall the top bolts and any other components you removed to gain access.
8. Test Ride: Perform a careful test ride to ensure proper function and feel.

How Long Does It Really Take to Remove Forks and Change Oil?

The question of "how long" is a common one, and the answer varies significantly based on several factors:

• Your Experience Level: An experienced mechanic might zip through the entire process in 1-2 hours for a simple bike. A first-timer could easily spend 4-6 hours, or even a full day, especially if encountering unexpected issues or needing to consult the manual frequently.
• Bike Model and Complexity: A simple, naked bike like a Yamaha YBR125 (as mentioned in the forum) might allow for fork removal in as little as 10-15 minutes per leg if you have the right tools and a centre stand. Bikes with extensive fairings, complex brake systems, or difficult-to-access top bolts will naturally take longer.
• Tools Available: Having the correct spanners, sockets, a torque wrench, a proper bike stand, and a fork oil level tool can drastically reduce the time and frustration. Improvised tools might work but can add time.
• Additional Tasks: Are you just changing the oil, or are you also planning to replace fork seals, inspect bushings, or change springs? Adding these tasks will extend the overall time considerably. Replacing seals, for example, can add another 1-2 hours per fork leg.

General Time Estimates:

These are rough estimates. Always allocate more time than you think you'll need, especially for your first attempt. Patience and a good service manual are your best allies.

Tackling Common Fork Issues: Beyond Just Oil

While fresh fork oil is a significant improvement, sometimes other issues contribute to poor front-end performance:

Excessive Fork Dive: Damping vs. Spring Rate

One of the most common complaints is excessive "fork dive" under braking. It's crucial to understand that fork oil primarily affects damping (the speed at which the suspension compresses and rebounds), not the spring rate (how much force is required to compress the spring). Therefore:

• Thicker Fork Oil (Higher Viscosity): Using a thicker oil (e.g., 15W instead of 10W) will slow down both compression and rebound. This can reduce the rate of fork dive, making it feel less abrupt, but it won't prevent the dive itself if the springs are too soft for the rider's weight or riding style. It slows the hydraulic action, making the front feel more stable if it was previously underdamped.
• Stiffer Springs: If your bike consistently dives too much, particularly if you're a heavier rider or carry luggage, the fundamental issue might be that the stock springs are too soft. Replacing them with stiffer springs or progressive springs (which offer variable stiffness) is the most effective solution to reduce dive.
• Preload Adjustment: Adjusting spring preload (often done with spacers or adjusters on the fork caps) is used to set the bike's "sag" – how much the suspension compresses under its own weight and the rider's weight. It does NOT stiffen the suspension or prevent dive; it simply changes the starting point of the spring's travel. While increasing preload can reduce negative travel (the amount the suspension extends when the wheel leaves the ground), it's not a substitute for appropriately rated springs.

Worn Fork Seals

If you see oil leaking down your fork legs, your fork seals are undoubtedly compromised and need immediate replacement. Even if they're not actively leaking, it's often advisable to replace them when the forks are removed for an oil change, as they are a wear item and the labour involved in getting to them is already done.

Checking Spring Length

Over time, fork springs can compress and lose their original length, especially on older bikes or those with many miles. Consult your service manual for the specified free length and the tolerance limit. If your springs are shorter than the minimum specification, they should be replaced to restore proper suspension performance.

Essential Tools for the Job

To successfully change your fork oil, you'll need a range of basic and potentially some specialised tools:

• Motorbike stand (front paddock stand, centre stand, or lift)
• Basic socket and spanner set
• Torque wrench (critical for correct reassembly)
• Drain pan for old oil
• Large syringe and long, thin tube (for in-situ oil changes or precise level adjustment)
• Fork oil level tool (or a homemade equivalent)
• Measuring jug (for initial oil volume, but air gap is more accurate)
• New fork oil (correct weight/viscosity)
• Clean rags
• Service manual for your specific bike model

Measuring Fork Oil Level Accurately

While measuring the volume of oil poured in is a common practice, the most accurate way to ensure correct damping is to measure the air gap. This is the distance from the top of the fork tube to the oil level, with the fork fully compressed and the spring removed. Your service manual will specify this measurement.

A dedicated fork oil level tool makes this simple, but you can improvise:

1. Take a large syringe and attach a length of clear tubing.
2. Measure from the end of the tube and mark the required air gap on the tube or the syringe itself.
3. With the fork fully compressed (and spring removed), insert the tube until the mark is at the top of the fork tube.
4. Suck out any excess oil until the level is precisely at your mark.

Remember to pump the forks several times after initial filling and allow the oil to settle for a few minutes to ensure all air bubbles have escaped before taking your final measurement.

Frequently Asked Questions (FAQs)

Q: How often should I change my motorbike's fork oil?

A: Most manufacturers recommend changing fork oil every 10,000 to 20,000 miles, or every two years, whichever comes first. However, if you ride aggressively, track your bike, or frequently encounter rough roads, more frequent changes (e.g., annually) would be beneficial. The dark, murky appearance of old oil is a clear sign it's due for a change.

Q: Can I mix different brands or weights of fork oil?

A: It's generally not recommended to mix different brands of fork oil, as their additives and base oils might not be compatible. Mixing different weights (viscosities) is also not ideal, as it creates an unpredictable damping characteristic. Always stick to the same brand and weight for consistency, or flush completely if switching.

Q: What weight of fork oil should I use?

A: Always start with the manufacturer's recommended fork oil weight (e.g., 10W, 15W) as specified in your service manual. If you desire a different damping feel (e.g., slower response for a heavier rider or more aggressive riding), you might experiment with a slightly thicker oil (e.g., moving from 10W to 15W), but understand this changes damping, not spring stiffness. Consult an expert if unsure.

Q: Is it okay if my fork oil is really dark?

A: No, dark, murky, or foul-smelling fork oil is a strong indicator that it has degraded significantly and is overdue for a change. Fresh fork oil is typically clear or light in colour. The dark colour comes from contaminants, worn particles, and chemical breakdown.

Q: Do I need a special stand to change fork oil?

A: Yes, you absolutely need a way to safely lift and support the front of your motorbike with the front wheel off the ground. A front paddock stand, a centre stand (if your bike has one), or a sturdy lift under the engine are suitable options. Do not attempt this job without proper bike support.

Changing your motorbike's fork oil is a rewarding maintenance task that can significantly enhance your riding experience. While it might seem daunting at first, with the right tools, a good service manual, and a bit of patience, it's a job well within the capabilities of most home mechanics. Investing the time now will pay dividends in improved handling, comfort, and safety on the road.
