Brake System TLC: Caliper & Handbrake Care

Your vehicle's braking system is arguably its most critical safety feature. It's not just about slowing down; it's about precise control, responsiveness, and ultimately, keeping you and others safe on the road. Two key components often requiring attention are the brake calipers and the handbrake. While a truly 'broken' brake caliper often necessitates replacement, understanding its function and common issues, alongside mastering handbrake adjustment, can save you significant hassle and ensure your car remains roadworthy and safe.

Understanding Your Braking System's Core Components

Before delving into fixes and adjustments, it's vital to grasp the roles of these components. Your car's braking system relies on hydraulic pressure to convert the force of your foot on the pedal into stopping power at the wheels.

The Brake Caliper: Your Stopping Power's Anchor

The brake caliper is a crucial part of your disc brake system. It houses the brake pads and pistons, which are responsible for squeezing the pads against the brake disc (rotor) to create friction, slowing the wheel down. Think of it as a vice, clamping down to bring your vehicle to a halt. When you press the brake pedal, hydraulic fluid pushes the caliper's piston(s), forcing the brake pads onto the disc.

Symptoms of a Failing Caliper

A 'broken' caliper usually refers to one that is no longer functioning correctly, rather than physically fractured. Common symptoms include:

• Pulling to one side: If a caliper is seized or sticking, it might apply uneven pressure, causing the car to pull to the left or right when braking.
• Squealing or grinding noises: Worn pads (due to a sticking caliper) or issues with the caliper itself can lead to unsettling noises.
• Reduced braking efficiency: A caliper not engaging fully will result in longer stopping distances.
• Spongy or soft brake pedal: This can indicate air in the brake lines, often introduced during caliper replacement or if a seal is leaking.
• Burning smell: A stuck caliper can cause excessive friction and heat, leading to a noticeable burning odour, often like burnt rubber.
• Uneven brake pad wear: One pad wearing significantly faster than the other on the same wheel, or one side of the vehicle's pads wearing faster than the other.
• Leaking brake fluid: Visible fluid around the caliper indicates a compromised seal, which is a serious issue.

Why Calipers Fail

Brake calipers are exposed to harsh conditions – heat, cold, water, road salt, and dirt. Over time, these elements can lead to:

• Corrosion: Rust can form on the caliper piston or inside the caliper bore, causing the piston to seize and prevent it from moving freely. This is a very common issue, particularly in the UK's damp climate.
• Worn or brittle seals: The rubber seals protecting the piston can degrade, allowing moisture and contaminants in, leading to corrosion or fluid leaks.
• Sticking guide pins: The caliper slides on guide pins, which allow it to move freely. If these pins seize due to lack of lubrication or corrosion, the caliper won't apply even pressure.

Replacing a Broken Brake Caliper: A Step-by-Step Guide

For most DIY enthusiasts, 'fixing' a truly broken or seized brake caliper means replacing the unit entirely, rather than attempting a complex rebuild. Rebuilding requires specialist tools and a very clean environment. However, the provided information focuses on the reassembly after brake pad replacement, which is a common scenario when working on the braking system. Let's combine these aspects:

Safety First

Working on brakes requires utmost care. Always ensure your vehicle is on a flat, stable surface. Use sturdy jack stands to support the car after jacking it up, never rely solely on a jack. Engage the handbrake (if working on the front) or chock the wheels (if working on the rear). Wear appropriate personal protective equipment, including gloves and eye protection.

Tools You'll Need

• Wheel nut wrench
• Jack and jack stands
• Combination spanners (e.g., #13 as mentioned, and potentially others for caliper bolts)
• Brake cleaner
• Wire brush
• Brake anti-squeal paste / copper grease

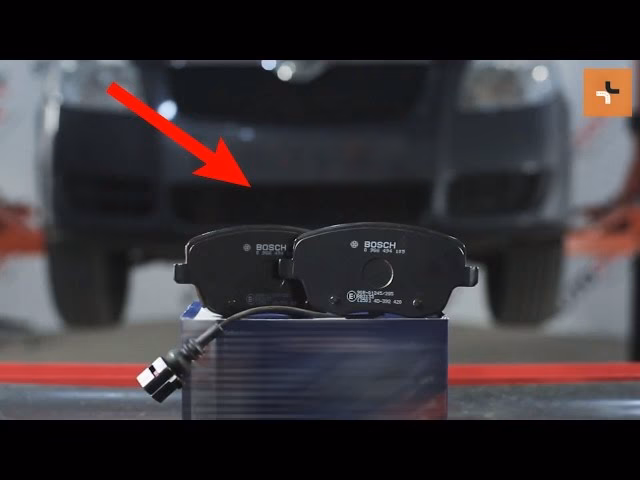

• New brake pads (SKODA ROOMSTER (5J) specific, or appropriate for your vehicle)
• Brake caliper (if replacing)
• Brake fluid (if bleeding)
• Brake hose clamp (if replacing caliper)
• Brake bleeder kit (if bleeding)
• Caliper piston compression tool (if only replacing pads)

The Process (Focusing on Pad Replacement & Caliper Reinstallation)

1. Prepare the Vehicle: Loosen the wheel nuts slightly, then jack up the car and secure it with jack stands. Remove the wheel.
2. Access the Caliper: You'll see the brake caliper covering the disc. Depending on your vehicle, you'll need to remove one or two caliper guide bolts to swing the caliper up or remove it entirely.
3. Remove Old Pads: Once the caliper is out of the way (or pivoted), carefully remove the old brake pads. Note their orientation.
4. Clean the Caliper Bracket: This is a crucial step often overlooked. The input states: "Treat the brake pads in the area where their surface comes into contact with the brake caliper bracket." This refers to cleaning the caliper bracket where the brake pads slide. Use a wire brush and brake cleaner to remove rust, dirt, and old lubricant from these contact points. This ensures the new pads can move freely.
5. Apply Anti-Squeal Paste: "Use anti-squeal paste." Apply a thin layer of anti-squeal paste (or copper grease, if suitable for brakes) to the backs of the new brake pads, where they contact the caliper piston and caliper bracket. Avoid getting it on the pad friction material or the brake disc. This paste helps dampen vibrations and prevent squealing noises.
6. Clean the Disc Surface: "Make sure the disc surface is clean before installing the pads." If you're replacing pads, it's good practice to clean the brake disc with brake cleaner to remove any oil, grease, or contaminants. If you're replacing the caliper, you might also be replacing the disc.
7. Compress the Piston (if only replacing pads): Before installing new, thicker pads, you'll need to push the caliper piston(s) back into the caliper bore. Use a dedicated caliper piston compression tool for this, or a C-clamp with an old pad to protect the piston.
8. Install New Brake Pads: "Install new brake pads." Insert the new pads into the caliper bracket, ensuring they sit correctly and the anti-squeal shims (if present) are in place.
9. Reinstall the Brake Caliper: "Install the brake caliper and fix it. Use a combination spanner #13." Carefully position the caliper over the new pads and disc. Reinsert and tighten the caliper guide bolts to the manufacturer's specified torque.
10. Bleeding the Brakes (Crucial if Caliper Replaced or Line Opened): If you replaced the caliper or opened any brake lines, you MUST bleed the brake system to remove air. Air in the brake lines can lead to a dangerously spongy pedal and complete loss of braking power. This typically requires two people: one to pump the brake pedal and hold it down, and one to open and close the bleed nipple on the caliper.
11. Final Checks: Once the caliper is secure and the system is bled (if necessary), pump the brake pedal several times until it feels firm. Check for any fluid leaks. Reinstall the wheel and lower the vehicle.
12. Bedding In New Brakes: After any brake pad or disc replacement, it's essential to 'bed in' the new components. This involves a series of moderate stops from increasing speeds to properly seat the pads with the discs, ensuring optimal performance and longevity. Consult your pad manufacturer's recommendations.

The Handbrake: Your Essential Parking Companion

The handbrake, or parking brake, is a secondary braking system designed to hold your vehicle stationary when parked, especially on inclines. It typically operates via a cable system that engages the rear brakes (either through the main calipers or separate small drum brakes within the rear discs).

Symptoms of a Loose Handbrake

A handbrake that's too loose won't hold the car securely. You might notice:

• The car rolling slightly when parked on a gentle incline.
• The handbrake lever pulling up too high before engaging, often more than 5-7 clicks.
• A general feeling of insecurity when leaving the car parked.

Why Handbrakes Get Loose

"Hand brake gets loose by time and often usage so you need to adjust almost every time you get your car serviced." This is true. The most common reason for a loose handbrake is cable stretch over time and through repeated use. Additionally, wear in the rear brake shoes (if your handbrake operates via mini-drums) or simply general wear in the mechanism can contribute to slack.

Adjusting Your Handbrake: A Two-Person Job

"Hand brake adjustment need two persons, one to adjust from the rear wheels and the other to press - release the brake pedal." This is often the case to get the tension just right. The adjustment point can vary by vehicle, but it's typically either under the car near the handbrake cables, or inside the cabin under the centre console.

Preparation & Safety

Park your car on a level surface. Apply wheel chocks to the front wheels if you're working on the rear. Ensure the handbrake is fully disengaged before starting.

The Adjustment Process

1. Locate the Adjustment Point: This could be a nut on the handbrake cable(s) under the vehicle, often near where the cables split to go to each rear wheel, or sometimes inside the cabin beneath the handbrake lever itself (requiring removal of trim panels). Consult your car's service manual for the exact location.
2. Initial Slack Removal: If adjusting from under the car, you'll typically find an adjustment nut on the handbrake cable(s). With the handbrake fully off, you can often take up some initial slack by hand or with a spanner.
3. The Two-Person Method: This is where the second person becomes invaluable. One person sits in the driver's seat and pumps the foot brake pedal several times, then holds it down firmly. This helps to centralise the rear brake shoes against the drums or discs.
4. Adjusting the Tension: While the first person is holding the foot brake down, the second person at the adjustment point (either under the car or inside) will gradually tighten the adjustment nut. The goal is to achieve the correct number of clicks on the handbrake lever – typically 5 to 7 clicks from fully down to fully engaged – without the rear wheels binding when the handbrake is off.
5. Test the Adjustment: Release the foot brake pedal. Lower the handbrake lever fully. Now, try to rotate the rear wheels by hand. They should spin freely with no drag. If they bind, the handbrake is too tight, and you'll need to loosen the adjustment slightly.
6. Re-test with Handbrake Engaged: Pull the handbrake lever up to the specified number of clicks (e.g., 5-7). The rear wheels should now be securely locked and impossible to turn by hand.
7. Final Check: If satisfied, secure any removed trim panels or covers. Take the car for a short, slow test drive on a flat surface to confirm the handbrake releases fully and doesn't cause any drag.

Common Brake Maintenance Questions

Frequently Asked Questions (FAQs)

Q1: How often should I check my brakes?
It's recommended to have your brakes inspected at least once a year or every 12,000 miles, whichever comes first. However, if you notice any changes in braking performance, unusual noises, or warning lights, have them checked immediately.

Q2: Can I drive with a faulty brake caliper?
Driving with a faulty brake caliper is extremely dangerous and not recommended. It can lead to uneven braking, loss of control, increased stopping distances, and potentially complete brake failure. Get it rectified as soon as possible.

Q3: What's the "anti-squeal paste" for?
Anti-squeal paste (or copper grease) is applied to the non-friction surfaces of brake pads to dampen vibrations. These vibrations are often the cause of annoying squealing noises when braking. It helps ensure quiet operation and also acts as a lubricant on the sliding surfaces.

Q4: Why does my handbrake need two people to adjust?
The two-person method ensures the rear brake shoes (or pads) are properly centred against the drum or disc before the cable tension is set. This prevents overtightening the cable and ensures even engagement, providing an accurate and effective handbrake adjustment. The person holding the pedal helps to 'set' the rear braking components.

Essential Tools for Brake Work

Conclusion

Maintaining your brake calipers and ensuring your handbrake is correctly adjusted are vital aspects of vehicle ownership. While a truly 'broken' caliper usually means replacement, understanding the process of reinstallation, pad replacement, and bleeding is invaluable. Similarly, knowing how to properly adjust your handbrake ensures your car remains secure when parked. Always prioritise safety when working on your vehicle's braking system. If you're unsure about any step or feel uncomfortable performing these tasks, it's always best to consult a qualified mechanic. Regular maintenance and prompt attention to any brake issues will ensure your vehicle remains safe and reliable on every journey.
