Mastering Rim Brake Pad Replacement

Sooner or later, every cyclist faces the inevitable task of replacing their rim brake pads. Whether they've simply worn out from countless miles of stopping, you're making the exciting switch to carbon fibre rims, or you're simply aiming for a noticeable upgrade in stopping power and modulation, understanding this crucial maintenance task is paramount. Your bicycle's brakes are its most vital safety component, and ensuring they are in optimal condition is not just good practice – it's essential for your well-being on the road.

The fundamental principle behind your bicycle's braking system relies on friction. When you squeeze your brake levers, the callipers clamp the brake pads against the rim of your wheel. This friction converts the kinetic energy of your moving bicycle into heat, slowing the wheel down and, by extension, the entire bike. This continuous process of generating friction, however, comes at a cost: the gradual erosion of the brake pads themselves. A significant challenge for brake designers lies in perfecting pad materials that can withstand this wear and tear, offering longevity while simultaneously providing high friction levels across diverse conditions, performing reliably in both bone-dry weather and the notoriously challenging wet and muddy British climate.

Pad wear isn't constant; it's heavily influenced by the conditions you ride in. If you frequently find yourself cycling through wet, grimy, or muddy environments, your pads will inevitably wear down at a much faster rate. Most brake pads feature a small, often subtle, wear indicator – typically a groove, a dimple, or a line moulded into the pad surface. Once this indicator is no longer visible, or the pad material has thinned to that point, it's a clear signal that replacement is due. Do not delay this vital maintenance. Procrastination can lead to severe consequences, particularly with cheaper, one-piece pads moulded around a metal core. If the pad material completely wears away, the exposed metal core can make direct contact with your precious rim, potentially carving deep, irreparable grooves into its braking surface. This not only compromises your braking performance but can also render your wheel unsafe and necessitate an expensive rim replacement.

Our detailed guide below outlines what we consider the most effective method for replacing road bike brake pads. We've compiled a comprehensive list of the tools and materials you'll need to complete the job successfully. Remember, while we provide recommendations, always feel free to adapt techniques to your comfort level and tool availability. The goal is a safe, effective brake setup.

Essential Tools & Materials You'll Need

• New Brake Pads: Ensure these are compatible with your rim type (alloy or carbon) and brake callipers.
• Allen Keys: Typically 5mm for calliper bolts, and possibly smaller ones for pad retaining screws if applicable.
• Cross-head Screwdriver: For the small pad retaining screw on two-piece pads.
• Clean Rags: For cleaning rims and hands.
• Isopropyl Alcohol (Optional): For cleaning rims and pads to prevent contamination.

Understanding Your Brake Pads: One-Piece vs. Two-Piece Designs

Brake pads are generally constructed in one of two principal ways, each with its own advantages and implications for replacement:

• One-Piece Moulded Pads: These are typically found on more entry-level bikes or older systems. As mentioned, the pad material is moulded directly around a metal core. When these wear out, the entire unit – metal core and pad – must be replaced. While often cheaper initially, they offer less flexibility and can necessitate a complete re-adjustment of the brake calliper after replacement, as the entire pad carrier is removed.
• Two-Piece Pads (Pad and Shoe System): These are more common on higher-performance road bikes. This design consists of a separate brake 'shoe' (an alloy carrier) and a replaceable 'pad' (the rubber compound insert). The pad slides into the shoe and is secured by a small retaining screw. This design offers significant convenience. If your brakes are already well-adjusted, you simply replace the worn pad insert without needing to remove the entire alloy carrier from the calliper. This means you avoid disturbing your existing brake adjustment, saving time and effort. If you currently have all-in-one pads, it's often a worthwhile upgrade to switch to a two-piece system. These typically provide superior braking performance due to stiffer construction and often better-quality rubber compounds.

The Crucial Concept of 'Toe-In'

Before diving into the replacement process, it's vital to understand 'toe-in'. This is a specific adjustment where the leading (front) edge of the brake pad contacts the rim fractionally before the trailing (rear) edge. Imagine looking down at the pad from above: the front points ever so slightly inwards towards the rim. This seemingly minor detail is profoundly important for several reasons:

• Improved Modulation: Toe-in allows the rotation of the wheel to subtly 'drag' the heel (trailing edge) of the pad into the rim. This creates a more progressive and controlled braking feel, allowing for finer control over your stopping power.
• Reduced Brake Squeal: This is arguably one of the most significant benefits. Without toe-in, pads can vibrate against the rim, producing that irritating, high-pitched squeal. Toe-in helps to damp these vibrations, leading to much quieter braking.
• Even Pad Wear: While not the primary purpose, proper toe-in can contribute to more even pad wear over time.
• Rim Cleaning: The initial contact of the leading edge can help clear water, dust, and minor debris from the rim's braking surface, improving performance in adverse conditions.

If your current brake calliper adjustment isn't optimal, or if your brakes notoriously squeal at the first sign of moisture, now is the perfect opportunity to undertake a full re-adjustment. This involves removing the alloy pad carrier, replacing the pad, and then refitting and setting up the entire assembly from scratch. This comprehensive approach ensures you get the most out of your new pads and achieve optimal braking performance.

Step-by-Step Guide to Replacing Rim Brake Pads

The following steps will guide you through the process, assuming you are working with a two-piece pad system, which offers the most flexibility for adjustment.

1. Undo the Retaining Screw

If you're replacing just the rubber pad in an existing pad carrier, the first step is to unbolt the entire carrier from the brake calliper using an appropriate Allen key. Once the carrier is off, carefully remove the curved washer (sometimes called a spherical washer) which sits on the domed central part of the alloy carrier. This washer typically has a round, threaded receiver nut passing through its middle. Next, locate the small pad security screw, usually a cross-head screw, on the side of the alloy carrier. Unscrew this with a cross-head screwdriver. Be extremely careful; this screw is tiny and easily lost.

2. Understand the Retaining Screw's Purpose

Take a moment to observe this small screw. It often has a blue thread-locking compound applied to its threads. This compound, once the screw is tightened into the alloy pad carrier, provides a secure lock, preventing the rubber pad insert from working its way out of its slot fitting during braking. It's a critical component for ensuring the pad stays safely in place.

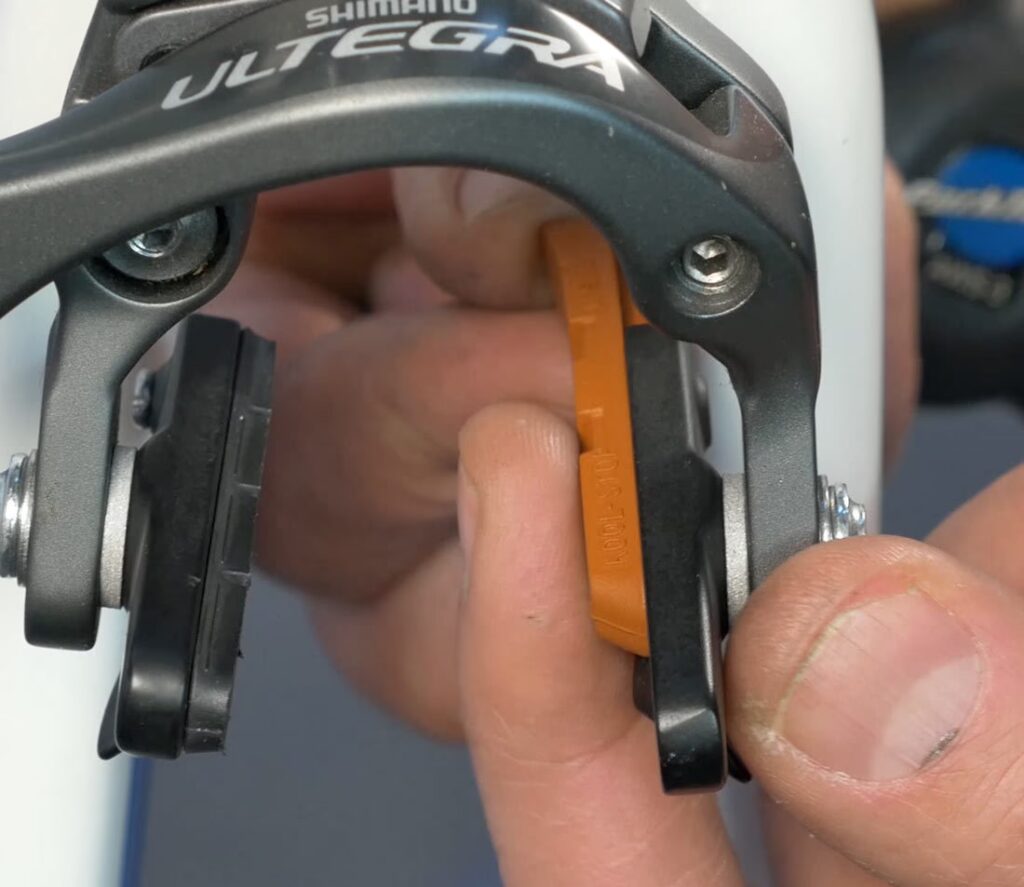

3. Slide Out the Old Pad

With the retaining screw fully removed, you can now slide the old pad out of the alloy carrier. Sometimes, especially if they've been in place for a long time or have seen harsh conditions, old pads can be incredibly stubborn and reluctant to move. If you encounter resistance, avoid using excessive force that might damage the carrier. A useful trick is to gently use the edge of a sturdy worktop or similar firm surface to push against the 'stop end' of the pad while simultaneously pushing the carrier in the opposite direction. This leverage can often help to 'break free' the old pad from its seated position within the carrier.

4. Mind the Shoe (Alloy Carrier Components)

Once the old pad has been successfully removed from the alloy carrier, exercise caution not to lose the small alloy threaded nut (often a silver-coloured component) into which the main calliper attachment bolt screws. These nuts are often a loose fit within the carrier and can easily fall out and disappear if you're not vigilant. Keep all components together and organised.

5. Check the Wear on the Old Pad

Before discarding the old pad, take a moment to examine its edge. You'll likely observe a few things. Firstly, check for the wear indicator slots on the face of the pad. If these are still visible, it indicates that the pad had some life remaining, though it was prudent to replace it. Secondly, look for a semi-circular cut-out on one end of the pad. This specific cut-out is the recess where the retaining screw sits, and it's what ultimately prevents the pad from sliding out of its carrier slots. This visual inspection helps you understand the pad's design and confirms proper wear.

6. Get the Direction Right: L, R, and Forward

This step is critical for proper function and safety. It's crucial to note that brake pads are side-specific. Their tapered shape and internal structure are designed to fit only into a specific side of the brake calliper (left or right) and in a specific orientation. Look closely at the new pad. You will almost certainly see markings like an 'R' in a square border (for Right-hand side) or an 'L' (for Left-hand side). Additionally, there will typically be an arrow and the word 'Forward' or 'Front'. When installed correctly, this arrow and 'Forward' mark must point towards the front of your bicycle. Incorrect orientation will lead to poor braking performance and rapid, uneven pad wear.

7. Fit the New Pad

Now, carefully slide the new pad into the alloy pad carrier. It should slide in relatively easily, without excessive force. As you push it fully home, ensure that the retaining screw hole in the carrier aligns perfectly with the corresponding slot in the new pad. This alignment is essential for securely fastening the pad.

8. Replace the Washers in Correct Order

With the pad retaining screw reinstalled and tightened (remember the blue threadlock!), you can now replace the washers onto the main attachment bolt. This seemingly simple step is often overlooked but is vital. There are typically two types of washers: a concave washer and a flat washer. It is paramount to observe the correct order and orientation of these washers. If they are fitted incorrectly, you will not be able to correctly adjust the pad's angle and position within the calliper arm, leading to compromised braking performance and potential squeal.

9. The First Washer: Concave

The first element to place onto the attachment bolt is the concave washer. Ensure that the convex, domed portion of the carrier body fits snugly into the concave curve of this washer. This unique design allows for the angular adjustment of the pad during the toe-in process. Do not attempt to fit the other flat washer yet; it goes on the opposite side of the calliper arm.

10. Position the Pad Assembly

Carefully slide the carrier, with its newly attached pad and security screw, and the concave washer positioned correctly behind the calliper arm. You'll need to locate the small, protruding end of the threaded nut (which is part of the carrier assembly) into the designated slot on the calliper arm. This ensures the carrier is seated correctly and can pivot for adjustment.

11. Fit the Mounting Bolt

Now, while carefully ensuring that the pad and washers do not drop out of their positions, bring the main attachment bolt and the flat washer (which should now be on the bolt) up and screw them into the carrier nut. Begin to tighten them, but do not go 'mad' and tighten them fully just yet. We still have crucial adjustments to make regarding calliper centring and pad toe-in, which require the pad to be able to move freely for now.

12. Pads Are In, But Not Yet Ready

At this stage, your new brake pads are physically in place. However, it's highly likely that your brake calliper isn't perfectly centred over the wheel, and the pads certainly won't be adjusted for toe-in. These are critical steps that must follow. The only exception to this full adjustment process is if you decided to maintain your original adjustments by leaving the alloy pad carriers in position and simply undoing the security screws to push out and replace just the pad inserts. In that specific scenario, minimal re-adjustment might be needed, but a check is always advisable.

13. Centre the Brake Calliper

Centring your brake calliper is vital to ensure even braking and prevent the pads from rubbing on the rim when the brake isn't applied. You can typically centre the calliper using a 5mm Allen key. The pivot bolt for the calliper is usually accessed via a hole in the rear face of your fork crown (for front brakes) or the seat stay bridge (for rear brakes). On deep-section carbon forks, this bolt might be recessed quite deeply. Loosen the pivot bolt slightly. Then, hold the calliper firmly, visually ensuring that it is centred evenly over the wheel. Check that both calliper arms and their respective pads are roughly the same distance from the wheel rim. Once you're satisfied with the centring, hold the calliper in that position and carefully nip up the pivot bolt tight. The calliper should then remain in that centred position. Don't worry if it's not absolutely perfect; you can always tweak the position again after the toe-in procedure.

14. Set the Pad Position Relative to the Rim

When you begin the final fitting process for the pad, pay meticulous attention to the pad's vertical position relative to the rim's braking surface. You want the pad face to make contact somewhere between the centre and approximately two-thirds of the way up the brake track. Avoid setting the pad too low, where it could contact the tyre, or too high, where it might ride over the rim's edge. Crucially, also ensure the pad is lined up perfectly parallel to the brake track, not with the 'heel' (rear) of the pad sticking up or down. Misalignment will lead to uneven wear and poor braking.

15. Set the Toe-In: The Art of Quiet Braking

This is arguably the most nuanced and important adjustment for rim brakes. You are aiming for a setup where the front (leading) edge of the brake pad makes contact with the rim first when the brake lever is applied. This subtle initial contact serves multiple functions: it effectively cleans the rim of any water, dust, or minor dirt particles. More importantly, it allows the rotational movement of the wheel to 'grab' the leading edge of the pad, subtly twisting the calliper arms and drawing the rear portion of the pad into full contact with the rim. This phenomenon is precisely what we call toe-in. Proper toe-in dramatically reduces brake squeal and judder, while simultaneously improving brake feel and modulation. A badly adjusted pad, where the heel is rubbing and the toe is sticking out, will result in low braking force, a mushy lever feel, and excessive noise. Take your time with this step.

16. Understanding Too Much Toe-In

While toe-in is good, it's possible to have too much. If the leading edge of the pad is severely toed-in – meaning it's right on the rim while the heel is well clear (you can see a significant gap) – it can lead to problems. Excessive toe-in will cause your pads to wear unevenly, with the front edge wearing out much faster than the rear. It can also lead to a somewhat 'mushy' or vague feel at the brake lever, as the initial engagement is too sharp and the full pad contact isn't achieved smoothly.

17. Achieving Goldilocks Toe-In: Just Right

The ideal 'Goldilocks' toe-in is where the toe of the pad is fractionally closer to the rim than the heel. This subtle angle ensures that the toe touches first, allowing the wheel's rotation to induce full pad contact smoothly and progressively. This results in excellent modulation and minimal noise. A common practical tip many mechanics use is to place a thin piece of card (about the thickness of a posh business card) under the heel of the pad while tightening the brake calliper. This effectively creates the perfect toe-in angle. Once tightened, remove the card, and your pads should be perfectly set.

18. Check the Lever Feel

Finally, and perhaps most importantly, naturally, any adjustments made at the calliper will have a direct effect on the feel of the braking at the lever. This is the ultimate test of your work. Keep checking that your toe-in adjustment not only 'feels right' when you squeeze the lever with the bike static but, crucially, also when you're out riding it. A good lever feel is firm, progressive, and instils confidence. If it feels spongy, too sharp, or still squeals, revisit the previous steps, particularly toe-in and calliper centring.

Frequently Asked Questions (FAQs) About Rim Brake Pads

Q: How often should I replace my rim brake pads?

A: The lifespan of brake pads varies greatly depending on your riding frequency, conditions (wet/dry, hilly/flat), and braking habits. Always refer to the wear indicators on your pads. As a general rule, inspect them regularly, at least monthly, and replace them as soon as the wear indicator disappears or the pad material becomes visibly thin.

Q: My brakes still squeal after replacing the pads. What's wrong?

A: Squealing is most commonly due to incorrect toe-in. Revisit Step 15-17 and ensure the pads have the correct angle. Other causes can include contaminated pads or rims (oil, grease), or loose calliper bolts. Ensure your rims are clean and free of debris.

Q: Can I use regular brake pads on carbon fibre rims?

A: Absolutely not! This is a critical safety point. Carbon rims require specific brake pads designed for carbon braking surfaces. Using standard alloy-compatible pads on carbon rims will not only provide extremely poor braking performance but can also rapidly overheat and damage your expensive carbon rims, potentially leading to catastrophic failure. Always use carbon-specific pads for carbon rims, and alloy-specific pads for alloy rims.

Q: My brake lever feels spongy after replacing the pads. What should I do?

A: A spongy lever usually indicates excessive cable slack. Ensure your brake cable is properly tensioned. It could also be a sign of poor toe-in, where the pad isn't making full, firm contact with the rim.

Q: How do I clean my rim braking surface?

A: Regularly clean your rims with a clean rag and a mild degreaser or isopropyl alcohol. This removes road grime, oil, and rubber residue from your old pads, ensuring optimal friction with your new pads and extending their life. Avoid getting any lubricants on your braking surface.

Q: Can I mix different brands of brake pads?

A: While technically possible, it's generally not recommended to mix different brands or compounds of brake pads on the same wheel. Different pads have different friction characteristics, which can lead to uneven braking performance, unpredictable modulation, and potentially accelerate wear on one side. For optimal and consistent performance, use a matching pair of pads.

Replacing your rim brake pads is a fundamental skill for any cyclist. By following these steps and understanding the 'why' behind each adjustment, you'll not only extend the life of your components but, more importantly, ensure your bicycle remains a safe and enjoyable machine to ride. Happy cycling!
