Mastering Your Land Rover R380 Gearbox Overhaul

For any dedicated Land Rover enthusiast or professional mechanic, understanding the intricacies of the R380 gearbox is paramount. This robust 5-speed manual transmission has powered numerous iconic Land Rover models, and maintaining its optimal performance often requires a deep dive into its internal workings. While general vehicle repair manuals cover the removal and fitting of the gearbox, the truly comprehensive guide for internal repair and restoration is the dedicated R380 gearbox overhaul manual. This document is an indispensable resource, offering a wealth of detailed procedures and specifications designed to guide you through a successful bench overhaul.

This article will explore precisely what you can expect to find within this crucial manual, highlighting its scope, structure, and the invaluable information it provides for keeping your Land Rover's heart beating smoothly. We'll delve into the specific models it covers, the detailed sections within, and even clarify what it deliberately omits, ensuring you consult the correct resources for every aspect of your vehicle's maintenance.

The R380 Overhaul Manual: Your Essential Guide

The Land Rover R380 Gearbox Overhaul Manual is not just another repair guide; it's a specialist's bible for anyone undertaking significant work on this particular transmission. Its primary focus is on the complete overhaul of the R380 gearbox itself, specifically when it has been removed from the vehicle and is on a workbench. This distinction is crucial, as it sets the manual's boundaries and ensures its content is highly focused and detailed for the task at hand.

The manual provides step-by-step procedures for dismantling, inspecting, repairing, and reassembling the gearbox, making it an invaluable companion for restoring your R380 to its former glory. It caters to a range of Land Rover models that feature the R380 gearbox, ensuring broad applicability for owners and technicians alike.

Applicable Models

The information contained within this Overhaul Manual is specifically tailored for the R380 gearboxes found in the following Land Rover models, typically from 1995 onwards:

• New Range Rover
• Range Rover Classic (1995 Models onwards)
• Discovery (1995 Models onwards)
• Defender (1995 Models onwards)
• Discovery 2

This wide range of applicability means that whether you're working on a classic Defender or a second-generation Discovery, the core principles and procedures for the R380 gearbox overhaul remain consistent within this manual.

Crucial Distinctions: What the Overhaul Manual Doesn't Cover

It is vital to understand the precise scope of the R380 Overhaul Manual. While incredibly detailed for internal gearbox work, it explicitly states that it does not cover:

• General adjustments (e.g., clutch pedal free play, gear linkage adjustments in situ).

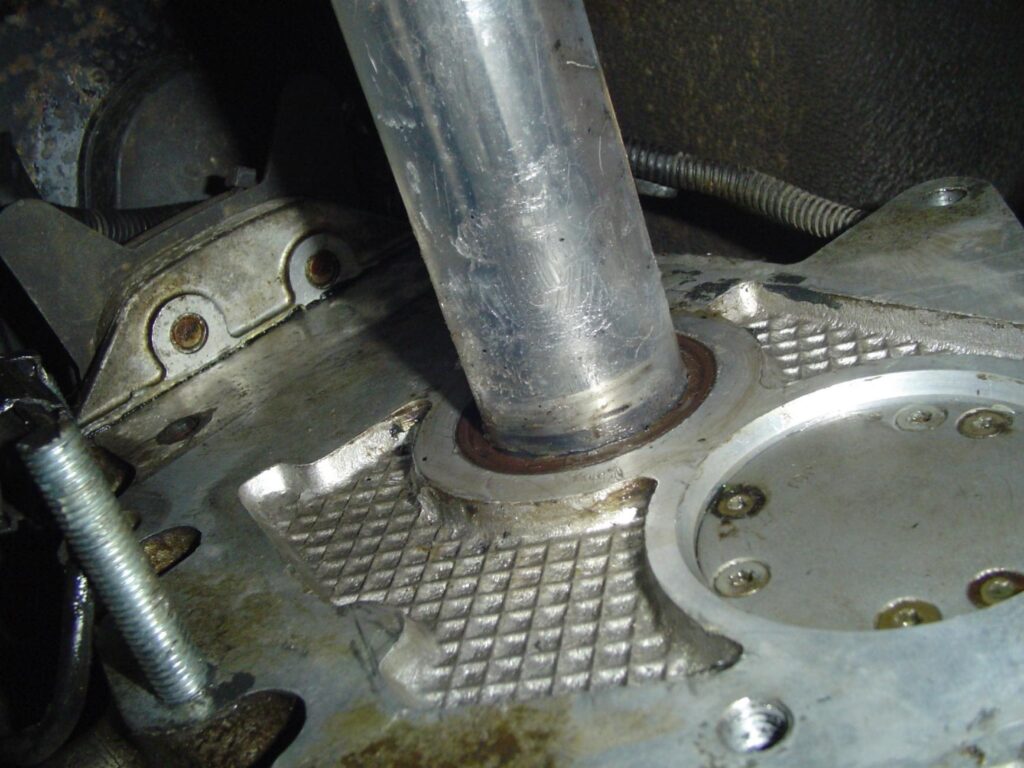

• Removal of oil seals (when the gearbox is still in the vehicle).
• Removal of the clutch assembly.
• Removal of the transfer box assembly.
• Removal of the entire gearbox unit from the vehicle.

For any of these operations, you are directed to consult the appropriate Repair Manual for the specific vehicle model concerned. This ensures that you have access to the complete context and procedures relevant to your particular Land Rover, including any model-specific nuances for these broader tasks.

What's Inside: A Detailed Look at the Manual's Sections

The R380 Overhaul Manual is logically structured to facilitate ease of use and comprehensive understanding. It is typically divided into five main sections, each serving a distinct purpose in the overhaul process.

1. Data

This section provides essential general data and specifications for the R380 gearbox. This includes crucial measurements, clearances, and tolerances that are vital for accurate inspection and reassembly. Having these figures readily available ensures that components are within acceptable wear limits and that the gearbox performs as intended after overhaul.

2. Torque Settings

Accuracy in tightening fasteners is critical for the longevity and reliability of any mechanical assembly, especially a gearbox. The Torque Settings section provides a comprehensive list of specified torque wrench settings for all relevant bolts and nuts within the R380 gearbox. Adhering to these figures prevents under-tightening, which can lead to loosening and failure, and over-tightening, which can strip threads or damage components.

3. Service Tools

Many gearbox overhaul procedures require specialist tools to safely and effectively dismantle, assemble, and measure components. This section details the specific service tools required, often including their part numbers and illustrations of their correct application. Using the right tools is paramount to avoid damage to delicate components and to ensure a professional standard of work.

4. Description and Operation

Before diving into the practical overhaul, it's essential to understand how the R380 gearbox works. This section provides a detailed description of the gearbox's components, their function, and how they interact. It covers:

• Gearbox Components – Gears and Shafts: An explanation of the input shaft, output shaft, layshaft, and reverse idler shaft, along with their associated gears and bearings.
• Gearbox Casings: Details on the front cover, gearcase, centre plate, and extension housing, including how they are located by dowels and sealed.
• Gear Change Housing Types: Descriptions of different gear change housing variants (Type A, B, C, D) and their remote mechanisms.
• Transfer Box Selector Housing: Information specific to the housing that interfaces with the transfer box.

Understanding these elements is fundamental for diagnosing issues and correctly reassembling the unit.

5. Overhaul

This is the core of the manual, detailing every step of the gearbox overhaul process. The procedures are laid out in a logical sequence, ensuring that each step is followed correctly. Key sub-sections include:

• Gearbox Dismantle: Comprehensive instructions for removing various housings (clutch, gear change, remote, extension), gears (5th and reverse), shafts (output and layshaft), and covers (front cover, centre plate).
• Component Overhaul: Specific procedures for inspecting and overhauling individual units such as extension housings, gear change/selector housings, synchromesh assemblies, input shaft, output shaft, and layshaft. This includes crucial checks like baulk ring clearances.
• Gearbox Reassemble: Detailed steps for putting the gearbox back together, including critical procedures like output shaft and layshaft end float shimming, reassembling reverse and 5th gear, and refitting all housings and selector mechanisms.
• Adjustments During Reassembly: Specific adjustments such as 5th gear stop screw adjustment and bias spring adjustments for different gearbox types are covered here.

The manual ensures that each overhaul item is followed in sequence, with numbered illustrations referring to the text, and operations including references to service tool numbers, wear limits, relevant data, and torque figures.

The Heart of the Matter: R380 Gearbox Design and Lubrication

The R380 is a sophisticated piece of engineering, designed for durability and smooth operation. Understanding its internal architecture and lubrication system is key to its maintenance.

Internal Structure and Components

The R380 is a 5-speed, all synchromesh gearbox. This means that all forward gears benefit from synchromesh mechanisms, allowing for smoother and easier gear changes. Its main components include:

• Shafts: An input shaft, an output shaft, a layshaft, and a reverse idler shaft. These are the primary carriers of power and gear sets.
• Casings: The gearbox is encased by a front cover, the main gearcase, a centre plate, and an extension housing. These are precisely located by dowels and sealed to prevent oil leaks.
• Selector Forks: Selector forks for 1st/2nd and 3rd/4th gears are located on a single selector shaft within the main gearcase. A separate selector fork for 5th and reverse gear is situated on another selector shaft inside the extension housing.
• Bearings: The input shaft, output shaft, and layshaft are supported by robust taper roller bearings, designed to handle both radial and axial loads. All gears, however, run on caged needle roller bearings, which are ideal for high-speed rotation and compact design.
• End Float Control: The critical end float of the output shaft and layshaft bearings is precisely controlled by selective thrust washers, located within the centre plate. Correct shimming here is vital for smooth operation and preventing premature wear.

The R380's Lubrication System

Proper lubrication is fundamental to the R380's longevity and performance. The gearbox employs an internal oil pump system to ensure all critical components receive adequate lubrication. This oil pump is cleverly located within the extension housing. It directs gearbox oil via internal drillings within the output shaft, ensuring that the gears, shafts, and bearings are continuously supplied with a fresh film of oil. This forced lubrication system is highly effective in dissipating heat and reducing friction, even under demanding operating conditions.

Practical Steps: How to Remove Oil from Your R380 Gearbox

While the overhaul manual focuses on the internal procedures once the gearbox is on the bench, the process of draining the oil is an initial, essential step in any dismantling operation. The manual provides specific instructions for this as part of the extension housing removal:

1. Place a suitable container underneath the gearbox to catch any oil spillage.
2. Carefully remove the extension housing. This step typically involves undoing several bolts (e.g., 35 mm slave bolts might be mentioned for certain components).
3. As part of the extension housing removal, you will also remove the oil filter.
4. Carefully prise the speedometer pinion housing and gear out of the extension housing.
5. Remove and discard the associated 'O' ring from the speedometer pinion housing.
6. Remove the bolt and washer securing the interlock spool retainer.

This sequence indicates that the bulk of the oil will drain once the extension housing is removed, allowing for access to internal components and the oil filter for replacement.

Comparative Table: Overhaul Manual vs. Model-Specific Manual

To further clarify the distinct roles of the R380 Overhaul Manual and a general model-specific repair manual, here's a comparative overview:

Frequently Asked Questions (FAQs)

Q1: Is the R380 Overhaul Manual suitable for a beginner?

A1: While the manual is incredibly detailed, a full gearbox dismantle and reassembly is a complex task requiring a good level of mechanical aptitude and patience. Beginners should ideally work under supervision or gain experience with simpler repairs first. However, the manual's clear, step-by-step instructions make it accessible for determined DIY enthusiasts.

Q2: Where can I find the specific Service Tools mentioned in the manual?

A2: Many specialist service tools can be sourced from Land Rover parts suppliers, specialist tool manufacturers, or sometimes even fabricated by experienced machinists based on the manual's descriptions. Some common tools might have aftermarket equivalents.

Q3: Does the manual cover upgrades or modifications for the R380?

A3: No, the R380 Overhaul Manual is strictly for standard repair and restoration to original specifications. It does not typically include information on performance upgrades, heavy-duty modifications, or alternative component fitment.

Q4: How important are the torque settings and wear limits?

A4: Extremely important. Ignoring specified torque settings can lead to component failure, oil leaks, or premature wear. Similarly, exceeding wear limits means components should be replaced, not reused, to ensure the gearbox's reliability and longevity. Precision is key in gearbox work.

Q5: What if I have a different type of R380 gearbox (e.g., Type A, B, C, D)?

A5: The manual explicitly covers different types of clutch housings, gear change/selector housings, and extension housings. It provides specific procedures for each type where they differ, so you should identify your gearbox type and follow the relevant instructions carefully.

Conclusion

The Land Rover R380 Gearbox Overhaul Manual is an indispensable resource for anyone serious about the long-term health and performance of their R380-equipped Land Rover. It offers a meticulous, step-by-step journey through the complex process of internal gearbox repair, from understanding its fundamental design to executing precise dismantle and reassembly procedures. While it's crucial to distinguish its scope from a general vehicle repair manual, its dedicated focus on the gearbox's internal workings makes it unparalleled for comprehensive maintenance. Armed with this manual, the right tools, and a good dose of patience, you can confidently undertake the rewarding task of restoring your R380 gearbox, ensuring many more miles of reliable Land Rover adventures.
