Peugeot 306 Braking System Explained

The Peugeot 306, a popular hatchback and estate car produced by the French manufacturer between 1993 and 2001, is known for its comfortable ride and engaging handling. A crucial aspect of any vehicle's performance and safety is its braking system, and the 306 is no exception. Understanding the intricacies of its braking setup can help owners perform routine maintenance, diagnose potential problems, and ensure their car remains in top condition. This article delves into the Peugeot 306's braking system, exploring its design, key components, and common maintenance considerations.

Peugeot 306 Braking System Design

The Peugeot 306 typically features a dual-circuit hydraulic braking system. This means the braking system is divided into two independent circuits. If one circuit fails, the other can still provide some braking power, significantly enhancing safety. The system operates on the principle of transmitting force from the brake pedal to the brake pads or shoes through hydraulic fluid. When you press the brake pedal, it activates the master cylinder, which pressurises the brake fluid. This fluid then travels through brake lines to the calipers (for disc brakes) or wheel cylinders (for drum brakes), forcing the brake pads to clamp onto the discs or the shoes to press against the drums, thereby slowing or stopping the vehicle.

Key Components of the Peugeot 306 Braking System

The effectiveness of the braking system relies on several interconnected components working in harmony. For the Peugeot 306, these typically include:

Brake Pedal

This is the driver's interface with the braking system. Applying pressure to the pedal initiates the braking process.

Brake Servo (Brake Booster)

Most Peugeot 306 models are equipped with a brake servo, often a vacuum-assisted unit. The servo uses engine vacuum (or an electric pump on some later models) to multiply the force applied to the brake pedal. This makes braking much easier and requires less effort from the driver. A failing servo can result in a hard brake pedal, requiring significantly more force to slow the car.

Master Cylinder

The master cylinder is the heart of the hydraulic system. It converts the mechanical force from the brake pedal (amplified by the servo) into hydraulic pressure. It contains reservoirs for brake fluid and pistons that push the fluid into the brake lines. If the master cylinder leaks or its internal seals fail, it can lead to a spongy pedal or a complete loss of braking power.

Brake Fluid

Brake fluid is a non-compressible liquid that transmits hydraulic pressure. It's crucial that the fluid is clean and at the correct level. Over time, brake fluid absorbs moisture from the atmosphere, which can lower its boiling point and lead to brake fade, especially under heavy use. It's also essential to use the correct type of brake fluid specified by Peugeot (typically DOT 4).

Brake Lines and Hoses

These are the conduits through which the brake fluid travels. Metal brake lines are used for most of the run, while flexible rubber hoses connect the lines to the brake assemblies at each wheel. These hoses need to be flexible to allow for suspension movement and steering. Over time, rubber hoses can degrade, crack, or swell, potentially leading to a burst hose and brake failure. It's important to inspect these regularly for any signs of damage or wear.

Brake Calipers (Front and Rear Disc Brakes)

On models equipped with front disc brakes (which is most, if not all, 306s), the caliper houses the brake pads and one or more pistons. When hydraulic pressure is applied, the piston(s) push the brake pads against the brake disc, creating friction to slow the wheel. Some rear brakes on the 306 models might also be discs, or they could be drum brakes.

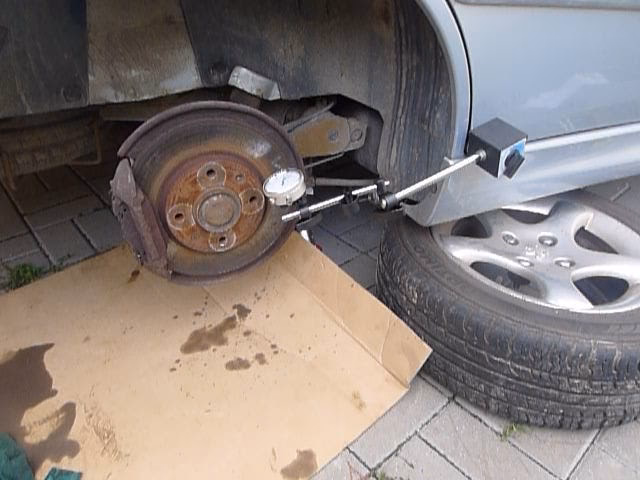

Brake Discs (Rotors)

These are metal discs that rotate with the wheel. The brake pads clamp onto the discs to generate the stopping force. Discs can wear down over time, develop grooves, or warp, leading to reduced braking efficiency and vibrations felt through the steering wheel or pedal.

Brake Pads

Made from high-friction material, brake pads are the components that press against the brake discs. They are designed to wear down over time and are relatively easy to replace. Worn brake pads can cause grinding noises and significantly reduce stopping power. Indicators on the pads often make a squealing noise when they reach a minimum thickness.

Brake Drums and Wheel Cylinders (Rear Drum Brakes)

Some Peugeot 306 models, particularly earlier or lower-specification variants, may have drum brakes on the rear wheels. In this setup, the wheel cylinder uses hydraulic pressure to push brake shoes outwards against the inner surface of the brake drum. This creates friction to slow the vehicle. The drum itself rotates with the wheel.

Brake Shoes

Similar to pads, brake shoes are the friction material that presses against the inside of the brake drum. They also wear down and require replacement.

Anti-lock Braking System (ABS)

Many Peugeot 306 models were equipped with ABS as standard or as an option. ABS prevents the wheels from locking up during heavy braking, allowing the driver to maintain steering control. It uses wheel speed sensors, an electronic control unit (ECU), and hydraulic valves to modulate brake pressure to each wheel individually. An ABS warning light on the dashboard indicates a fault in the system.

Common Braking System Issues in the Peugeot 306

Like any vehicle, the Peugeot 306 can experience common braking system problems. Being aware of these can help you address them promptly:

Spongy Brake Pedal

This often indicates the presence of air in the brake lines, a leak in the hydraulic system, or a failing master cylinder. Air in the system needs to be bled out, while leaks require immediate attention and repair.

Brake Fade

This is a noticeable reduction in braking performance, often after prolonged or heavy braking. It's typically caused by overheating of the brake components, particularly the fluid and discs. Using the wrong type of fluid or fluid contaminated with water is a common culprit.

Grinding Noises

A metallic grinding sound when braking usually means the brake pads have worn down to their metal backing plates, which are then grinding against the brake discs. This is a critical issue that requires immediate replacement of both pads and potentially the discs.

Squealing Noises

While some brake squeal can be normal, persistent or loud squealing often indicates worn brake pads, glazed pads or discs, or a need for lubrication on the brake caliper slide pins.

Vibrations Through the Pedal or Steering Wheel

Warped brake discs are the most common cause of vibrations felt when braking. This can happen due to excessive heat or uneven wear.

Pulling to One Side When Braking

This could be due to a sticking caliper, collapsed brake hose, or uneven wear on the brake pads or discs on one side of the vehicle.

ABS Warning Light

If the ABS warning light illuminates, it signifies a fault within the ABS system. This could be a faulty wheel speed sensor, a problem with the ABS module, or issues with the hydraulic control unit. While the car will still brake, the ABS function will be disabled.

Peugeot 306 Brake Maintenance

Regular maintenance is key to ensuring the longevity and performance of your Peugeot 306's braking system. Here are some essential maintenance tasks:

Regular Inspection

Periodically check the brake fluid level and condition. Inspect brake pads and discs for wear. Look for any signs of leaks or damage to brake lines and hoses. This can be done during routine servicing or even by the owner.

Brake Fluid Changes

Brake fluid should be changed according to the manufacturer's service schedule, typically every two years. This process involves draining the old fluid and replacing it with fresh fluid of the correct specification (e.g., DOT 4). This helps prevent corrosion and maintain optimal braking performance.

Brake Pad and Disc Replacement

Brake pads and discs are wear items and will need to be replaced as they wear down. The frequency of replacement depends on driving style and conditions. It's often recommended to replace pads and discs in pairs on the same axle to ensure even braking.

Brake Bleeding

If the brake pedal feels spongy or if the system has been opened for repairs (e.g., replacing a caliper or hose), the brake system will need to be bled to remove any air bubbles. This process requires specific techniques to ensure all air is expelled.

Checking Brake Hoses

Flexi-hoses are critical safety components. They should be checked for cracks, bulges, or signs of perishing. Any hose showing signs of deterioration should be replaced immediately.

Table: Common Brake Issues and Their Causes

Frequently Asked Questions (FAQs)

Q1: How often should I check my Peugeot 306's brake fluid?

It's advisable to check your brake fluid level at least once a month as part of your routine vehicle checks. Also, inspect its colour; it should be clear or slightly amber. Dark or cloudy fluid may indicate it needs changing.

Q2: What is the recommended brake fluid for a Peugeot 306?

Most Peugeot 306 models require DOT 4 brake fluid. Always consult your owner's manual or a reliable service manual for the exact specification for your particular model year and variant.

Q3: Can I drive my Peugeot 306 if the ABS warning light is on?

Yes, you can typically drive your car if the ABS warning light is on, but the ABS system will not be functioning. This means that in an emergency braking situation, your wheels could lock up, potentially affecting steering control. It's advisable to get the ABS system checked and repaired as soon as possible.

Q4: How do I know when my brake pads need replacing?

Many brake pads have wear indicators that will start to squeal when the pads are getting low. You can also visually inspect the thickness of the friction material on the pads through the spokes of the wheels or by removing the wheels. If the material is less than about 3mm thick, they should be replaced.

Q5: What does it mean if my brake pedal goes to the floor?

If your brake pedal sinks to the floor when you apply pressure, it indicates a significant loss of hydraulic pressure. This could be due to a major fluid leak, a faulty master cylinder, or a completely failed brake line. This is a serious safety issue and the car should not be driven.

In conclusion, the braking system of the Peugeot 306 is a well-engineered hydraulic system designed for safety and performance. By understanding its components, recognising common issues, and adhering to a regular maintenance schedule, owners can ensure their 306 remains a reliable and safe vehicle to drive. Regular checks and prompt attention to any unusual symptoms are paramount for maintaining optimal braking capability.
