VN-VS Commodore Brake Upgrades

Can I Add VT-VZ Brakes to an Earlier Commodore? A Comprehensive Guide

The Holden Commodore, a stalwart of Australian motoring for decades, has seen numerous iterations and platform changes. Enthusiasts often look to upgrade their vehicles for improved performance, and braking systems are a primary focus. A common question that arises is whether the more potent braking systems from later models, specifically the VT-VZ era, can be retrofitted to earlier VN, VP, VR, or VS Commodores. The short answer is yes, but it's not a simple bolt-on affair. It requires significant modifications and a thorough understanding of the compatibility issues involved. This article delves into the intricacies of such a conversion, outlining the process, challenges, and benefits.

Understanding the Differences: VN-VS vs. VT-VZ Braking Systems

The Holden Commodore platform underwent a significant transformation between the VS and VT generations. The VT Commodore introduced a new chassis and suspension design, which included a redesigned front end and often larger brake components. While both generations share a lineage, the mounting points, hub designs, and overall geometry differ. This means that direct component swapping is rarely possible without adaptation.

Front Brake Upgrades

The most common and desirable upgrade involves fitting the larger front disc brakes and calipers from VT-VZ models, often referred to as the 'VT Big Brake' conversion. These systems typically feature:

• Larger diameter brake rotors (e.g., 296mm or 304mm, compared to the ~270mm of earlier models).
• More substantial calipers, often twin-piston units, offering greater clamping force.
• Different caliper mounting brackets.

To fit these VT-VZ front brakes to a VN-VS Commodore, you'll generally need:

• VT-VZ Caliper Brackets: These are essential as they position the larger calipers correctly over the larger rotors.
• VT-VZ Calipers: These will bolt to the new brackets.
• VT-VZ Rotors: These are larger and will require the correct hub assembly.
• VN-VS Hub Assembly (Modified or Spaced): This is where the complexity lies. The VT-VZ hubs have a different offset and bolt pattern for the rotor. You might need to use the VN-VS hubs with a spacer or adapter, or in some cases, consider adapting the VT-VZ hub assembly. The latter is a more involved process, potentially requiring custom steering knuckle modifications.
• Brake Lines: The brake lines from the VT-VZ system may not directly connect to the existing hard lines on a VN-VS. Custom or adapted brake lines are often necessary for a safe and leak-free installation.

Rear Brake Upgrades

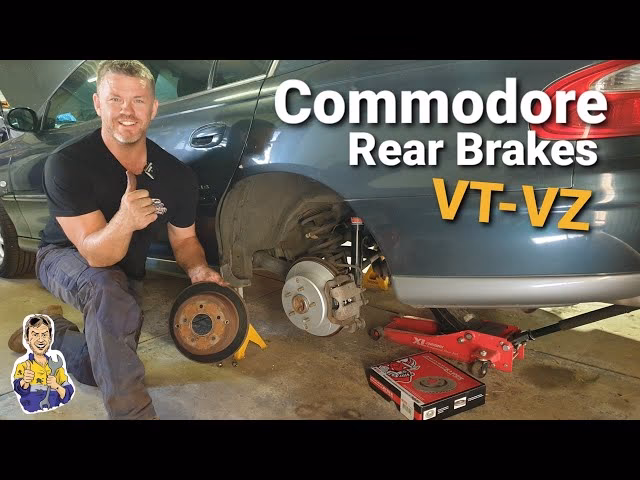

Upgrading the rear brakes often involves fitting the disc brake setup from a VS Commodore if your earlier model has drums, or upgrading to larger discs and calipers from a VT-VZ if you already have rear discs. The challenges are similar:

• Axle Compatibility: VT-VZ rear axles and bearing arrangements differ from earlier models. Swapping the entire rear end assembly is an option for a complete upgrade, but it's a substantial undertaking.
• Brake Drum vs. Disc: If your earlier Commodore has rear drum brakes, converting to discs will require a new brake backing plate, caliper mounting bracket, caliper, rotor, and potentially modifications to the handbrake mechanism.
• Parking Brake Mechanism: The parking brake mechanism on VT-VZ models is typically integrated into the rear caliper (as a mechanical actuation for the hydraulic caliper) or a separate drum-in-hat system. This needs to be compatible with your chosen rear setup and your interior components.

Table: Key Component Differences (Illustrative)

This table provides a general overview and actual specifications may vary by specific model and year.

The Conversion Process: Step-by-Step Considerations

1. Assessment: Determine the exact braking system on your current Commodore (drum or disc rear, rotor size front).
2. Parts Sourcing: Acquire the necessary VT-VZ brake components (calipers, rotors, caliper brackets, potentially hubs, brake lines). Ensure you get parts from a compatible VT-VZ model (e.g., V6 vs. V8 models can have different brake sizes).
3. Front Knuckle Modification/Adaptation: This is the most critical step. You'll need to adapt either the VN-VS knuckle to accept the VT-VZ caliper brackets, or adapt the VT-VZ knuckle to fit your car's steering and suspension. Often, custom-made caliper mounting brackets are fabricated to allow the VT-VZ calipers and rotors to mount onto the existing VN-VS steering knuckle.
4. Hub and Bearing Compatibility: Ensure the wheel studs and hub face match. If using VT-VZ hubs, you might need to modify the steering knuckle or fabricate custom components to mount them.
5. Brake Line Plumbing: Fit new or adapted brake lines. Ensure correct fittings and secure mounting to prevent chafing or leaks.
6. Rear End Consideration: If upgrading the rear, decide whether to swap the entire rear axle assembly or adapt disc brakes to your existing axle. This often involves custom fabrication for caliper mounting and ensuring the parking brake works correctly.
7. Master Cylinder: With larger calipers and potentially more pistons, the original master cylinder might not provide adequate fluid volume or pressure. A larger master cylinder from a VT-VZ or a performance aftermarket unit may be necessary for optimal brake feel and performance.
8. Wheel Clearance: Larger brakes, especially multi-piston calipers, require sufficient clearance within the wheels. You may need to use larger diameter wheels or wheels with a different offset to accommodate the new setup.
9. Professional Installation: Due to the complexity and safety-critical nature of brake systems, it is highly recommended to have this conversion performed by a qualified mechanic or a specialist workshop experienced in such modifications.

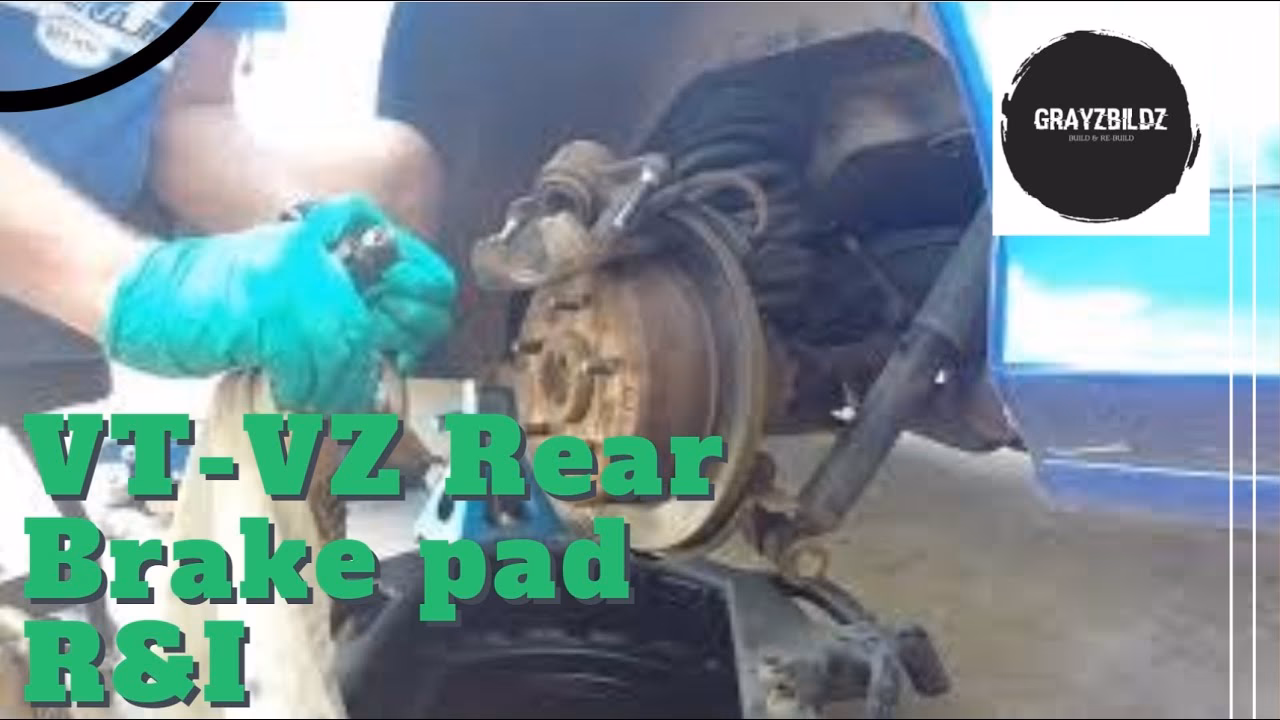

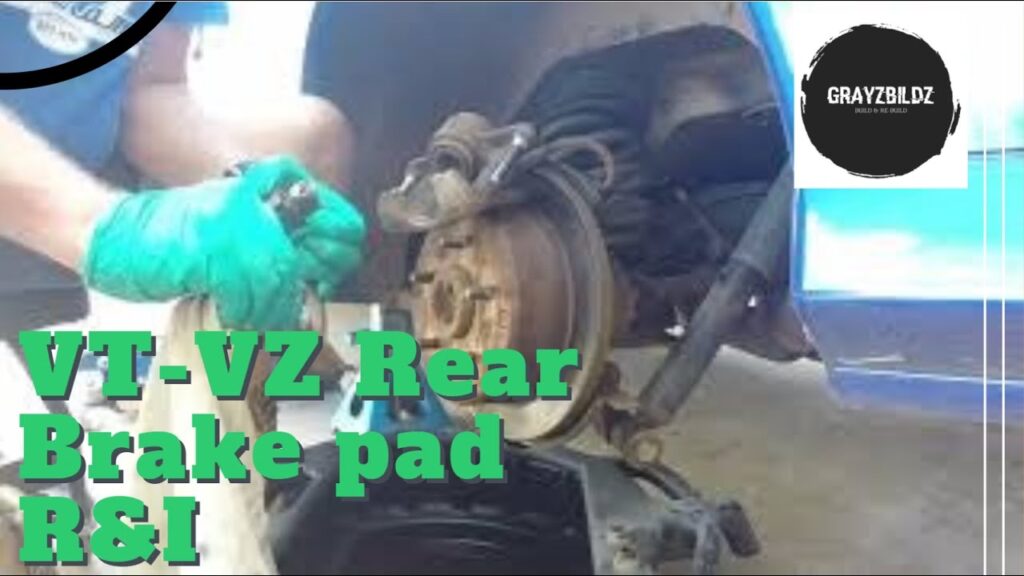

Adjusting the Park Brake (A Common Post-Conversion Task)

As mentioned in the provided text, adjusting a park brake can be a relatively straightforward task, especially after modifications. If you've converted to a rear disc setup that includes a mechanical parking brake function (either via a drum-in-hat or a mechanical linkage within the caliper), you might need to adjust it.

The process generally involves:

1. Centering the Rotor/Drum: As suggested, using wheel nuts to help centre the rotor or drum can aid alignment.
2. Accessing the Adjuster: Locate the adjuster nut or mechanism, usually accessible through a small hole in the brake backing plate or caliper mounting bracket.
3. Using a Tool: A brake shoe adjusting tool or a flathead screwdriver can be used to turn the adjuster wheel.
4. Adjusting for Drag: Turn the adjuster until you feel a slight drag on the rotor when the park brake is disengaged. Then, back it off slightly until the drag disappears. The goal is for the brake to hold firmly when applied, but not to drag when released.
5. Testing: Engage the park brake multiple times and test its holding power on a slight incline. Ensure it releases cleanly.

Important Note: The specific adjustment procedure will vary depending on the exact brake system components used.

Benefits of the Upgrade

Why go through all this trouble? The advantages of upgrading to VT-VZ brakes are significant:

• Improved Stopping Power: Larger rotors and calipers provide a greater surface area for friction and increased hydraulic leverage, resulting in shorter stopping distances.
• Enhanced Heat Dissipation: Larger components are better at dissipating the heat generated during braking, reducing the risk of brake fade during prolonged or heavy use.
• Better Pedal Feel: More robust systems often offer a firmer and more responsive brake pedal feel.
• Aesthetics: Larger brakes can fill out the wheels nicely, giving the car a more performance-oriented look.
• Component Availability: VT-VZ parts are relatively common in the used market, making them an accessible upgrade path.

Challenges and Considerations

Despite the benefits, there are challenges:

• Cost: Sourcing all the necessary parts and paying for custom fabrication and installation can be expensive.
• Complexity: This is not a beginner's DIY project. It requires mechanical aptitude, fabrication skills, and a good understanding of brake systems.
• Legality and Certification: Modifications to braking systems must comply with local regulations. Ensure your conversion is roadworthy and meets all legal requirements.
• Wheel Fitment: As mentioned, ensuring clearance for the larger calipers and rotors is crucial.

Frequently Asked Questions (FAQs)

Q1: Can I just swap VT-VZ calipers onto my VN-VS rotors?

A1: No, the caliper mounting points and rotor sizes are different. You need the correct caliper brackets and rotors to match.

Q2: Do I need to change my master cylinder?

A2: It's highly recommended, especially if you're upgrading to significantly larger or multiple-piston calipers. An undersized master cylinder can lead to a spongy pedal and reduced braking performance.

Q3: Will my existing wheels fit over the new brakes?

A3: Not always. You'll need to check clearance carefully. Larger diameter wheels or wheels with a different offset might be required.

Q4: Is this conversion safe?

A4: When performed correctly with quality parts and professional installation, it can be very safe and significantly improve your car's braking performance. However, incorrect installation can be extremely dangerous.

Q5: Can I use parts from different VT-VZ models?

A5: Yes, but be aware that different models (e.g., V6 Executive vs. V8 SS) had different brake options. Ensure the parts you select are compatible with each other and with your adaptation plan.

Conclusion

Upgrading your VN-VS Commodore with VT-VZ brakes is a popular and effective modification for those seeking enhanced stopping power. While it involves considerable effort, customisation, and expense, the resulting improvements in braking performance, heat management, and pedal feel can be substantial. Thorough planning, careful sourcing of parts, and professional execution are key to a successful and safe conversion. Always prioritise safety and compliance with local regulations when undertaking such modifications.
