MINI R56 Brakes: Discs All Around?

When it comes to the safety and performance of your MINI R56, the braking system is paramount. Many drivers wonder about the specific type of brakes fitted to their vehicles, and for good reason. Understanding your car's braking components is the first step towards ensuring it remains safe and responsive on the road. So, let's cut straight to it: does a MINI R56 feature disc brakes? Absolutely! Your MINI R56 is equipped with disc brakes at every wheel, a standard feature designed to provide efficient and reliable stopping power. However, knowing this is just the beginning. Proper maintenance, especially monitoring the condition of your brake rotors, is crucial for optimal performance.

These disc brakes are engineered for the dynamic driving experience MINI is known for. The front discs, often referred to as rotors, are typically larger and vented. This venting design isn't just for show; it's a critical feature that allows for superior heat dissipation. Braking generates an immense amount of heat, and effective cooling prevents brake fade, ensuring consistent performance even under spirited driving conditions. In contrast, the rear rotors are generally solid, and their calipers often integrate the parking brake mechanism. This differentiation in design between front and rear is intentional, optimising the braking force distribution and overall system efficiency.

The Unseen Heroes: Understanding Brake Rotors

Brake rotors are the unsung heroes of your braking system. When you press the brake pedal, the brake pads clamp down on these spinning discs, creating the friction necessary to slow or stop your vehicle. Given the immense mechanical and thermal stresses they endure, rotors are designed to be incredibly robust. However, over time and with continuous use, they will inevitably wear down. This wear manifests as a reduction in thickness, and if they become too thin, their ability to dissipate heat and withstand braking forces is compromised, leading to reduced braking performance and, more critically, potential safety hazards.

Every brake rotor has a specified minimum thickness, a critical dimension that indicates the thinnest it can safely be before requiring replacement. This minimum thickness is usually stamped on the edge of the rotor itself, serving as a clear guideline for technicians and DIY enthusiasts alike. Ignoring this specification can lead to warped rotors, excessive heat build-up, and ultimately, a significant reduction in your car's stopping power. Therefore, regular inspection and accurate measurement of your brake rotors are essential components of a comprehensive vehicle maintenance routine.

Is It Time for a Rotor Check? Identifying Wear and Tear

Knowing when to check your rotors is as important as knowing how. While a regular service schedule will typically include a brake inspection, certain symptoms can indicate that your rotors need immediate attention. A common sign of worn or warped rotors is a pulsation or vibration felt through the brake pedal or steering wheel when braking. This 'pulsation' is often caused by uneven rotor surfaces, which can be a result of excessive wear, overheating, or even improper installation. If you experience this, it's a clear signal that your rotors need to be inspected.

Beyond thickness, you should also visually inspect your rotors for other signs of distress. Look for signs of overheating, such as blue spots or discolouration on the rotor surface, which indicate extreme temperatures. Cracks, especially around the hub or outer edge, are another serious concern that warrants immediate replacement. Surface rust on the non-contact areas is normal, but deep pitting or rust on the braking surface itself can impair performance. Remember, proactive inspection can save you from costly repairs down the line and, more importantly, ensure your safety on the road. When checking your rotors, always consider replacing brake pads as a complementary modification to ensure optimal performance from your new rotors.

Project Overview: Rotor Measurement and Replacement

Checking your brake rotors for wear is a straightforward task for the competent home mechanic. It requires a few specific tools and a methodical approach. The total project time for inspecting and measuring your rotors is approximately 1.5 hours. If you were to have this done professionally, the 'talent' cost might be around £20, excluding parts. The primary performance gain from this maintenance is the restoration of your brake performance, ensuring your MINI stops as it should.

Tools You'll Need:

• Micrometer
• Jack and Jack Stands
• Wheel Chocks
• Safety Glasses
• Torque Wrench
• Lug Wrench
• Sharpie

Parts Required:

• Brake Rotors (if replacement is necessary)

Step-by-Step: Measuring Your Brake Rotors

Measuring your brake rotors accurately is crucial. Here's how to do it:

1. Prepare Your Vehicle: Park your MINI on a flat, stable surface. Engage the parking brake and place wheel chocks behind the wheels that will remain on the ground.
2. Lift and Secure: Using your lug wrench, slightly loosen the wheel nuts on the wheel you're working on. Then, using a jack, lift that corner of the vehicle and secure it firmly with jack stands. Never work under a vehicle supported only by a jack.
3. Remove the Wheel: Fully remove the wheel nuts and carefully take off the wheel, placing it aside.
4. Access the Rotor: The brake rotor will now be exposed. You may need to remove the brake caliper to get a complete measurement, though for a quick check of the braking surface, it might not be strictly necessary to remove the caliper entirely if you can access the edge.
5. Clean the Rotor: Ensure the rotor surface is clean and free of excessive rust or debris that could interfere with accurate measurements.
6. Measure in Multiple Spots: This is the crucial step. Using your micrometer, measure the rotor's thickness in about 10 different locations around the circumference of the braking surface. It's vital to measure the actual braking surface, not the unworn edge.
7. Mark Your Measurements: Use a Sharpie to mark each spot after you've measured it. This helps you keep track and ensures you don't measure the same spot twice, providing a comprehensive assessment of the rotor's wear pattern.
8. Compare to Minimum Thickness: For each measurement, compare the reading to the minimum thickness stamped on the edge of the rotor or refer to the specifications table below.
9. Assess and Decide: If any single measurement falls below the minimum thickness specification, the rotor requires replacement. Even if it meets the thickness requirement but you're experiencing brake pulsation, it's highly recommended to replace the rotors.
10. Reassembly: If replacing rotors, follow manufacturer guidelines. If not, reassemble the brake caliper (if removed), then reinstall the wheel, hand-tighten the lug nuts, lower the vehicle, and finally, torque the lug nuts to the manufacturer's specified setting using your torque wrench.

Hot Tip: Always measure in at least 10 locations, marking each spot with a Sharpie to ensure thorough coverage and accurate assessment of wear across the entire rotor surface.

MINI R56 Brake Rotor Minimum Thickness Specifications

It's important to note that different MINI R56 models and brake systems use different rotor sizes, each with its own minimum thickness specification. Always refer to the specific size of your installed rotors.

Remember, always replace brake rotors in pairs (both front or both rear) to ensure balanced braking performance. Mixing new and old rotors on the same axle can lead to uneven braking and instability.

Beyond Rotors: Rear Brake Pad Replacement Nuances

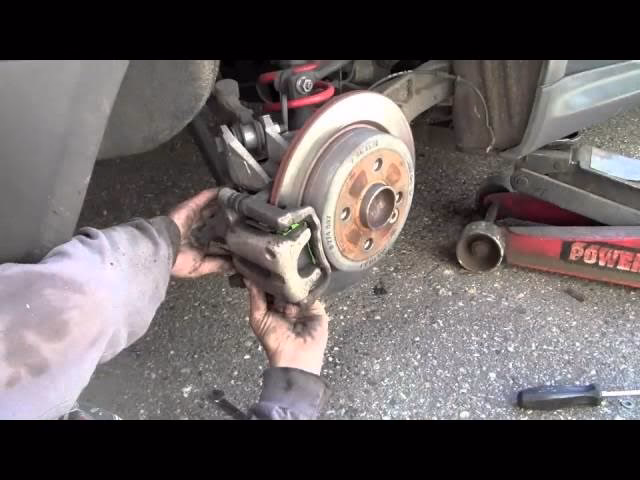

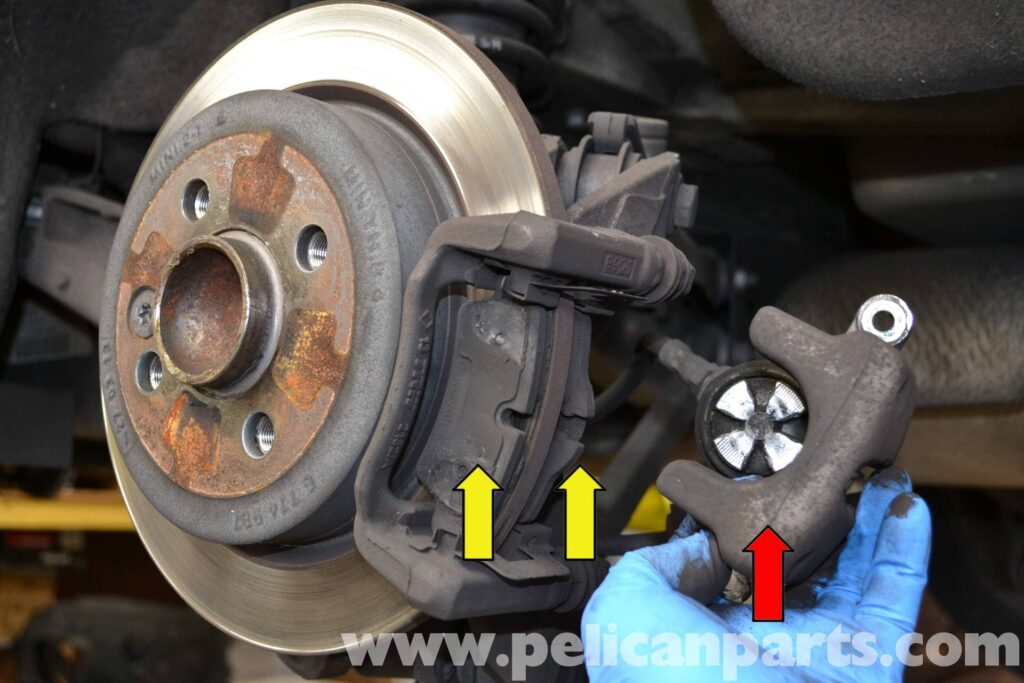

While this article primarily focuses on rotors, it's worth noting a common question regarding rear brake pad replacement on the R55 and R56 MINI models from 2006 onwards: Do I need a caliper rewind tool to change rear brake pads? Yes, you do. Two factors slightly complicate changing the rear brake pads on these models:

1. The Need for a Caliper Rewind Tool: Unlike front calipers, which typically just push straight back, the rear brake calipers on the MINI R56 often incorporate the parking brake mechanism directly into the caliper piston. This means the piston must be rotated as it's pushed back into the caliper body. A specialised caliper rewind tool is designed to do this safely and correctly, preventing damage to the caliper. Attempting to force the piston back without rotating it can damage the internal mechanism.
2. The Need to Change the Wear Sensor: The MINI R56, like many modern vehicles, uses brake wear sensors. These small electrical components are designed to trigger a warning light on your dashboard when your brake pads reach a certain minimum thickness. On the R56, particularly for the rear brakes, it's common practice to replace the wear sensor whenever you replace the brake pads, even if the sensor hasn't triggered yet. This ensures the system functions correctly and provides accurate warnings in the future. The sensor is usually a 'one-time use' item designed to break contact once wear limits are met.

Important Safety and General Advice

Working on your vehicle requires attention to safety. Always wear safety glasses to protect your eyes from dust, debris, or fluids. Consider wearing gloves to protect your hands. When working with fluids, always catch them in appropriate containers and ensure proper disposal. Recycling parts, packaging, and fluids whenever possible is good practice for environmental responsibility. If you're working with the electrical system, always disconnect the battery before beginning to prevent accidental shorts or shocks.

Be aware that vehicle models can change and evolve over time. The sizes of nuts and bolts we provide may differ from what you encounter on your specific MINI R56, especially if it has been serviced previously and had parts replaced with different size fasteners. Be prepared with a range of different size sockets and wrenches. Never attempt a task if you feel it is beyond your ability; it's always better to consult a professional mechanic than to risk injury or damage to your vehicle. Our aim is to provide helpful guidance, but your specific vehicle may vary slightly from the general information presented.

Frequently Asked Questions (FAQs)

How often should I check my brake rotors?

It's generally recommended to inspect your brake rotors every time you get your oil changed or at least once a year. If you notice any of the symptoms mentioned (pulsation, noise, warning lights), inspect them immediately.

What causes brake pulsation or vibration?

Brake pulsation is most commonly caused by uneven wear or warping of the brake rotors. This can happen due to overheating, improper break-in procedures for new pads/rotors, or simply uneven wear over time. Replacing the rotors (and often pads) is usually the solution.

Can I replace just one brake rotor?

No, it is highly recommended to replace brake rotors in pairs (both front or both rear) to ensure balanced braking performance across the axle. Replacing only one can lead to uneven braking, which compromises control and safety.

What's the difference between vented and solid rotors?

Vented rotors have a series of internal fins or channels between two disc surfaces, which allow air to flow through and cool the rotor more effectively. Solid rotors are a single, solid piece of metal. Vented rotors are typically used on the front wheels where most of the braking force and heat are generated, while solid rotors are often found on the rear where less heat is produced.

Do I need to bleed my brakes when replacing rotors?

Generally, no. Replacing only the rotors (and pads) does not introduce air into the hydraulic system, so bleeding the brakes is not usually necessary. However, it's always a good idea to check your brake fluid level and top it up if needed, and ensure the reservoir cap is secure. If you open any hydraulic lines (e.g., to replace a caliper), then bleeding will be required.

What is a brake wear sensor?

A brake wear sensor is a small electrical component designed to detect when your brake pads have worn down to a critical minimum thickness. When the pad wears down enough, the sensor makes contact with the rotor (or breaks an internal circuit), triggering a warning light on your dashboard to alert you that your pads need replacing.

Conclusion

Your MINI R56 is indeed equipped with disc brakes on all four wheels, a testament to its performance-oriented design. Maintaining these vital components, especially the brake rotors, is crucial for your safety and the longevity of your vehicle. Regular inspections, accurate measurements, and timely replacement of worn parts are not just good practice; they are essential for ensuring your MINI remains a joy to drive, stopping reliably every time. By understanding the specifications, recognising the signs of wear, and following safe maintenance procedures, you can keep your MINI's braking system in top condition.
