Brake Pad Wear Sensor Replacement: A Guide

The braking system is, without question, one of the most critical safety components in any vehicle. At its core, braking relies on the fundamental principle of friction. When you depress the brake pedal, the brake pads are pressed against the rotating brake disc, creating resistance that slows and eventually stops your car. This constant contact, however, inevitably leads to wear. The friction material on your brake pads gradually diminishes, necessitating timely replacement to maintain optimal stopping power and prevent costly damage to other braking components.

While regular visual inspections are vital, modern vehicles often come equipped with ingenious devices designed to alert you precisely when your brake pads are nearing their minimum safe thickness: the brake pad wear sensor. Understanding how these sensors work, recognising their types, and knowing how to replace them is paramount for any car owner in the UK. This guide will delve into the intricacies of brake pad wear sensors, their common malfunctions, and provide a clear, step-by-step process for their replacement.

Understanding Brake Pad Wear Sensors

As their name suggests, brake pad wear sensors are specifically engineered to monitor the wear level of your brake pads. Their primary function is to provide an early warning, typically through a dedicated lamp on your vehicle's instrument panel, when the pad material has worn down to a critical point. When the pad thickness reaches a pre-determined minimum, the sensor activates, closing an electrical circuit or making physical contact, thereby alerting the driver to the need for attention.

This early detection mechanism is incredibly valuable. Without it, drivers might only become aware of dangerously thin pads through a noticeable reduction in braking performance, a grinding noise indicating metal-on-metal contact, or even a sudden loss of braking capability. By providing a clear warning, wear sensors help prevent extensive damage to brake discs, avoid compromised braking efficiency, and ultimately enhance road safety.

Types of Brake Pad Wear Sensors

Currently, two primary types of brake pad wear sensors are in common use:

Mechanical Wear Sensors

The mechanical wear sensor represents a simpler, more traditional approach to brake pad wear detection. It typically consists of a small metal plate or tab, often integrated into the brake pad itself or attached to its backing plate. The design ensures that this metal component protrudes slightly beyond the minimum safe thickness of the brake pad's friction material.

The principle of operation for a mechanical sensor is straightforward: as the brake pad wears down, the exposed metal tab eventually comes into direct contact with the rotating brake disc. This contact generates a distinctive, high-pitched squealing or grinding noise. This audible warning is intended to prompt the driver to inspect and replace the brake pads.

While simple and cost-effective, mechanical sensors have several drawbacks. Firstly, their reliance on an audible warning means the sound can sometimes be mistaken for other brake noises, or simply be missed by the driver, especially in noisy environments or with the radio on. Secondly, they are prone to false triggers; dirt, rust, or debris accumulating around the sensor can cause premature squealing, even when the pads are new. Furthermore, they are generally unsuitable for drum brake systems due to structural differences. On modern vehicles, the installation of mechanical type wear gauges is less common due to these limitations, as they offer a less precise and sometimes unreliable indication of wear.

Electronic Wear Sensors

Electronic wear sensors represent a more advanced and technologically sophisticated solution. These sensors integrate directly with the vehicle's electrical system, providing a visual warning on the instrument panel rather than an audible one. This eliminates the need for the driver to interpret sounds, offering a clearer and more direct alert.

Electronic sensors are further categorised into two main subspecies:

• External Devices: These sensors are mounted on the metal backing plate of the brake pad, often clipping into a special notch or retainer. A significant advantage of external sensors is that they can often be reused when replacing brake pads, provided they are undamaged. They are typically disconnected from the old pad and reattached to the new one.

• Integrated Devices: As the name suggests, these sensors are embedded directly within the friction material of the brake pad itself. Once the pad wears down to the sensor, the sensor's internal circuit is activated (or broken), and it cannot be extracted or reused. Integrated sensors must always be replaced along with the new brake pads. While seemingly less economical due to their single-use nature, they are often simpler to replace as they are already part of the new pad assembly.

How Electronic Sensors Operate in Detail

An electronic brake pad wear sensor fundamentally comprises a metal core, typically made from soft steel grades, encased within a plastic housing. The choice of soft steel is deliberate; should the core eventually make contact with the brake disc, it minimises the risk of scoring or damaging the more expensive disc component.

The operation of these sensors is based on the principle of electrical circuit closure or interruption. In most designs, as the friction material of the brake pad wears down to a pre-set minimum thickness, the internal metal core of the sensor comes into contact with the brake disc. This contact completes an electrical circuit, which then sends a signal to the vehicle's onboard computer, illuminating the appropriate warning light on the instrument panel.

Some more advanced systems feature a two-stage brake pad wear gauge. This allows the warning lamp to change its colour depending on the degree of wear – for example, an amber light for an initial warning, progressing to a red light when the wear becomes critical. This provides the driver with even more precise information about the urgency of replacement.

Symptoms of Malfunctioning Wear Sensors

Despite their utility, brake pad wear sensors can develop faults, leading to either a failure to warn or false alarms. Recognising these symptoms is crucial:

• No Warning Light Despite Worn Pads: The most concerning symptom. If your brake pads are clearly worn down, but the warning lamp never illuminates, it suggests an issue with the sensor's circuit. This is most commonly due to physical damage or a breakage in the sensor's wiring or connector. If the circuit cannot close (in a 'close-to-warn' system) or remains closed (in an 'open-to-warn' system), the warning won't appear.

• Constant Warning Light with New Pads: Conversely, if the warning lamp remains illuminated even after new brake pads (and sensor, if integrated) have been installed, or if your pads are known to have plenty of life left, it indicates a false positive. This is often caused by oxidation or corrosion at the sensor's contacts or within its wiring harness, particularly near the caliper. Water and road grime can ingress into these connections, increasing resistance or creating an unintended short circuit, tricking the system into thinking the pads are worn.

• Intermittent Warning Light: A light that flickers on and off can suggest a loose connection, a partially damaged wire that makes and breaks contact, or early stages of corrosion that are intermittently affecting the circuit's resistance.

• Mechanical Fallback (with Electronic Sensor): An interesting characteristic of some electronic sensors is that even if the electrical connection fails, the internal steel core will still be exposed as the pad wears. Should this core contact the brake disc, it can generate a characteristic scraping or grinding sound, effectively causing the electronic sensor to behave like a mechanical one, providing an audible warning despite its electrical malfunction.

When to Replace Brake Pads and Sensors

The lifespan of brake pads varies significantly based on driving style, vehicle type, and typical driving conditions. While no exact figure can be given, general guidelines exist:

• Front Pads: For moderate driving, front brake pads typically last between 25,000 to 40,000 kilometres. They bear the brunt of braking force, especially during hard stops.

• Rear Pads: Rear pads generally last much longer, often double the lifespan of front pads, as less braking force is applied to the rear axle.

• Aggressive Driving: An active or aggressive driving style, characterised by frequent hard braking and stop-and-go city traffic, can drastically reduce pad life to as little as 10,000 to 15,000 kilometres.

It is crucial not to prolong driving with an illuminated brake wear indicator lamp. Once the light comes on, the sensor's internal tip (or core) is already making contact with the disc. Continuing to drive will not only accelerate the wear of the remaining pad material but also rapidly wear down the sensor tip itself, potentially damaging the brake disc if ignored for too long, leading to more expensive repairs.

Step-by-Step Guide: Replacing an External Brake Pad Wear Sensor

Replacing an external brake pad wear sensor is a relatively straightforward DIY task for the competent home mechanic. Remember, integrated sensors are replaced as part of the new brake pad assembly, so this guide focuses on the more common external type. Always prioritise safety when working on your vehicle.

Required Tools and Materials:

• Vehicle jack and axle stands
• Wheel brace/socket set
• Torque wrench
• Wire brush or contact cleaner
• New brake pad wear sensor
• Gloves and safety glasses

Procedure:

1. Safety First: Prepare Your Vehicle
   Park your car on a flat, level, and firm surface. Engage the parking brake and, if your vehicle is a manual, put it in first gear or reverse (for automatics, put in Park). Loosen the wheel nuts on the wheel you'll be working on slightly while the car is still on the ground. Use a sturdy jack to lift the vehicle, then immediately place robust axle stands underneath the vehicle's designated jacking points. Never rely solely on the jack. Remove the wheel completely and set it aside safely.

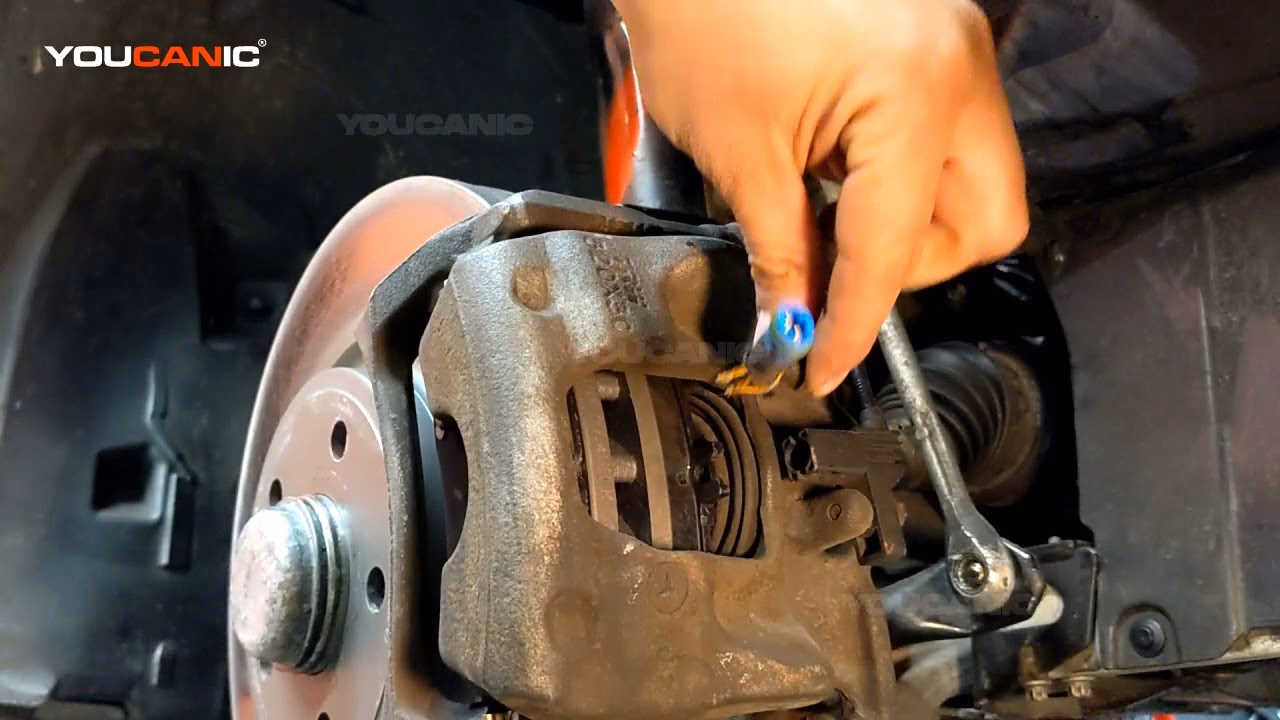

2. Locate the Sensor
   The external wear sensor will typically be found close to the brake caliper and the wheel hub assembly. It's usually a small plastic-bodied component with a wire leading from it, often clipped onto the brake pad itself or the caliper housing. Follow the wire from the brake pad back to its electrical connector, which is usually clipped onto the suspension strut or vehicle chassis.

3. Disconnect and Remove the Old Sensor
   Carefully examine how the old sensor is attached. It may be secured by spring clips, plastic tabs, or simple pressure fit. Gently unclip or unfasten the sensor from its mounting points. Next, locate the electrical plug that connects the sensor to the vehicle's wiring harness. Disconnect this plug, often by pressing a small tab and pulling apart. Be gentle to avoid damaging the vehicle's wiring harness.

4. Inspect and Clean the Area
   With the old sensor removed, take the opportunity to clean the sensor's seat or mounting area on the brake pad or caliper. Use a wire brush or an old toothbrush to remove any accumulated dirt, brake dust, or corrosion. It's also wise to clean the vehicle's electrical plug with a contact cleaner to ensure a good connection for the new sensor.

5. Install the New Sensor
   Take your new brake pad wear sensor. First, connect its electrical plug to the vehicle's harness connector, ensuring it clicks firmly into place. Then, carefully route the sensor wire. It's crucial that the wire does not rub against any moving parts (like the tyre or driveshaft) or hot components (like the exhaust). Secure the sensor body into its designated spot on the brake pad or caliper assembly, ensuring it's firmly seated and won't dislodge during driving.

6. Reassembly and Testing
   Reinstall the wheel onto the hub, hand-tightening the wheel nuts. Lower the vehicle off the axle stands and jack. Once the vehicle is on the ground, use a torque wrench to tighten the wheel nuts to the manufacturer's specified torque settings. Start the car and turn the ignition to the 'on' position (you may not need to start the engine). Observe the instrument panel. If the brake pads are sufficiently thick, the warning lamp should be off. If the pads are worn and you haven't replaced them, the lamp should illuminate. Finally, pump the brake pedal a few times to ensure the brake caliper pistons are correctly seated, then take a short, slow test drive, applying the brakes gently to confirm proper operation and that no warning lights reappear.

Troubleshooting Common Sensor Issues

Even after replacement, issues can sometimes arise. Here's how to troubleshoot common problems:

• Warning Light Remains On After Replacement: If the brake wear light stays illuminated after fitting a new sensor and pads:

  • Check Connections: Double-check that all electrical connections are clean, secure, and fully plugged in. A loose or corroded connection is a common culprit.
  • Wiring Damage: Inspect the entire length of the sensor wire and the vehicle's harness for any signs of cuts, pinches, or severe corrosion that might be causing a short circuit or open circuit.
  • Faulty New Sensor: Although rare, a new sensor could be defective. If all else fails, trying another new sensor might be necessary.
  • Reset Procedure: Many modern vehicles require a manual reset of the brake wear indicator via the vehicle's onboard computer, infotainment system, or a diagnostic scan tool. Refer to your car's owner's manual for the specific reset procedure. Simply replacing the sensor may not be enough to extinguish the light.

• Warning Light Does Not Come On When Pads Are Worn: This indicates a failure in the warning system itself, which is a safety concern:

  • Broken Wire/Open Circuit: The most frequent cause. The sensor's circuit is not completing (or breaking) due to a severed wire or a disconnected plug.
  • Faulty Sensor: The internal components of the sensor might have failed, preventing it from sending the correct signal.
  • Blown Fuse: Check the fuse box for any blown fuses related to the instrument panel or braking system warning lights.
  • Dashboard Bulb Failure: On older vehicles, the actual bulb for the warning light might have failed, though this is less common with modern LED dashboards.

Comparative Table: Mechanical vs. Electronic Sensors

To summarise the key differences between the two types of brake pad wear sensors, consider the following table:

Frequently Asked Questions (FAQs)

Q: Can I drive with the brake pad wear light on?

A: While your car may still be able to brake, driving with the brake pad wear light illuminated is highly unadvised. The light indicates that your pads have reached a critically low thickness. Continuing to drive risks metal-on-metal contact, which will rapidly damage your brake discs, significantly reduce braking efficiency, and could lead to dangerous brake fade or even complete brake failure. Replace your brake pads and sensor as soon as possible.

Q: Do all cars have brake pad wear sensors?

A: No, not all cars, especially older or more basic models, come equipped with brake pad wear sensors. However, they are a common feature on most modern vehicles, particularly those from premium brands such as Mercedes and BMW. Typically, at least the front axle will have sensors, and on some models, all four wheels are monitored.

Q: Can I replace just the sensor, or do I need new pads?

A: If the sensor light is on, it means your brake pads are worn and need immediate replacement. The sensor is a warning device for worn pads. Therefore, you should always replace the brake pads when the sensor light comes on. If you have an integrated sensor, it must be replaced along with the new pads. If you have an external sensor and it's faulty (e.g., giving a false positive) but your pads still have plenty of life, then you can replace just the sensor.

Q: How do I know if my car has electronic or mechanical sensors?

A: The easiest way to determine this is to check your car's owner's manual. If your car has a dedicated warning light on the dashboard specifically for brake pad wear, it almost certainly has electronic sensors. If you only hear a high-pitched squeal when braking before any dashboard light appears, it might be equipped with mechanical sensors. A visual inspection during a wheel removal will also clearly show the type of sensor present.

Q: Is it necessary to reset the brake wear light after replacement?

A: For many modern vehicles, yes, a manual reset procedure is required after replacing brake pads and sensors. Simply installing new components might not automatically turn off the warning light. This reset can often be done via the car's infotainment system menu, through steering wheel controls on the instrument panel, or in some cases, with a specialised diagnostic scan tool. Always consult your vehicle's specific owner's manual for the correct reset procedure.

Conclusion

The brake pad wear sensor is an incredibly useful and often overlooked component of your vehicle's braking system. It acts as an automated early warning system, signalling the crucial need to replace worn friction material before it leads to more severe issues. Whether you have mechanical or electronic sensors, understanding their operation and knowing how to diagnose and address faults is vital for maintaining your vehicle's safety and performance.

While DIY replacement of external sensors is achievable, it's paramount to follow safety precautions and ensure all connections are secure. Even with sensors, regular visual inspections of your brake pads remain an essential part of routine vehicle maintenance. Prioritising the timely upkeep of your braking system is not just about extending the life of your vehicle; it's about ensuring your safety and the safety of others on the road.
