RAV4 Oil Change: A Comprehensive Guide

The Essential Guide to Changing Your Toyota RAV4's Engine Oil

Keeping your Toyota RAV4's engine in peak condition is paramount for its longevity and performance. A crucial part of this is regular engine oil changes. While the process might seem daunting to some, especially with the RAV4's specific oil filter setup, it's a task that can be confidently tackled at home with the right knowledge and tools. This guide will walk you through everything you need to know about changing the engine oil in your 2017 to 2019 Toyota RAV4 models, covering oil types, capacities, the unique cartridge oil filter system, and the step-by-step procedure.

Understanding Your RAV4's Oil Requirements

Toyota has evolved its engine oil specifications over the years, and it's vital to use the correct oil for your specific RAV4 model. For the 2017 Toyota RAV4, the 2.5-litre 4-cylinder engine typically requires 0W-20 synthetic oil. This viscosity is chosen for its excellent performance in a wide range of temperatures, ensuring proper lubrication from cold starts to high operating temperatures. It's recommended to consult your owner's manual for the most precise specification for your vehicle.

Moving on to the 2019 Toyota RAV4 Adventure/Trail model, you'll find a slight shift in the recommended oil. This particular model often specifies 0W-16 oil. This is a thinner viscosity oil designed for modern engines that benefit from reduced friction for improved fuel efficiency. Again, always double-check your owner's manual as the ultimate authority.

RAV4 Oil Capacities: How Much You Need

Knowing the correct oil capacity is just as important as using the right oil type. Overfilling or underfilling can both lead to engine damage. For the 2017 Toyota RAV4 with its 2.5-litre engine, the oil capacity is approximately 4.6 US quarts (or about 4.3 litres). This capacity includes the oil filter.

For the 2019 Toyota RAV4 Adventure/Trail, the capacity is slightly different. With the filter change, it requires around 4.5 litres or 4.8 US quarts. Without a filter change, it’s about 4.2 litres or 4.4 US quarts. These figures are approximate, and it's always best to fill to the recommended level indicated on the dipstick.

The RAV4's Unique Oil Filter: Cartridge Style

One of the most distinctive features of many modern Toyota vehicles, including the RAV4, is its use of a cartridge-style oil filter. Unlike the traditional spin-on filters found on many other vehicles, the RAV4 employs a paper filter element housed within a plastic or metal cap. This design is often referred to as an "oil filter housing cap."

Why the difference? Cartridge filters are generally considered more environmentally friendly as they produce less waste metal. They can also be more efficient at trapping finer particles. While they might seem intimidating at first, with the right tools and a bit of practice, they are straightforward to manage. You might even find you prefer them once you're familiar with the process.

Essential Tools and Parts for Your Oil Change

To successfully change the oil and filter in your RAV4, you'll need a specific set of tools and parts. Here's a comprehensive list:

Step-by-Step Guide to Changing Your RAV4's Oil

Follow these steps carefully to perform a successful oil change on your Toyota RAV4:

1. Warm Up the Engine: Start the engine and let it run for a few minutes to warm the oil. Warm oil flows more easily, allowing for a more complete drain. However, don't let it get too hot, as this can cause burns.
2. Safely Lift the Vehicle: Engage the parking brake and place wheel chocks behind the rear wheels. Using a jack, lift the front of the vehicle to a height that allows comfortable access to the oil drain plug and filter housing. Securely place jack stands under the designated support points on the frame and slowly lower the vehicle onto the stands.
3. Locate the Drain Plug: Slide the oil drain pan underneath the engine's oil pan. The drain plug is usually a bolt located at the lowest point of the oil pan. Identify the correct size socket for the drain plug.
4. Drain the Old Oil: Using the socket wrench, carefully loosen and remove the drain plug. Be prepared for the hot oil to flow out immediately. Allow the oil to drain completely into the pan. This can take several minutes. While draining, inspect the drain plug and its threads for any damage.
5. Replace the Drain Plug Gasket: Once the oil has finished draining, clean the drain plug and the area around the drain hole. Remove the old drain plug gasket and install a new one. This is a critical step to prevent leaks.
6. Reinstall the Drain Plug: Screw the drain plug back into the oil pan by hand to avoid cross-threading. Then, use the socket wrench to tighten it. If you have a torque wrench, tighten it to the manufacturer's recommended torque specification (refer to your owner's manual).
7. Locate the Oil Filter Housing: The oil filter housing is typically located on the underside of the engine, often near the front. It will be a cylindrical cap, usually made of black plastic or metal, with a hexagonal or octagonal shape on the bottom for a wrench to grip.
8. Remove the Oil Filter Housing Cap: Place the oil drain pan beneath the oil filter housing, as some residual oil will likely spill out. Use the specialized oil filter housing cap wrench to loosen and remove the cap. Turn it counter-clockwise. Once loose, carefully unscrew it by hand. Be mindful of any oil that might spill.

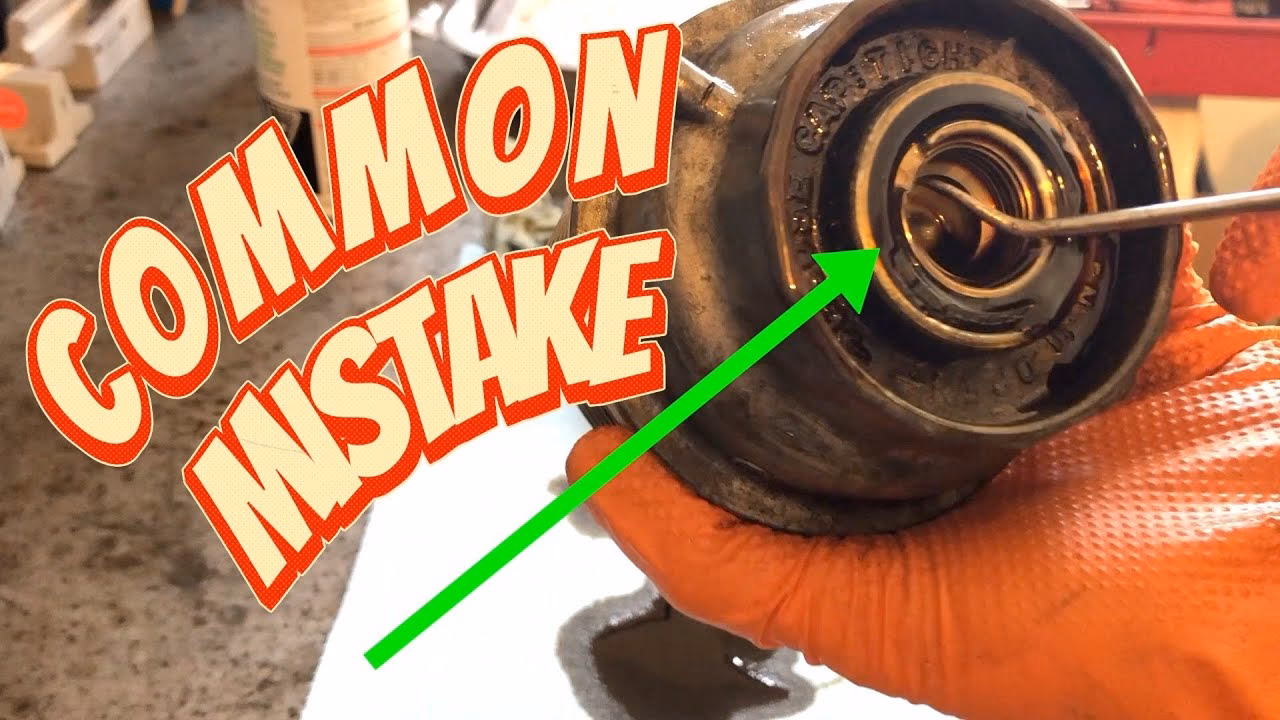

9. Remove the Old Filter Element: Inside the housing cap, you'll find the old paper filter element. Carefully pull it out. You'll also notice two O-rings on the housing cap – one larger one sealing the cap to the engine block, and a smaller one for the drain plug on the cap itself (if your model has one). Remove these old O-rings.
10. Clean the Housing Cap and Replace O-rings: Clean the inside of the oil filter housing cap thoroughly with a clean rag. Lubricate the new O-rings with a bit of fresh engine oil and install them into their respective grooves on the housing cap. Ensure they are seated correctly and not twisted.
11. Install the New Filter Element: Insert the new oil filter element into the housing cap. It should fit snugly.
12. Reinstall the Oil Filter Housing Cap: Carefully screw the housing cap back into place by hand, ensuring it threads in smoothly. Once hand-tight, use the oil filter housing cap wrench to tighten it. Again, if you have a torque wrench, tighten it to the specified torque (check your owner's manual for the correct torque figure).
13. Lower the Vehicle: Carefully raise the vehicle off the jack stands using the jack, remove the jack stands, and then slowly lower the vehicle back to the ground.
14. Add New Engine Oil: Open the bonnet and locate the oil filler cap on the engine. Remove the cap and insert the funnel. Slowly pour in the recommended amount of new engine oil. Start with slightly less than the full capacity, as you'll top it up after checking the level.
15. Check the Oil Level: Replace the oil filler cap. Start the engine and let it run for about 30 seconds to circulate the new oil and fill the filter. Turn off the engine and wait a few minutes for the oil to settle back into the oil pan. Pull out the dipstick, wipe it clean, reinsert it fully, and pull it out again. Check the oil level. It should be between the 'min' and 'max' marks. Add more oil in small increments if necessary, rechecking the level after each addition, until it reaches the 'max' mark. Do not overfill.
16. Final Checks: Inspect under the vehicle for any leaks around the drain plug and the oil filter housing. Ensure all tools are removed from the engine bay.
17. Dispose of Old Oil: Properly dispose of the used engine oil and filter. Most auto parts stores and local recycling centres accept used oil. Never pour it down drains or onto the ground.

Common Pitfalls and How to Avoid Them

Even with a detailed guide, mistakes can happen. Here are some common issues and how to prevent them:

• Cross-threading the Drain Plug: Always start threading the drain plug by hand to ensure it's aligned correctly before using a wrench.
• Over-tightening: Over-tightening the drain plug or filter housing cap can strip the threads, leading to costly repairs. Using a torque wrench is highly recommended.
• Forgetting the Drain Plug Gasket: Reusing the old gasket is a common mistake that often leads to oil leaks. Always use a new one.
• Using the Wrong Oil: Always verify the correct oil viscosity and specification for your specific RAV4 model in the owner's manual.
• Incorrect Filter Housing Cap Wrench: Using a wrench that doesn't fit properly can damage the plastic housing cap. Ensure you have the correct tool.
• Not Securing Jack Stands: Safety is paramount. Never work under a vehicle that is not properly supported by jack stands.

Frequently Asked Questions (FAQ)

Q1: How often should I change the oil in my Toyota RAV4?
It's generally recommended to change the oil and filter every 5,000 to 7,500 miles, or every 6 to 12 months, whichever comes first. However, always refer to your owner's manual for the specific interval recommended by Toyota for your model year and driving conditions (e.g., severe driving vs. normal driving).

Q2: Can I use a generic oil filter instead of an OEM one?
While aftermarket filters like FRAM TG4967 can be suitable replacements, using an OEM (Original Equipment Manufacturer) filter, such as those supplied by Toyota, is often the safest bet to ensure perfect fitment and filtration performance. If using an aftermarket filter, ensure it's specifically designed for your RAV4 model.

Q3: What happens if I don't change my oil regularly?
Infrequent oil changes can lead to increased engine wear, reduced fuel efficiency, overheating, sludge build-up, and eventually, catastrophic engine failure. The oil loses its lubricating properties and its ability to clean and cool the engine over time.

Q4: Is the 2019 RAV4 Adventure/Trail's 0W-16 oil readily available?
Yes, 0W-16 oil is becoming increasingly common as manufacturers adopt it for newer, more fuel-efficient engines. You should be able to find it at most major auto parts stores and dealerships. Always ensure it meets the API (American Petroleum Institute) service classification specified in your owner's manual.

Q5: How tight should the oil filter housing cap be?
This is where a torque wrench is invaluable. For many Toyota models, the oil filter housing cap typically requires a torque of around 25 Nm (18 ft-lbs). However, it is crucial to check your owner's manual or a reliable service manual for the exact specification for your specific RAV4 year and model.

By following this comprehensive guide, you can confidently perform an engine oil change on your Toyota RAV4, ensuring its engine remains healthy and performs optimally for years to come. Regular maintenance, including timely oil changes, is the cornerstone of responsible vehicle ownership.
