Jaguar X Type Diesel: Thermostat Guide

Many Jaguar X Type diesel owners have pondered the presence and function of thermostats within their vehicles, particularly when encountering issues with engine temperature regulation. If you're experiencing slow warm-up times or a temperature gauge that struggles to reach its optimal operating point, the thermostat system is a prime suspect. This guide will delve into the intricacies of the thermostat setup in the 2005 X Type 2.2 diesel, focusing on the common culprits and providing a step-by-step approach to replacement.

Understanding the Thermostat System

Contrary to a single thermostat setup found in many vehicles, the Jaguar X Type 2.2 diesel is equipped with two thermostats. This dual-thermostat system plays a crucial role in managing both engine coolant temperature and oil temperature:

• Main Radiator Thermostat: This is the primary thermostat responsible for regulating the flow of coolant to the radiator. It opens when the engine coolant reaches a specific temperature, allowing heat to dissipate and preventing overheating.
• Oil Cooler Thermostat: This secondary thermostat is specifically designed to manage the temperature of the engine oil. It controls the flow of coolant through the oil cooler housing, which is typically located near the oil filter. This helps to bring the engine oil up to its optimal operating temperature more efficiently and also prevents the oil from becoming excessively hot during demanding driving conditions.

While both thermostats are vital, the oil cooler thermostat is a known weak point and a frequent cause of symptoms like slow warm-up and consistently low engine temperatures. If your temperature gauge rarely climbs above a quarter of the way up the dial, or fluctuates erratically, this oil cooler thermostat is the most likely offender.

Symptoms of a Faulty Oil Cooler Thermostat

Identifying a failing oil cooler thermostat is key to diagnosing your X Type's temperature issues. Common indicators include:

• The engine temperature gauge struggling to rise above the 1/4 mark, even during normal driving.
• The temperature gauge may climb towards the halfway mark on motorways but never quite reach it.
• Once the engine is switched off, the temperature gauge immediately drops back to the 1/4 mark.
• Erratic temperature gauge readings, swinging between the 1/4 mark and the halfway point, resembling a windscreen wiper's motion.

If you observe any of these symptoms, it's highly probable that your oil cooler thermostat requires attention.

Replacing the Oil Cooler Thermostat: A Step-by-Step Guide

Replacing the oil cooler thermostat is a manageable task that most DIY mechanics can undertake. While it might sound daunting, it's often less complex than it appears. Here's a comprehensive breakdown:

Tools and Parts You'll Need:

• New Oil Cooler Thermostat (Genuine Jaguar part JD61162 is recommended)
• 8mm socket with a small extension (a flex-head 8mm spanner might also work)
• Pliers (spring clip pliers are ideal, but standard ones can suffice)
• Vaseline or similar lubricant
• Rags or cloths
• Suitable coolant/water mixture for topping up

The Process:

1. Accessing the Thermostat:
   • Begin by removing the top engine cover.
   • Carefully disconnect the MAF sensor (Mass Air Flow sensor) by unclipping the electrical connector.
   • Open the clip on the ducting leading to the turbocharger. A pair of mole grips can be useful for this large spring clip.
   • Gently pop off the air trumpets.
   • You'll need to remove the airbox. This involves undoing the two electrical clips attached to it and then uncoupling the MAF sensor.
   • The airbox sits on a bracket secured by three 10mm bolts. Undo these and carefully swing the bracket out of the way to gain better access.
2. Locating and Removing the Old Thermostat:
   • Once the airbox is removed, you should be able to see the water pump and the power steering pump. The oil cooler thermostat is located next to the engine block, often tucked in with the water pump.
   • You'll notice an 8mm retaining bolt behind the thermostat housing. This can be a little tricky to access. Use your 8mm socket and extension to carefully remove this bolt. It's advisable to place some rags underneath to catch any spilled coolant or the dropped bolt.
   • The thermostat is housed within a pipe. Gently twist the old thermostat back and forth to loosen it from the pipework. It might be in there quite firmly.
   • As you start to ease the old thermostat out, be prepared for a small amount of coolant to escape. Quickly plug the hole with a piece of shaped towel or a finger to minimise coolant loss.
   • With the old thermostat removed from its housing, you can now focus on detaching it from the pipe. You'll see a spring clip holding it in place. Use your pliers to release this clip and slide it down the pipe, creating enough clearance to twist the old thermostat off the pipe.
3. Installing the New Thermostat:
   • Take your new oil cooler thermostat. Smear a little Vaseline around the O-ring on the new thermostat. This will help it seat correctly and prevent the O-ring from being pinched during installation.
   • Carefully push the new thermostat into the hole where the old one was.
   • With the new thermostat in place, refit the 8mm retaining bolt.
   • Now, slide the pipe onto the new thermostat, ensuring it's seated correctly. Bring the spring clip back into its original position to secure the pipe.
4. Reassembly and Final Checks:
   • Top up the expansion tank with a suitable coolant/water mixture. Check that the coolant level is still visible in the expansion tank.
   • Reassemble everything in the reverse order of removal. Ensure the airbox bracket is securely bolted back in place, and don't forget to reattach the vacuum pipe to the airbox – it's an easy part to overlook.
   • Start the engine and allow it to run for a short period. Check for any coolant leaks around the thermostat housing and pipework.
   • Once you're satisfied there are no leaks, refit the airbox and the engine cover.

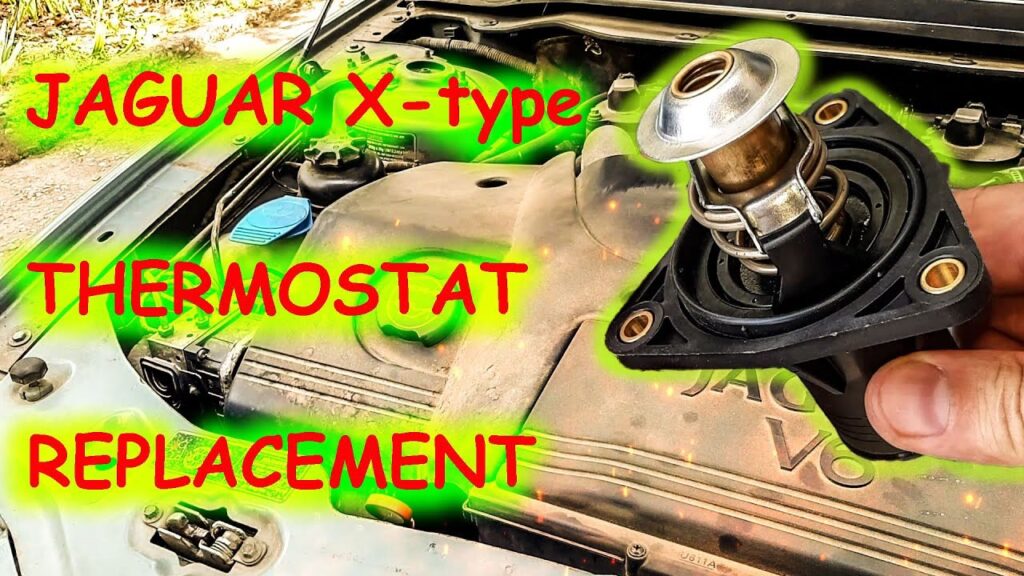

Replacing the Main Radiator Thermostat

If replacing the oil cooler thermostat doesn't resolve your temperature issues, the main radiator thermostat may also need attention. This is typically located by following the coolant hose from the bottom of the expansion tank. You'll find a black thermostat housing.

The Process:

1. Preparation: Gently clamp the hose coming from the expansion tank to minimise coolant loss.
2. Accessing the Housing: Undo the three bolts securing the thermostat housing and carefully pull it apart.
3. Replacing the Thermostat: The old thermostat and seal should now be visible and can be pulled out. Lubricate the seal on the new thermostat with Vaseline, fit it into the new thermostat, and then push the new thermostat and seal into the housing.
4. Reassembly: Bolt the housing back together, unclamp the hose, start the engine, and check for leaks.

When purchasing parts for the main thermostat, you can often buy just the thermostat and seal, or a complete unit including the housing, depending on the condition of your existing housing.

Important Considerations and Tips

• Coolant Loss: You will lose a small amount of coolant during these procedures. If you work swiftly, the loss should be minimal. It's always a good idea to have some spare coolant on hand for topping up.
• Part Quality: Opt for genuine Jaguar parts where possible, especially for the oil cooler thermostat, as they are designed to the manufacturer's specifications.
• Patience is Key: Especially when dealing with the oil cooler thermostat, taking your time and working calmly will prevent frustration and potential damage.
• Time Estimate: The oil cooler thermostat replacement can typically be completed within an hour for those comfortable with basic car maintenance.

Frequently Asked Questions

Q1: My Jaguar X Type diesel is taking a long time to warm up. What could be the cause?

A1: The most common cause for slow warm-up in the 2.2 diesel X Type is a faulty oil cooler thermostat. A stuck-open thermostat will allow coolant to circulate through the oil cooler even when the engine is cold, preventing it from reaching its optimal operating temperature.

Q2: How often should I replace the oil cooler thermostat?

A2: Based on anecdotal evidence, the oil cooler thermostat may need replacing every 3-4 years, as they can degrade over time and fail to seal properly.

Q3: Can I drive with a faulty thermostat?

A3: Driving with a thermostat that is stuck open will result in poor fuel efficiency and increased engine wear due to prolonged operation at suboptimal temperatures. While not immediately catastrophic, it's best to address the issue promptly.

Q4: What is the JD61162 part number for?

A4: JD61162 is the genuine Jaguar part number for the oil cooler thermostat used in the X Type 2.2 diesel engine.

Q5: Do I need to drain all the coolant before replacing the main thermostat?

A5: It's good practice to clamp the hose from the expansion tank to minimise coolant loss. While some coolant will inevitably escape, a full system drain isn't always necessary for a straightforward thermostat replacement if done carefully.

By understanding the dual-thermostat system in your Jaguar X Type 2.2 diesel and following these detailed steps, you can effectively diagnose and rectify common temperature-related issues, ensuring your vehicle runs smoothly and efficiently.
