F-150 Oil Pump: No Oil Pan Removal Needed!

When undertaking significant maintenance on your Ford F-150, particularly models equipped with the robust 3.5L V6 EcoBoost engine, you might find yourself needing to replace the oil pump. This crucial component ensures your engine is adequately lubricated, and failure can lead to catastrophic damage. However, the prospect of accessing this part can be daunting, with official service manuals often suggesting a labour-intensive procedure involving the removal of the front axle and the oil pan itself. Fortunately, as demonstrated by experienced technicians and shared through popular automotive channels, there's a more efficient method that bypasses the need to drop the oil pan entirely.

Understanding the Oil Pump's Importance

The oil pump is the heart of your vehicle's lubrication system. It draws oil from the sump (oil pan) and pressurises it, circulating it throughout the engine to lubricate moving parts, reduce friction, and help dissipate heat. A healthy oil pump is essential for engine longevity. If your F-150's oil pressure warning light illuminates, or if you're experiencing symptoms like engine knocking or overheating, an oil pump issue could be the culprit. While it's often a component that lasts the life of the vehicle, under certain circumstances, such as during a comprehensive timing chain replacement or if there are known issues with the pump, replacement might be a wise preventative measure.

The Official Ford Procedure: A Time-Consuming Affair

Ford's official service documentation for the 3.5L EcoBoost F-150 often outlines a procedure for oil pump replacement that, while thorough, is undeniably time-consuming and labour-intensive. This typically involves:

• Raising the vehicle to a safe working height.
• Removing components that obstruct access to the oil pan and front axle, such as skid plates and exhaust components.
• Disengaging and removing the front axle assembly. This is a significant undertaking that requires careful handling and proper support.
• Draining the engine oil.
• Unbolting and carefully lowering the oil pan.
• Once the oil pan is removed, the oil pump, which is typically bolted to the engine block or the crankshaft, becomes accessible.

This multi-step process, especially the removal of the front axle and oil pan, adds considerable time and complexity to the job. For a technician or a DIY enthusiast, this translates to more hours spent and potentially higher costs if paying for labour. It also increases the risk of encountering other issues during the disassembly and reassembly process.

A Smarter Approach: Bypassing Oil Pan Removal

Fortunately, skilled technicians have devised a more streamlined method for accessing and replacing the oil pump on these F-150 models without the need to remove the oil pan. This approach focuses on removing the necessary timing components to gain access to the pump itself. While the timing job is still a considerable task, eliminating the oil pan and front axle removal significantly simplifies the overall procedure.

Key Steps in the Simplified Method:

1. Access to Timing Components: Begin by removing the serpentine belt, engine covers, and any other components blocking access to the front of the engine where the timing cover is located.
2. Timing Cover Removal: Carefully unbolt and remove the front timing cover. This will expose the timing chains, guides, tensioners, and the oil pump drive mechanism.
3. Timing Component Replacement (Optional but Recommended): If the oil pump replacement is part of a larger service, such as a timing chain job, it's highly advisable to replace the timing chains, tensioners, guides, and sprockets at the same time. This is because you'll already have everything disassembled.

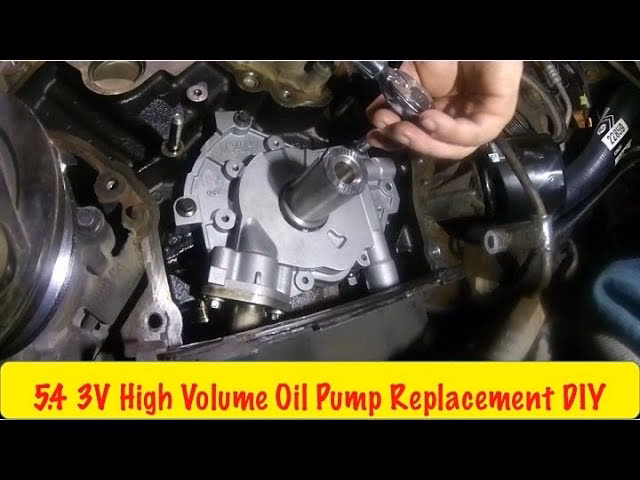

4. Oil Pump Access: With the timing components removed, the oil pump becomes much more accessible. It's typically mounted to the front of the engine block or crankshaft assembly.
5. The Oil Pickup Tube Challenge: The primary hurdle in this simplified method is the oil pickup tube. This tube extends from the oil pump down into the oil pan to draw oil. One or two bolts secure this pickup tube, and these bolts can be in a tight spot, close to the oil pan itself.
6. Navigating Tight Spaces: The trick lies in carefully manoeuvring tools, such as a socket and extension, to reach and remove the bolts securing the oil pickup tube. This requires patience and the right combination of extensions and universal joints. It's a delicate operation, but entirely feasible with the correct tools and a steady hand.
7. Oil Pump Replacement: Once the pickup tube is freed, the oil pump can be unbolted and removed. Installation of the new pump follows in reverse order, ensuring that the pickup tube is correctly reinstalled and secured.
8. Reassembly: Reassemble the timing components, timing cover, and all other removed parts, ensuring all fasteners are torqued to specification. Refill the engine with the correct type and quantity of engine oil.

Tools and Considerations for the DIY Mechanic

Attempting this procedure yourself requires a good set of tools and a willingness to be patient. Essential tools include:

• A comprehensive socket set with various extensions and universal joints.
• Torque wrenches for accurate tightening of fasteners.
• Pry tools for gently separating components.
• A drain pan for the engine oil.
• New gaskets and seals for the timing cover and oil pump.
• A quality replacement oil pump and potentially a new oil pickup tube if the original is damaged.

Patience is arguably the most critical tool. Working in tight spaces, especially around the oil pickup tube, demands a methodical approach. Rushing can lead to dropped bolts, damaged components, or improper installation.

Benefits of the No-Oil-Pan-Removal Method

The advantages of this method are significant:

• Time Savings: Dramatically reduces the overall labour time compared to the official procedure.
• Reduced Complexity: Eliminates the need to handle the heavy front axle assembly and the messy task of dropping the oil pan.
• Cost Efficiency: Less labour time means lower costs if hiring a mechanic, or less frustration for the DIYer.
• Reduced Risk: Fewer components removed means fewer opportunities for something to go wrong during the process.

When is this Procedure Most Relevant?

This technique is particularly relevant when:

• You are performing a comprehensive timing chain service on your 3.5L EcoBoost F-150.
• You suspect an issue with the oil pump itself and want to replace it as a preventative measure.
• You're experiencing low oil pressure or other symptoms indicative of an oil pump problem.

Potential Pitfalls to Be Aware Of

While this method is more efficient, it's not without its challenges:

• Access to Pickup Tube Bolts: As mentioned, the bolts for the oil pickup tube can be very difficult to reach. This is the main point where patience and the right tools are paramount.
• Timing Components: The process of removing and reinstalling the timing components themselves is still complex and requires precision. Incorrect timing can lead to severe engine damage.
• Sealing Surfaces: Ensuring all sealing surfaces for the timing cover and oil pump are clean and properly gasketed is crucial to prevent oil or coolant leaks.

Frequently Asked Questions

Q1: Do I really need to remove the oil pan on my F-150 3.5L EcoBoost to change the oil pump?
No, you don't necessarily have to. Experienced technicians have found a way to access the oil pump by removing the timing components, bypassing the need to remove the oil pan and front axle.

Q2: Is it difficult to remove the oil pickup tube without dropping the oil pan?
It can be challenging due to tight access, but it is achievable with the right tools and considerable patience. The bolts securing the pickup tube are the main obstacle.

Q3: What are the symptoms of a failing oil pump in an F-150?
Common symptoms include a low oil pressure warning light, engine knocking or ticking sounds, increased engine temperature, and potentially engine seizure if the lubrication failure is severe.

Q4: Should I replace the timing chains when replacing the oil pump?
If you are already disassembling the front of the engine to access the oil pump, it is highly recommended to replace the timing chains, tensioners, guides, and sprockets at the same time. This is a labour-intensive job, and doing it all at once saves you from having to repeat much of the work later.

Q5: What type of oil should I use in my F-150 3.5L EcoBoost after replacing the oil pump?
Always consult your owner's manual for the specific oil viscosity and specification recommended for your F-150. Typically, these engines require a synthetic 5W-30 or 5W-20 oil, but always verify.

Conclusion

While the official Ford service manual might suggest a more involved procedure, the method of replacing the oil pump on a Ford F-150 3.5L EcoBoost without removing the oil pan is a testament to the ingenuity of automotive technicians. It significantly reduces the time, complexity, and potential cost associated with this repair. By carefully navigating the access to the oil pickup tube and ensuring meticulous reassembly of the timing components, you can successfully service your F-150's oil pump and keep its vital lubrication system in top condition. Remember, precision and patience are key to a successful outcome.
