P164B: Oil Pressure Switch Fault Explained

In the intricate world of modern vehicle maintenance, understanding the cryptic messages your car's onboard diagnostic (OBD-II) system throws at you is paramount. These messages, often appearing as fault codes, are your vehicle's way of communicating a problem. One such code that can send shivers down a car owner's spine is P164B, sometimes identified by specific scan tools as 5580. This particular code points directly to an issue with your engine's oil pressure switch, a small but vital component that plays a crucial role in safeguarding your engine's longevity. Ignoring such a warning can have catastrophic consequences, turning a relatively simple fix into a costly engine overhaul.

What Exactly is Fault Code P164B (5580)?

Fault code P164B, often presented as "Oil Pressure Switch 'A' Circuit Range/Performance," indicates that the Powertrain Control Module (PCM) – your car's central computer – has detected an anomaly in the electrical circuit or the signal from the engine's oil pressure switch. The "A" typically refers to a specific sensor or circuit when multiple are present, but in this context, it generally points to the primary oil pressure switch. This switch is designed to monitor the lubrication system, specifically the oil pressure within the engine. It sends a signal to the PCM, and often illuminates a dashboard warning light, if the pressure falls below a safe operating threshold or if the signal itself is erratic or out of expected range.

The oil pressure switch is essentially a simple sensor that operates like a switch. When sufficient oil pressure is present, the switch is open (or closed, depending on its design), and when pressure drops, it changes state. The PCM constantly monitors this state change and the values it reports. If the reported pressure is inconsistent with engine RPM, load, or other operating parameters, or if the circuit itself has an electrical fault (like a short or open circuit), the P164B code is triggered. It’s not necessarily indicating low oil pressure itself, but rather a problem with the sensor that reports the oil pressure.

Common Symptoms of a P164B (5580) Fault Code

While the P164B code specifically points to a sensor issue, the symptoms you experience can vary depending on the nature of the fault. It's crucial to pay attention to these indicators:

• Illuminated Check Engine Light: This is almost always the first and most obvious symptom. The Malfunction Indicator Lamp (MIL) will light up on your dashboard, signalling that the PCM has detected a problem.
• Illuminated Oil Pressure Warning Light: In some cases, especially if the switch is reporting erroneously low pressure or no pressure, your dedicated oil pressure warning light might also illuminate. This is more alarming as it traditionally indicates a critical lack of oil pressure.
• Engine Idling Issues: While less common, an erratic signal from the oil pressure switch could, in some advanced systems, subtly affect engine management, leading to rough idling or minor performance inconsistencies. However, this is rare and usually points to a deeper issue if present.
• No Apparent Symptoms (Other Than MIL): Often, the only symptom is the Check Engine Light. This happens if the switch itself is faulty but not causing a critical misreporting of pressure, or if the fault is purely electrical in the sensor circuit. This can be particularly misleading, as the engine might appear to be running perfectly fine, lulling the driver into a false sense of security.

It's important to differentiate between a P164B code and an actual low oil pressure condition. While the P164B points to the sensor, a consistently illuminated oil pressure warning light without a P164B code could indicate a genuine and severe lack of oil pressure, requiring immediate attention.

Potential Causes Behind the P164B (5580) Code

Understanding the root causes is key to effective diagnosis and repair. Here are the most common culprits for a P164B fault:

• Faulty Oil Pressure Switch/Sensor: This is by far the most frequent cause. The internal components of the switch can wear out, become contaminated, or simply fail electrically, leading to incorrect readings or no signal at all.
• Wiring and Connector Issues: The wiring harness connecting the oil pressure switch to the PCM is exposed to engine heat, vibrations, and potential contaminants. Frayed wires, corroded terminals, loose connections, or short circuits within this wiring can disrupt the signal. Rodent damage is also a surprisingly common cause of wiring issues.
• Low Engine Oil Level: Although the code points to the switch, an extremely low oil level might cause the switch to report an out-of-range pressure value that the PCM deems implausible, even if the switch itself is technically functional. Always check your oil level first.
• Incorrect Engine Oil Viscosity: Using oil that is too thick or too thin for your engine's specifications can affect oil pressure, potentially causing the switch to report values outside the expected range, triggering the code.
• Internal Engine Oil Pressure Issues: While less common for a P164B (which leans towards the sensor), underlying issues like a failing oil pump, clogged oil passages, or excessive engine bearing clearances can genuinely cause abnormal oil pressure, which the switch correctly reports, but the PCM flags as an "out of range" signal from the sensor. This is a more serious underlying mechanical problem.
• PCM (Powertrain Control Module) Failure: Very rarely, the PCM itself can develop an internal fault that incorrectly interprets the oil pressure switch's signal or fails to process it correctly. This is usually a last resort diagnosis after ruling out all other possibilities.

Diagnosing Fault Code P164B (5580): A Step-by-Step Approach

Effective diagnosis requires a methodical approach. Here's how a skilled mechanic, or a confident DIY enthusiast, would go about it:

1. Check Engine Oil Level and Condition: Begin with the simplest step. Ensure the oil level is correct and that the oil itself isn't severely degraded or contaminated. Low oil can cause genuine low pressure, even if the sensor is fine.
2. Scan for Codes and Freeze Frame Data: Use an OBD-II scanner to confirm the P164B code and check for any other related or pending codes. Pay close attention to "freeze frame data," which captures engine conditions (RPM, temperature, load, etc.) at the moment the code was set. This can provide valuable clues.
3. Visual Inspection of the Oil Pressure Switch and Wiring:

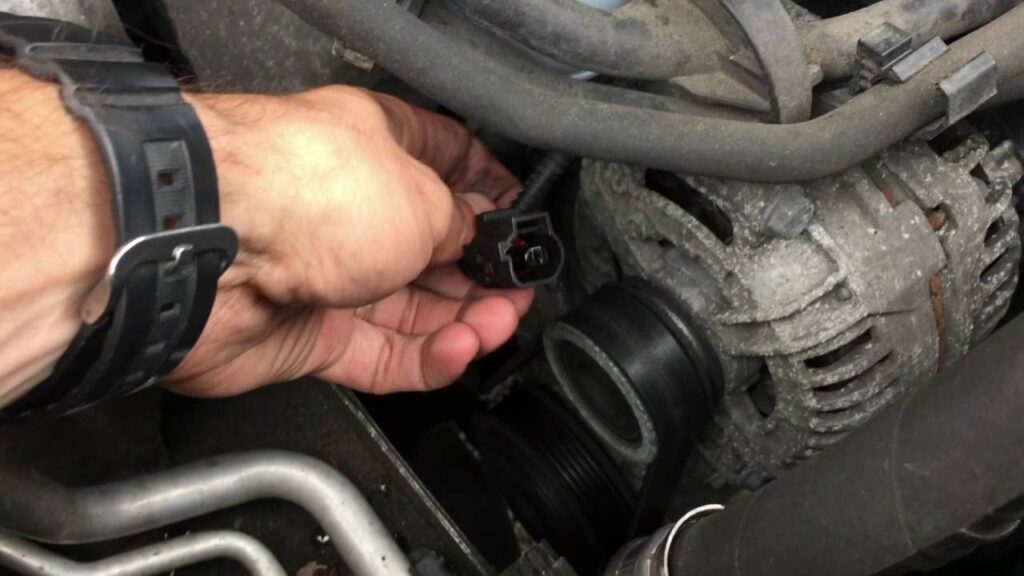

   • Locate the oil pressure switch. Its location varies by vehicle but is typically screwed into the engine block or oil filter housing.
   • Inspect the electrical connector for corrosion, damage, or looseness.
   • Trace the wiring harness back as far as possible, looking for signs of chafing, cuts, or heat damage.
4. Test the Oil Pressure Switch Circuit:
   • Electrical Continuity Test: With the ignition off and the switch disconnected, use a multimeter to check for continuity in the wiring harness between the switch connector and the PCM connector (refer to your vehicle's wiring diagram). Look for open circuits or shorts to ground/power.
   • Voltage Reference Check: With the ignition on (engine off), check for the correct reference voltage (usually 5V or 12V) at the switch connector, as specified by your vehicle's service manual.
5. Test the Oil Pressure Switch Itself:
   • Resistance Test: Some switches can be tested for resistance at different pressure points using a hand-held vacuum/pressure pump. Compare readings to manufacturer specifications.
   • Manual Oil Pressure Gauge Test: This is the most definitive test for actual oil pressure. Remove the oil pressure switch and screw in a mechanical oil pressure gauge. Start the engine and observe the actual oil pressure at idle and at various RPMs. Compare these readings to your vehicle's specifications. If the mechanical gauge shows good pressure while the PCM is reporting issues (or the warning light is on), it strongly indicates a faulty switch or its circuit. If the mechanical gauge also shows low pressure, you have a more serious internal engine issue.
6. Clear Codes and Test Drive: After any repair or component replacement, clear the fault codes from the PCM. Then, perform a thorough test drive, mimicking the conditions under which the code was initially set (if known from freeze frame data). Re-scan to see if the P164B code returns.

Repairing the P164B (5580) Fault Code

The repair steps will directly follow your diagnosis:

• Replace the Oil Pressure Switch: If your tests confirm the switch is faulty, this is usually a straightforward replacement. Ensure you use an OEM (Original Equipment Manufacturer) quality replacement part. Apply thread sealant (if not pre-applied) and torque it to the manufacturer's specifications.
• Repair Wiring/Connectors: If you found damaged wiring or corroded connectors, repair them using appropriate automotive wiring repair techniques (soldering, heat shrink tubing, new connectors). Ensure connections are secure and weatherproof.
• Address Low Oil Level/Quality: If low oil or incorrect oil was the cause, top up the oil or perform an oil and filter change with the correct viscosity oil specified by your vehicle manufacturer.
• Investigate Internal Engine Issues: If the mechanical oil pressure gauge revealed genuinely low oil pressure, this is a much more serious situation. It could indicate a failing oil pump, clogged oil pick-up tube, worn engine bearings, or other internal engine wear. This requires professional diagnosis and potentially extensive engine repair or even replacement.
• PCM Reprogramming/Replacement: This is the rarest scenario. If all other components test perfectly and the code persists, a PCM fault could be suspected. This usually requires specialist equipment for reprogramming or replacement and should only be considered after exhaustive testing of all other possibilities.

Preventative Measures to Avoid P164B (5580) and Other Oil-Related Issues

A proactive approach to vehicle maintenance can significantly reduce your chances of encountering such issues:

• Regular Oil Changes: Adhere strictly to your vehicle manufacturer's recommended oil change intervals. Use the specified oil type and viscosity. Fresh, clean oil maintains optimal lubrication and pressure.
• Monitor Oil Level Regularly: Make it a habit to check your engine oil level at least once a month, and always before long journeys. Top up if necessary.
• Use Quality Oil Filters: A good quality oil filter ensures contaminants are removed from the oil, preventing blockages that could affect oil pressure.
• Address Leaks Promptly: Any oil leaks, no matter how small, can lead to low oil levels over time. Fix them as soon as they are identified.
• Listen to Your Engine: Unusual noises, especially ticking or knocking sounds from the engine, can indicate lubrication problems. Don't ignore them.

The oil pressure system is the lifeblood of your engine. Ensuring its proper functioning is paramount to preventing premature engine damage. While the P164B code often points to a relatively simple sensor issue, its implications can be severe if ignored. Thorough diagnosis is crucial, leading to an accurate replacement or repair, followed by sound preventative maintenance to keep your vehicle running smoothly for years to come.

Frequently Asked Questions (FAQs) About P164B (5580)

Q: Can I drive my car with a P164B (5580) fault code?

A: While the code itself often indicates a sensor fault rather than actual low oil pressure, it's risky to drive for an extended period. If the oil pressure warning light is also on, or if you hear any unusual engine noises, stop driving immediately. Continuing to drive with genuinely low oil pressure will cause severe, irreversible engine damage. Even if it's just the sensor, an inaccurate reading means you don't have reliable information about your engine's lubrication.

Q: Is the P164B (5580) code a serious issue?

A: Yes, it should be treated seriously. At best, it's a faulty sensor that needs replacing. At worst, it could be masking a critical low oil pressure condition, or it could be a symptom of a failing oil pump or other internal engine issues. Ignoring it puts your engine at significant risk.

Q: How much does it cost to fix a P164B (5580) code?

A: The cost varies significantly. If it's just a faulty oil pressure switch, the part itself is usually inexpensive (£15-£50), and labour might be 1-2 hours (£50-£200) depending on accessibility. If the issue is wiring, it could be similar. However, if it points to a failing oil pump or internal engine damage, costs can escalate rapidly into hundreds or even thousands of pounds for repairs or engine replacement.

Q: Can a low oil level cause the P164B (5580) code?

A: Potentially, yes. While the code specifically targets the sensor's circuit range/performance, an extremely low oil level could cause the actual oil pressure to drop below the sensor's expected operating range, leading the PCM to flag an "implausible" signal from the sensor, thus triggering P164B. Always check your oil level first.

Q: Where is the oil pressure switch usually located?

A: The location varies by vehicle make and model, but it's typically screwed directly into the engine block or sometimes into the oil filter housing or an oil cooler. It usually has a single electrical connector attached to it. Consult your vehicle's service manual or a reliable online resource for its exact location on your specific car.
