Ford F-150 Oil Pan: Essential Maintenance

The Ford F-150, a true workhorse of the automotive world, relies on a sophisticated lubrication system to keep its powerful engine running smoothly. At the heart of this system lies a crucial component often overlooked until issues arise: the engine oil pan. This seemingly simple part plays a vital role in collecting and storing all of your engine's oil, ensuring a consistent supply for proper lubrication. Unfortunately, like many components exposed to the harsh undercarriage environment and constant thermal cycles, the oil pan and its associated gasket can eventually succumb to wear and tear, leading to dreaded oil leaks. Understanding its function and knowing how to address common issues is key to maintaining your F-150's longevity and performance.

This article delves into the specifics of the Ford F-150's oil pan, covering its presence across various generations, common problems like leaks, and providing detailed guidance on replacement procedures for popular models. Whether you own a classic 1987-1996 model or a more recent 2009-2014 F-150 with the 5.4L engine, we'll equip you with the knowledge to tackle this essential maintenance task.

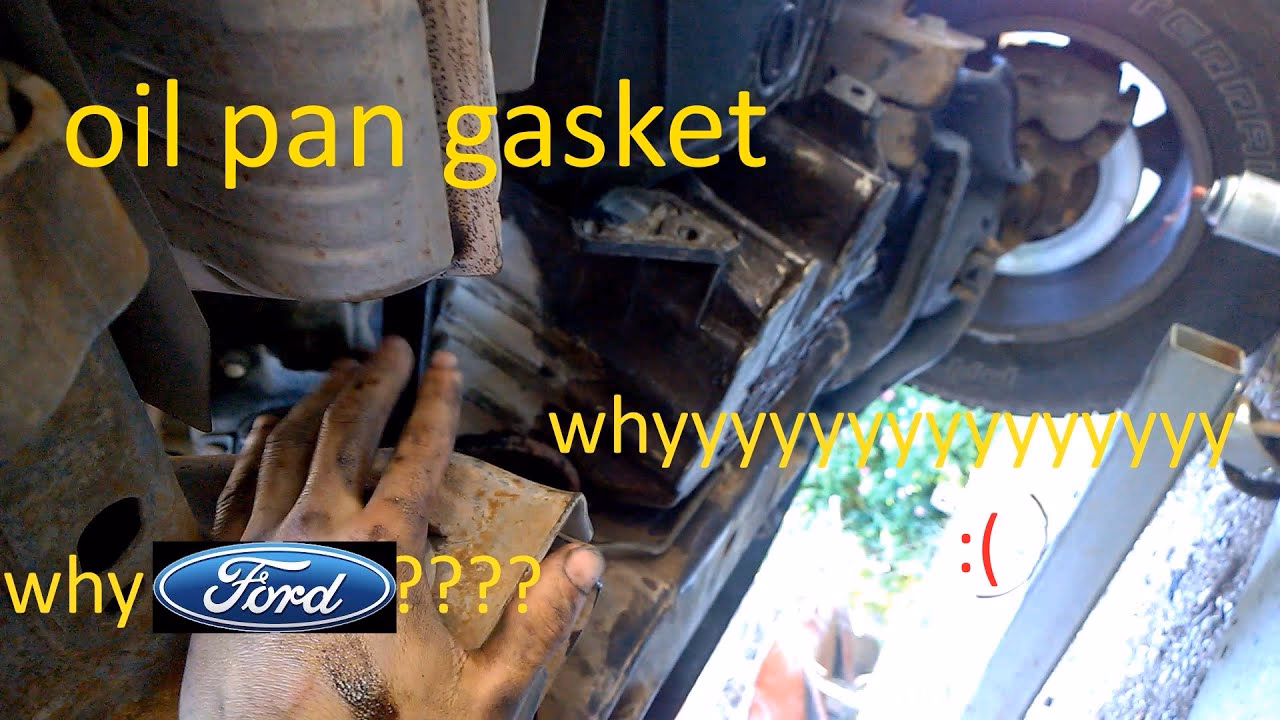

Does the Ford F-150 Have an Oil Pan?

Yes, unequivocally, every Ford F-150 produced, regardless of year or engine type, is equipped with an engine oil pan. It's an indispensable component of any internal combustion engine's lubrication system. The oil pan, often referred to as the oil sump in UK English, is typically a stamped steel or cast aluminium reservoir bolted to the bottom of the engine block. Its primary function is to collect and hold all of the engine oil that has circulated through the engine, lubricating moving parts and carrying away heat.

The oil pump, usually located within or near the oil pan, then draws oil from this reservoir and circulates it under pressure throughout the engine. After lubricating the camshafts, crankshaft, pistons, and other critical components, the oil drains back down into the pan by gravity, ready to be recirculated. Without an oil pan, there would be no means to store the engine oil, making proper lubrication impossible and leading to rapid engine failure.

The Role of the Oil Pan Gasket

Crucial to the oil pan's leak-proof operation is the oil pan gasket. This seal is sandwiched precisely between the engine block and the oil pan itself. Its purpose is to create a tight, impermeable barrier, preventing engine oil from escaping. Over time, due to constant exposure to heat, oil, and vibrations, these gaskets – whether made of cork, rubber, or silicone – can harden, crack, shrink, or become brittle. When this happens, the seal integrity is compromised, leading to the tell-tale signs of an oil leak under your vehicle. A leaking oil pan gasket is one of the most common sources of oil leaks in an F-150 and should be addressed promptly to prevent low oil levels and potential engine damage.

Common Oil Pan Issues and Their Impact

While the oil pan itself is a robust component, it's not immune to problems. The most frequent issue, as mentioned, is a leaking oil pan gasket. However, other problems can arise:

• Gasket Failure: This is by far the most common culprit. Age, heat cycles, and material degradation cause the gasket to lose its sealing capabilities.
• Impact Damage: Being located at the very bottom of the engine, the oil pan is vulnerable to impacts from road debris, speed bumps, or off-road obstacles. A severe impact can dent, crack, or even puncture the pan, leading to a significant and immediate oil leak.
• Drain Plug Issues: The oil drain plug, used during oil changes, can sometimes be over-tightened, cross-threaded, or have a worn washer, leading to leaks around the plug itself. While not a pan issue, it's a common source of 'oil pan' leaks.
• Corrosion: In regions where road salt is used or in coastal areas, rust can eventually corrode a steel oil pan, creating pinholes and leaks.

Ignoring an oil pan leak can lead to several serious consequences:

• Low Oil Level: Continuous leaks deplete the engine's oil supply, leading to insufficient lubrication. This increases friction and heat, accelerating wear on internal engine components.
• Engine Damage: Prolonged low oil levels can result in catastrophic engine failure, requiring costly repairs or even a full engine replacement.
• Environmental Impact: Leaking oil is harmful to the environment and can contaminate groundwater.
• Mess and Fire Hazard: Oil dripping onto hot exhaust components can create smoke, an unpleasant smell, and in extreme cases, a fire risk. It also leaves unsightly stains on your driveway.

Replacing the Oil Pan (or Gasket) on Your Ford F-150

The procedure for replacing an oil pan or its gasket can vary significantly depending on the F-150's generation and engine configuration. Older models (like the 1987-1996) generally offer more straightforward access, while newer models (such as the 2009-2014 with the 5.4L engine) might require additional steps like exhaust system removal or lifting the engine.

General Steps for Oil Pan Gasket Replacement (Applicable to 1987-1996 F-150)

For the 1987-1996 Ford F-150, the process is typically more accessible. Always ensure you have a safe working environment, using jack stands to support the vehicle securely.

Tools and Materials Required:

• New oil pan gasket (and new oil pan if damaged)
• Engine oil (correct type and viscosity for your F-150)
• New oil filter
• Drain pan
• Socket set and spanners
• Torque wrench
• Gasket scraper or plastic scraper
• Brake cleaner or degreaser
• Rags or shop towels
• Jack and jack stands
• Safety glasses and gloves

Step-by-Step Procedure:

1. Prepare the Vehicle: Park your F-150 on a level surface. Allow the engine to cool down completely, as working with hot oil can be dangerous. Raise the front of the vehicle using a jack and secure it safely with jack stands.
2. Drain the Engine Oil: Place your drain pan directly under the oil pan's drain plug. Using the appropriate spanner, carefully loosen and remove the drain plug. Allow all the oil to drain completely. Once drained, reinstall the drain plug, ensuring a new crush washer is used if applicable, and tighten it to the manufacturer's specified torque.
3. Remove Obstructions (if any): Depending on your specific F-150 model and engine, you might need to remove a crossmember, exhaust pipe section, or other components that obstruct access to the oil pan bolts. For the 1987-1996 models, this is often minimal.
4. Remove Oil Pan Bolts: Using your socket set, systematically loosen and remove all the bolts securing the oil pan to the engine block. Keep track of their locations, as some might be different lengths.
5. Carefully Remove the Oil Pan: Once all bolts are out, gently pry the oil pan away from the engine block. It might be stuck due to the old gasket's adhesion. Be cautious not to bend or damage the pan. If the pan itself is damaged (e.g., dented, cracked), this is the time to replace it.
6. Clean Mating Surfaces: This is a critical step. Use a gasket scraper or a plastic scraper to meticulously remove all traces of the old gasket material from both the engine block's mating surface and the oil pan's flange. Any old gasket residue can compromise the seal of the new gasket. Clean both surfaces thoroughly with brake cleaner or degreaser and wipe dry with a clean rag. Ensure no debris falls into the engine.
7. Install the New Gasket: Carefully place the new oil pan gasket onto the oil pan flange. Some gaskets have locating tabs or can be held in place with a thin bead of RTV silicone (use sparingly and only if recommended by the gasket manufacturer).
8. Reinstall the Oil Pan: Carefully lift the oil pan with the new gasket into position against the engine block. Start threading a few bolts by hand to hold the pan in place.
9. Tighten Oil Pan Bolts: Install all remaining oil pan bolts. Begin by hand-tightening all bolts, then use a torque wrench to tighten them in the manufacturer's specified sequence and to the correct torque specification. This is often a criss-cross pattern, working from the centre outwards, and usually done in two or three stages to ensure even pressure. Over-tightening can damage the gasket or pan; under-tightening will cause leaks.
10. Reinstall Removed Components: Reattach any exhaust sections, crossmembers, or other components that were removed to gain access.
11. Refill Engine Oil and Replace Filter: Lower your F-150 from the jack stands. Remove the old oil filter and install a new one. Fill the engine with the correct amount and type of new engine oil as specified in your F-150's owner's manual.
12. Check for Leaks: Start the engine and let it run for a few minutes. Carefully inspect around the oil pan for any signs of leaks. Turn off the engine, wait a few minutes for the oil to settle, and check the oil level with the dipstick, topping up if necessary.

Oil Pan Replacement for Ford F-150 (2009-2014) with 5.4L Engine

Replacing the oil pan or gasket on a 2009-2014 Ford F-150, particularly with the 5.4L Triton engine (part of the MK 12 generation), is often more involved than on older models. Access can be significantly restricted due to the front differential, steering components, and exhaust system. In many cases, it may require lifting the engine slightly or removing significant portions of the exhaust.

Key Differences and Considerations:

• Exhaust System Interference: The exhaust Y-pipe often runs directly under or very close to the oil pan, necessitating its removal. This can involve dealing with rusted bolts and gaskets.
• Front Differential: For 4x4 models, the front differential can heavily obstruct access to the oil pan bolts, sometimes requiring it to be lowered or even removed.
• Engine Lifting: In some scenarios, especially if the pan needs to be completely removed, the engine might need to be lifted slightly off its mounts to create enough clearance. This is a more complex procedure requiring an engine hoist or specialized engine support bar.
• Specific Torque Sequences: Newer models often have very precise torque specifications and tightening sequences for oil pan bolts due to the use of composite gaskets and specific pan designs.

General Steps (with added complexity):

1. Preparation: As with older models, ensure the vehicle is cool, safely lifted on jack stands, and the oil is drained.
2. Exhaust Removal: Disconnect and remove the necessary sections of the exhaust system (e.g., Y-pipe, catalytic converters) to gain clear access to the oil pan bolts. Be prepared for rusted bolts and potentially needing to replace exhaust gaskets.
3. Front Differential (4x4): If applicable, you might need to unbolt and carefully lower the front differential to create clearance. This requires supporting its weight and being mindful of driveshafts and fluid lines.
4. Engine Support/Lift (if necessary): If clearance is still an issue, use an engine hoist or support bar to slightly lift the engine from its mounts. This is a delicate operation.
5. Remove Oil Pan Bolts: Proceed to remove all oil pan bolts. Again, note any different lengths.
6. Remove and Clean Pan: Carefully remove the pan and clean both mating surfaces meticulously, as described for older models. This step is paramount for a leak-free seal.
7. Install New Gasket and Pan: Place the new gasket on the clean pan. Carefully manoeuvre the pan back into place.
8. Tighten Bolts: Install all bolts and tighten them to the exact manufacturer's torque specifications and sequence. This is critical for the 5.4L's sealing.
9. Reinstall Components: Reinstall the front differential, exhaust system, and any other components removed. Use new exhaust gaskets where necessary.
10. Refill Oil and Check: Lower the vehicle, install a new oil filter, refill with the correct engine oil, start the engine, and meticulously check for any leaks.

Due to the increased complexity and potential need for specialized tools (like an engine hoist), many F-150 owners with the 5.4L engine opt to have this repair performed by a professional mechanic. If you're a capable DIYer, ensure you have access to the specific service manual for your 2009-2014 F-150 to get precise torque values and procedures.

Comparative Table: Oil Pan Access by F-150 Generation

Frequently Asked Questions About F-150 Oil Pans

How long does an oil pan gasket typically last?

An oil pan gasket can last a very long time, often well over 100,000 miles or more than 10 years. However, factors like extreme temperatures, frequent short trips (which don't allow the engine to fully warm up), and the type of gasket material can influence its lifespan. Eventually, all rubber or cork gaskets will harden and lose their elasticity, leading to leaks.

Can I drive my Ford F-150 with an oil pan leak?

While you might be able to drive a short distance with a very minor leak, it's strongly advised against. A leaking oil pan means your engine oil level is constantly dropping. Driving with insufficient oil can cause severe and irreversible engine damage due to lack of lubrication. It's always best to address an oil leak as soon as it's detected.

What's the typical cost to replace an F-150 oil pan gasket?

The cost can vary significantly depending on your F-150's year, engine, and whether you do it yourself or hire a professional. Parts (gasket and new oil) are relatively inexpensive, usually £50-£150. However, labour costs can be substantial, ranging from £200 to £800 or more for complex jobs (like the 5.4L engine requiring engine lifting or exhaust removal), due to the time involved in accessing the pan. Replacing the entire pan (if damaged) will add the cost of the pan itself.

Is replacing the oil pan gasket a DIY-friendly job?

For older F-150 models (like the 1987-1996), it can be a moderately challenging DIY task for someone with a good set of tools and mechanical aptitude. For newer models, especially those with the 5.4L engine (2009-2014), it becomes significantly more complex due to access issues. It might require specialized tools, more experience, and patience. If you're unsure, it's always best to consult a professional mechanic.

What is the difference between an oil pan and an oil sump?

In British English, 'oil sump' is the common term for what is known as an 'oil pan' in American English. They refer to the exact same component: the reservoir at the bottom of the engine that collects and stores engine oil. So, for your Ford F-150, whether you call it an oil pan or an oil sump, it's the same vital part.

How often should I change my Ford F-150's engine oil and oil filter?

Regular engine oil and filter changes are crucial for your F-150's longevity. Refer to your owner's manual for the precise service interval, but generally, it's recommended every 5,000 to 7,500 miles or every 6 months, whichever comes first, especially with modern synthetic oils. If you do a lot of heavy towing, off-roading, or short trips, more frequent changes might be necessary. Changing the oil and filter is usually the first step when performing any oil pan related work.

Conclusion

The oil pan is a fundamental component of your Ford F-150's engine, serving as the essential reservoir for its lifeblood – the engine oil. While robust, its gasket is prone to aging and leaks, a common issue that, if ignored, can lead to significant engine damage. Understanding the signs of a leak and knowing the steps for replacement are vital for any F-150 owner. While older models offer relatively straightforward access, newer generations, particularly the popular 2009-2014 F-150 with the 5.4L engine, present a more complex challenge often requiring professional assistance due to restricted access and the need for exhaust or differential removal. Regular inspection and prompt attention to any oil leaks will ensure your F-150 continues to serve you reliably for years to come, keeping its powerful heart well-lubricated and performing at its best.
