Compressor Oil Removal Guide

Ensuring the correct oil level and type within a refrigeration or air conditioning compressor is paramount to its longevity and efficient operation. Over time, or in specific repair scenarios, it may become necessary to remove oil from a compressor. This process, however, can vary significantly depending on the type of compressor and the reason for the oil change. This guide aims to demystify the procedures involved, offering insights into the best practices for reclaiming and recharging oil, while also highlighting the critical considerations to prevent damage to the unit.

Understanding Compressor Types and Oil Management

Before delving into the removal process, it's crucial to understand the fundamental differences between compressor designs and how they influence oil management. The primary distinctions lie in their sealing mechanisms and accessibility for maintenance:

Hermetic Compressors

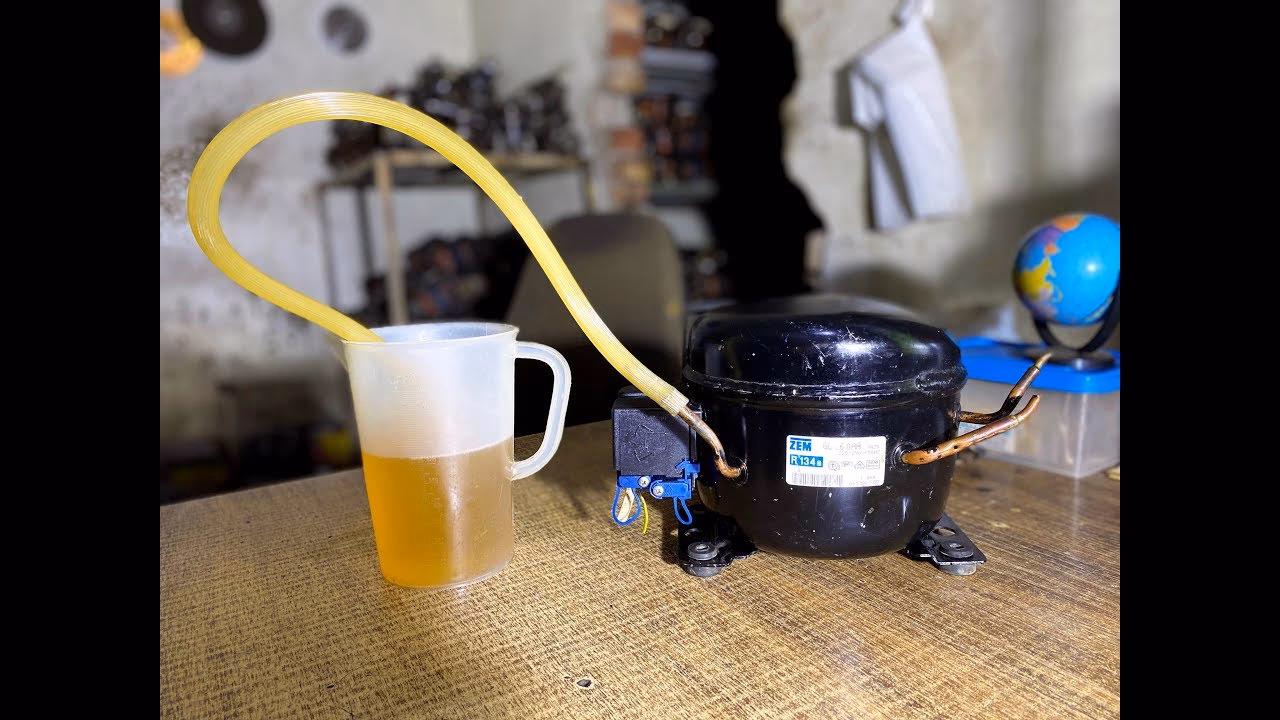

Hermetic compressors are sealed units, meaning the motor and compressor are enclosed within a welded steel shell. This design, while offering excellent protection against contamination, makes internal maintenance, including oil changes, a significant challenge. For smaller, fractional horsepower hermetic compressors, removing all the oil without dismantling the unit is often considered practically impossible. The focus here is typically on recovering the entire refrigerant charge and, if necessary, introducing new oil through the service valves before evacuating the system.

Larger hermetic compressors, however, may feature an oil level sightglass. This allows for a visual inspection of the oil level, and in some cases, a controlled draining or topping-up of oil. Even with a sightglass, accessing the oil is still through the refrigerant circuit, requiring careful handling of the refrigerant charge.

Semi-Hermetic and Open-Drive Compressors

In contrast, semi-hermetic and open-drive compressors offer more straightforward oil management. Semi-hermetic compressors have a bolted-together casing, allowing for easier access to internal components, including a dedicated drain plug. Open-drive compressors, as the name suggests, have the motor and compressor mounted separately, with a shaft seal connecting them. These also typically feature a drain plug, making routine oil changes a simpler affair, akin to that of an engine oil change.

The presence of suction and discharge valves on larger hermetic, semi-hermetic, and open-drive compressors is a significant advantage. These valves allow the compressor to be 'pumped down' – essentially isolating the compressor by transferring the refrigerant charge to the condenser or receiver. This isolation is a critical step before any oil removal or addition can take place safely.

Why Change Compressor Oil?

The question of why you need to change compressor oil is fundamental. In a properly sealed system that has not been opened to the atmosphere, the refrigerant and oil should remain uncontaminated. Therefore, if the system has never been opened, the existing oil is likely in good condition and does not require replacement. Oil changes are typically necessitated by:

• Contamination: If the system has been opened and exposed to air and moisture, or if debris has entered the system during a repair, the oil can become contaminated. This can lead to increased wear and potential damage to the compressor.
• Overheating: Prolonged periods of operation at excessively high temperatures can degrade the oil, reducing its lubricating properties.
• Incorrect Oil Type: Using the wrong type of refrigerant oil (e.g., mineral oil with R-134a or POE oil with R-22) can lead to poor miscibility, system inefficiencies, and potential compressor failure.
• System Flush: After a burnout or major system contamination, a system flush may be performed, which often involves removing the old oil.

Steps for Oil Removal and Recharge

The procedure for removing and recharging oil varies based on the compressor type. Here's a breakdown:

For Semi-Hermetic and Open-Drive Compressors with Drain Plugs:

1. Isolate the Compressor: Use the suction and discharge service valves to pump down the system. Close the suction valve first, allowing the compressor to evacuate the low-side refrigerant. Once the suction pressure is near zero (or a vacuum), close the discharge valve. This isolates the compressor and its oil from the rest of the system.
2. Relieve Pressure: Ensure all pressure is safely released from the compressor. You can slightly crack open a service valve if residual pressure is a concern, but do so cautiously.
3. Locate and Open the Drain Plug: Identify the oil drain plug on the compressor crankcase. Place a suitable container underneath to catch the old oil. Carefully remove the drain plug.
4. Drain the Oil: Allow all the old oil to drain completely. This may take some time.
5. Replace the Drain Plug: Once drained, clean the drain plug and its seating area, and reinstall it securely.
6. Add New Oil: Using a clean, dedicated oil charging kit, add the correct type and quantity of refrigerant oil. Refer to the manufacturer's specifications for the correct oil type (e.g., mineral, alkylbenzene, POE, PVE) and the required charge. It's crucial to use oil that is compatible with the refrigerant being used.
7. Introduce Oil Before Evacuation: For best practice, the oil should be introduced into the crankcase prior to the system or compressor being evacuated. This prevents air and moisture from being drawn into the compressor during the evacuation process.
8. Evacuate the System: Connect a vacuum pump to the appropriate service port and evacuate the system to the manufacturer's recommended vacuum level. This removes any air and moisture.
9. Recharge Refrigerant: Charge the system with the correct type and amount of refrigerant, following the manufacturer's guidelines. Some refrigerant blends require charging in the liquid state, so ensure you are aware of the specific requirements to prevent compressor damage.

For Hermetic Compressors:

As mentioned, completely removing oil from a sealed hermetic compressor is generally not feasible without cutting it open. The typical approach involves:

1. Recover Refrigerant: Recover the entire refrigerant charge from the system using approved recovery equipment.
2. Isolate (if possible): If the unit has suction and discharge service valves (less common on smaller hermetics, but possible on larger ones), pump down and isolate the compressor as described above.
3. Oil Addition: If oil needs to be added (e.g., due to significant loss during a repair or if the wrong oil was present), it must be introduced through the service valves. The oil should be added before the system is evacuated. Use a specialized oil injector or charging kit.
4. Evacuate and Recharge: Evacuate the system to remove air and moisture, then recharge with the correct refrigerant.

Important Considerations and Best Practices

Several factors are critical for a successful oil removal and recharge:

• Manufacturer's Specifications: Always consult the compressor and system manufacturer's documentation for the correct oil type, quantity, and specific procedures. Using the wrong oil can lead to catastrophic failure.
• Oil Compatibility: Ensure the new oil is fully compatible with the refrigerant being used. For instance, R-410A systems typically use POE oil, while R-22 systems use mineral oil or alkylbenzene.
• Cleanliness: Maintain a high level of cleanliness throughout the process. Use clean tools, containers, and charging equipment. Even small amounts of dirt or moisture can severely damage a compressor.
• Oil Level Sightglass: If your compressor has a sightglass, use it to accurately monitor the oil level. The ideal level is usually midway up the glass when the compressor is running under normal conditions.
• Refrigerant Charging: Be aware of the charging method required for your specific refrigerant. Charging some A2L refrigerants or certain blends in the liquid state can cause severe damage if not done correctly.
• System Integrity: Before adding oil, ensure the system is sound and free from leaks.

Common Pitfalls to Avoid

When dealing with compressor oil, certain mistakes are commonly made:

• Using the Wrong Oil: This is arguably the most critical error. Mixing oil types or using an incompatible oil will lead to poor lubrication, sludge formation, and eventual compressor failure.
• Contaminating the New Oil: Exposing new oil to the atmosphere for extended periods or using dirty equipment can introduce moisture and contaminants, negating the purpose of the oil change.
• Over or Undercharging Oil: Too much oil can lead to oil logging in the evaporator or crankcase flooding, while too little oil results in inadequate lubrication and increased wear.
• Improper Evacuation: Failing to evacuate the system to the correct vacuum level will leave air and moisture, leading to acid formation and corrosion within the system.

Frequently Asked Questions

Q1: How do I know if my compressor needs an oil change?
If the system has not been opened and the compressor is functioning correctly, the oil typically does not need changing. Changes are usually prompted by contamination, system flush after a burnout, or if the wrong oil was initially installed.

Q2: Can I just add oil without draining the old oil?
In some cases, if the oil level is low and the system has not been contaminated, you can add a small amount of the correct oil. However, if the oil is contaminated or the wrong type, it must be drained and replaced.

Q3: What happens if I overfill the compressor with oil?
Overfilling can cause the compressor to operate inefficiently, lead to oil logging in the evaporator, and potentially cause the compressor to flood with oil, leading to damage.

Q4: Is it safe to open a compressor to drain the oil?
For hermetic compressors, opening them is not recommended as it compromises the sealed unit and requires specialized tools and procedures. Semi-hermetic and open-drive compressors usually have drain plugs, making oil removal safe and manageable with standard tools.

Q5: What is the difference between POE and Mineral oil?
POE (Polyolester) oils are synthetic lubricants used with HFC refrigerants like R-410A and R-134a. Mineral oils are petroleum-based and are typically used with older refrigerants like R-22 and R-12. They have different miscibility properties with refrigerants and different thermal stability.

In conclusion, the process of removing and recharging compressor oil requires a thorough understanding of the compressor type, adherence to manufacturer specifications, and a commitment to cleanliness. By following these guidelines, technicians can ensure the optimal performance and extended lifespan of valuable refrigeration and air conditioning equipment.
