Outboard Lower Unit Oil Change Guide

Why Your Outboard Needs a Lower Unit Oil Change

Maintaining your boat’s outboard motor is paramount to ensuring its longevity and optimal performance on the water. Among the most critical maintenance tasks is the regular changing of the lower unit oil. This vital fluid lubricates the complex network of gears and bearings housed within the lower unit, the component that transfers power from the engine to the propeller. Neglecting this seemingly simple task can lead to significant issues, including accelerated gear wear, internal corrosion, and ultimately, expensive repairs. This guide offers a detailed, step-by-step process for changing your boat’s lower unit oil, designed to be accessible for both novice and seasoned boat owners. We will cover the essential tools and materials you’ll need, the specific procedures for both two-screw and three-screw systems, guidance on selecting the correct type of oil, and valuable additional maintenance tips to keep your outboard motor in peak condition.

The Crucial Role of Lower Unit Oil

The lower unit of an outboard motor is a marvel of engineering, containing the gears responsible for transmitting the engine's rotational force to the propeller. These gears operate under immense pressure and are constantly exposed to the marine environment, often submerged in water. This makes proper lubrication absolutely essential to prevent wear and combat the corrosive effects of saltwater or freshwater. Over time, the oil within the lower unit degrades. It can break down due to heat and shear forces, become contaminated with water ingress (often through a compromised seal), or accumulate fine metal particles from normal gear meshing. When this happens, the oil loses its viscosity and lubricating properties, drastically increasing the risk of internal damage. Manufacturers typically recommend changing the lower unit oil at intervals of every 100 hours of operation or, at a minimum, annually. Adhering to this schedule ensures smooth gear engagement, prevents premature wear, and significantly extends the operational life of your valuable outboard motor.

Recognising the Signs: When Your Lower Unit Oil Needs Changing

Several visual and olfactory cues can indicate that your lower unit oil is past its prime and requires immediate attention. Regularly inspecting the drained oil is a key part of preventative maintenance. Here are the most common signs:

• Milky or Creamy Oil: This is a clear indicator of water intrusion. Water emulsifies with the oil, giving it a cloudy, milky appearance. Water contamination can lead to significant internal corrosion if not addressed promptly.
• Gray or Gritty Oil: If the oil appears cloudy and feels gritty between your fingers, it suggests that there is excessive wear occurring within the gears or bearings. These fine metal particles are a sign of friction and potential damage.
• Burnt Smell: A distinct burnt odour emanating from the used oil signifies that the oil has overheated. This could be due to excessive friction, heavy load conditions, or simply oil breakdown, reducing its ability to lubricate effectively.
• Visible Metal Chunks: The presence of significant metal fragments or chunks in the drained oil is a serious warning sign. This indicates severe internal damage to the gears, bearings, or other moving parts and warrants immediate professional inspection by a marine mechanic.

If you observe any of these symptoms, it is crucial to change the lower unit oil as soon as possible. Furthermore, it is highly recommended to have a qualified marine mechanic inspect the lower unit to diagnose and rectify the underlying cause of the contamination or wear.

Essential Tools and Materials for the Job

To ensure a clean, efficient, and correct oil change, it’s vital to gather all the necessary tools and materials before you begin. Having everything readily available will streamline the process and minimise mess.

Tools You’ll Need:

• Large Flathead Screwdriver: Essential for both loosening and tightening the drain and vent plug screws. A good quality, robust screwdriver will prevent camming out and damaging the screw heads.
• Lower Unit Oil Pump: These pumps are specifically designed to fit standard quart bottles or tubes of lower unit oil, allowing for controlled filling of the lower unit. Ensure you have the correct adapter if necessary.
• Drain Pan: A sufficiently large pan is needed to catch the old oil as it drains from the lower unit.
• Clean Rags: Plenty of clean, lint-free rags are indispensable for wiping up spills, cleaning the exterior of the lower unit, and cleaning off the drain and vent plugs.
• Disposable Gloves: Protect your hands from the old oil and any grease. Mechanix Wear or similar mechanic-style gloves offer good dexterity and protection.
• Container for Used Oil: A sealable container is required for transporting the old oil to a proper disposal or recycling facility.
• Manual Impact Screwdriver (Optional): If you anticipate encountering stubborn or corroded screws, this tool can be invaluable. It applies a rotational force combined with a downward hammer strike to loosen seized fasteners. These are typically available for under £10 at most hardware stores.
• Heat Gun (Optional): In cases of severely corroded or seized screws, gentle application of heat from a heat gun can help expand the surrounding metal, aiding in removal. Use with caution to avoid damaging seals or paintwork.

Materials Required:

• Lower Unit Oil: Crucially, use the gear lube specifically recommended by your outboard motor manufacturer. Common brands include West Marine Synthetic Blend, Quicksilver, or Sierra. Always consult your owner's manual for the exact specifications, such as API GL5 SAE 80 or 90 weight. Using the wrong type of oil can cause significant damage.
• Replacement O-Rings/Sealing Washers: It is highly recommended to replace the O-rings or sealing washers on the drain and vent plugs each time you change the oil. This ensures a proper seal and prevents leaks.
• Marine-Grade Anti-Seize Compound: Applying a small amount of marine-grade anti-seize compound to the threads of the drain and vent plug screws will make them significantly easier to remove during future maintenance, especially in a corrosive saltwater environment.

Recommended Lower Unit Oils

Choosing the right oil is critical for the health of your outboard’s lower unit. Here’s a look at some popular options and their general applications:

Important Note: Always refer to your outboard motor’s owner's manual for the precise oil type, viscosity, and any specific requirements. For instance, older Johnson and Evinrude outboards equipped with electric shift mechanisms often require a specific lubricant like Premium Type C Lube.

Oil Capacity: How Much Do You Need?

The quantity of oil required for your lower unit will vary depending on the specific make and model of your outboard motor. While your owner’s manual is the definitive source, the following table provides approximate capacities for a range of Tohatsu outboards:

For other popular brands such as Mercury, Yamaha, Suzuki, or Volvo Penta, always consult your specific owner’s manual or visit the manufacturer’s official website for precise oil capacity details.

Step-by-Step Guide to Changing Lower Unit Oil

The process of changing lower unit oil is quite manageable, even for those with limited mechanical experience, provided you follow the steps carefully and pay attention to detail. The procedure is largely the same for most outboards, but there are slight variations depending on whether your unit has two or three drain/vent plugs.

Preparation is Key

1. Position the Boat: Ensure your boat is stable and on a level surface. This could be on a trailer or securely moored in the water. Tilt the outboard motor to its fully down (vertical) position. This is crucial for allowing the old oil to drain completely.
2. Locate the Plugs: Identify the relevant plugs on your lower unit. There will always be a drain plug at the very bottom. Higher up, typically above the cavitation plate, you will find the vent plug. Some outboards, particularly certain Mercury models, have a third plug, an oil level plug, located midway up the lower unit.
3. Gather Supplies: Lay out all the tools and materials you’ve prepared within easy reach. This prevents you from having to search for something mid-process and potentially introducing contaminants.

Draining the Old Oil

1. Remove the Vent Plug First: Using your flathead screwdriver, carefully remove the upper vent plug. For three-screw systems, you should also remove the oil level plug at this stage. Removing the vent plug allows air to enter the lower unit, which is essential for smooth oil flow during draining.
2. Remove the Drain Plug: Position your drain pan directly beneath the lowest point of the lower unit. Place your screwdriver on the drain plug and apply firm pressure while carefully loosening it. Keep this pressure consistent to prevent the plug from dropping into the drain pan. Once loosened, remove the plug completely and allow the old oil to drain out. This can take anywhere from 5 to 10 minutes.
3. Inspect the Drained Oil: While the oil is draining, take the opportunity to examine it for any signs of contamination. As mentioned earlier, look for:
   • Milky/Creamy Appearance: Indicates water ingress, likely due to a failing seal.
   • Gray or Gritty Texture: Suggests wear on gears or bearings.
   • Metal Chunks: A sign of severe internal damage requiring professional attention.

   You will likely find a small amount of fine metal filings clinging to the magnetic tip of the drain plug. This is usually normal wear, but it's good practice to clean these filings off the plug before reinstallation.

Filling with New Oil

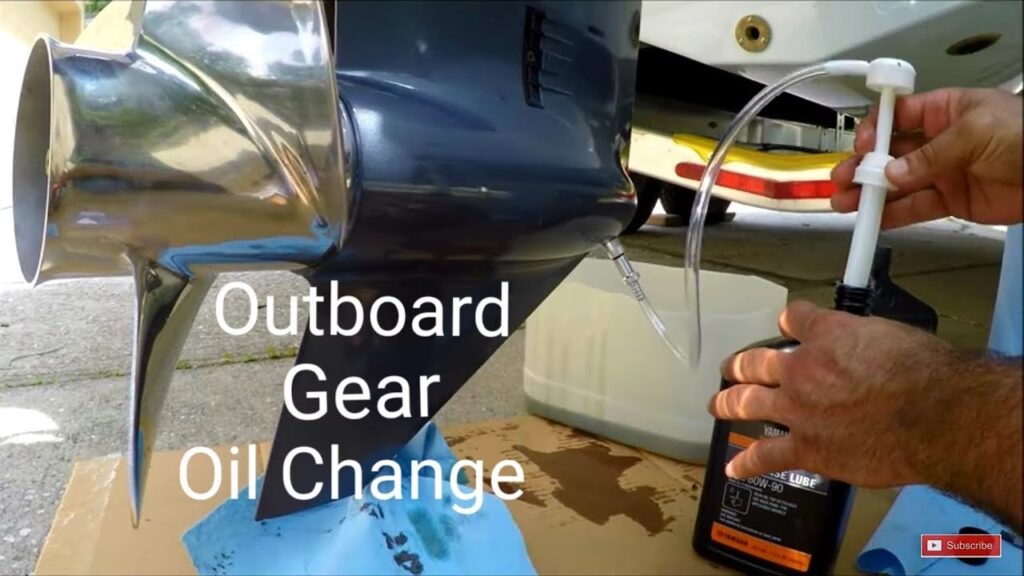

1. Install the Oil Pump: Screw the adapter of your lower unit oil pump firmly into the lower drain hole. Attach the pump to a fresh bottle or tube of the manufacturer-recommended gear lube.
2. Pump New Oil: Begin slowly pumping the new oil into the lower unit. Continue pumping until you see a steady stream of clean oil flowing out of the vent plug hole (for two-screw systems) or the oil level plug hole (for three-screw systems). This indicates that the lower unit is completely full and that any air has been purged. Ensure the oil entering the unit is free from air bubbles.
3. Replace the Plugs:
   • For Two-Screw Systems: With oil still flowing from the vent hole, install a new O-ring onto the vent plug, apply a small amount of anti-seize compound to its threads, and screw it back into the vent hole. Then, remove the oil pump adapter from the drain hole and quickly install the drain plug with its new O-ring.
   • For Three-Screw Systems: First, install new O-rings and anti-seize on both the vent plug and the oil level plug, then screw them back into their respective holes. This helps to create a slight vacuum and minimises oil loss when you remove the pump. Finally, remove the pump adapter and install the drain plug with its new O-ring.
4. Clean Up: Use your clean rags to wipe away any spilled oil from the exterior of the lower unit. This prevents oil from dripping into the water and is also good practice for keeping your engine clean.

Final Checks and Next Steps

1. Verify Oil Level (Three-Screw Systems): If your outboard has a three-screw system, it's good practice to double-check the oil level. With the engine tilted down and the drain plug installed, remove the oil level plug. Insert a small piece of wire or a dipstick about 1 inch into the hole. If oil is present on the wire at that depth, the level is correct. If not, you may need to add a little more oil by repeating the filling process briefly.
2. Dispose of Used Oil Responsibly: Transfer the old oil from your drain pan into your sealed container. It is illegal and environmentally harmful to dispose of used motor oil down drains, into waterways, or in regular household waste. Take the used oil to a local recycling centre, an auto parts store, or a reputable garage that accepts used oil. Many quick-lube service stations will accept used oil for a small fee.
3. Perform Additional Maintenance: While you're working on the lower unit, take the opportunity to carry out other important maintenance tasks:
   • Grease Fittings: Locate and grease any zerk fittings on the motor mount, tilt tube, and steering pivot points.
   • Inspect Anodes: Check the sacrificial anodes (often zinc in saltwater, aluminium in brackish water, or magnesium in freshwater) on your lower unit. If they are more than 50% eroded, they should be replaced to protect your engine from galvanic corrosion.
   • Check the Propeller: Remove the propeller. Inspect the propeller shaft for any fishing line that may have become wrapped around it, as this can damage the propeller shaft seals. Clean the shaft thoroughly and apply a fresh coat of marine-grade grease before reinstalling the propeller.
   • Touch Up Paint: Inspect the lower unit paintwork for any chips or scratches. Touch these up with matching engine enamel or suitable antifouling paint to prevent corrosion from starting on the bare metal.

Understanding Two-Screw vs. Three-Screw Systems

The majority of outboard motors employ a two-screw system, consisting of a drain plug at the bottom and a vent plug higher up. However, some models, such as the 2005 Mercury 125hp 2-stroke mentioned, feature a three-screw configuration. The addition of an oil level plug, typically positioned midway up the lower unit casing, provides a more precise method for verifying the correct oil fill level. The vent plug's function remains the same – to allow air to enter and exit – but in a three-screw system, the oil level plug acts as the overflow indicator during the filling process. Therefore, when filling a three-screw unit, you continue pumping oil until it begins to flow from the mid-level oil level plug, not the top vent plug.

Common Challenges with Three-Screw Systems

While slightly more complex, three-screw systems are manageable with a little understanding:

• Confusion Over Plug Roles: A common mistake is attempting to fill the lower unit through the top vent plug. Remember, the vent plug is primarily for air exchange; all oil filling should be done through the bottom drain hole. The oil level plug is the indicator for when the unit is full.
• Preventing Airlocks and Oil Loss: To minimise oil spillage when removing the pump, especially on three-screw systems, ensure the vent and oil level plugs are securely in place before you disconnect the oil pump from the drain hole. This helps retain some of the oil that would otherwise escape.
• Lack of Specific Manual: If you don’t have your outboard’s owner’s manual readily available, a quick online search using your specific model number (e.g., “2005 Mercury 125hp lower unit oil change procedure”) will often yield detailed instructions or videos. Manufacturer websites are also excellent resources.

Troubleshooting Common Issues

Even with careful work, you might encounter a few common problems. Here’s how to address them:

Stuck Drain Plug

Steel screws corroding within aluminium housings are a frequent issue due to galvanic action in saltwater. If your drain plug is seized:

• Penetrating Oil: Apply a generous amount of penetrating oil (like WD-40 or a dedicated rust penetrant) to the plug threads and let it soak for several hours, or ideally, overnight.
• Impact Screwdriver: A manual impact screwdriver, used with a hammer, can often break the corrosion bond without stripping the screw head. Ensure you use the correct bit size.
• Heat Application: Gently heat the area around the plug with a heat gun. The aluminium housing will expand slightly more than the steel screw, potentially loosening the grip. Be cautious not to overheat, which could damage seals or paint.
• Avoid Stripping: The worst-case scenario is stripping the screw head. If this happens, drilling out the plug becomes a much more complex and time-consuming repair. Prevention with anti-seize is key.

Oil Contamination

If you discover contaminated oil:

• Milky Oil: This points to a leak in the seals, most commonly the propeller shaft seal or the water pump seals. The lower unit should be pressure tested by a mechanic to locate the leak, and the faulty seals replaced.
• Gray Oil or Metal Chunks: This indicates significant wear or damage to the internal gears or bearings. It is essential to have a qualified marine mechanic inspect the lower unit for damage and recommend necessary repairs.
• Low Oil Level: If the oil level is consistently low, check thoroughly for leaks around the drain plug, vent plug, and seals. Address any leaks before refilling the unit.

Incorrect Oil Level

For three-screw systems, always double-check the oil level after filling. If it appears low (oil doesn’t reach the oil level plug), remove the drain plug, add a small amount of oil, let it settle, and then recheck. It’s better to slightly underfill and top up than to overfill, which can cause pressure issues.

Choosing the Right Lower Unit Oil

Selecting the correct lower unit oil is not merely a suggestion; it is critical to prevent damage to your outboard's gearbox. Always adhere to the manufacturer's specific recommendations, which are detailed in your owner’s manual. Most modern outboard motors are designed to use API GL5 SAE 80 or 90 weight gear lubricants. However, some older or specialised models may require different formulations. For example, Johnson and Evinrude outboards from the 1962-1972 period with electric shift mechanisms often require a specific lubricant known as Premium Type C.

Synthetic vs. Mineral-Based Oils

• Synthetic Oils: These advanced lubricants offer superior performance, particularly under extreme operating temperatures and high pressures. They generally provide better shear stability, longer drain intervals, and enhanced corrosion protection. Synthetic oils are ideal for high-performance engines, commercial use, or boats that are frequently operated in demanding conditions.
• Mineral-Based Oils: These are more traditional lubricants and are typically more affordable. They are perfectly adequate for casual boaters and outboards that are not subjected to extreme usage.

Brand Recommendations

• Manufacturer’s Proprietary Lubricant: Using the oil specifically branded by your outboard’s manufacturer (e.g., Quicksilver for Mercury, Yamalube for Yamaha) is always a safe bet. It guarantees compatibility and is essential for maintaining warranty coverage.
• Reputable Aftermarket Brands: Brands like West Marine, Sierra, and others offer high-quality lubricants that meet or exceed OEM specifications. These can often be a more cost-effective alternative.

Crucial Advice: Never mix different brands or weights of lower unit oil. Doing so can compromise the lubricant's properties and potentially lead to reduced lubrication effectiveness or even damage.

Environmental Considerations

Responsible disposal of used motor oil is a vital aspect of marine maintenance. It is illegal and incredibly harmful to the environment to pour used oil down drains, into waterways, or discard it with regular household rubbish.

• Proper Storage: Store your used oil in a tightly sealed, leak-proof container. Old oil bottles or dedicated waste oil containers work well.
• Recycling: Take the sealed container of used oil to an authorised recycling centre, an auto parts store, or a local garage that accepts used automotive fluids. Many areas have specific collection points for hazardous waste.
• Local Regulations: Familiarise yourself with your local environmental regulations regarding the disposal of hazardous waste.
• Spill Management: When cleaning up spills, always use rags to absorb the oil. Dispose of oil-soaked rags properly, as they are considered hazardous waste.

Additional Maintenance Tips

While you have the lower unit accessible during an oil change, it’s an excellent opportunity to perform several other important maintenance checks:

• Inspect Sacrificial Anodes: These metal components are designed to corrode in place of your engine’s metal parts. If your anodes are more than half-eaten away, replace them promptly to ensure continued protection against corrosion.
• Check and Grease Propeller Shaft: Removing the propeller allows you to inspect the shaft for any fishing line or debris that could damage seals. Clean the shaft thoroughly and apply a fresh layer of marine-grade grease. This ensures the propeller can be removed easily in the future and protects the shaft from corrosion.
• Lubricate Steering and Tilt Components: Locate any grease fittings (zerk fittings) on your steering system, tilt tube, and motor mounts. Apply marine grease to these fittings to ensure smooth operation and prevent seizing.
• Touch Up Paintwork: Examine the paint on the lower unit and propeller. If you find any chips or areas where the paint has worn away, touch them up with matching engine enamel or appropriate antifouling paint. This prevents corrosion from setting in on exposed metal surfaces.

Conclusion

Changing the lower unit oil on your outboard motor is a fundamental maintenance task that every boat owner can confidently perform with the right guidance and tools. By diligently following the steps outlined in this comprehensive guide, you can ensure your outboard motor remains in peak operating condition, thereby avoiding potentially significant repair costs and extending its overall service life. Whether your outboard features a simple two-screw system or a more intricate three-screw setup, the process is straightforward when approached methodically. Regular maintenance, encompassing not only oil changes but also checks of sacrificial anodes, propeller shafts, and lubrication points, will contribute to your boat’s reliable performance for many seasons to come.

For any complex issues or if you feel uncertain about any part of the process, always refer to your outboard’s specific owner’s manual or consult with a qualified marine mechanic. Safe boating!
