Fiat 500 Oil Filter Location & Engine Explained

Locating the Oil Filter on Your Fiat 500: A Practical Guide

For any car owner, understanding the basic maintenance points of their vehicle is crucial. The oil filter is a key component in keeping your engine running smoothly by removing contaminants from your engine oil. If you're a Fiat 500 owner wondering where this vital part is situated, this guide will help you pinpoint its location. While specific model years and engine variants can sometimes lead to minor differences, the general placement remains consistent for most Fiat 500s equipped with the popular 1.4L MultiAir engine.

The Fiat 500's Oil Filter: Location and Access

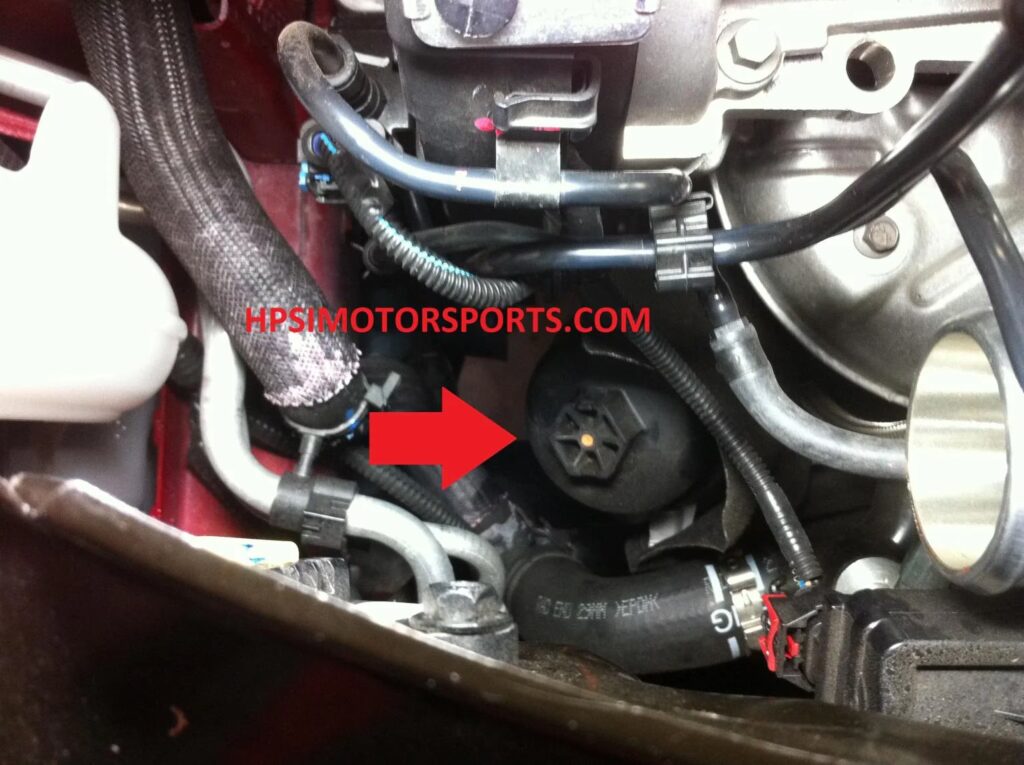

The oil filter on the Fiat 500 is typically found at the front of the engine, towards the lower section. To be more precise, it's usually located on the underside of the engine block, often towards the front or driver's side. You'll likely see a cylindrical canister, which is the oil filter itself, screwed into a housing.

Accessing the oil filter usually requires getting underneath the vehicle. It's advisable to use a good set of jack stands for safety. Once you're under the car, look for the oil pan; the filter is often positioned near it. It's a common practice for manufacturers to place the filter in a readily accessible spot for routine oil changes. For the Fiat 500, this usually means it's not buried deep within the engine bay, making it a manageable task for DIY enthusiasts.

Understanding the Fiat 500's MultiAir Engine

The Fiat 500 is renowned for its compact size and stylish design, but under the bonnet, it often houses an engine that's equally impressive: the MultiAir engine. This innovative technology, developed by Fiat, revolutionises how internal combustion engines operate, offering a host of benefits over traditional setups.

The core principle behind MultiAir is the electro-hydraulic control of the intake valves. Unlike conventional engines that rely on a throttle body to control airflow, MultiAir directly manages the intake valve lift and duration. This sophisticated system allows for precise control over the air-fuel mixture entering the cylinders, leading to significant improvements in performance, fuel economy, and emissions.

Key Benefits of MultiAir Technology

The MultiAir system isn't just a technical novelty; it translates into tangible advantages for the driver and the environment:

• Increased Throttle Response: By eliminating the throttle body's limitations, the engine can react more instantaneously to driver input, providing a more engaging driving experience.
• Optimised Torque: MultiAir allows for flexible torque delivery across the rev range, meaning you get more pulling power when you need it, especially at lower engine speeds.
• Reduced Fuel Consumption: More efficient combustion and better control over engine breathing directly translate to lower fuel bills.
• Reduced CO2 Emissions: A cleaner burn means less harmful exhaust gases, contributing to a healthier environment.
• Increased Power and Torque: The system's ability to optimise valve operation leads to an overall boost in the engine's power and torque output.
• Increased Driver Responsiveness: The combination of improved throttle response and optimised torque makes the car feel more lively and responsive.
• Less Pollution: More efficient combustion inherently leads to reduced pollutants.
• Easier Start-up: The precise control offered by MultiAir can contribute to smoother and more reliable engine starting.

How MultiAir Works: A Deeper Dive

The MultiAir system consists of a series of electro-hydraulic actuators integrated into the engine's valvetrain. These actuators, controlled by the Powertrain Control Module (PCM), manipulate the intake valves based on real-time driving conditions. The key components include:

• Variable Valve Actuation Module: Bolted to the camshaft bearing housing, this module houses the hydraulic pumping elements.
• Camshaft Lobes: These lobes operate the hydraulic pumping elements, which in turn pressurise oil to open the intake valves.
• Solenoid Operated Hydraulic Port: This is the critical control element. By varying the operation of the solenoid, the PCM can precisely control when and how much the intake valves open.

This sophisticated interplay allows the MultiAir system to adapt its operation through five distinct phases, each optimised for different driving scenarios:

The Five Phases of MultiAir Operation:

1. Full Lift: In this phase, the intake valves receive the full benefit of the camshaft lobe's lift and duration. This is ideal for maximising power at higher RPMs and under heavy loads, though rarely used in typical daily driving.
2. Early Intake Valve Closing (EIVC): Here, the hydraulic connection between the camshaft lobe and the valves is disengaged before the lobe reaches its peak. This allows for smoother engine performance and significantly boosts torque at lower engine speeds, making city driving more effortless.
3. Late Intake Valve Opening (LIVO): Conversely, in the LIV0 phase, the hydraulic connection is made later in the camshaft lobe's cycle. This results in a reduced valve lift timing, which is beneficial for lowering emissions and improving efficiency during idle or low-load conditions.
4. Multi-Lift: This advanced phase combines aspects of EIVC and LIV0. The hydraulic connection is closed early and then reopened later, creating a longer duration valve lift with a smaller lift amount. This optimises airflow into the cylinder for improved performance during mixed driving conditions involving acceleration and deceleration.
5. Closed: In its simplest form, the intake valves can be kept closed by disengaging the hydraulic connection entirely, preventing the camshaft lobe from lifting them. This is used in specific scenarios for maximum efficiency or emissions control.

Fiat 500 Engine Specifications (1.4L MultiAir)

To provide a clearer picture of the engine powering many Fiat 500 models, here are some key specifications:

Frequently Asked Questions (FAQs)

Q1: How often should I change the oil filter on my Fiat 500?

It's generally recommended to change the oil filter every time you change your engine oil. For most Fiat 500 models, this is typically every 8,000 to 10,000 miles, or annually, whichever comes first. Always consult your owner's manual for the specific interval recommended for your vehicle.

Q2: Can I change the oil filter myself?

Yes, if you are comfortable working under your car and have the necessary tools (such as a socket wrench for the drain plug, an oil filter wrench, a new oil filter, and the correct grade of engine oil), you can perform an oil and filter change yourself. Ensure you have a safe way to lift and support the vehicle.

Q3: What type of oil filter should I use for my Fiat 500?

You should always use an oil filter that is specifically designed for your Fiat 500 model and engine. Using the wrong filter can lead to poor filtration or even damage to your engine. Refer to your owner's manual or a reputable auto parts supplier for the correct part number.

Q4: What are the symptoms of a clogged oil filter?

A clogged oil filter can restrict oil flow, leading to increased engine wear and potential overheating. Symptoms might include a persistent oil pressure warning light, a gritty or noisy engine, and a general decrease in performance. If you suspect your filter is clogged, it's best to have it checked and replaced immediately.

Q5: Does the MultiAir system require special oil?

While the MultiAir system is advanced, it typically uses the same high-quality engine oil as other modern engines. However, always adhere to the manufacturer's recommended oil viscosity and specifications as outlined in your owner's manual to ensure optimal performance and longevity of the MultiAir components.

By understanding the location of your Fiat 500's oil filter and appreciating the advanced technology of the MultiAir engine, you're better equipped to keep your car in excellent condition. Regular maintenance and a good understanding of your vehicle's components are key to a long and enjoyable ownership experience.
