Audi A4 B7 Oil Change: A Comprehensive DIY Guide

Maintaining your Audi A4 B7 is paramount to its longevity and performance, and perhaps no task is more critical than regularly changing the engine oil and filter. This isn't just a routine chore; it's a vital procedure that directly impacts your engine's health, fuel efficiency, and overall reliability. For many Audi enthusiasts in the UK, undertaking this task yourself offers not only significant cost savings but also a deeper understanding and connection with your vehicle. This comprehensive guide will walk you through every step of the process, ensuring your Audi A4 B7 continues to deliver that renowned driving experience.

The engine oil in your Audi acts as the lifeblood of its intricate mechanical heart. It lubricates moving parts, reduces friction, dissipates heat, and cleans the engine by suspending contaminants. Over time, this oil degrades, becoming less effective, and accumulates sludge and particles. A fresh oil change ensures your engine is protected, reducing wear and tear, and maintaining optimal performance. It's a small investment in time and materials that pays dividends in the long run, safeguarding your Audi's sophisticated engineering.

Understanding Your Audi A4 B7's Oil Change Frequency

One of the most common questions is: how often should an Audi B7 oil change be done? The answer can vary depending on your specific model, engine type (petrol or diesel), driving habits, and the type of oil used. Audi typically recommends service intervals based on mileage or time, whichever comes first.

• Fixed Service Interval: For many A4 B7 models, particularly older ones or those not on long-life oil, a fixed service interval of 10,000 miles or 12 months is recommended. This is a safe bet for most drivers.
• Long-Life Service Interval: Some A4 B7s were designed for 'LongLife' servicing, which can extend intervals up to 20,000 miles or 24 months. However, this requires specific long-life oil (e.g., VW 504 00/507 00) and certain driving conditions. If you're unsure, or primarily do short city drives, sticking to the fixed interval is often a safer and more beneficial choice for engine health.

Regardless of the official recommendation, regular checks of your oil level between services are always advised. If you notice the oil looking very dark or gritty on the dipstick, it might be time for a change, even if you haven't hit the mileage or time limit.

Essential Tools and Materials You'll Need

Before you begin, gather all the necessary tools and materials. Having everything at hand will make the process smoother and safer.

• New Engine Oil: Refer to your Audi A4 B7 owner's manual for the correct oil specification and quantity. For most petrol engines, VW 502 00 specification is common, while diesel engines often require VW 504 00 / 507 00. Ensure you have at least 5 litres, as most B7 engines require around 4.5 to 5 litres. Using the correct oil specification is crucial for engine longevity.
• New Oil Filter: Always replace the oil filter when changing the oil. Ensure it's the correct part for your specific engine code.
• Oil Filter Housing Drain Tool: This is a specific tool that screws into the bottom of the oil filter housing, allowing for controlled draining. It's often plastic and comes with a hose.
• Drain Pan/Waste Oil Container: A container with a capacity of at least 5 litres, preferably more, to collect the old oil.
• Socket Wrench Set: You'll need sockets for the drain plug (often 19mm or similar) and potentially for the oil filter housing cap (often 32mm or 36mm).
• Torque Wrench: Essential for tightening the drain plug and oil filter housing to the manufacturer's specified torque settings. Over-tightening can cause damage, while under-tightening can lead to leaks.
• Funnel: To prevent spills when refilling the engine with new oil.
• Gloves: Protect your hands from hot oil and contaminants.
• Rags/Shop Towels: For cleaning up spills.
• Jack and Jack Stands (Optional but Recommended): If you need more clearance to access the drain plug or filter. Ensure your car is securely supported if lifted.
• New Drain Plug Washer (Crush Washer): This is a one-time use item that creates a seal. Always replace it.
• Wheel Chocks: If lifting the vehicle.

Safety First: Preparing for the Oil Change

Your safety is paramount. Always prioritise safety precautions when working under a vehicle.

1. Park on a Level Surface: The vehicle must be on an even keel. If it is at an angle, the drain plug must be at the lowest point to ensure complete drainage.
2. Engine Off and Cool (or Slightly Warm): All work should be done with the engine stopped. While some recommend a slightly warm engine to help oil flow, ensure it's not hot enough to cause burns. A brief run (5-10 minutes) before starting can help loosen contaminants, but let it cool down enough to be safely handled.
3. Engage Parking Brake: Ensure the parking brake is fully engaged.
4. Use Jack Stands (if lifting): If you need to raise the vehicle, use a hydraulic jack to lift it and then immediately place sturdy jack stands under designated jacking points. Never rely solely on a jack. Place wheel chocks on the wheels that remain on the ground.
5. Personal Protective Equipment (PPE): Wear gloves and eye protection. Hot oil can cause severe burns, and splashes can irritate eyes.

Step-by-Step Guide to Changing Your Audi A4 B7's Oil

1. Prepare for Drainage

Once the car is safely positioned and secured, locate the engine oil drain plug. This is typically found at the lowest point of the oil sump (oil pan) underneath the engine. Position your waste oil container, with at least 5 litres capacity, directly under the drainage hole. Ensure it's stable and large enough to catch all the old oil.

2. Loosen the Oil Cap and Dipstick

Open the bonnet (hood) and locate the oil filler cap on top of the engine. Remove the oil cap to let the pressure in the crankcase escape. This allows the oil to drain more freely. Set the cap aside in a clean, safe place. Similarly, pull out the dipstick slightly to aid air flow. Be careful not to let any dirt or debris fall into the crankcase opening.

3. Drain the Old Engine Oil

Using the appropriate socket wrench, carefully loosen the drain plug. Once it's loose, finish unscrewing it by hand, but be prepared for the oil to start flowing immediately. Guide the plug away quickly to avoid getting covered in hot oil. Let the oil drain completely into your waste container. This can take anywhere from 10 to 20 minutes, depending on the oil's temperature and viscosity. Allow ample time for every last drop to flow out.

4. Remove the Old Oil Filter

Locate the engine oil filter. On many Audi A4 B7 models, the oil filter housing is located on the driver’s side of the engine, often right above the motor mount. It's usually a black plastic housing with a large hexagonal top. Some models might have a metal spin-on filter, but the plastic cartridge type is more common for the B7.

If you have the cartridge filter with a drain valve:

1. From underneath the car, locate the protective cap on the bottom of the oil filter housing. Unscrew this small cap.
2. Take your oil filter housing drain tool. Screw the head of this tool into the bottom of the filter housing until you feel resistance.
3. Connect the hose from the tool to your drain pan, making sure the line is pinched or the valve is closed on the hose itself.
4. Continue to screw the tool until you hear a distinct click of the drain valve opening. Oil should then start to drain down the hose into your drain pan.
5. Un-pinch the hose (or open its valve) and let it drain completely. When it’s done, re-pinch the hose and let it catch whatever else drips out.
6. Once fully drained, unscrew the drain tool and then use a large socket (often 32mm or 36mm) to unscrew the main oil filter housing cap.
7. Carefully pull out the filter housing cap with the old filter attached. There might be some residual oil, so have rags ready.
8. Remove the old filter element from the cap and discard it. Also, carefully remove the old O-rings from the filter cap and the small O-ring from the filter drain plug (if applicable).

5. Install the New Oil Filter

Before installing the new filter, replace all the old O-rings on the filter housing cap with the new ones provided with your new filter. Lightly lubricate these new O-rings with a small amount of fresh engine oil. This helps them seat properly and prevents tearing, ensuring a good seal.

Install the new filter element onto the filter cap, ensuring it's seated correctly. Carefully screw the filter housing cap back into its housing by hand to avoid cross-threading. Once finger-tight, use your socket wrench to tighten it to the manufacturer's specified torque wrench setting (usually indicated on the filter housing itself or in your manual, typically around 25 Nm). Do not over-tighten.

6. Replace the Drain Plug

Once all the old oil has drained from the sump, clean the area around the drain plug hole. Install a new crush washer onto the drain plug. This washer is crucial for creating a leak-proof seal and should never be reused. Screw the drain plug back into the oil sump by hand first, ensuring it threads correctly. Then, use your socket wrench to tighten it to the manufacturer's specified torque (often around 30 Nm). Again, use a torque wrench to avoid stripping the threads or leaving it too loose.

7. Refill with New Engine Oil

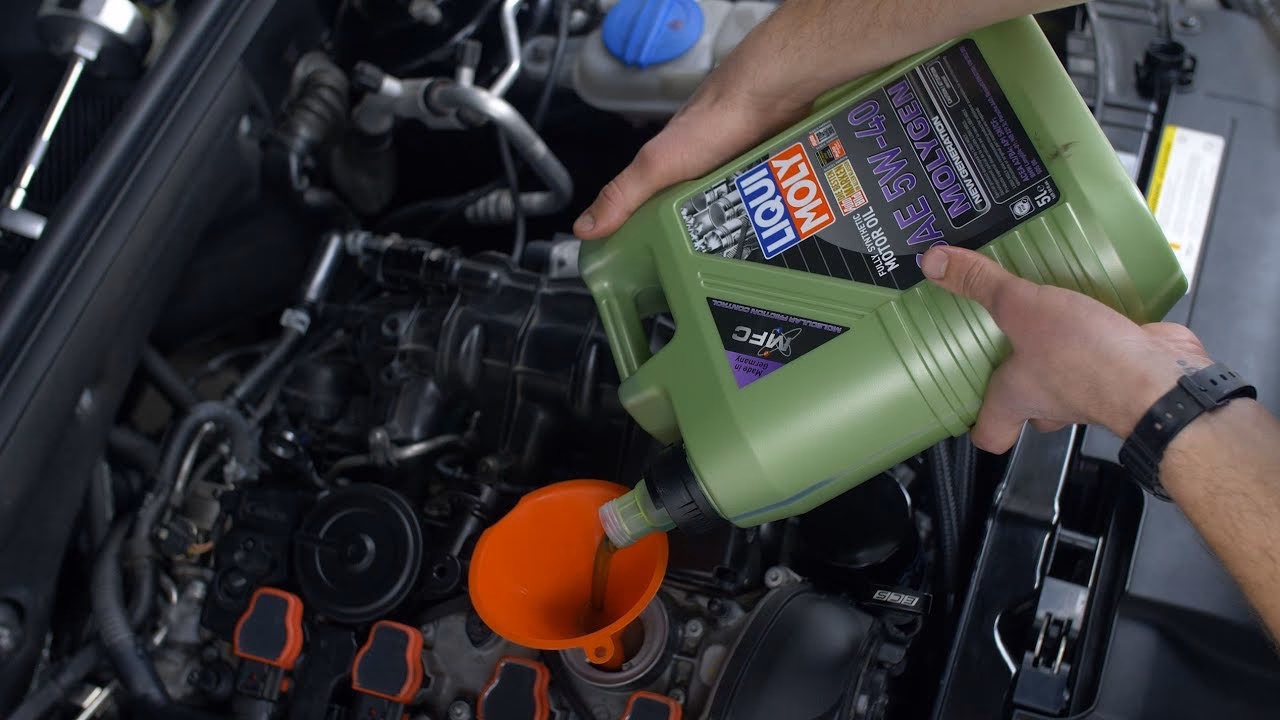

Place a clean funnel into the oil filler hole on top of the engine. Slowly pour in the new, specified engine oil. It's usually a good idea to add about 4 litres initially, then wait a few minutes for the oil to settle in the sump. Check the oil level using the dipstick. Pull the dipstick out, wipe it clean, reinsert it fully, then pull it out again to get an accurate reading. The oil level should be between the minimum and maximum marks. Add small amounts (e.g., 250ml) at a time, rechecking the dipstick until the level is correct. Avoid overfilling, as this can cause problems.

8. Final Checks and Start-Up

Once the oil level is correct, replace the oil filler cap and the dipstick. Double-check that the drain plug and oil filter housing are securely tightened and that no tools or rags are left under the bonnet. Start the engine and let it run for a few minutes. The oil pressure light on the dashboard should extinguish within a few seconds. While the engine is running, check underneath the car for any signs of leaks around the drain plug and oil filter housing. If you see any leaks, shut off the engine immediately and investigate.

After running the engine for a few minutes, turn it off and let it sit for another 5-10 minutes to allow the oil to drain back into the sump. Re-check the oil level with the dipstick and top up if necessary. Your oil change is complete!

9. Dispose of Old Oil Responsibly

Never pour used engine oil down the drain or into the ground. It is a hazardous waste product and extremely damaging to the environment. Transfer the old oil from your drain pan into sealable containers (the empty new oil bottles work perfectly). Most local council recycling centres in the UK have facilities for disposing of used engine oil. Some garages or auto parts stores may also accept it. Practising environmental responsibility is just as important as the maintenance itself.

Choosing the Right Oil for Your Audi A4 B7

Selecting the correct engine oil is paramount for the health of your Audi A4 B7. Audi engines are precision-engineered and require specific oil formulations to perform optimally and prevent premature wear. Always consult your owner's manual for the precise correct oil specification for your engine code, as using the wrong type can lead to serious issues, including reduced engine life and even catastrophic failure.

• VW 502 00: This specification is commonly required for many petrol (gasoline) engines in the Audi A4 B7, especially those with fixed service intervals. Oils meeting this standard are typically fully synthetic or high-quality semi-synthetic, designed for high-performance engines.
• VW 504 00 / 507 00: These specifications are crucial for diesel engines, particularly those fitted with Diesel Particulate Filters (DPFs), and also for some petrol engines on long-life service schedules. These are 'low-SAPS' (Sulphated Ash, Phosphorus, Sulphur) oils, formulated to protect the DPF from clogging and ensure efficient emission control. Using a non-504 00/507 00 oil in a DPF-equipped diesel will likely lead to DPF failure.

Always opt for a reputable brand of oil that explicitly states it meets the required VW specification. Do not rely on generic 'multi-vehicle' oils unless they specifically list the relevant Audi/VW approval. While fully synthetic oils are generally more expensive, their superior performance, stability, and cleaning properties make them a worthwhile investment for the longevity and performance of your Audi engine.

Common Mistakes to Avoid During an Oil Change

Even seasoned DIY mechanics can make mistakes. Being aware of common pitfalls can save you time, money, and potential engine damage.

• Not Replacing the Drain Plug Washer: Reusing the old crush washer is a recipe for leaks. Always fit a new one.
• Over-tightening: Both the drain plug and the oil filter housing cap can be easily stripped or cracked if over-tightened. Always use a torque wrench to the manufacturer's specifications.
• Under-tightening: Conversely, not tightening enough will lead to leaks.
• Using the Wrong Oil: As discussed, the wrong oil specification can cause significant engine wear and DPF issues.
• Overfilling the Oil: Too much oil can cause aeration (foaming), leading to reduced lubrication and increased pressure, which can damage seals. Always check the dipstick carefully.
• Not Replacing the Oil Filter: Changing the oil without changing the filter defeats much of the purpose, as contaminants will remain in the system.
• Not Lubricating O-rings: Dry O-rings on the new oil filter housing cap can tear, leading to leaks.
• Working on an Angled Surface: This prevents complete oil drainage and can lead to an inaccurate refill level.
• Forgetting to Replace the Oil Cap/Dipstick: An obvious but surprisingly common oversight that can lead to oil leaks and engine damage.

The Benefits of Regular Engine Oil Changes

Beyond simply keeping your car running, regular oil and filter changes offer a multitude of benefits that contribute to your Audi A4 B7's engine longevity and overall performance:

• Reduced Engine Wear: Fresh oil provides optimal lubrication, significantly reducing friction between moving parts, which is the primary cause of engine wear.
• Improved Fuel Efficiency: Clean, fresh oil allows the engine to operate with less resistance, leading to better fuel economy.
• Enhanced Engine Performance: An engine running on clean oil performs more smoothly and efficiently, maintaining its original power output.
• Better Heat Dissipation: Oil helps to draw heat away from critical engine components. Degraded oil loses this ability, leading to higher engine temperatures.
• Cleaner Engine Internals: New oil contains detergents and dispersants that clean the engine and suspend contaminants, preventing sludge and deposit build-up.
• Extended Engine Lifespan: Ultimately, all these benefits combine to significantly extend the life of your Audi's engine, protecting your investment.
• Maintained Resale Value: A well-maintained vehicle with a documented service history (even DIY) will fetch a better price if you decide to sell.

Frequently Asked Questions (FAQs)

Q1: How often should I change the oil in my Audi A4 B7?

A1: For most Audi A4 B7 models in the UK, it's recommended every 10,000 miles or 12 months, whichever comes first. If your car is on a LongLife service schedule and uses specific long-life oil (VW 504 00/507 00), it could be up to 20,000 miles or 24 months, but shorter intervals are often beneficial for engine health, especially with frequent short journeys.

Q2: What type of oil should I use for my Audi A4 B7?

A2: Always refer to your owner's manual for the exact specification. For petrol engines, VW 502 00 is common. For diesel engines, especially those with a Diesel Particulate Filter (DPF), VW 504 00 / 507 00 is essential. These are typically fully synthetic oils. Using the correct specification is vital for engine longevity and DPF health.

Q3: Do I need special tools to change the oil filter on my Audi A4 B7?

A3: Yes, for the cartridge-style oil filter, you'll need a specific oil filter housing drain tool (often a plastic piece with a hose) to drain the oil from the filter housing before removing the cap. You'll also need a large socket (e.g., 32mm or 36mm) for the filter housing cap and a torque wrench for correct tightening.

Q4: What if I overfill the engine oil?

A4: Overfilling can be detrimental. Too much oil can cause aeration (foaming) due to the crankshaft splashing in it, which reduces lubrication effectiveness. It can also increase crankcase pressure, potentially leading to seal leaks or damage to engine components. If you overfill, you should drain the excess oil until the level is within the min/max marks on the dipstick.

Q5: How do I dispose of old engine oil?

A5: Used engine oil is a hazardous waste and must be disposed of responsibly. Do not pour it down drains or onto the ground. Collect it in sealed containers (the empty new oil bottles are perfect) and take it to your local council recycling centre, which will have facilities for hazardous waste. Some garages or auto parts stores may also accept used oil for recycling.

Q6: Do I need to reset the service light after an oil change?

A6: Yes, after an oil change, you will likely need to reset the service reminder light on your Audi's dashboard. The procedure can vary slightly depending on the year and specific model of your A4 B7. Often, it involves a sequence of button presses on the instrument cluster. Consult your owner's manual for the exact steps, or a diagnostic tool can also be used for resetting.
