Mustang EcoBoost Front Brake Pad Guide

Maintaining your vehicle's braking system is paramount for safety on the road. For owners of the S550 sixth-generation Ford Mustang EcoBoost 2.3L I4 (models 2015-2022) equipped with standard two-piston calipers, understanding how to replace your front brake pads is an invaluable skill that can save you both time and money. This detailed guide, penned by an experienced automotive mechanic, walks you through the entire process, from selecting the correct components to the crucial final step of bedding-in your new brakes. While specifically tailored for the standard EcoBoost braking system, many principles apply broadly, though models with 'Premium' or 'Performance Package' brakes (featuring four or six-piston calipers) will have different procedures and torque specifications. Let's get your Mustang stopping smoothly and reliably!

Identifying Compatible Front Brake Pads & Rotors

Before you begin any work, ensuring you have the correct parts is essential. For the 2015-2022 Ford Mustang EcoBoost 2.3L I4 with standard two-piston front calipers, there are several compatible brake pad and rotor options available. Always double-check compatibility using a reliable part finder tool, such as those found on reputable online automotive parts retailers, by entering your specific vehicle details.

Compatible Brake Pads

When selecting new brake pads, consider the type of driving you do. Ceramic pads typically offer quieter operation and less dust, while semi-metallic pads might provide a more aggressive bite suitable for spirited driving. Here are a few examples of compatible front brake pads:

Compatible Brake Rotors (Optional Replacement)

You might also need to replace your front brake rotors if your Mustang has been exhibiting symptoms like shaking, shuddering, or vibrations in the front end when you apply the brake pedal. These are strong indicators that your original equipment manufacturer (OEM) rotors may be warped or worn beyond specification. Just like pads, verify rotor compatibility before purchase.

Essential Tools & Materials

Having all your tools ready before you start will make the job much smoother. Here’s what you'll need:

• Lug nut wrench (tyre iron)
• Floor jack
• Two jack stands (crucial for safety)
• 14mm socket
• 15mm socket
• 10mm wrench (for bleeding brakes)
• 19mm wrench or pliers (to hold slider pins)
• 3/8" drive ratchet
• "F" clamp or C-clamp (for piston compression)
• Tube of brake caliper grease (high-temperature, synthetic)
• Brake parts cleaner spray
• Wire brush or sandpaper (for cleaning hub/bracket)
• Rubber mallet (optional, for rotor removal)
• Bungee cord or strong twine (to suspend caliper)
• Wheel chocks
• New front brake pads
• New front brake rotors (if replacing)
• New caliper bracket bolts (if replacing rotors)
• DOT 4 brake fluid (if bleeding/flushing)
• Brake fluid bleeder bottle (e.g., Allstar Performance)
• Anti-seize compound (for wheel hub)

Preparation & Vehicle Security

Your safety is paramount. Always take the necessary precautions before beginning any automotive work.

1. Drive your Mustang onto a level, hard surface.
2. Shift the transmission into "Park" and turn off the ignition.
3. Engage the emergency/parking brake firmly.
4. Place wheel chocks on both sides of the rear tyres to prevent any movement of the vehicle.
5. Using your lug nut wrench, slightly loosen the five lug nuts on the front wheel you plan to work on first. Turn them about 1/4 to 1/2 turn counter-clockwise. It's recommended to work on one side of the car at a time, keeping three tyres on the ground for added stability.
6. Carefully raise the front of the vehicle using your floor jack. Position the jack under a sturdy frame point, typically indicated in your owner's manual.
7. Once sufficiently raised, securely support the vehicle with at least two jack stands. Place them under appropriate frame points or pinch welds. Never rely solely on the floor jack to support the vehicle!
8. Spin off the five lug nuts completely in a counter-clockwise direction and set them aside in a safe place where they won't roll away.
9. Carefully remove the front wheel and tyre, placing it safely out of your workspace. This will reveal the brake caliper, bracket, rotor, and suspension components.

Removing Old Brake Pads & Caliper

With the wheel off, you can now access the braking components.

1. Locate the two caliper bolts (sometimes called guide bolts or slider pins) that hold the caliper to the bracket. For the standard EcoBoost caliper, these are typically 14mm bolts.
2. Loosen both the top and bottom caliper bolts by turning them in the clockwise direction (when viewed from the outside of the car) using your 14mm socket and 3/8" drive ratchet.
3. Spin out both caliper bolts completely and set them aside in a clean, safe place.

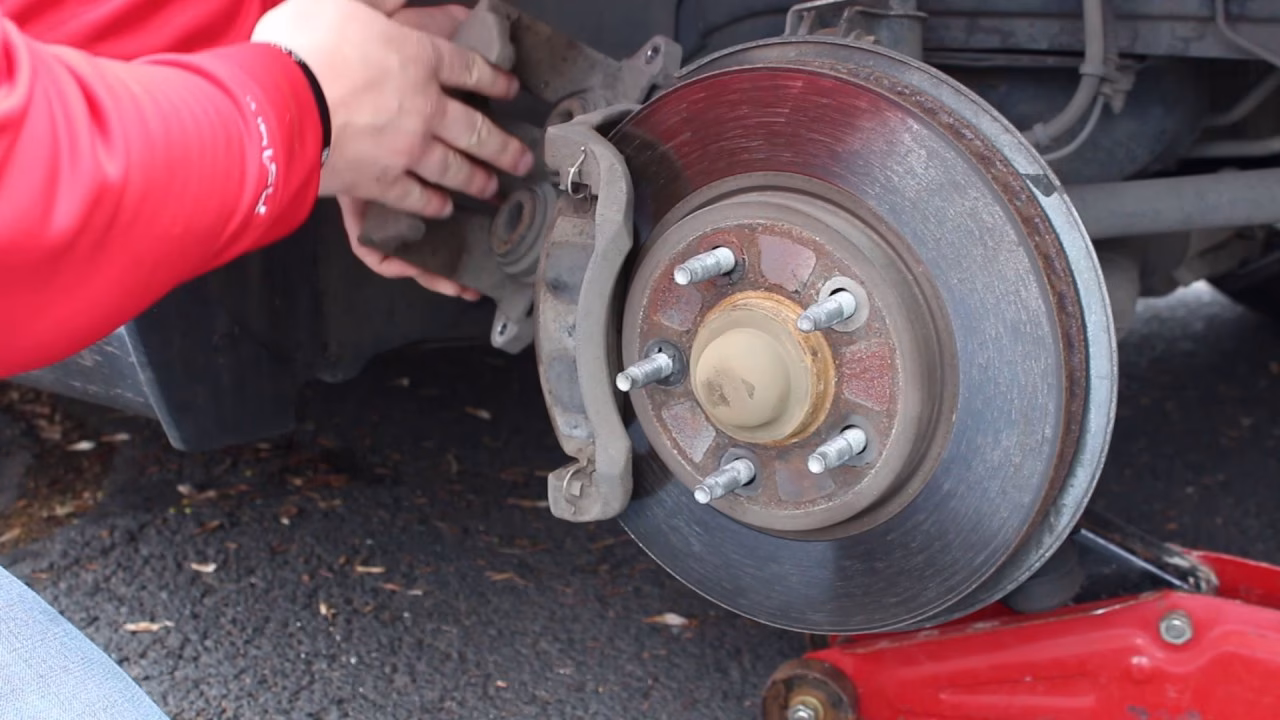

4. Carefully lift the caliper off the old brake pads and out of the bracket. Be extremely cautious not to bend, kink, pull, or stress the rubber brake fluid hose. This hose carries vital brake fluid and damage could lead to brake failure.
5. Rest the caliper gently on top of the rotor, or, ideally, suspend it from the suspension spring using a bungee cord or strong twine. This prevents stress on the brake hose.
6. Remove the old inner brake pad from the bracket. Note its orientation.
7. Remove the old outer brake pad from the bracket.
8. Make a mental note or take a picture of where the wear indicator bar (often called a "squeal bar") was situated on the old inner brake pad. This is usually at the bottom on the inner pad for the Mustang EcoBoost. This ensures correct installation of the new pads.

Brake Hardware Replacement & Cleaning

New brake pads often come with new hardware, which should always be used for optimal performance and to prevent noise.

1. If your new set of front pads includes a bag of replacement brake hardware, pull the old metal pad abutment or "anti-rattle" clips out of the top and bottom of the caliper bracket. These clips help the pads slide smoothly and prevent excessive movement and noise.
2. Thoroughly clean off the caliper bracket, rotor surface (if not replacing), and lug studs with brake parts cleaner spray. Be careful to avoid breathing in the brake dust or the cleaning spray, as they may be carcinogenic. A wire brush can help remove stubborn grime.
3. Apply a thin, even layer of high-temperature brake parts lubricant grease to the areas of the new pad abutment clips where they will come into contact with the new brake pads and the caliper bracket. This facilitates smooth movement and reduces noise. Try to avoid getting grease on the friction surface of the rotor or the new brake pads.
4. Carefully push the new pad abutment clips into the top and bottom of the caliper bracket. Ensure they are fully seated and secure in place.

Front Brake Rotors Replacement (Optional)

If you've decided to replace your rotors, follow these steps. If not, skip to the next section.

1. To remove the rotor, first locate and remove the two large 15mm bolts on the backside of the caliper bracket. These are often referred to as caliper anchor plate bolts.
2. Set the two bolts and the entire caliper bracket aside in a safe place.
3. According to Ford service manuals, these caliper bracket bolts should ideally NOT be re-used due to a phenomenon called "galling" (wear due to excessive friction that can lead to cold welding and seizing). The part number for new front caliper bracket bolts is Ford -W716471-S439. Some Mustang owners choose to apply Loctite to the old bolts and re-use them; however, this is done at your own risk and is not recommended by the manufacturer.
4. Slide the old rotor off the wheel hub and lug studs. If it's stuck due to corrosion (rust) or debris, a few gentle taps with a rubber mallet around the face of the rotor near the hub can help loosen it.
5. Before installing the new rotor, it's a good practice to clean the wheel hub surface thoroughly with a wire brush to remove any rust or debris. Apply a thin layer of anti-seize compound to the clean hub surface where the rotor mounts. This will prevent the new rotor from seizing to the hub in the future, making future replacements much easier.
6. Slide the new rotor over the lug studs and against the wheel hub, ensuring it sits flush.
7. Line up the caliper bracket and spin in the two new (or re-used, with caution) 15mm bolts a few turns by hand to prevent them from becoming cross-threaded.
8. Tighten the bracket bolts with the 15mm socket and a 3/8" drive ratchet until they are snug. For precise tightening, it is highly recommended to use a torque wrench to tighten these bracket bolts to the service manual specification of 85 lb-ft (or 115 Nm) of torque. This ensures proper clamping force and prevents issues.

Caliper Maintenance: Lubricating Slider Pins

For smooth and even brake pad wear, the caliper slider pins must be well-lubricated. These pins allow the caliper to float and move freely as the pads wear.

1. The two caliper slider pins (also known as guide bolts or slide pins) are housed within rubber dust boots attached to the bracket. Avoid mixing up the top and bottom pins, as they can sometimes be subtly different.
2. Remove one caliper slider pin at a time from its rubber dust boot. Inspect the pin for rust or damage; clean it if necessary.
3. Apply a small amount of brake caliper grease (the same high-temperature, synthetic grease used for the abutment clips) to the smooth, unthreaded part of the pin.
4. Push the pin back into its rubber dust boot, ensuring it's fully seated and moves freely without binding.
5. Repeat the process for the other caliper slider pin.

Compressing Caliper Pistons

New brake pads are thicker than worn ones, so the caliper pistons must be retracted to accommodate them.

1. Move to the right rear area of the engine bay (close to the driver's seat and the windshield). Locate the brake fluid reservoir bottle.
2. Twist off the reservoir cap in a counter-clockwise direction and set it aside in a safe, clean place. Removing the cap allows the brake fluid to more easily travel back through the system as you compress the caliper pistons, preventing pressure build-up.
3. Return to the wheel well. Attach your "F" clamp or C-clamp to the caliper. Use one of your old brake pads against the pistons to evenly distribute the pressure across both pistons. This prevents damage to the piston faces and ensures they retract squarely.
4. Slowly turn the "F" clamp handle in a clockwise direction to compress the pistons back into the caliper body.
5. As you compress the pistons, repeatedly check the fluid level in the brake fluid reservoir. Ensure it doesn't overflow. If the fluid level rises close to the top, you may need to siphon off a small amount of fluid using a clean turkey baster or syringe.
6. Clean up any spilled brake fluid immediately and rinse the area with plenty of water, as brake fluid can easily damage painted surfaces.
7. You may need to reposition the "F" clamp to fully retract the two pistons. Make sure the pistons are going straight back in and not at an angle. Avoid damaging the rubber dust boot that surrounds the pistons.
8. Continue compressing the pistons until they are just about flush with their rubber dust boots.
9. As soon as you're done compressing the caliper pistons, immediately replace the brake fluid reservoir cap by twisting it on in a clockwise direction. The reservoir cap should not be left off for any longer than absolutely necessary, as brake fluid is hygroscopic (absorbs moisture from the air), which can degrade its performance over time.

Installing New Brake Pads & Caliper

Now, it's time to put everything back together.

1. Install the new inner and outer brake pads into the caliper bracket. Remember the orientation you noted earlier: the wear indicator bar should be situated at the bottom of the inner brake pad for this Mustang model.
2. Push the two pads together until they are flush against the rotor.
3. Carefully lower the caliper over the new pads and into the bracket, aligning the bolt holes in the caliper with their corresponding bolt holes in the slider pins within the bracket.
4. Spin in the two caliper bolts a few turns by hand in the counter-clockwise direction (when seen from the outside of the car) to help prevent them from becoming cross-threaded.
5. Tighten the bolts in the counter-clockwise direction (when viewed from the outside of the vehicle looking in towards the engine bay) with the 14mm socket and a 3/8" drive ratchet until they are snug.
6. If the caliper slider pins turn as you are attempting to tighten the caliper bolts, hold them in place with a 19mm wrench or pliers to ensure the bolts tighten properly.
7. If you have a torque wrench, tighten the caliper bolts to the service manual specification of 24 lb-ft (or 32 Nm) of torque. Double-check that both caliper bolts are tight before moving on.

Brake Line Bleeding & Fluid Flush (Recommended)

If your brake pedal has been feeling soft or spongy, or if you're doing a complete brake overhaul, it's a good idea to bleed the brake lines and flush out the old fluid with fresh new DOT 4 brake fluid.

1. The brake fluid bleeder valve is located on the top of the caliper, just below the upper caliper bolt, and is covered by a rubber cap. Remove the cap.
2. You'll need a 10mm wrench to open and close the bleeder valve. Using a dedicated bleeder bottle (like the Allstar Performance Bleeder Bottle) makes this a simple one-person job.
3. According to the service manual for the 2015 to 2018 Ford Mustang, the brake line bleeding order is typically: 1. Rear Right (Passenger Side) > 2. Rear Left (Driver Side) > 3. Front Right (Passenger) > 4. Front Left (Driver). This sequence generally starts at the caliper furthest from the master cylinder and works its way closer.
4. Follow the instructions for your specific bleeder bottle. The general process involves attaching a hose to the bleeder valve, opening the valve, pressing the brake pedal to expel fluid and air, closing the valve, and then releasing the pedal. Repeat until no air bubbles are seen and fluid is clean. Ensure the master cylinder reservoir never runs dry during this process.
5. Double-check that the caliper bracket bolts, caliper bolts, and brake fluid bleeder valve are all properly tightened before proceeding.

Final Assembly & Wheel Installation

Almost there! Reinstall the wheel and prepare for the final steps.

1. Carefully push the front wheel back into place over the lug studs, ensuring it sits flush against the hub.
2. Spin on the five lug nuts a few turns by hand in a clockwise direction to help prevent them from becoming cross-threaded.
3. Slightly tighten the lug nuts in a "star" or "criss-cross" pattern with the tyre iron. You can place your foot on the tyre to help keep the wheel from moving while you initially tighten the lug nuts.
4. Lower the vehicle completely off the jack stands and floor jack.
5. With the vehicle on the ground, perform the final tightening of the lug nuts to the manufacturer's specified torque (typically around 150 lb-ft or 204 Nm for Mustang S550, but always verify with your owner's manual). Use your torque wrench for accuracy.

Brake Pad Bed-In Procedure

This is a critical step that many overlook, but it's essential for the longevity and optimal performance of your new pads and rotors. The bed-in process involves building up heat in the rotors and pads to allow a transfer film from the pads to build up onto the rotor surfaces. When you first attempt to stop with your new pads, the braking force will likely feel very weak; this will change once the pads have been properly bedding-in.

Hawk Performance, a well-known brake manufacturer, recommends the following bed-in procedure:

1. Find a safe, isolated location (e.g., an empty car park or quiet road) where you can perform a series of stops without obstruction or risk to others. Ensure conditions are dry.
2. Perform 6-10 stops from approximately 35 mph (56 km/h) with moderate pressure. Do not come to a complete stop during these initial cycles.
3. Immediately follow this with 2-3 harder braking applications from about 45-50 mph (72-80 km/h) down to around 5 mph (8 km/h), again, without coming to a complete stop.
4. After completing the bed-in process, drive the car normally for a short period to allow some airflow over the brakes.
5. Finally, park the car on a flat surface without engaging the parking brake. This is crucial to prevent warping the rotors while they are hot. Allow the brakes to cool completely, which can take several hours.

Following this proper bed-in procedure will ensure you enjoy the full braking power and longevity of your new pads and rotors.

Frequently Asked Questions (FAQs)

Q1: How often should I change my front brake pads?

A: Brake pad life varies significantly based on driving style, road conditions, and pad material. Generally, front brake pads on a Mustang EcoBoost might last anywhere from 30,000 to 70,000 miles (approx. 48,000 to 112,000 km). It's best to inspect them during every tyre rotation or at least once a year.

Q2: What are the signs that my brake pads need replacing?

A: Common signs include a squealing or grinding noise when braking (from the wear indicator or metal-on-metal contact), a "soft" or "spongy" brake pedal, reduced braking performance, or vibrations through the pedal or steering wheel (often indicating warped rotors).

Q3: Can I re-use the caliper bracket bolts?

A: While some owners do re-use them, Ford service manuals recommend replacing them due to the risk of "galling" and seizing. New bolts ensure proper clamping force and reduce the risk of future issues. It's a small cost for added peace of mind.

Q4: What is brake pad "bedding-in" and why is it important?

A: Bedding-in (also known as "burnishing" or "seating") is the process of gradually heating your new brake pads and rotors to transfer a thin, even layer of friction material from the pads onto the rotor surface. This creates an optimal braking surface, improves braking performance, reduces noise, and prevents glazing of the pads, ensuring maximum effectiveness and longevity.

Q5: Why is DOT 4 brake fluid recommended for the Mustang EcoBoost?

A: DOT 4 brake fluid has a higher dry and wet boiling point compared to DOT 3, making it better suited for the higher temperatures generated in modern braking systems, especially in performance-oriented vehicles like the Mustang. Its hygroscopic nature means it absorbs moisture, which can lower its boiling point over time, hence the recommendation for periodic flushing.

By following this comprehensive guide, you can confidently undertake the task of replacing your front brake pads and, if necessary, rotors on your Ford Mustang EcoBoost. Regular maintenance of your braking system is crucial for your safety and the longevity of your vehicle. Drive safely!
