Warming Up KIA Type 4 ATF: A Practical Guide

The Importance of Correct ATF Temperature

Ensuring your automatic transmission fluid (ATF) is at the correct temperature is crucial for accurate level checking and optimal transmission performance. For KIA vehicles equipped with the Type 4 automatic transmission, this might seem like a bit of a puzzle, especially with the unconventional method often described. This article aims to demystify the process, providing a clear, step-by-step guide to warming up your KIA Type 4 ATF and achieving the correct fluid level.

Why Temperature Matters for ATF Levels

Automatic transmission fluid expands when it gets hotter. This means that the fluid level will be different at different temperatures. If you check the ATF level when the fluid is cold, you might overfill the transmission, which can lead to foaming, overheating, and potential damage. Conversely, checking it when it's too hot might lead you to believe it's low, prompting you to add more fluid than necessary. The recommended procedure for most automatic transmissions, including the KIA Type 4, involves checking the fluid level when the transmission is at its operating temperature.

Understanding the KIA Type 4 ATF Warming Procedure

The common frustration with warming up ATF for a level check stems from the need to bring the fluid up to a specific temperature range, typically between 50-60°C (122-140°F), while ensuring the engine is running and the vehicle is on a level surface. The traditional method, often described in service manuals, involves monitoring the ATF temperature sensor with a diagnostic scan tool. Let's break down the recommended steps:

1. Prepare the Vehicle: Ensure the vehicle is parked on a level surface. This is non-negotiable for an accurate fluid level reading. With the engine off, locate and remove the fill plug on the top of the transmission. This is often a large plug, sometimes requiring a specific tool or a robust wrench.
2. Start the Engine: Start the engine. Crucially, do not press the brake and accelerator pedals simultaneously. This could lead to unintended acceleration or damage. Allow the engine to idle.
3. Monitor ATF Temperature: Using a suitable diagnostic scan tool, monitor the Automatic Transmission (A/T) oil temperature sensor. The target range for the fluid is 50-60°C (122-140°F). This is the point at which the fluid level should be checked.
4. Cycle Through Gears: While the engine is idling and the ATF is warming up, slowly shift the select lever through all the gear positions. Start from 'P' (Park), move to 'D' (Drive), then back to 'P'. Repeat this cycle once more. Ensure you pause for at least 2 seconds in each gear position to allow the fluid to circulate properly. Finally, shift the select lever to 'N' (Neutral).
5. Reach Operating Temperature: Continue idling the engine until the ATF temperature sensor reads the target range of 50-60°C (122-140°F). This can take some time, depending on ambient temperature and how the vehicle was driven previously. Some sources suggest gentle driving to help reach temperature faster, but idling on a level surface is the primary method described for the actual level check.

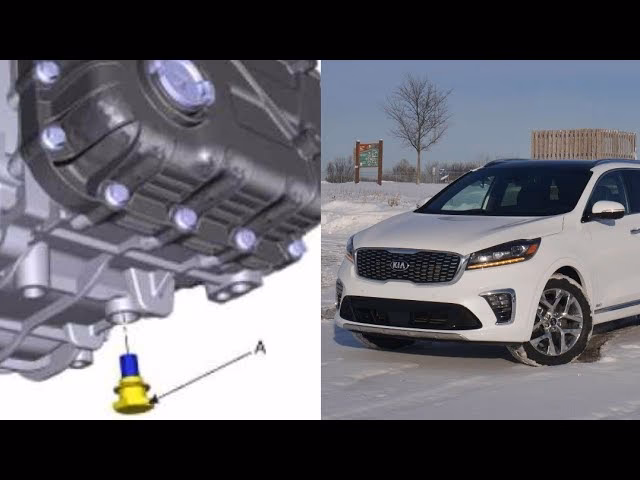

6. Check the Fluid Level: Once the ATF is within the specified temperature range, with the engine still running and the transmission in 'N' on a level surface, locate and remove the oil level plug from the valve body cover. This plug is typically located on the side or bottom of the transmission casing.
7. Interpreting the Flow:
   • If the ATF flows out in a thin, steady stream from the level plug opening, the fluid level is correct.
   • If the ATF does not drip out, it indicates the fluid level is too low. In this case, you'll need to add more ATF through the fill plug opening until it flows out of the level plug in a thin, steady stream. Use the correct type of ATF specified for your KIA model (e.g., KIA Type 4 ATF).
   • If the ATF flows out in a heavy, gushing stream, it means the transmission is overfilled. You'll need to allow some fluid to drain out until it reaches a thin, steady stream.
8. Finalise and Tighten: Once the fluid level is confirmed to be correct, carefully re-install and tighten the oil level plug. Then, lower the vehicle if it was raised (though for a simple level check, raising is often not required unless the level plug is inaccessible). Finally, re-install and tighten the fill plug.

Common Pitfalls and Tips

• Scan Tool Necessity: The biggest hurdle for many DIYers is the requirement of a scan tool to accurately read the ATF temperature. Without one, it's largely guesswork, which is why many find this procedure a 'PITA' (Pain In The A). If you don't have access to a scan tool, it's best to have this service performed by a qualified mechanic.
• Ambient Temperature: The time it takes to reach the target temperature will vary significantly based on the ambient air temperature. On a cold day, it could take considerably longer.
• Vehicle Level: Re-emphasise the importance of a perfectly level surface**. Even a slight incline can lead to an inaccurate reading.
• Correct ATF Type: Always use the specific ATF recommended by KIA for your vehicle. Using the wrong type can cause significant damage to the transmission. Refer to your owner's manual for the exact specification.
• Engine Running: Remember, the engine must be running throughout the level check process after starting it.

Table: ATF Temperature and Fluid Level Behaviour

Frequently Asked Questions (FAQs)

Q1: Can I check the ATF level without a scan tool?
While not ideal, some mechanics rely on experience and external temperature gauges to estimate when the transmission is warm enough. However, for precision and to avoid potential damage, using a scan tool to read the actual ATF temperature sensor is highly recommended.

Q2: How often should I check my ATF level?
While the manufacturer might recommend checking at specific intervals (e.g., every 30,000 miles for general driving), it's good practice to check it more frequently if you notice any shifting issues, leaks, or unusual noises. For most regular driving, a check every 30,000 miles is considered sufficient.

Q3: What happens if I overfill the ATF?
Overfilling can cause the ATF to foam, reducing its lubricating properties and potentially leading to overheating and transmission damage. The excess fluid can also be forced out of seals and vents.

Q4: Is it normal for some fluid to come out when checking the level?
Yes, it is normal for a thin, steady stream of ATF to flow out of the level plug opening when the transmission is at the correct operating temperature and the fluid level is correct. This is the indicator that the level is spot on.

Q5: Can I just add fluid without checking the level?
No, it is strongly advised against adding ATF without first checking the level. Overfilling is a common and detrimental mistake. Always follow the correct procedure.

Conclusion

Warming up your KIA Type 4 ATF to the correct temperature for a level check requires precision and the right tools, primarily a scan tool. While it might seem like a complex procedure, understanding the 'why' behind each step – the importance of temperature for fluid expansion and the need for accurate measurement – makes it manageable. If you're unsure or lack the necessary equipment, consulting a qualified mechanic is always the safest bet to ensure your KIA's transmission remains in optimal condition.
