Mastering Outboard Gearbox Oil Changes

Maintaining your outboard motor’s gearbox is a critical, yet often overlooked, aspect of marine engine care. While it might seem a slightly messy chore, regularly changing your gearbox oil is a remarkably cheap and relatively straightforward task that can significantly add years to the life of your gearbox. Neglecting this simple preventative maintenance can lead to internal corrosion, gear damage, and ultimately, a hefty repair bill that no boat owner wants to face. This comprehensive guide will walk you through every step, ensuring your outboard remains in prime condition.

Why Gearbox Oil Changes Are Non-Negotiable

Your outboard's gearbox operates under immense pressure and heat, with gears constantly meshing and rotating. The gearbox oil serves as a vital lubricant, reducing friction, dissipating heat, and preventing metal-on-metal wear. Over time, this oil degrades, loses its lubricating properties, and can become contaminated with microscopic metal particles from normal wear, or worse, water. When the oil's integrity is compromised, the gears are left vulnerable.

Consider the consequences: inadequate lubrication leads to accelerated wear, potentially causing teeth to chip or gears to seize. Water intrusion, a common issue, can cause rust and corrosion on internal components, which is incredibly damaging. A small investment in regular oil changes protects you from catastrophic gearbox failure, ensuring smooth shifts and reliable performance. It's not just about keeping things running; it's about preserving the heart of your propulsion system for maximum longevity.

When to Perform This Crucial Maintenance

The general consensus for gearbox oil changes is either annually or every 100 hours of operation, whichever comes first. However, always consult your specific outboard's owner's manual, as manufacturers might have slightly different recommendations based on the engine model and intended use. It's also highly advisable to change the gearbox oil just before placing your outboard into long-term storage, as fresh oil will protect the internal components from corrosion during periods of inactivity.

Think of it as an insurance policy for your gearbox. For those who use their outboards frequently, hitting the 100-hour mark might come quickly, necessitating multiple changes within a year. For seasonal users, the annual change before winter lay-up is paramount. Adhering to this schedule is the simplest way to avoid unforeseen mechanical issues.

Gathering Your Arsenal: Tools and Materials

Before you begin, ensure you have all the necessary items close at hand. Having everything ready streamlines the process and prevents frustrating interruptions.

• A Container for Used Oil: A clean, old milk jug or a dedicated drain pan works perfectly for collecting the old oil.
• Method of Getting New Oil In: This is crucial. Some gear oils come in convenient squeeze tubes, which are self-contained and eliminate the need for extra tools. Alternatively, a dedicated gear lube pump (often costing around £13 on eBay) is a reusable option that attaches to standard oil bottles. This pump often features a universal tapered fitting, making it versatile for various gearboxes.
• Impact Screwdriver: An invaluable tool, especially for stubborn drain screws. Priced around £8.50 on eBay, it uses rotational force from a hammer strike to loosen seized screws without stripping the heads.
• Decent Sized Hammer: To be used with the impact driver for loosening screws.
• Flat-Head Screwdriver: For the drain and vent screws, especially for tightening them. Ensure it has a large, flat blade that fits your screw slots precisely.
• New Washers for Drain and Vent Screws: This is absolutely non-negotiable! These small, inexpensive washers (often fibre or nylon) create a watertight seal. Reusing old ones is a recipe for leaks and water intrusion.
• Rags or Paper Towels: For inevitable spills and cleaning up residue.
• Gloves: To keep your hands clean and protect them from oil.
• Drain Pan: A wide, flat pan to catch the draining oil.
• Optional (for some models like Yamaha): A 17mm spanner for the drain plug bolt, a funnel, and a measuring cup.

Choosing the Right Lubricant: Oil Specifications

Selecting the correct gear oil is paramount. Most outboards recommend a SAE-80W90 marine gear oil. More importantly, ensure it meets or exceeds API GL-5 specifications. This rating indicates that the oil is designed for hypoid gears, which are common in outboard gearboxes and require robust lubrication under extreme pressure.

Always refer to your owner's manual for the precise oil type and quantity required for your specific model. While many brands offer suitable oils, opting for a reputable marine-grade product is always best. For example, we frequently use Rockoil MP Gear oil due to its British origins, cost-effectiveness, and consistent performance, meeting API GL-5 & SAE 80W90 standards.

Gear Oil Specifications at a Glance

The Step-by-Step Guide to Draining Your Gearbox

This is where it can get a little messy, so prepare your workspace with rags and your drain pan.

1. Position the Outboard: Ensure your outboard is upright and vertical, either on a stand or securely mounted. Place your clean drain pan directly beneath the lower unit.
2. Loosen the Vent Screw (Top): Locate the upper screw, often referred to as the vent screw, typically found above the waterline on the lower unit. Using your large flat-head screwdriver (or impact driver if it's stubborn), slightly loosen this screw. Do not remove it completely yet. This allows air to enter the gearbox, preventing a vacuum and ensuring a smooth, complete drain.

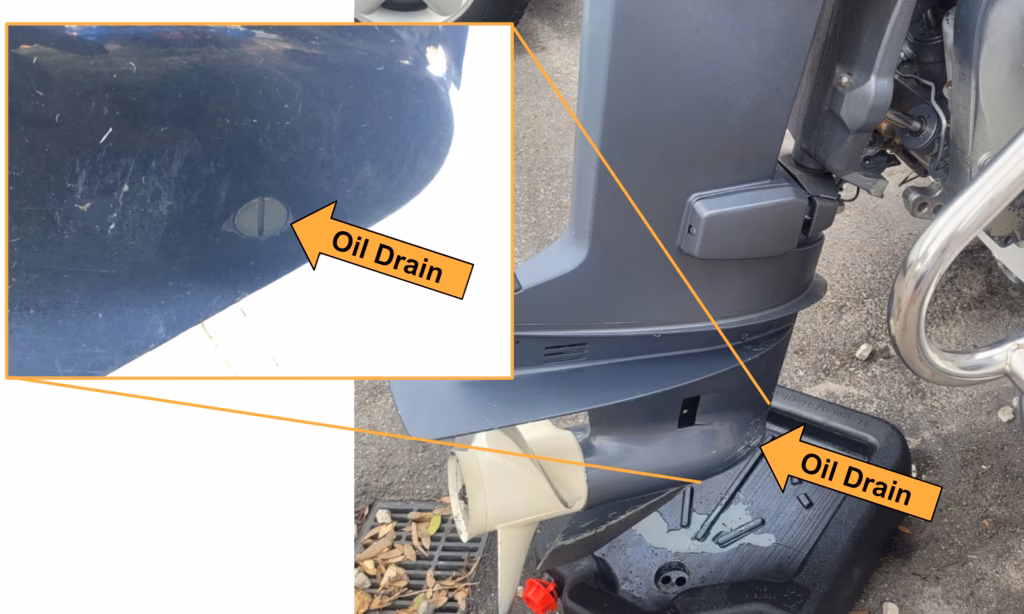

3. Remove the Drain Screw (Bottom): Now, locate the lower screw, which is the drain screw. This screw might be magnetic on some models, designed to collect metallic debris. If it is magnetic, remember to refit it in the lower position later. Use your impact driver with the largest bit that fits the screw slot. Slightly rotate the grip in the anti-clockwise direction (to loosen), and give the exposed metal end of the driver a sharp tap with your hammer. This shock usually breaks any seal or corrosion. Once loose, carefully remove the drain screw completely.
4. Allow to Drain Fully: The old gear oil will begin to flow out of the bottom hole. Once the flow slows to a trickle, fully remove the upper vent screw. This will allow the remaining oil to drain out completely. Let the gearbox drain thoroughly, which might take several minutes.

Decoding the Drained Oil: What to Look For

Draining the oil isn't just about emptying the old; it's a diagnostic opportunity. The condition of the drained oil can tell you a lot about the health of your gearbox.

• Water Drops: If you see distinct water droplets separating from the oil, or if a significant amount of clear water comes out before the oil, this is a serious red flag. It indicates a breach in the gearbox's sealing integrity. In this case, do not refill the gearbox; take your engine to a qualified repair centre immediately for a pressure test and leak repair.
• Emulsification (Milky Oil): If the oil appears cloudy or like a "milkshake," this is known as milky oil or emulsification. This happens when water has mixed with the oil.
• Slight Emulsification: If there's only a small amount of emulsification (lightly cloudy, but still clearly oil), you might be able to flush the gearbox. Add about half the recommended quantity of new gear oil, refit both screws (don't overtighten), then raise and lower the engine on its stand a few times to "slosh" the oil around. Return the engine to the vertical position and drain this flushing oil. Then proceed with a full, fresh fill.
• Heavy Emulsification: If the oil is very milky, resembling a thick milkshake, and especially if you've changed the oil within the last year, it strongly suggests a significant water ingress. This requires professional attention. You'll need to either carry out a pressure test yourself (if you have the equipment) to pinpoint the leak (e.g., from an input seal, propeller shaft seal, or drain plug seals) or take the gearbox to a repair centre. Attempting to run the engine with heavily emulsified oil will cause severe damage.
• Signs of Debris: Shine a torch into the drained oil. Very small, almost glitter-like flecks are generally normal wear and tear and no cause for alarm. However, if you see anything larger than tiny flecks – such as metal shavings, chunks, or significant amounts of metallic sludge – this is a serious indicator of internal gear or bearing damage. Again, if this is the case, your engine needs to go to a repair centre for inspection. Remember, if one of your screws was magnetic, it's designed to collect these larger metal fragments, providing an early warning sign.

Refilling Your Gearbox: Precision is Key

Once the old oil is fully drained and you've inspected its condition, it's time for the fresh fill. Ensure you have your two drain plug screws with their new washers fitted close at hand, and that the engine is still perfectly vertical.

1. Start from the Bottom: This is the crucial step to avoid air pockets. Attach your gear oil pump nozzle or the squeeze tube directly into the bottom hole (the drain hole). Begin pumping or squeezing the new gear oil into the gearbox.
2. Fill Until Seepage: Continue filling until the new oil just begins to seep out of the upper screw hole (the vent hole). This indicates that the gearbox is completely full and all air has been expelled.
3. Install Top Screw: As soon as oil appears at the upper hole, quickly install the upper vent screw with its new washer. Tighten it securely, but don't go 'crazy' – overtightening can strip threads or damage the washer. The actual torque figure will be in your owner's manual.
4. Install Bottom Screw: Once the top screw is in place, withdraw the filler from the lower hole. You'll lose a tiny amount of oil, but this is normal. Immediately install the lower drain screw with its new washer. Tighten it securely with a large flat-bladed screwdriver, again referring to your manual for torque specifications if available.
5. Allow to Settle (Optional but Recommended): Once both screws are tightened, let the oil sit for a minute or two. This allows any remaining tiny air bubbles to rise. If the oil level drops slightly at the vent hole when you temporarily loosen the top screw again, add a little more oil through the bottom hole until it seeps out, then re-tighten. This ensures a truly full fill.
6. Clean Up: Wipe away any excess oil around the screws and lower unit.

Special Considerations for Yamaha Outboards

While the general principles apply to most outboards, Yamaha models often have specific nuances:

• Drain Plug: Yamaha outboards commonly use a 17mm bolt for the drain plug, requiring a spanner rather than a flat-head screwdriver for removal.
• Vent Screw Location: The vent screw on Yamaha lower units is typically located above the waterline, as described in the general guide.
• Oil Type: Always use Yamaha-specific lower unit gear oil for optimal performance and warranty compliance.
• Dipstick Check (for some models): While the 'fill until it seeps' method is standard, some Yamaha models might have a dipstick. If so, after filling, allow the oil to settle, then insert the dipstick and check the level. It should be between the “MIN” and “MAX” marks.
• Maintenance Indicator: If your Yamaha outboard has a maintenance indicator, remember to reset it after completing the gear oil change. Consult your owner's manual for the specific procedure.

Troubleshooting Common Issues

Even with careful preparation, you might encounter a few snags. Here's how to address them:

• Difficulty Removing the Drain Plug/Screw: If the drain plug is seized, apply a penetrating oil (like WD-40 or similar) and let it soak for 10-15 minutes. Then, try the impact driver again. If it still doesn't budge, it's best to take it to a professional to avoid stripping the screw head or damaging the casing.
• Leaking Gearcase After Refill: A leak usually indicates a problem with the washers or insufficient tightening. Ensure you used new washers for both screws. Remove the screws, inspect the washers for damage, replace if necessary, and re-tighten them to the recommended torque. If the leak persists, the issue might be a damaged thread or a more significant internal seal problem, requiring professional diagnosis.
• Overfilled Gearcase: If you accidentally overfill (though unlikely with the bottom-up method), simply remove the top vent screw, allow the excess oil to drain until it stops, and then quickly reinstall the screw.

Maintenance Schedule & Long-Term Benefits

Adhering to a regular gearbox oil change schedule – whether it's annually, every 100 operating hours, or as specified in your manual – is the bedrock of outboard longevity. This simple act of routine maintenance yields significant benefits:

• Reduced Friction and Wear: Fresh, uncontaminated gear oil provides optimal lubrication, significantly reducing friction between moving parts and preventing premature wear of gears and bearings.
• Improved Performance: Clean oil ensures smooth and quiet gear engagement, contributing to the overall efficient operation of your outboard.
• Extended Lifespan: By safeguarding the gearbox from the detrimental effects of degraded oil and water intrusion, you are directly extending the operational life of one of your engine's most vital and expensive components.
• Early Problem Detection: The act of draining and inspecting the old oil serves as an invaluable diagnostic tool, allowing you to catch potential issues like water intrusion or excessive wear before they escalate into major failures.

Frequently Asked Questions

Q: How often should I change the gear oil in my outboard?

A: Generally, every 100 operating hours or annually, whichever comes first. Always check your specific engine's owner's manual for the precise recommendation.

Q: What type of gear oil should I use for my outboard?

A: Most outboards require an SAE-80W90 marine gear oil that meets API GL-5 specifications. However, it is crucial to consult your engine's owner's manual to confirm the exact type and quantity recommended by the manufacturer. Using the wrong oil can cause damage.

Q: Can I change the gear oil myself, or do I need a professional?

A: Yes, changing the gearbox oil is a straightforward DIY task that most boat owners can confidently perform with basic tools and a little patience. This guide provides all the necessary instructions. However, if you encounter significant issues (like heavily emulsified oil, major debris, or seized screws), or if you're simply not comfortable, it's always wise to consult a qualified marine mechanic.

Q: What does 'milky oil' mean, and what should I do if I see it?

A: 'Milky oil' indicates that water has entered and mixed with the gear oil, a process known as emulsification. If you see slightly milky oil, you might be able to flush the gearbox with a small amount of new oil before a final fill. However, if the oil is very milky, it signifies a significant water leak that requires immediate professional investigation (e.g., a pressure test) and repair to prevent severe internal damage to the gearbox.

Q: Why is it important to fill the gearbox from the bottom hole?

A: Filling from the bottom hole allows the oil to push any air upwards and out through the top vent hole. This ensures the gearbox is completely filled without any trapped air pockets, which could lead to inadequate lubrication and potential damage to the gears.

Changing the gearbox oil on your outboard motor is a relatively simple yet profoundly important maintenance task. By following these detailed steps, inspecting the old oil, and using the correct materials, you can significantly prolong the life of your gearbox and ensure your outboard runs smoothly and reliably for many seasons to come. Arm yourself with the right knowledge and tools, and take pride in performing this essential upkeep yourself.
