Fitting Your Oil Tank Gauge & Vent-Alarm

For any homeowner relying on heating oil, understanding the level of fuel in your tank is paramount. Not only does it prevent the inconvenience and discomfort of running out of oil, especially during the colder months, but it also plays a critical role in preventing hazardous and expensive oil spills. This is where the oil tank level gauge and the often-overlooked yet vital vent-alarm come into play. This guide will delve into the intricacies of these essential devices, providing a detailed, step-by-step approach to their installation and replacement, ensuring your heating oil system operates safely and efficiently.

A correctly functioning oil tank gauge provides a visual indication of your fuel reserves, allowing you to plan your refills effectively. More importantly, the vent-alarm, sometimes integrated with the gauge, acts as a crucial safety mechanism during oil deliveries. It's a simple yet ingenious device that signals to the delivery driver when the tank is nearing its capacity, preventing overfilling – a common cause of costly and environmentally damaging spills. Neglecting these components can lead to significant headaches, so understanding their function and proper installation is key to maintaining a reliable and safe heating system.

Understanding Your Oil Tank's Essential Instruments

Before diving into the installation process, it's beneficial to grasp the fundamentals of how these devices operate. The most common type found in residential settings is the float gauge, often combined with a vent-alarm. However, the market offers various solutions, each with its own benefits.

The Float Gauge: Your Visual Fuel Indicator

At its core, a float gauge is a mechanical device designed to provide a rough estimate of the oil level. It typically consists of a float (historically cork, now often plastic) that rests on the surface of the heating oil. This float is attached to a hinged arm, which in turn connects to a plastic disc housed within a clear plastic vial on top of the gauge assembly. As the oil level in the tank rises or falls, the float moves accordingly, causing the disc to move up or down, indicating the approximate oil level (e.g., Full, 1/2, 1/4, Empty).

Common Issues with Float Gauges

While simple and cost-effective, float gauges are prone to certain issues over time:

• Sludge Buildup: Heating oil can accumulate sludge, especially in older tanks. This sludge can coat the float, weighing it down or causing it to stick, leading to inaccurate readings.
• Bent Arm: The thin metal arm connecting the float to the indicator disc can become bent, either through accidental manipulation (e.g., pushing down on the disc to check if it's working) or during improper installation/removal. A bent arm prevents the float from moving freely.
• Rotation and Wedging: Over years of vibration or during maintenance, the entire gauge assembly can rotate inside the tank. This might cause the float arm to become wedged against the inner wall of the tank, preventing it from moving up or down and rendering the gauge useless.

The Vent-Alarm: Your Overfill Prevention Whistle

The vent-alarm, often referred to as a "tank whistle" or "Scully Ventalarm™," is a critical safety device. It’s typically mounted on the oil storage tank at the connection point of the oil tank vent piping. Its operation is elegantly simple:

As heating oil is pumped into the tank, air inside the tank is displaced and forced out through the vent piping. The vent-alarm contains a whistling mechanism through which this air escapes. When the oil level in the tank rises and nears the top, it eventually covers the opening at the bottom of the vent-alarm drop-tube. This blockage stops the airflow, causing the characteristic whistling sound to cease. The oil delivery driver, trained to listen for this change in sound, knows immediately to stop pumping oil, usually when the tank is a few inches from being completely full. This prevents overfilling, which can lead to hazardous and costly oil spills.

Preparing for Installation or Replacement

Whether you're installing a new gauge and vent-alarm or replacing an old, faulty one, proper preparation is crucial for a safe and successful job.

Safety First

Working with heating oil requires caution. While not highly volatile, it is a fuel, and spills can be messy and environmentally damaging. Always wear appropriate personal protective equipment (PPE):

• Rubber Gloves: Heating oil has a distinctive, lingering odour. Gloves will protect your hands from direct contact.
• Old Clothes: Accidental drips or spills are common. Wear clothes you don't mind getting stained or discarded.
• Ventilation: Ensure the area around the tank is well-ventilated, especially if working indoors or in a confined space.

Gathering Your Tools

Having the right tools at hand will make the process much smoother. Here’s what you'll typically need:

• 14-inch Pipe Wrench (or larger): Essential for loosening and tightening the threaded fittings. The larger the fitting, the more leverage you'll need.
• Pipe Dope / Thread Sealant: A product specifically rated for use on fuel oil piping connections. This is crucial for creating a leak-proof seal. Do NOT use sealants not designed for fuel oil.
• Penetrating Oil (e.g., Liquid Wrench): OPTIONAL, but highly recommended for older, stubborn fittings that might be seized due to rust or old sealant. Apply it hours or even a day before attempting to loosen.
• Garbage Bag and Paper Towels: For containing any oil drips from the old assembly and for disposal.
• Small Vise-Grip™ Pliers (Optional but Helpful): For holding the gauge indicator in the "full" position during installation.
• Marker: For marking the orientation of the new gauge.

Step-by-Step Installation/Replacement Guide

This guide primarily focuses on the installation or replacement of a combination float gauge and vent-alarm assembly, which is common in many UK homes. If your gauge and alarm are separate units, the principles for handling threaded fittings and ensuring proper sealing remain the same.

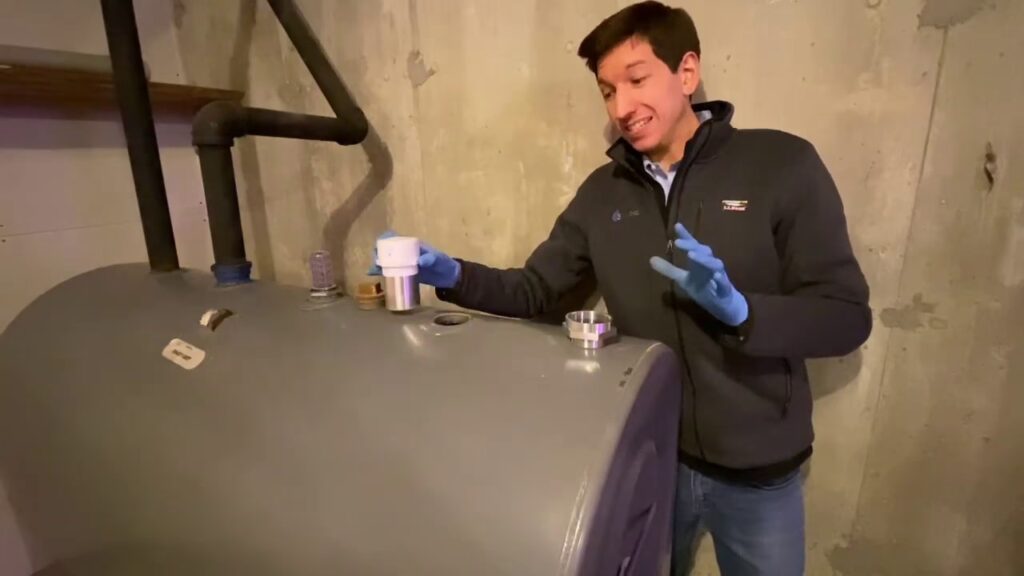

Step 1: Loosen the Existing Fitting (If Replacing)

If you are replacing an existing gauge, you must first carefully loosen the old assembly. This often involves removing any vent pipes connected to the top of the gauge body.

1. Remove Plastic Vial: If your gauge has one, gently unscrew or pull off the clear plastic vial to expose the indicator disc.
2. Position Pipe Wrench: Place your pipe wrench firmly on the metal fitting that threads into the tank.
3. Loosen Slightly: Apply firm, counter-clockwise pressure (lefty-loosey). Loosen the fitting by no more than half a turn. Loosening it too much at this stage risks the float arm hitting the inside wall of the tank and bending.
4. Apply Penetrating Oil (If Stuck): If the fitting is stubborn, apply penetrating oil generously and allow it to soak for several hours or overnight before trying again.

Step 2: The Critical "Full Position" Trick

This step is paramount for float gauges with hinged arms to prevent damage during removal or installation.

1. Pull Disc Up: With the fitting slightly loose, use one hand to pull the indicator disc up as far as it will go. This action lifts the float out of the oil and folds the hinged arm into its most compact, "closed" position.
2. Hold in Position: If you have a helper, they can hold the disc up. Otherwise, you can use a small Vise-Grip™ pliers to gently clamp onto the rod or disc to keep it in the "full" position. This prevents the float arm from flailing inside the tank and getting bent or jammed as you rotate the assembly.
3. Completely Loosen Fitting: While holding the disc up, continue to turn the fitting counter-clockwise with your pipe wrench until it is completely unscrewed from the tank.

Step 3: Remove the Old Assembly

Once completely unscrewed, carefully lift the old float assembly out of the tank. Have your garbage bag and paper towels ready to immediately contain any dripping oil and dispose of the old unit properly.

Step 4: Prepare and Install Your New Float Gauge/Vent-Alarm

1. Clean Threads: Ensure the threaded opening on the tank is clean of old sealant or debris.
2. Apply Pipe Dope: Apply a generous, even coating of pipe dope (fuel-rated thread sealant) to the threads of your new float gauge assembly. This is vital for a leak-proof seal.
3. Mark Orientation: Before inserting, use a marker to indicate the direction the float arm should extend once the assembly is fully tightened. This ensures the float can move freely within the tank without hitting the inner walls.
4. Insert and Hand-Tighten: Gently lower the new float assembly into the tank opening. Ensure the float arm is still in its "full" (folded) position. Hand-thread the assembly into the tank tapping. Make sure it's not cross-threaded – it should turn smoothly. Hand-tighten it as far as you can.
5. Wrench-Tighten and Orient: While continuing to lift the indicator disc (or keeping it clamped in the "full" position), use your pipe wrench to tighten the assembly clockwise until it is snug. As you tighten, align the assembly so the float arm is oriented correctly within the tank, as per your marker line. Do not over-tighten, as this can damage the tank threads or the gauge itself.
6. Reattach Vent Pipe: If applicable, reattach the vent pipe to the top of the gauge body, ensuring a secure, leak-proof connection, again using pipe dope.
7. Replace Plastic Vial: Hand-tighten the plastic vial back onto the gauge body.

Watch Out Warnings & Tips

• Wrong Pipe Dope: Using a sealant not rated for fuel oil can lead to leaks, which are difficult and costly to fix. Always verify the product's specifications.
• Cross-Threading: This occurs when threads are misaligned and forced, damaging both the gauge and the tank's tapping. Always start hand-threading smoothly.
• Bending the Float Rod: Failing to pull the indicator to the "full" position before rotating the gauge can bend or jam the float rod, rendering the new gauge useless.
• Turning the Tank: When applying significant force with a pipe wrench, be mindful that you are turning the fitting, not the entire oil tank. Larger tanks are usually stable, but smaller, unanchored tanks could potentially shift.
• Regulatory Compliance: In some jurisdictions, the installation or replacement of oil tanks and their associated piping must be carried out by a licensed professional. Always check local regulations to ensure compliance and avoid potential hazards or legal issues. Making a mistake that causes a fire or oil leak can be both dangerous and incredibly expensive.

Beyond the Float: Other Types of Oil Tank Gauges

While float gauges are common, advancements in technology offer more accurate and convenient alternatives. Understanding these can help you decide if an upgrade is worthwhile.

Sight Gauges

A sight gauge is a simple, visual indicator typically found on older installations or certain types of tanks. It consists of a clear tube connected to the bottom of the tank's oil feed pipe. The tube runs up the side of the tank, often with a "pull to read" or push button valve at the bottom. When operated, fuel flows into the tube, levelling out at the same height as the oil inside the tank. These are inexpensive but require a physical trip to the tank to read and can be prone to leaks or becoming opaque over time.

Hydrostatic Gauges

More common in commercial settings due to their accuracy and reliability, hydrostatic gauges measure the pressure exerted by the fluid at a certain depth. A probe is placed into the tank, and a small hand pump mechanism (or an electronic sensor) measures the pressure, converting it into a percentage full reading. These can be installed remotely from the tank and do not require power, making them suitable for hazardous environments. However, they are generally more complex and costly than standard residential gauges.

Electronic and Smart WiFi Gauges

These represent the cutting edge of oil tank monitoring. Electronic gauges use sensors (often ultrasonic) to detect the oil level without direct contact with the fuel. They transmit readings wirelessly to a display unit inside your home or, in the case of Smart WiFi gauges, directly to an app on your smartphone or computer. Key benefits include:

• No Contact with Oil: Eliminates issues like sludge buildup on floats.
• Remote Monitoring: Check your oil level from anywhere with an internet connection.
• Alerts: Set up text or email notifications for low oil levels, ensuring you never run out unexpectedly.
• Easier Installation: Often simpler to install than mechanical gauges, typically just threading into an existing opening.

While they require batteries (which need occasional replacement) and are generally more expensive upfront, the convenience, accuracy, and peace of mind they offer are significant.

Comparative Table: Oil Tank Gauge Types

Reading Your New Oil Tank Gauge

Once your new gauge is installed, understanding its readings is straightforward:

• Float Gauges: These typically display readings like "Empty," "1/4," "1/2," "3/4," and "Full." It's wise to order oil when your tank reaches the 1/4 mark to ensure you have a buffer.
• Electronic/Smart Gauges: These provide precise digital readings, often in percentages or actual litres/gallons. With smart gauges, ensure you configure the correct tank size in the accompanying app for accurate readings. Also, take advantage of the alert features to receive notifications when your oil level drops below a certain threshold.

Frequently Asked Questions (FAQs)

Q1: Why do oil tank float gauges often fail?

A1: Float gauges are mechanical and operate directly within the heating oil. Common culprits for failure include sludge buildup on the float, which can weigh it down or cause it to stick; a bent or damaged hinged arm; or the entire assembly rotating inside the tank, causing the float to become wedged against the tank wall. These issues prevent the float from accurately reflecting the oil level.

Q2: Can I install an oil tank gauge myself, or do I need a professional?

A2: If you are comfortable with basic plumbing tasks and have the right tools, installing or replacing a float gauge can be a DIY project. However, it’s crucial to follow all safety precautions, use the correct thread sealant, and be aware of the risk of oil spills. In some areas, local regulations may require a licensed professional for any work involving fuel oil systems. If you're unsure or uncomfortable, it's always best to consult a qualified heating oil or HVAC technician.

Q3: What is "pipe dope," and why is it so important for oil tank gauge installation?

A3: "Pipe dope" is a common term for pipe thread sealant. It's a viscous compound applied to the threads of fittings to create a watertight and airtight seal, preventing leaks. For heating oil applications, it is crucial to use a specific type of pipe dope that is rated for use with petroleum products. Using the wrong type can lead to degradation of the sealant, causing leaks, which are hazardous and costly to clean up.

Q4: How often should I check my oil tank gauge?

A4: It's advisable to check your oil tank gauge regularly, especially during colder periods when heating oil consumption is higher. For float gauges, a weekly check is a good habit. If you have a smart WiFi gauge, you can monitor the level remotely via an app, and set up alerts to notify you when the oil level drops below a certain point, providing greater peace of mind.

Q5: What should I do if my oil tank vent-alarm (whistle) stops working?

A5: A non-functioning vent-alarm is a serious safety concern. Without it, the oil delivery driver has no reliable way to know when the tank is full, significantly increasing the risk of an overfill and a dangerous oil spill. If you suspect your vent-alarm is not working (e.g., you don't hear a whistle during a delivery, or it never stops), you should immediately contact your heating oil supplier or a qualified technician to inspect and repair or replace it before your next delivery.

Q6: Are there any alternatives to a traditional float gauge that are more reliable?

A6: Yes, several alternatives offer improved reliability and convenience. Electronic gauges, particularly ultrasonic types, are popular as they don't have moving parts immersed in the oil, eliminating issues like sludge buildup. Smart WiFi gauges take this a step further by providing remote monitoring and alerts via smartphone apps. While generally more expensive upfront, they offer greater accuracy, convenience, and peace of mind by preventing unexpected run-outs or overfills.

Conclusion

Properly installing and maintaining your oil tank gauge and vent-alarm is a fundamental aspect of responsible home heating oil management. These seemingly small components play a crucial role in preventing inconvenient run-outs and, more importantly, costly and environmentally damaging spills. By understanding how these devices work, carefully following the installation guidelines, and being aware of the different types available, you can ensure your heating oil system remains safe, efficient, and reliable for years to come. Remember, if you ever feel uncertain or encounter difficulties, don't hesitate to consult a qualified heating oil or HVAC professional. Your safety and peace of mind are paramount.
