Mercedes C-Class W204 Injector Removal Guide

Fuel injectors are vital components in your Mercedes C-Class 200 CDI (W204, 2007-2013), responsible for precisely atomising fuel into the combustion chambers. Over time, these injectors can become clogged, develop leaks, or fail outright, leading to various engine performance issues such as rough idling, misfires, reduced fuel economy, or even a complete breakdown. Replacing or servicing these injectors can be a costly endeavour at a dealership, but with the right knowledge, tools, and a methodical approach, it's a task that can be undertaken by a competent DIY enthusiast. This guide will walk you through the intricate process of safely disassembling and removing the fuel injectors from your W204 C-Class CDI, providing detailed steps and crucial advice to help you get the job done right.

Safety First: Essential Precautions

Before you even think about touching any part of your engine, especially components related to the fuel system, safety must be your absolute priority. Working with fuel and high-pressure systems carries inherent risks. Always ensure you adhere to the following safety guidelines:

• Engine Off and Cool: Never attempt this procedure on a hot engine. Allow the engine to cool completely to avoid burns and to ensure fuel system pressures have dissipated.
• Disconnect the Battery: To prevent accidental starting or electrical shorts, disconnect the negative terminal of your vehicle's battery. This also de-energises critical components.
• Personal Protective Equipment (PPE): Wear appropriate PPE, including safety glasses to protect your eyes from fuel splashes or debris, and chemical-resistant gloves to protect your hands from fuel and other fluids.
• Ventilation: Work in a well-ventilated area to disperse fuel vapours. Avoid open flames or sparks.
• Fire Extinguisher: Have a suitable fire extinguisher (Class B for flammable liquids) readily accessible.
• Fuel Spill Management: Have rags and absorbent materials on hand to immediately clean up any spilled fuel. Dispose of fuel-soaked rags responsibly.

Tools and Materials You'll Need

Having the correct tools before you begin will make the process smoother and prevent frustration. Here’s a list of what you’ll likely require:

• Socket set (Torx, Hex, and standard metric sockets, typically 1/4" and 3/8" drive)
• Ratchet wrenches and extensions
• Combination spanners (open-ended and ring spanners)
• Torque wrench (essential for correct reinstallation of components)
• Flat-head and Phillips screwdrivers
• Pliers (various types, including long-nose)
• Trim removal tools (plastic pry tools to avoid damaging plastic components)
• Fuel line disconnect tools (if specific to your model, though often not required for standard connections)
• Injector puller tool (highly recommended, as injectors can be very stubborn)
• Wire brush and cleaning solvent (for cleaning injector bores)
• Lint-free rags or shop towels
• Container for draining any fuel
• New copper injector washers/seals (critical for reinstallation)
• New injector hold-down bolts (often recommended as they are stretch bolts)
• Anti-seize compound (for threads during reassembly)
• Diagnostic scanner (to clear fault codes and potentially code new injectors)

Step-by-Step Injector Disassembly and Removal

Follow these steps carefully and methodically. Take your time, and if unsure, consult a professional workshop manual specific to your W204 model.

1. Prepare the Engine Bay

• Ensure the engine is cool and the battery's negative terminal is disconnected.
• Remove the engine cover. This usually involves simply pulling it upwards, as it's typically held by rubber grommets.
• Locate the air intake assembly. You'll need to remove this to gain clear access to the injectors. This often involves disconnecting hose clamps, vacuum lines, and electrical connectors, then lifting the air filter housing out of the way.

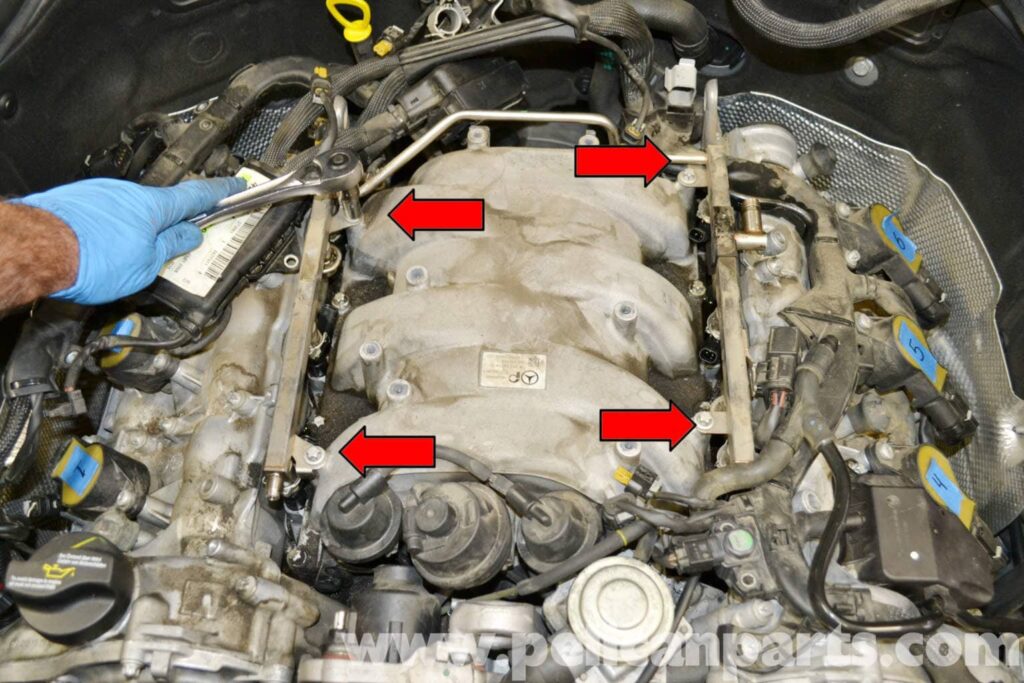

• Identify the fuel rail (common rail) and the four injectors.

2. Depressurise the Fuel System

On CDI engines, the fuel rail operates under extremely high pressure. While disconnecting the battery and allowing the engine to cool helps, it's good practice to take extra precautions. There isn't usually a specific Schrader valve for depressurisation on these systems. The pressure will bleed down over time once the engine is off and the battery disconnected. However, be prepared for a small amount of residual fuel to escape when disconnecting lines.

3. Disconnect Electrical Connectors

• Each injector has an electrical connector. Carefully unclip these connectors. They often have a small tab or clip that needs to be pressed or slid before they can be pulled off. Be gentle, as these plastic connectors can become brittle with age.
• Ensure the connectors are clear of the work area and won't interfere with subsequent steps.

4. Disconnect Fuel Lines

There are two types of fuel lines connected to each injector: high-pressure lines from the fuel rail and low-pressure return lines (leak-off lines).

• High-Pressure Lines: These are rigid metal lines. Using the appropriate spanner (usually 17mm or 19mm), carefully loosen the nut connecting the high-pressure line to the injector. Be very careful not to bend or damage these lines, as they are crucial for fuel delivery and pressure integrity. Once loose, unscrew them completely and carefully move them out of the way. You may need to loosen them at the fuel rail end too, to gain enough flexibility.
• Low-Pressure Return Lines: These are typically small rubber hoses or plastic clips that connect the injectors to a common return manifold. Carefully unclip or pull these lines off. Be aware that a small amount of diesel fuel may leak out.

5. Remove Injector Hold-Down Clamps/Bolts

• Each injector is held in place by a clamp (also known as a retaining fork or bridge) secured by a single bolt. These bolts are often Torx bolts.
• Using the correct Torx socket (e.g., E10 or E12), carefully loosen and remove the hold-down bolt.
• Once the bolt is removed, lift the clamp away from the injector. Note its orientation for reinstallation.

6. Extract the Injectors

This is often the most challenging part, as injectors can become seized in the cylinder head due to carbon build-up and corrosion.

• Gentle Wriggling: Try gently twisting and pulling the injector by hand. Some may come out with relative ease.
• Using an Injector Puller: For stubborn injectors, an injector puller tool is invaluable. There are various types, including slide hammers and lever-type pullers. Attach the puller securely to the injector (often by screwing it onto the electrical connector thread or using a specific adapter). Follow the puller's instructions to carefully extract the injector. Avoid excessive force that could damage the injector or the cylinder head.
• Marking and Storage: As you remove each injector, keep them organised and marked (e.g., by cylinder number: 1, 2, 3, 4) if you plan to reinstall the same injectors or send them for testing. Place them in a clean, sealed container to prevent contamination.
• Retrieve Copper Washers: Inspect the bottom of the injector bore in the cylinder head. A small copper washer (heat shield) sits at the bottom. It is absolutely crucial that this washer is removed. If it remains, and a new one is installed on the new injector, it can prevent proper sealing and lead to combustion gases leaking into the engine bay, causing further damage or 'black death'. Use a long pick or a magnetic tool to retrieve it.

Inspection, Cleaning, and Preparation

• Inspect Injectors: If you are reinstalling the same injectors, visually inspect them for damage or excessive carbon build-up. Consider having them professionally tested and cleaned.
• Clean Injector Bores: This is a critical step. Use a specialised injector bore cleaning brush and a suitable solvent to thoroughly clean the carbon deposits from inside the injector holes in the cylinder head. Ensure the bore is completely clean and smooth to allow the new copper washer to seat perfectly. Use compressed air to blow out any debris, being careful to protect your eyes.
• New Seals and Bolts: Always use brand new copper injector washers (seals) for reinstallation. These are single-use components that crush to form a perfect seal. It's also highly recommended to use new injector hold-down bolts, as they are often 'stretch bolts' designed for one-time use.

Reinstallation of Injectors

Reinstallation is essentially the reverse of removal, but with critical attention to cleanliness and torque settings.

• Install New Copper Washers: Carefully place a new copper washer at the bottom of each clean injector bore. Ensure it lies flat and is correctly centred.
• Lubricate Injector Body: Apply a very thin layer of high-temperature grease or ceramic paste to the body of the injector (below the O-ring) to aid insertion and prevent future seizing. Do NOT get any on the injector tip.
• Insert Injectors: Gently push each injector straight into its respective bore until it seats on the copper washer. Do not force them.
• Install Hold-Down Clamps and Bolts: Place the injector clamp over the injector, ensuring it's correctly oriented. Insert the new hold-down bolt.
• Torque Injector Bolts: This is arguably the most critical step. Use a torque wrench to tighten the injector hold-down bolts to the manufacturer's specified torque setting. Mercedes typically uses a two-stage torque procedure (e.g., an initial low torque, followed by an angular tightening). Refer to your specific workshop manual for the exact torque specifications for your W204 200 CDI. Incorrect torque can lead to leaks or injector damage.
• Reconnect Fuel Lines: Reattach the high-pressure fuel lines. Hand-tighten the nuts first, then use a spanner to tighten them to the specified torque. Be very careful not to overtighten, which can strip threads or damage the lines. Reconnect the low-pressure return lines securely.
• Reconnect Electrical Connectors: Push the electrical connectors onto each injector until they click securely into place.
• Reinstall Air Intake and Engine Covers: Reassemble the air filter housing, reconnect all hoses, clamps, and electrical connectors. Finally, replace the engine cover.

Post-Installation Procedures

• Reconnect Battery: Reconnect the negative terminal of your vehicle's battery.
• Prime Fuel System: On CDI engines, the fuel system usually self-primes when the ignition is turned on (without starting the engine) or during the first few cranking attempts. You may need to cycle the ignition a few times (turning it on for 10-15 seconds, then off) before attempting to start, to allow the fuel pump to build pressure.
• Check for Leaks: Start the engine. Immediately inspect all fuel line connections for any signs of leaks. Listen for any unusual noises (like a 'chuffing' sound from the injectors, indicating a poor seal). If you notice any leaks or strange noises, shut off the engine immediately and re-check your work.
• Clear Fault Codes: Use a diagnostic scanner to check for and clear any stored fault codes.
• Injector Coding: On many modern CDI engines, including the W204, new injectors need to be 'coded' to the engine control unit (ECU). This calibrates the ECU to the specific flow characteristics of each new injector, ensuring optimal performance and emissions. This typically requires a Mercedes-specific diagnostic tool (like XENTRY/DAS) or a high-end aftermarket scanner. If you've only cleaned and reinstalled the original injectors, coding might not be necessary, but it's essential for new ones.

Important Recall Information

It is crucial to be aware that Mercedes-Benz has issued recalls concerning fuel rails and fuel injectors on certain vehicles. Specifically, for some models, including potentially your W204 C-Class, MBUSA (Mercedes-Benz USA) has initiated a recall where dealers will replace the fuel rail and fuel injectors free of charge. The recall number mentioned is 2022030003, with owner notification letters mailed around April 22, 2022. If your vehicle falls within the affected VIN range, you might be eligible for this repair at no cost to you. Before embarking on this DIY project, it is highly advisable to contact MBUSA customer service at 1-800-367-6372 or your local Mercedes-Benz dealer in the UK (they can check global recalls based on your VIN) to ascertain if your specific Mercedes C-Class 200 CDI is covered by this or any other relevant recall. This could save you significant time, effort, and money.

Frequently Asked Questions (FAQs)

Q1: How do I know if my injectors are faulty?

Common symptoms of faulty fuel injectors include a rough idle, misfires, reduced engine power, increased fuel consumption, black smoke from the exhaust, a strong diesel smell, or an engine management light on the dashboard. A diagnostic scan will often reveal specific fault codes related to injector performance or misfires in certain cylinders.

Q2: Can I reuse the old copper washers?

Absolutely not. Copper washers are crush seals designed for single use. Reusing them will almost certainly lead to a poor seal, allowing combustion gases to leak past the injector, causing what's known as 'black death' – a build-up of tar-like carbon deposits around the injector base, which is very difficult to clean and can damage the cylinder head. Always use new copper washers.

Q3: What if an injector is stuck and won't come out?

Stuck injectors are a common problem, especially on older CDI engines. First, ensure you're using an appropriate injector puller. If it's still stuck, you can try applying penetrating oil to the base of the injector and allowing it to soak overnight. Some mechanics also use heat (carefully, with a heat gun, not an open flame) around the base of the injector to expand the cylinder head material slightly, but this carries risks. In extreme cases, professional help might be required, as excessive force can damage the cylinder head.

Q4: Do I need to code new injectors after replacement?

Yes, for Mercedes CDI engines, new injectors typically need to be coded to the engine's ECU. Each injector has unique flow characteristics, and coding ensures the ECU knows these parameters for precise fuel delivery. Failing to code new injectors can result in sub-optimal engine performance, rough running, and potentially trigger fault codes. This usually requires specialist diagnostic equipment.

Q5: Is this a DIY job for a beginner?

Removing fuel injectors from a CDI engine is not a task for a complete beginner. It requires a good understanding of engine mechanics, careful attention to detail, the right tools (especially a torque wrench and potentially an injector puller), and patience. The risk of damaging components or causing fuel leaks is significant if not done correctly. If you're unsure, it's always best to consult a qualified mechanic.

Conclusion

Disassembling and removing the fuel injectors on your Mercedes C-Class W204 200 CDI is a challenging but achievable task for the experienced home mechanic. By meticulously following these steps, prioritising safety, using the correct tools, and paying close attention to critical details like cleanliness, copper washers, and torque settings, you can successfully complete this repair. Remember to always consult your vehicle's specific workshop manual for exact torque values and procedures. And, crucially, before you start, check if your vehicle is covered by any outstanding recalls that might offer a free repair. If at any point you feel out of your depth, do not hesitate to seek professional assistance to avoid costly mistakes.
