DIY Guide: Replacing Hyundai i20 Brake Pads

Ensuring your Hyundai i20's braking system is in top condition is paramount for road safety. Worn brake pads compromise stopping power, putting you and others at risk. While it might seem daunting, replacing your i20's brake pads is a manageable DIY task for the keen home mechanic, potentially saving you a significant sum in garage labour costs. This guide will walk you through the entire process, from gathering your tools to bedding in your new pads, all with a focus on safety and precision.

Safety First! Your Life Depends On It

Before you even think about touching a spanner, remember that working on your vehicle's braking system requires utmost care. Failure to follow proper safety procedures can lead to serious injury or even death. Always prioritise safety.

• Work on a Level Surface: Ensure your car is parked on flat, stable ground.
• Engage the Parking Brake: This prevents the car from rolling.
• Use Wheel Chocks: Place them on the wheels at the opposite end of the car to the one you're working on.
• Proper Lifting Equipment: Use a sturdy hydraulic jack and, crucially, always support the vehicle with robust jack stands. Never rely solely on a jack.
• Personal Protective Equipment (PPE): Wear safety glasses to protect your eyes from debris and gloves to keep your hands clean and protected.
• Allow Components to Cool: If you've recently driven the car, let the brakes cool down before working on them. Hot brakes can cause burns.

Gathering Your Arsenal: Essential Tools and Materials

Having the right tools makes the job much smoother and safer. Here’s a list of what you’ll likely need:

• New Hyundai i20 brake pads (ensure they are the correct fit for your specific model year)
• Hydraulic jack
• Jack stands (at least two)
• Wheel chocks
• Lug wrench or socket set with appropriate socket for your lug nuts
• Socket set (typically 12mm, 14mm, or 17mm for caliper bolts)
• Torque wrench (essential for tightening lug nuts and caliper bolts correctly)
• C-clamp or brake caliper piston compression tool
• Wire brush
• Brake cleaner spray
• High-temperature brake lubricant or anti-squeal grease (e.g., ceramic or silicone-based)
• Flat-head screwdriver or pry bar (optional, for stubborn pads)
• Rag or shop towels
• Drain pan (if you anticipate any brake fluid overflow, though unlikely for pad replacement only)

The Step-by-Step Blueprint: Replacing Your i20's Brake Pads

Follow these steps carefully for a successful brake pad replacement.

Step 1: Preparation

Before lifting the car, ensure it's on a level surface. Engage the parking brake. If you're working on the front brakes, loosen the lug nuts on the front wheels slightly while the car is still on the ground. This makes them easier to remove once the car is lifted. If working on the rear, do the same for the rear wheels.

Step 2: Lifting and Securing the Vehicle

Position your hydraulic jack under the designated jacking point for your Hyundai i20 (refer to your owner's manual for exact locations). Carefully lift the vehicle until the wheel you're working on is off the ground. Once lifted, immediately place a jack stand under the vehicle's frame or a designated support point, ensuring it's stable and secure. Slowly lower the jack until the vehicle rests firmly on the jack stand. For added safety, you can leave the jack in place with a slight load, but the primary support should be the jack stand.

Step 3: Removing the Wheel

With the vehicle safely supported, fully loosen and remove the lug nuts. Carefully pull the wheel off the hub and set it aside. You might place it under the vehicle's frame as an extra safety measure, though this can sometimes obstruct access.

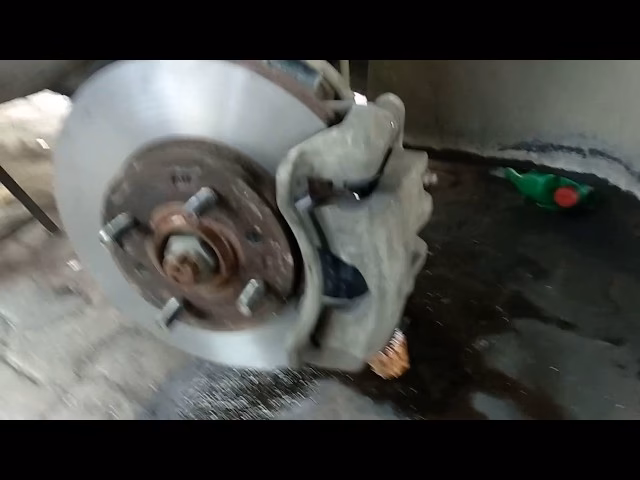

Step 4: Accessing and Inspecting the Caliper and Old Pads

Now you have clear access to the brake caliper and rotor. Take a moment to inspect the existing brake pads. Note their wear level – if one side is significantly more worn than the other, it could indicate a seized caliper pin or piston issue. Also, check the brake disc for deep grooves, scoring, or excessive lip formation on the edges. If the disc looks heavily worn, it's often recommended to replace the discs along with the pads for optimal braking performance.

Step 5: Removing the Caliper Bolts

The brake caliper is typically held in place by two guide pin bolts, usually located at the top and bottom of the caliper's rear side. These are often protected by rubber boots. Using your socket wrench, carefully loosen and remove these bolts. Sometimes, the bolts can be stiff; a little penetrating oil can help. Once the bolts are out, gently wiggle the caliper to free it from the brake disc. Do not let the caliper hang by the brake hose, as this can damage the hose. Use a wire or bungee cord to suspend the caliper safely from the suspension component.

Step 6: Removing the Old Pads

With the caliper out of the way, the old brake pads should now be loose. They often sit in retaining clips or simply slide out of the caliper bracket. Note how they are oriented – the inner pad (with the piston) and the outer pad might look slightly different. Remove both old pads.

Step 7: Compressing the Caliper Piston

This is a critical step. Before installing new, thicker pads, the caliper piston needs to be retracted back into the caliper body to create space. Place one of the old brake pads against the piston (to protect it) and use a C-clamp or a dedicated brake caliper piston compression tool to slowly and steadily push the piston back until it's fully flush with the caliper body. As you do this, keep an eye on your brake fluid reservoir under the bonnet; the fluid level might rise. If it's at MAX, you may need to siphon off a small amount to prevent overflow, but generally, this isn't necessary unless the reservoir was overfilled to begin with.

Step 8: Cleaning and Lubrication

Thorough cleaning and lubrication prevent future squealing and ensure smooth operation. Use a wire brush to clean the caliper bracket where the brake pads sit, removing any rust or old brake dust. Spray brake cleaner on the bracket and other components (avoiding the rubber boots and brake hose) to remove any residue. Once dry, apply a thin layer of high-temperature brake lubricant to the caliper guide pins (if removable, clean and re-lube them), the back of the new brake pads where they contact the caliper piston and bracket, and the edges of the pads where they slide into the caliper bracket. Do not get grease on the friction material of the pads or the disc surface.

Step 9: Installing New Pads

Carefully slide the new brake pads into the caliper bracket. Ensure they are correctly seated and oriented. The inner pad will typically have a wear indicator tab that should be positioned to squeal against the disc when the pad is low. Some pads also have specific inner/outer designations.

Step 10: Reinstalling the Caliper

Carefully swing the caliper back over the new pads and brake disc. Align the caliper with the mounting holes. Reinsert the caliper guide pin bolts and tighten them by hand first to ensure they thread correctly. Then, use your torque wrench to tighten them to the manufacturer's specified torque settings. These figures are crucial for safety and vary by vehicle; consult your i20's service manual or a reliable online resource. Overtightening can damage components, while undertightening can lead to dangerous caliper movement.

Step 11: Reinstalling the Wheel and Lowering the Vehicle

Place the wheel back onto the hub, aligning the lug holes. Hand-tighten the lug nuts. With the wheel reattached, carefully raise the car with the jack, remove the jack stand, and slowly lower the vehicle back to the ground. Once on the ground, use your torque wrench to tighten the lug nuts to the manufacturer's specified torque setting in a star pattern. This ensures even pressure and prevents the wheel from coming loose.

Step 12: The Crucial Final Step: Bedding In Your New Pads

This step is vital for optimal braking performance and longevity. New brake pads need to be 'bedded in' to transfer a thin layer of friction material to the brake discs, creating a more consistent and powerful braking surface. After changing the pads, pump the brake pedal several times before starting the engine. The pedal will feel soft at first as the piston extends and seats the pads against the disc. Once the pedal feels firm, start the engine. Drive your i20 gently, avoiding hard braking, for the first few miles. Then, find a safe, quiet road and perform a series of moderate stops from about 30-40 mph down to about 5-10 mph, without coming to a complete stop. Do this 5-10 times, allowing a few minutes between stops for the brakes to cool slightly. Avoid slamming on the brakes or prolonged heavy braking during this period.

When Is It Time? Recognising Worn Brake Pads

Knowing the signs of worn brake pads is crucial for timely replacement:

• Squealing or Chirping: Many pads have a built-in wear indicator that produces a high-pitched squeal when the pads are low.
• Grinding Noise: If you hear a metallic grinding sound when braking, it means the friction material is completely worn, and the metal backing plate is rubbing against the brake disc. This causes rapid disc damage.
• Longer Stopping Distances: Your car takes longer to stop than it used to.
• Vibration in the Pedal or Steering Wheel: This can indicate warped brake discs, often caused by excessively worn pads or overheating.
• Visual Inspection: You can often see the pads through the wheel spokes. If the friction material is less than 3mm thick, it's time for replacement.
• Dashboard Warning Light: Some i20 models have an electronic brake pad wear sensor that will illuminate a warning light on your dashboard.

Understanding Your Options: Types of Brake Pads

When buying new pads for your Hyundai i20, you'll encounter a few common types, each with pros and cons:

For most Hyundai i20 owners doing typical daily driving, good quality organic or ceramic pads are often the best choice, balancing performance, noise, and dust.

Troubleshooting Common Issues After Brake Pad Replacement

• Squealing Brakes: Often due to improper lubrication, lack of anti-squeal shims, or not bedding in the pads correctly. Re-check lubrication and perform the bedding-in procedure.
• Spongy Brake Pedal: Usually indicates air in the brake lines. This shouldn't happen during a pad change unless a bleed nipple was opened or the brake fluid reservoir ran dry. If it occurs, the system will need to be bled.
• Car Pulls to One Side When Braking: Could indicate a seized caliper guide pin, a sticky caliper piston, or uneven pad wear. Re-check your work on both sides.

DIY vs. Professional: Making the Right Choice

Changing brake pads yourself offers significant cost savings on labour and provides a rewarding sense of accomplishment. It also allows you to choose your preferred brand of brake pads. However, it requires specific tools, some mechanical aptitude, and a commitment to following safety procedures rigorously. If you're unsure at any point, lack the necessary tools, or feel uncomfortable with the process, it's always best to consult a qualified mechanic. Your safety, and the safety of others on the road, is not worth compromising.

Frequently Asked Questions (FAQs)

How long do Hyundai i20 brake pads typically last?

The lifespan of brake pads varies significantly based on driving style, road conditions, and the type of pads. Generally, front brake pads on a Hyundai i20 might last anywhere from 20,000 to 40,000 miles, while rear pads can last much longer, sometimes up to 60,000 miles or more, as the front brakes do most of the stopping work.

Do I need to replace brake discs (rotors) when I change pads?

Not always, but it's highly recommended if the discs show signs of excessive wear (deep grooves, scoring, warping, or a significant lip on the edge) or if they are below the manufacturer's minimum thickness specification. Replacing discs along with pads ensures optimal braking performance and prevents premature wear on your new pads. Many mechanics recommend replacing discs every two pad changes, or if any noticeable wear is present.

What is brake fluid's role, and do I need to change it?

Brake fluid is the hydraulic medium that transfers force from your brake pedal to the calipers, engaging the pads. While you typically don't need to change brake fluid during a pad replacement (unless you open the system), it is hydroscopic, meaning it absorbs moisture over time. This reduces its boiling point and effectiveness. Brake fluid should be flushed and replaced every 2-3 years, regardless of mileage, as part of routine maintenance.

Can I replace just one side's brake pads?

No, it is critically important to replace brake pads on both sides of an axle (e.g., both front wheels or both rear wheels) simultaneously. Replacing only one side can lead to uneven braking, causing the car to pull to one side when stopping, which is dangerous and can lead to premature wear on the new pad and disc.

Is it difficult to change brake pads on a Hyundai i20?

For someone with basic mechanical skills and the right tools, changing brake pads on a Hyundai i20 is considered a moderately easy DIY task. The process is straightforward, but attention to detail, proper torque settings, and strict adherence to safety procedures are paramount. If you're new to car maintenance, watch some video tutorials alongside this guide.

Conclusion

Changing your Hyundai i20's brake pads is a rewarding maintenance task that contributes significantly to your vehicle's safety and your peace of mind. By carefully following the steps outlined in this guide, prioritising safety, and using the correct tools, you can confidently tackle this job. Regular inspection and timely replacement of brake components are key to keeping your i20 stopping reliably for years to come. Remember, when in doubt, consult a professional.
