Reinstalling Your Drum Brakes: A UK Guide

When it comes to vehicle maintenance, few tasks are as critical as ensuring your braking system is in perfect working order. Drum brakes, while perhaps less common on front axles of modern vehicles, remain a vital component on many rear axles, particularly in older cars and commercial vehicles. Replacing and, more specifically, reinstalling drum brake components requires a methodical approach, a keen eye for detail, and a good understanding of the system's mechanics. This guide will walk you through the process, focusing on the crucial steps of reinstalling your brake drum and ensuring everything is correctly adjusted for optimum safety and performance.

It's important to remember that while the core principles are universal, specific procedures can vary significantly between vehicle makes and models. Always consult your vehicle's official service manual for precise, model-specific instructions. Safety is paramount when working on brakes; if you ever feel unsure or uncomfortable, it is always best to seek professional assistance from a qualified mechanic.

Understanding the Drum Brake System

Before diving into the reinstallation, it’s beneficial to have a clear picture of what a drum brake system entails. Essentially, it consists of a brake drum that rotates with the wheel, and inside it, two curved brake shoes that press outwards against the inner surface of the drum when the brakes are applied. This friction slows or stops the vehicle. The shoes are held in place by various springs and pins, and an adjuster mechanism ensures they remain close enough to the drum for effective braking without dragging.

Preparation: The Foundation of Safe Braking

Proper preparation is key to a successful brake job. Begin by parking your vehicle on a firm, level surface. Engage the parking brake and, for added safety, place chocks under the front wheels. Using a lug wrench, slightly loosen the lug nuts on the rear wheels, but do not remove them yet. This makes removal easier once the vehicle is elevated.

Next, use a robust jack to lift the rear of the vehicle to a sufficient height. Crucially, once lifted, always secure the vehicle on sturdy jack stands. Never rely solely on the jack, as it can fail, leading to serious injury. Once safely supported, you can fully remove the lug nuts and then the wheel.

From Removal to Reinstallation: A Seamless Transition

If you're reading this, you've likely already removed the brake drum. If it was stuck, a few gentle taps with a hammer around the edge of the drum, alternating points, often helps to free it. Once removed, take a moment to inspect the inner surface of the drum for any deep scoring, cracks, or excessive wear. Minor scoring can sometimes be machined out, but significant damage necessitates replacement of the drum itself.

Before you can reinstall the drum, the brake shoes and associated hardware must be in place and correctly positioned. This is the crucial stage that directly precedes drum reinstallation and dictates how easily and effectively the drum will fit and function.

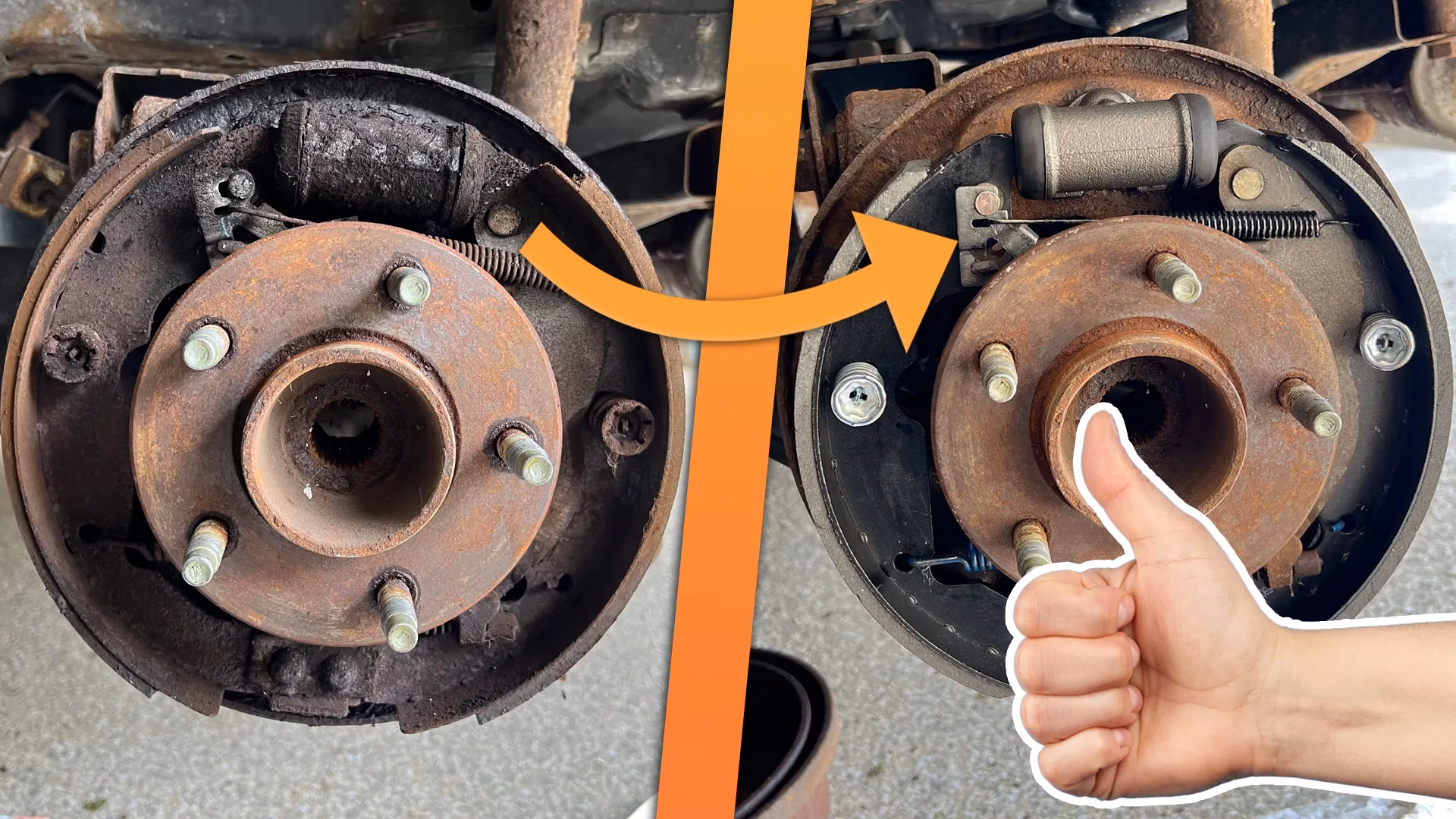

Installing New Brake Shoes and Hardware

With the old shoes removed and the backing plate cleaned (a good blast with brake cleaner is recommended), you can begin installing the new components. A new drum brake hardware kit is highly recommended, as springs can lose tension and pins can corrode over time. Refer to the diagram in your service manual or a photo you took during disassembly to ensure correct placement of all springs, pins, and levers. This is perhaps the most intricate part of the job, requiring patience and sometimes a specialised brake spring tool or pliers to manage the tension of the springs.

• Start by attaching the parking brake lever to the new trailing shoe (the rear shoe).
• Install the hold-down pins and springs for both shoes. These pins go through the backing plate and the shoe, securing it in place.
• Carefully attach the return springs that connect the two shoes together and pull them back towards the centre.
• Ensure the brake adjuster mechanism (often a threaded screw assembly) is properly lubricated and installed between the shoes at the bottom. This adjuster is key to the final adjustment of the brakes.

Before attempting to put the drum back on, ensure the brake shoes are as far inwards as possible. This is achieved by turning the adjuster screw until the shoes are fully retracted. If the shoes are extended, the drum will not fit over them.

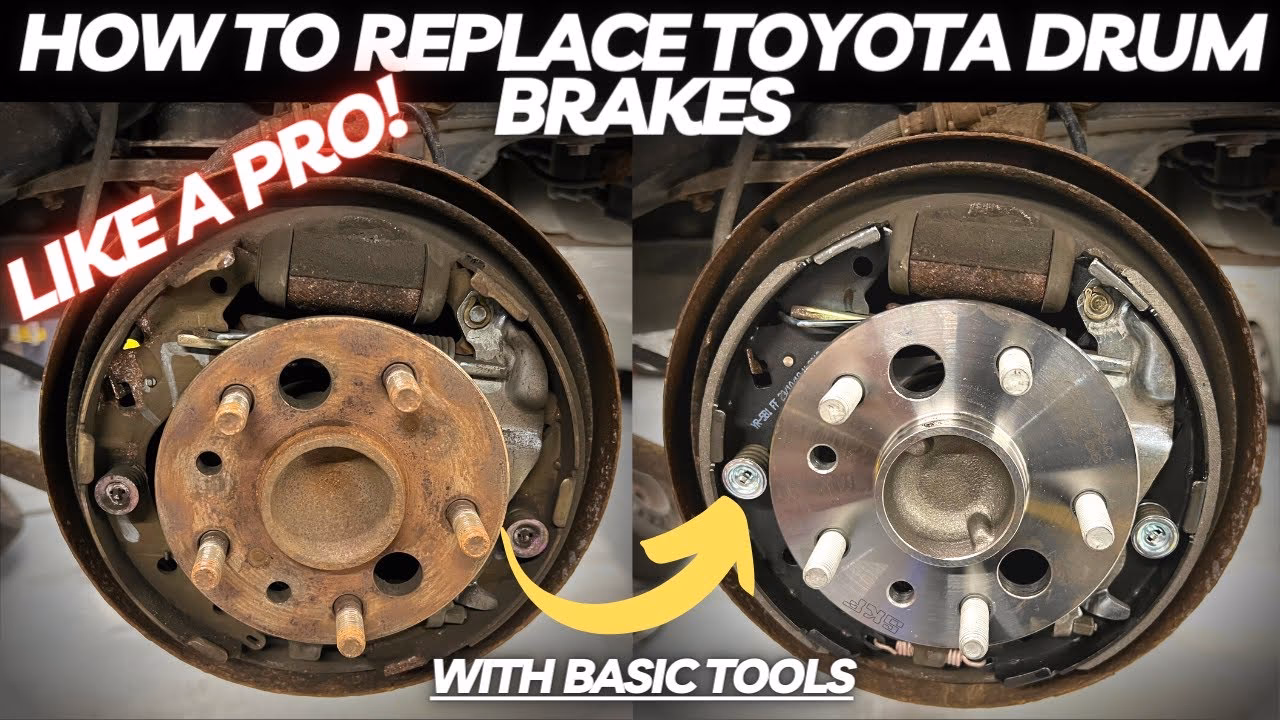

The Moment of Reinstallation: Sliding the Drum Back On

This is the step you’ve been preparing for. With the new brake shoes and hardware correctly installed and fully retracted, you are ready to reinstall the drum. This should, ideally, be a relatively straightforward process.

1. Align the Drum: Carefully align the drum with the wheel studs on the hub.
2. Slide into Place: Gently slide the drum onto the studs. It should slip over the brake shoes with minimal resistance. If it doesn't, do not force it.
3. Troubleshooting a Tight Fit: If the drum doesn't slide on easily, it almost certainly means the brake shoes are not fully retracted or are not installed correctly. Double-check the adjuster mechanism and ensure the shoes are pulled completely inwards. Sometimes, a very gentle tap with a rubber mallet on the drum face can help seat it, but this should only be done if the drum is nearly on and just needs a nudge. Excessive force indicates a problem with shoe installation or adjustment.
4. Ensure Flush Seating: Once on, the drum should sit flush against the hub flange.

The Art of Adjustment: Fine-Tuning Your Drum Brakes

Reinstalling the drum is only half the battle; proper adjustment is paramount for safe and effective braking. This step ensures that the brake shoes are close enough to the drum to provide immediate braking action without causing excessive drag or premature wear.

1. Locate the Adjuster Access Hole: Most drum brakes have a small access hole on the backing plate or the drum itself (sometimes covered by a rubber plug). This allows you to manipulate the adjuster mechanism.
2. Initial Adjustment: Using a brake spoon or a flat-blade screwdriver, turn the star-wheel adjuster through the access hole. You'll typically turn it downwards to expand the shoes outwards, and upwards to retract them.
3. Checking for Drag: As you adjust, periodically try to rotate the brake drum by hand. You're aiming for a very slight, consistent drag as you turn the drum. It should not spin freely without any resistance, nor should it be so tight that it's difficult to turn. A slight 'shhh' sound as the shoes lightly brush the drum is often a good indicator.
4. Even Adjustment: Crucially, ensure both sides of the vehicle are adjusted evenly. Inconsistent adjustment can lead to the vehicle pulling to one side under braking.
5. Using a Micrometer (Optional but Recommended): If you have access to a brake drum micrometer, you can measure the inside diameter of the drum. This helps ensure that the shoes are adjusted to the correct starting point, allowing for wear but preventing excessive pedal travel.

Symptoms of Improper Drum Brake Adjustment

Reassembly and Final Checks

Once the drum is reinstalled and the brakes are adjusted, you can complete the reassembly process.

1. Reinstall the Wheel: Place the wheel back onto the studs and hand-tighten the lug nuts.
2. Lower the Vehicle: Carefully lower the vehicle off the jack stands and then remove the jack.
3. Tighten Lug Nuts: Using the lug wrench, tighten the lug nuts in a crisscross pattern to the manufacturer's specified torque. This ensures the wheel is seated evenly and securely.
4. Bleeding the Brakes (If Necessary): If you disconnected any brake lines or opened the hydraulic system during the process (e.g., if you replaced a wheel cylinder), you will need to bleed the brakes to remove any air that has entered the system. Air in the brake lines results in a spongy pedal and significantly reduced braking efficiency. This typically involves using a brake line wrench to open the bleeder valve at the wheel cylinder while a helper presses the brake pedal, allowing air and old fluid to escape into a catch pan. Ensure you top up the brake fluid reservoir with new, correct specification brake fluid during this process.

The All-Important Test Drive

Before you hit the open road, a careful test drive is absolutely essential. This allows the new shoes to 'bed in' and confirms that your reinstallation and adjustment work has been successful.

Start by pumping the brake pedal several times while the vehicle is stationary. The pedal should feel firm and consistent. If it feels spongy, you likely have air in the system and need to bleed the brakes.

Begin your test drive at very low speeds in a safe, open area. Gently apply the brakes repeatedly. You might notice a slight burning smell initially; this is normal as the new shoes bed in. Listen for any unusual noises like grinding or squealing. Check that the vehicle stops straight without pulling to one side. Gradually increase your speed and test the brakes more firmly, always ensuring you have plenty of space and are in a safe environment.

Frequently Asked Questions (FAQs)

Q: How often should I check my drum brakes?

A: It's advisable to have your drum brakes inspected every 12,000 to 15,000 miles, or annually, as part of your vehicle's regular service. However, if you notice any changes in braking performance, such as a spongy pedal, pulling to one side, or unusual noises, have them checked immediately.

Q: Can I reuse my old brake drum?

A: You can reuse an old brake drum if it is within its wear limits (often stamped on the drum itself, e.g., 'MAX DIA 204.4mm') and shows no signs of cracks, deep scoring, or heat spots (blueish discolouration). If it's heavily scored or worn beyond the maximum diameter, it must be replaced. Machining (skimming) the drum is an option for minor imperfections but reduces the drum's thickness, bringing it closer to its wear limit.

Q: What if the drum won't come off / go back on?

A: If the drum won't come off, it's usually due to a lip worn on the inside edge preventing it from clearing the shoes, or the shoes being too far extended. You'll need to retract the shoes via the adjuster hole. If it won't go back on, the shoes are almost certainly not fully retracted or installed incorrectly. Always double-check shoe installation and adjuster position.

Q: How tight should I adjust the drum brakes?

A: You should adjust the drum brakes until there is a slight, consistent drag when you rotate the drum by hand. The drum should not spin completely freely, but it should also not be difficult to turn. This slight drag indicates the shoes are close enough to the drum for immediate contact when braking, without causing excessive friction during normal driving.

Q: Do I need to bleed the brakes every time I change drum shoes?

A: No, you only need to bleed the brakes if you have opened the hydraulic system, for instance, by replacing a wheel cylinder or disconnecting a brake line. If you are just replacing the shoes and drum, and haven't disturbed the hydraulic lines, bleeding is not necessary.

Safety First: A Final Word

Working on your vehicle's braking system is not a task to be taken lightly. It directly impacts your safety and the safety of others on the road. Always wear appropriate personal protective equipment, such as gloves and eye protection. Be extremely cautious with brake fluid, as it can damage paintwork and irritate skin. If you encounter any difficulties, feel unsure about any step, or suspect a problem, do not hesitate to consult a professional mechanic. Their expertise can ensure your vehicle's brakes are functioning perfectly, giving you peace of mind on every journey.
