Sterndrive Gear Oil Change: Bravo 1-XR Guide

It's perfectly understandable to feel a bit lost when tackling maintenance on a new-to-you boat, especially when moving to a different drive system. Many new sterndrive owners, particularly those accustomed to outboards or jet drives, often scratch their heads when it comes to changing the gear oil on a Mercruiser Bravo 1-XR. You're not alone in wondering where on earth the fill points are, especially with that remote reservoir on the engine. Rest assured, you're not a 'mechanical idiot' at all; the Bravo 1-XR system is just a little different, and once you understand it, you'll find it quite straightforward. This guide will walk you through the process, ensuring your DCB F-26's Bravo 1-XR drive remains in top condition for many seasons to come.

Understanding Your Bravo 1-XR Gear Lube System

Your confusion about the drain and fill points is common because the Bravo 1-XR, like most Mercruiser sterndrives, operates on a wet sump system, but with a crucial remote reservoir. This means the gear oil (or gear lube, as it's often called) is primarily contained within the lower unit and upper drive unit itself, not pumped from a separate, dry sump system like some high-performance engine lubrication setups. The reservoir you see on the engine plays a vital role: it acts as an expansion tank and a visual indicator for the gear oil level, allowing the drive to 'breathe' and compensate for temperature changes.

Unlike some drives where you might fill directly into the drive from the top, Bravo drives are filled from the bottom up. This method is critical for ensuring all air is purged from the system, preventing air pockets that could lead to lubrication starvation and costly damage. The drive unit itself does indeed have drain and fill points, though they might not be immediately obvious if you're not looking for them.

Why Regular Gear Oil Changes Are Crucial

Changing your sterndrive gear oil is one of the most important maintenance tasks you can perform. This oil lubricates the gears, bearings, and other internal components that transmit power from your engine to the propeller. Over time, this oil degrades due to heat, friction, and contamination. Here's why it's so important:

• Lubrication: Fresh oil provides optimal lubrication, reducing wear and tear on expensive internal components.
• Cooling: Gear oil helps to dissipate heat generated by the moving parts.
• Corrosion Protection: Additives in the oil protect against rust and corrosion, especially critical in a marine environment.
• Early Detection of Issues: Draining the old oil allows you to inspect it for signs of water intrusion (milky appearance) or metal particles (indicating wear), catching potential problems before they become catastrophic.

Mercruiser typically recommends changing the gear oil annually or every 100 hours of operation, whichever comes first. Given you've just acquired the boat, changing all fluids is an excellent proactive step.

Tools and Materials You'll Need

Before you begin, gather everything required. Having the right tools makes the job much smoother and prevents frustration.

• Mercruiser High-Performance Gear Lube: Always use the specified gear oil. For a Bravo 1-XR, Mercruiser High-Performance Gear Lube (or equivalent synthetic blend) is essential. Check your manual for the exact capacity, but typically you'll need around 2.8 - 3.0 litres.
• Gear Lube Pump: This is non-negotiable. You need a pump that screws directly into the gear oil bottle and has a hose with an adapter that fits the lower drain/fill screw hole on your drive. Filling from the bottom up is the only effective way.
• Drain Pan/Container: Large enough to hold the old gear oil (at least 3-4 litres capacity).
• Socket/Spanner Set: You'll need a suitable size for the drain and vent screws (usually a 5/8-inch or 16mm socket/spanner).
• Flat-head Screwdriver: For the slotted vent screw.
• Rags/Shop Towels: For spills and clean-up.
• New Gaskets/Washers: Crucial for the drain and vent screws. These are typically fibre or nylon washers and should be replaced every time the screws are removed to prevent leaks.
• Funnel: For topping up the reservoir.
• Gloves: To keep your hands clean.
• Safety Glasses: Always a good idea when working with fluids.

Step-by-Step Guide to Changing Your Bravo 1-XR Gear Oil

1. Preparation and Safety

Ensure your boat is securely on its trailer or blocked safely if on stands. For ease of access, trim the sterndrive down as far as it will go. This ensures all the old oil drains out. Place your drain pan directly underneath the drive unit.

2. Draining the Old Gear Oil

Locate the drain and vent screws on your Bravo 1-XR drive. They are typically found on the starboard (right) side of the lower unit, near the skeg. The lower screw is the drain/fill screw, and the upper one, usually about halfway up the drive, is the vent screw.

1. Remove the Top Vent Screw First: Using your flat-head screwdriver or appropriate spanner, carefully remove the upper vent screw. This allows air to enter the drive, preventing a vacuum and ensuring the oil drains smoothly. Be ready for a small amount of oil to weep out.
2. Remove the Lower Drain/Fill Screw: Place your drain pan directly under the drive. Using your socket or spanner, carefully remove the lower drain/fill screw. The old gear oil will begin to flow out. It might be thick and dark.
3. Inspect the Drained Oil: As the oil drains, observe its condition.
• Milky or Foamy Oil: This is a clear indicator of water intrusion into the drive. If you see this, you have a seal issue (prop shaft seal, shift shaft seal, or input shaft seal) that needs immediate attention before the boat goes back in the water.
• Metal Particles: Small, glittery flakes indicate normal wear. Larger chunks or significant amounts of metal suggest internal damage that requires professional inspection.
4. Allow Complete Drainage: Let the oil drain completely. This can take some time, especially if the oil is cold and thick. Wiggle the prop slightly to encourage any trapped oil to escape.

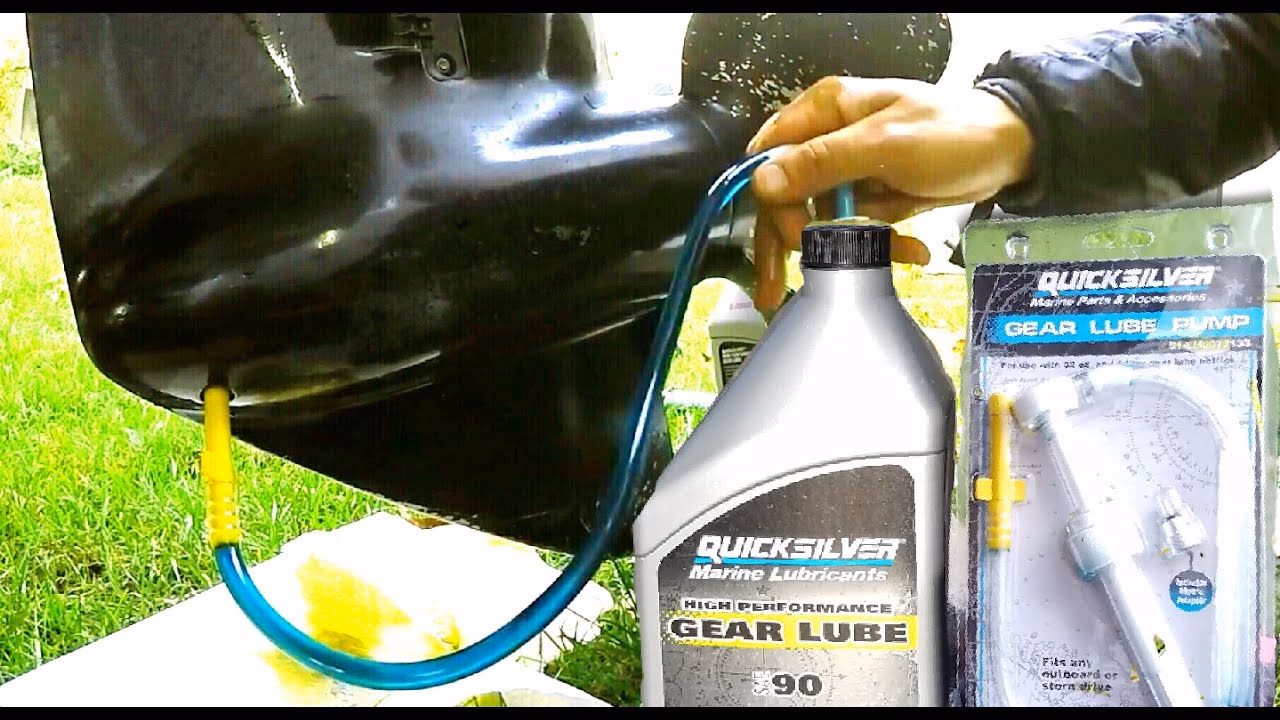

3. Refilling the Drive (The Bottom-Up Method)

This is where your gear lube pump becomes indispensable. Remember, you're filling from the bottom up to force all air out of the system.

1. Attach the Pump: Screw your gear lube pump firmly onto a new bottle of Mercruiser High-Performance Gear Lube.
2. Connect to the Drive: Insert the hose adapter from the pump into the lower drain/fill hole on the drive unit. Ensure it's snugly fitted to prevent leaks.
3. Begin Pumping: Start pumping the gear oil into the drive. You'll need to pump steadily. As you pump, the oil will fill the lower unit, then the upper unit, and eventually rise up into the remote reservoir on the engine.
4. Monitor the Reservoir: Keep a close eye on the gear oil reservoir on the engine. Continue pumping until the oil level in the reservoir reaches the 'Full' or 'Max' mark. This indicates the drive unit is completely full and the system is primed.
5. Reinstall Vent Screw: While the pump is still connected and maintaining pressure, quickly remove the pump hose from the lower unit and immediately install a new gasket and the lower drain/fill screw. Tighten it firmly but do not overtighten.
6. Reinstall Drain/Fill Screw: Once the lower screw is in, install a new gasket and the upper vent screw. Again, tighten firmly.

4. Final Checks and Bleeding

Even though you've filled from the bottom, it's wise to perform a final check and allow for any trapped air to escape.

1. Run the Engine (Briefly): After the oil change, start the engine briefly (in neutral, out of water or in water if safe) and engage forward and reverse gears for a few seconds each. This helps circulate the new oil and purge any remaining air pockets.
2. Re-check Reservoir Level: After running, let the boat sit for 10-15 minutes. Check the gear oil level in the remote reservoir again. It may have dropped slightly as air escapes. If it has, top it up to the 'Full' mark using your funnel. Do not overfill the reservoir, as this can lead to pressure issues.
3. Inspect for Leaks: Visually inspect the drain and vent screw areas for any signs of leaks. If you see weeping, gently tighten the screws a little more, or consider if the new gaskets were properly seated.

Choosing the Right Gear Oil for Your Bravo 1-XR

Using the correct type of gear oil is paramount for the longevity of your Bravo 1-XR drive. Mercruiser specifically recommends their High-Performance Gear Lube. While other brands may claim to be compatible, sticking with the manufacturer's recommendation is always the safest bet, especially for high-performance drives like the Bravo 1-XR.

Mercruiser High-Performance Gear Lube vs. Standard Gear Oil

The 'High-Performance' designation isn't just marketing. This oil is formulated with specific additives to withstand the extreme pressures, temperatures, and shear forces encountered within high-output sterndrives. It offers superior film strength, excellent thermal stability, and enhanced protection against wear, corrosion, and foaming. Standard automotive gear oils are simply not designed for these harsh marine conditions.

Common Mistakes to Avoid

• Not Replacing Gaskets: Reusing the old fibre washers is a recipe for leaks. They crush and seal once; re-tightening often won't seal them again.
• Filling from the Top: As discussed, this traps air and prevents proper lubrication. Always use the bottom-up method.
• Not Checking for Water/Metal: This is your diagnostic opportunity. Skipping this step means missing early warning signs of serious problems.
• Using the Wrong Oil: Stick to Mercruiser High-Performance Gear Lube or a direct, high-quality marine equivalent.
• Overtightening Screws: This can strip threads in the drive housing, leading to very costly repairs. Snug is good; gorilla-tight is bad. Refer to torque specifications in a service manual if you have one, otherwise, use firm, consistent pressure.
• Ignoring the Reservoir Level: The reservoir is there for a reason. Consistently low levels, even after topping up, indicate a leak in the drive.

Frequently Asked Questions (FAQs)

Q: Can I use automotive gear oil in my Bravo 1-XR?

A: Absolutely not. Automotive gear oils lack the specific additives and properties required to withstand the harsh conditions and high loads of a marine sterndrive. Using the wrong oil can lead to premature wear and catastrophic failure.

Q: My gear oil looks milky. What does that mean?

A: Milky or foamy gear oil indicates water intrusion into the drive unit. This is a serious issue that needs immediate attention. It usually points to a failing seal (prop shaft, shift shaft, or input shaft). Continuing to run the boat with water in the drive will lead to severe corrosion and bearing/gear failure. Get it inspected and repaired by a professional if you're not comfortable tackling seal replacement.

Q: How much gear oil does a Bravo 1-XR hold?

A: A Mercruiser Bravo 1-XR sterndrive typically holds between 2.8 to 3.0 litres of gear oil. Always check your specific owner's or service manual for the precise capacity, and always fill until the remote reservoir reaches the 'Full' mark.

Q: How often should I change my Bravo 1-XR gear oil?

A: Mercruiser recommends changing the gear oil annually or every 100 hours of operation, whichever comes first. If you operate in very demanding conditions or store the boat for long periods, an annual change is highly advisable.

Q: Do I really need a special pump? Can't I just pour it in?

A: Yes, you absolutely need a special gear lube pump. Sterndrives must be filled from the bottom up to force out all trapped air. Pouring from the top will leave significant air pockets, which can lead to lubrication starvation and severe damage to the internal components. This is perhaps the most critical step to get right.

Q: What if the reservoir level drops after a short run?

A: A slight drop is normal as any remaining air works its way out of the system. Top it up to the 'Full' mark. However, if the level continues to drop significantly after subsequent runs, it indicates a leak in the drive or an issue with the reservoir system itself, which needs investigation.

Changing the gear oil on your Mercruiser Bravo 1-XR is a straightforward but essential task that directly contributes to the longevity and performance of your sterndrive. By following these steps and understanding the unique aspects of your drive's lubrication system, you'll not only save money on service fees but also gain valuable confidence in maintaining your magnificent DCB F-26. Happy boating!
