11/04/2011
When it comes to vehicle safety, the braking system of your Hyundai ix35 is paramount. A properly functioning handbrake and responsive service brakes are not just conveniences; they are critical components that ensure your safety and that of others on the road. Neglecting even minor brake issues can lead to significant problems, from reduced stopping power to accelerated wear on components, and in the worst cases, serious accidents. This article will guide you through the process of adjusting your Hyundai ix35's handbrake and help you diagnose and understand common causes of brake drag, providing practical advice to keep your vehicle in top condition.
Adjusting Your Hyundai ix35 Handbrake
The handbrake, also known as the parking brake or emergency brake, is an essential safety feature designed to keep your vehicle stationary when parked, especially on inclines. Over time, the handbrake cable can stretch, leading to a feeling of looseness or requiring the lever to be pulled up excessively high before it engages. A well-adjusted handbrake should typically engage within a specific number of clicks or notches, usually between three to five, indicating it's holding securely without being overly tight.
Tools You'll Need
- Wrench set (metric, likely 10mm or 12mm)
- Torque wrench (if specific torque settings are available for your model)
- Wheel chocks
- Safety glasses
- Gloves
Step-by-Step Handbrake Adjustment
Adjusting the handbrake on your Hyundai ix35 is a relatively straightforward task that can often be performed by a DIY enthusiast. It primarily involves manipulating the tension in the handbrake cables. Here's how to do it:
- Prepare Your Vehicle: Park your Hyundai ix35 on a flat, level surface. Engage the transmission in 'Park' (automatic) or first gear (manual). Place wheel chocks behind the rear wheels for added safety, especially if you'll be working near the wheels or under the car. Ensure the handbrake is fully disengaged (down).
- Locate the Adjustment Point: The handbrake adjustment mechanism on the Hyundai ix35 is typically found either at the handbrake lever assembly inside the cabin or under the vehicle where the handbrake cables split to go to each rear wheel. For many models, it's often accessible from inside the car, usually by removing a trim panel around the handbrake lever. Consult your vehicle's owner's manual for the exact location.
- Identify the Locknuts: Once you've located the adjustment point, you will see a threaded rod or cable with two locknuts. These locknuts secure the adjustment and allow you to change the cable tension.
- Loosen the Locknuts: Using the appropriate size wrench, loosen the locknuts. You'll typically need one wrench to hold the inner nut (or the cable itself) and another to loosen the outer nut. This frees up the mechanism to allow for adjustment.
- Adjust Cable Tension: Now, screw on the locknuts, gradually tightening them. The goal is to increase the tension in the handbrake cables. Make small, incremental adjustments. It's crucial to ensure that you make the same changes upon both sides (if adjusting at the wheel end) or ensure the central adjustment is symmetrical to keep a balanced braking force on both rear wheels. Uneven tension can lead to uneven wear and reduced effectiveness.
- Check Handbrake Stroke: After each small adjustment, pull the handbrake lever up and count the number of clicks or notches until it feels firmly engaged. Your aim is for the handbrake handle of your Hyundai ix35 to have a stroke of about three to five notches. If it's too loose, tighten the nuts a bit more; if it's too tight and the wheels drag, loosen them slightly.
- Test for Wheel Drag: With the handbrake fully disengaged, try to spin the rear wheels by hand (if possible, or carefully drive a short distance). There should be no noticeable drag. If there is, the handbrake is too tight and needs to be slightly loosened.
- Secure the Locknuts: Once you are satisfied with the adjustment, firmly tighten both locknuts to secure the setting. Double-check that they are snug but do not overtighten, as this can strip threads or damage components.
- Final Test Drive: Carefully drive your vehicle in a safe area. Test the handbrake on a gentle incline to ensure it holds the vehicle securely. Also, confirm that there is no drag when the handbrake is fully released.
If, after adjustment, your handbrake still feels ineffective, or if the cable appears frayed or damaged, it might be time for a full handbrake cable replacement. This is a more involved procedure and may require professional assistance.

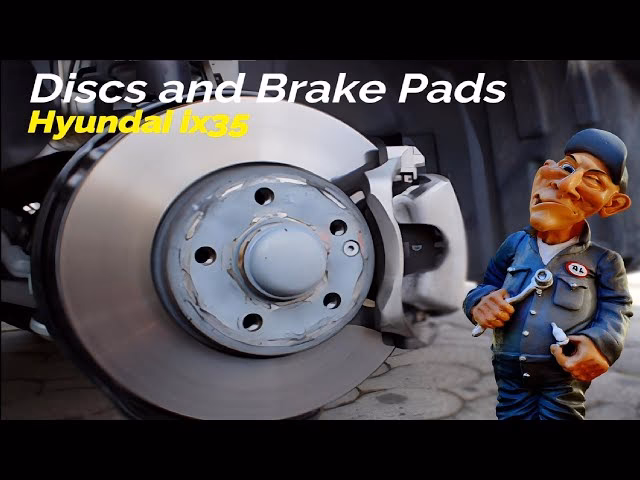

Understanding and Fixing Hyundai ix35 Brake Drag
Brake drag is a common issue where the brake pads remain in contact with the brake disc even when the brake pedal is released. This can lead to a host of problems, including reduced fuel efficiency, premature wear of brake components, overheating, and even a burning smell. As you know, safety regarding your car is undoubtedly a fundamental component. Nowadays, automobiles are more secure, and we are having fewer auto accidents on our streets. Even so, we are rarely immune to a technical fiasco, and today we will speak about brake failure on your Hyundai ix35. The brakes are components to look at carefully, or you’re going to have a hard time if you’re not!
Let us look over the numerous symptoms that may affect the brakes on your car and so provide you with a handful of pointers on how to proceed to protect yourself from anything serious.
Common Brake Issues and Their Symptoms
| Symptom | Potential Cause(s) | Action/Explanation |
|---|---|---|
| Low Brake Pedal | Low or Bad Brake Fluid, Air in System, Master Cylinder Fault | If you use the brake pedal of your car and identify that it is uncommonly soft or that it sinks just before the car totally brakes, it is unquestionably the brake fluid that is at a low level or gone. If you still possess brake fluid, this could be old or contaminated fluid that it is advisable to replace right away. Air in the brake lines will also give a spongy pedal. |
| Brake Pedal Too Firm | Worn/Damaged Brake Pads, Seized Caliper, Faulty Brake Servo (Booster) | If, when you press upon the brake pedal, it requires a lot of strength, almost like you were at the gym, you probably have a problem with the brake pads or a related component. If you happen to have difficulty using your brake, before replacing the brake system totally, examine the pads that could be damaged or simply just deboned (worn down to the backing plate). A failing brake servo can also make the pedal feel very hard. |
| My Brake Drag | Seized Caliper, Maladjusted Calipers, Master Cylinder Issue, Damaged Brake Hose | In the event that soon after braking you find that the caliper of the brakes is not going to unlock totally, as it should, you might experience a problem. We advise you to deal with this challenge as quickly as possible, otherwise you could have a severe accident. When the brake drags, it’s most commonly that the calipers are improperly adjusted, have seized pistons, or there is a problem with the master cylinder not allowing pressure to release. A collapsed internal brake hose can also prevent fluid from returning. In this instance, call or head to the garagist immediately. |
| My Brake Make Noise | Worn Pads, Contaminants, Bad Installation, Warped Rotors | The moment you brake with your Hyundai ix35 you take note of disturbance, you could have a trouble. This type of braking noise problem can arrive from different things. You may have a brake pad issue. These pads may easily be worn or incorporate impurities that cause this upsetting sound. If your brake pads are fresh, it is unquestionably a bad assembly that causes these types of sounds. In cases like this, make contact with the mechanist to adjust these brake pads or inspect the rotors. |
| Hyundai ix35 Brake Vibration | Warped Rotors, Suspension Issues, Uneven Pad Wear, Loose Components | The moment you push the brake of your car it starts to vibrate much like a washer, you might have a concern of parallelism (run-out) or a rotor problem. In case you are in this situation, there is not much to try apart from stopping by your garage to repair it. Know that in the matter of a strong shake, it could be that the suspensions of your car are responsible, so do not solely accuse the brakes! |
Detailed Look at Brake Drag Causes
Brake drag specifically refers to a situation where the brake pads do not fully retract from the disc when the brake pedal is released. This persistent contact generates friction, leading to heat build-up, premature wear, and a noticeable loss of power and fuel efficiency. The most common culprits are:
- Seized Brake Calipers: The brake caliper's piston is designed to push the pads against the rotor and then retract when pressure is released. If the piston, or the caliper's guide pins, become corroded or gummed up with dirt, they can seize. This prevents the pads from fully retracting, causing continuous contact and drag. This is a very common cause of brake drag and requires inspecting and potentially replacing or rebuilding the calipers.
- Faulty Master Cylinder: The master cylinder is responsible for generating hydraulic pressure to activate the brakes. If the internal seals of the master cylinder fail, it might not release the hydraulic pressure effectively when the pedal is lifted. This can keep pressure on the calipers, leading to drag. This is a more serious issue that requires professional diagnosis and replacement.
- Collapsed Brake Hoses: Over time, the flexible rubber brake hoses that connect the brake lines to the calipers can deteriorate internally. The inner lining can collapse, acting like a one-way valve, allowing fluid to flow to the caliper but restricting its return. This traps pressure in the caliper, causing drag.
- Improperly Adjusted Calipers or Parking Brake: While less common for service brakes, if recent brake work involved adjusting the calipers and it wasn't done correctly, it could lead to drag. Similarly, an over-tightened handbrake cable, as discussed earlier, can cause the rear brakes to drag.
In the event of brake drag, it's crucial to address the issue promptly. Continued driving with dragging brakes will not only waste fuel and wear out your components faster but can also lead to dangerous brake fade due to overheating, severely compromising your stopping ability.
General Brake Maintenance Tips
To prevent many of these issues, regular brake maintenance is key:
- Regular Inspections: Have your brakes inspected at least once a year, or every 10,000 to 12,000 miles. A professional can check pad thickness, rotor condition, caliper function, and fluid levels.
- Brake Fluid Checks: Check your brake fluid level regularly. If it's low, top it up with the correct type of fluid for your Hyundai ix35. Brake fluid should also be replaced according to your manufacturer's schedule, typically every two to three years, as it absorbs moisture over time, which can lead to corrosion and a spongy pedal.
- Listen for Noises: Pay attention to any unusual sounds when braking, such as squealing, grinding, or clunking. These are often early indicators of a problem.
- Feel for Vibrations: If you feel vibrations through the brake pedal or steering wheel when braking, it could indicate warped brake discs or other issues.
- Don't Ignore Warning Lights: If your brake warning light illuminates on the dashboard, do not ignore it. Get your vehicle checked immediately.
Frequently Asked Questions (FAQs)
How often should I check my Hyundai ix35's brakes?
It's recommended to have your brakes inspected at least once a year or every 10,000 to 12,000 miles, whichever comes first. However, if you notice any changes in braking performance, such as unusual noises, vibrations, or a different pedal feel, get them checked immediately.
Can I drive with brake drag?
No, driving with brake drag is highly inadvisable and potentially dangerous. It causes excessive heat build-up, which can lead to brake fade (loss of braking power), premature wear of pads and discs, increased fuel consumption, and in extreme cases, even brake failure. Address brake drag as soon as possible.
What's the average lifespan of brake pads on a Hyundai ix35?
The lifespan of brake pads varies significantly depending on driving habits, road conditions, and the type of pads. Generally, front brake pads might last between 25,000 and 60,000 miles, while rear pads can last longer, often 40,000 to 80,000 miles. Regular inspection is the best way to determine their remaining life.
Why is my handbrake loose even after adjusting?
If your handbrake feels loose or ineffective even after you've correctly adjusted the cable tension, it could indicate that the handbrake cable itself is stretched beyond its adjustment limit, corroded, or frayed. In such cases, the cable will need to be replaced. Less commonly, issues with the brake mechanisms inside the rear wheels (e.g., seized shoes for drum-in-hat parking brakes) could also be a factor.
When should I replace my Hyundai ix35's brake fluid?
Hyundai typically recommends replacing brake fluid every two years or 24,000 miles, whichever comes first. Brake fluid is hygroscopic, meaning it absorbs moisture from the air over time. This moisture can lower the fluid's boiling point, leading to brake fade under heavy use, and can also cause internal corrosion in the brake system components.
Basically, you will find plenty of causes of failing brake on a car. We have treated the main symptoms and signs, nevertheless there exist other complications. Whatever the case, do not hesitate to head to a garage at the tiniest hesitation. You should never put your life at risk by stinginess!
