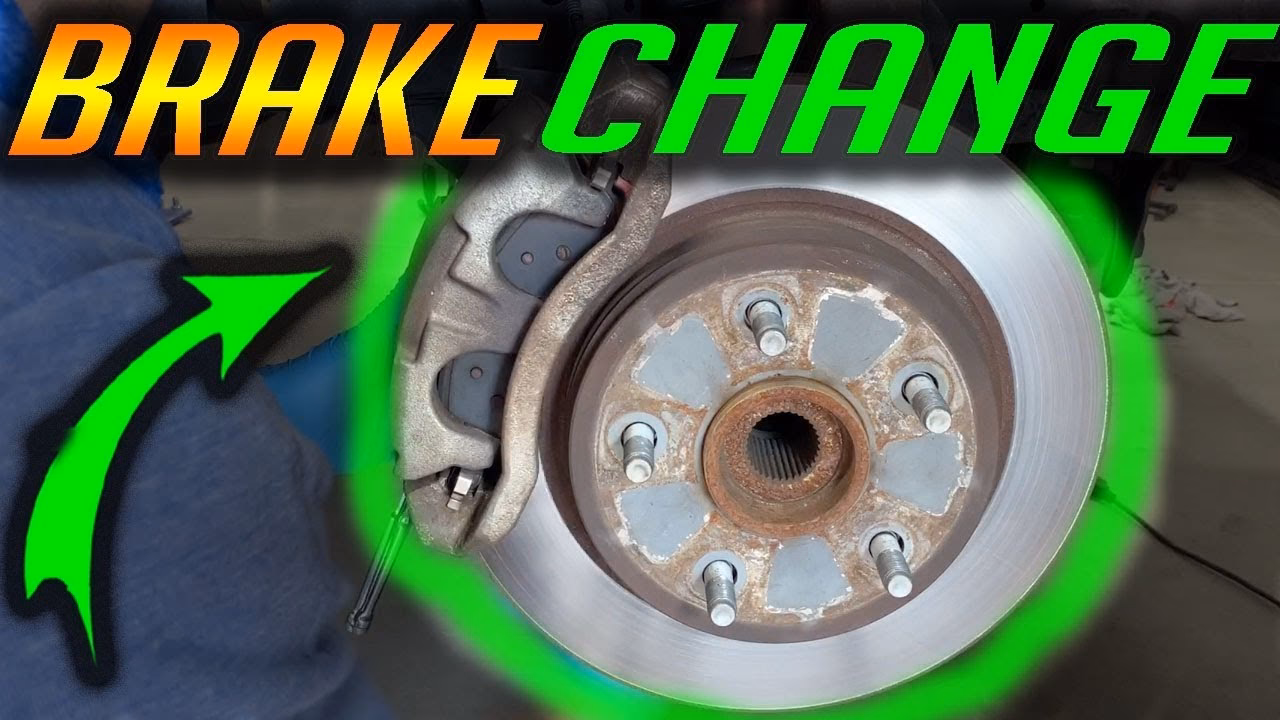

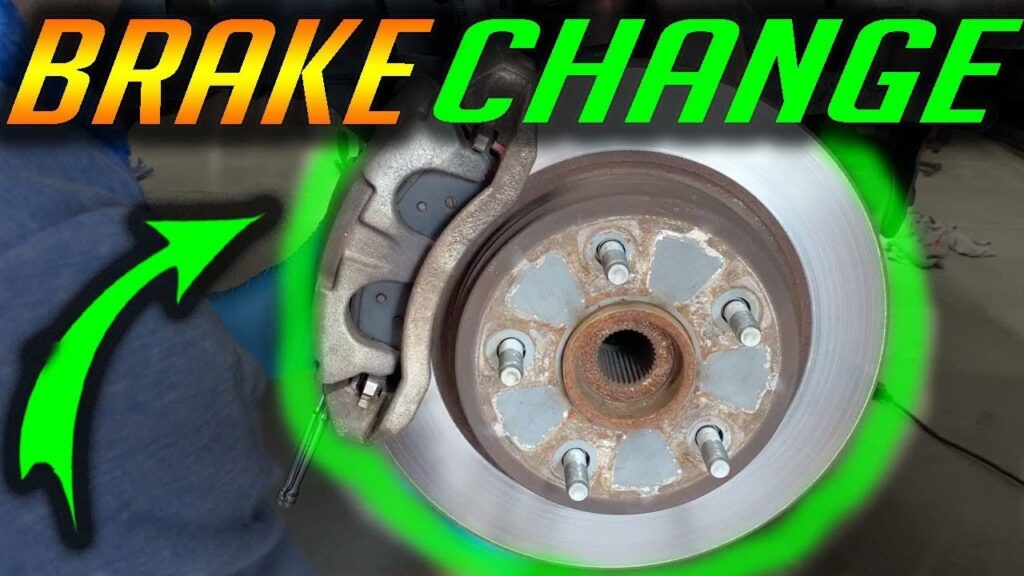

Mastering TRQ Brake Pad & Rotor Installation

Brake maintenance is one of the most critical aspects of vehicle safety. Your brakes are your first line of defence on the road, and ensuring they are in top condition is paramount. While it might seem like a daunting task, replacing your brake pads and rotors is a manageable DIY project that can save you a significant amount of money and provide invaluable insight into your vehicle's mechanics. This detailed guide will walk you through the process of installing new TRQ brake pads and rotors, ensuring a safe and effective upgrade to your braking system. We'll cover everything from preparation to the final crucial steps, empowering you to perform this essential maintenance with confidence.

Essential Tools & Materials for the Job

Before you begin, gathering all the necessary tools and materials will make the process much smoother and more efficient. Having everything at hand prevents unnecessary delays and ensures you can complete the job safely and correctly.

Safety First: Pre-Installation Preparations

Before you even think about touching a wrench, safety must be your absolute priority. Ensure your vehicle is on a flat, stable surface. Engage the parking brake and use wheel chocks on the wheels that will remain on the ground. Use a reliable jack to lift the vehicle and then always, without exception, support the vehicle securely with sturdy jack stands. Never rely solely on the jack. Wear appropriate personal protective equipment, such as safety glasses and gloves, to protect yourself from debris and chemicals.

Step-by-Step TRQ Brake Installation Guide

1. Wheel Removal

With the vehicle safely elevated and supported, it's time to remove the wheel. Locate your lug nuts, which typically require a 22-millimeter socket. Use a breaker bar or a strong ratchet to loosen these nuts. Once loosened, you can then fully remove them and carefully take the wheel off. Set it aside in a safe place, ensuring it won't roll or get damaged.

2. Disconnecting the Caliper and Removing Old Pads

Next, you'll focus on the brake caliper. You'll need a 13-millimeter socket to remove the two caliper bracket bolts. These bolts secure the caliper to the steering knuckle. Sometimes, the brake slide pin might spin when you try to loosen the bolt; if this happens, use a pair of pliers to hold the stud steady while you loosen the bolt. Once the bolts are out, the caliper is ready to be moved. Before fully sliding it off, it's often helpful to slightly pry the piston in. Take a straight blade screwdriver and gently insert it between the rotor and the caliper. Apply light pressure to push the piston back a little, being extremely careful not to damage the rubber boot surrounding the piston. This small action can make removing the caliper much easier. Once the piston is slightly retracted, carefully slide the caliper off the rotor.

Crucially, never let the caliper hang by its brake hose, as this can damage the hose and lead to dangerous brake fluid leaks. Always use a dedicated brake caliper hanger. Attach one end to the caliper and the other to a secure part of the suspension or vehicle frame, ensuring there's no tension on the brake hose. Now, with the caliper safely suspended, you can easily slide the old brake pads off the bracket using a straight blade screwdriver or by hand.

3. Removing the Caliper Bracket and Old Rotor

With the pads and caliper out of the way, your next task is to remove the caliper bracket itself. This bracket is typically secured by two larger bolts, which usually require a 21-millimeter socket. Loosen and remove these bolts, and then slide the entire caliper bracket off the vehicle. Finally, it's time to remove the old brake rotor. It should slide off the wheel studs relatively easily. If it's stubborn or stuck due to rust, you can carefully use a hammer. Tap the rotor in several locations around the hub, being mindful not to hit the wheel studs. A few firm taps should help break it free.

4. Thorough Cleaning and Preparation

Proper preparation is key to a long-lasting and effective brake job. This step is often overlooked but is vital for preventing issues down the line.

• Hub Surface Cleaning: The surface where the rotor mounts to the hub must be perfectly clean. Rust and debris here can cause the new rotor to sit unevenly, leading to vibrations or a pulsating brake pedal. Use a die grinder with a wire brush attachment or a sturdy wire brush by hand to thoroughly clean off any rust and corrosion.
• Anti-Seize Application: Once the hub surface is clean, apply a thin, even coat of anti-seize compound. This prevents future corrosion and makes rotor removal much easier next time.
• New Rotor Preparation: New rotors often come with a protective coating to prevent rust during shipping. This coating must be removed before installation. Place the new rotor on backwards temporarily, spray both surfaces (the deck) thoroughly with brake parts cleaner, and wipe them down with a clean rag. Flip the rotor around and repeat the process on the other side. This ensures no contaminants are left to compromise brake performance.
• Temporary Rotor Securing: To prevent the new rotor from falling off while you're working, temporarily secure it with one of the lug nuts. Just thread it on lightly.
• Caliper Bracket Cleaning: Use a wire brush to clean the areas of the caliper bracket where the brake pads slide. Rust and old brake dust can impede the free movement of the new pads. Once clean, apply a small amount of caliper grease to these sliding surfaces. This allows the pads to move freely as they wear, preventing sticking and uneven wear.
• Caliper Slide Pin Service: Remove the caliper slide pins from the bracket. Use brake parts cleaner and a rag to wipe them clean. Inspect them for corrosion; if heavily corroded, clean out the holes they sit in as well. Apply a fresh coat of caliper grease to the pins and reinsert them, ensuring they move freely within their boots. Smooth movement of these pins is essential for even pad wear and proper caliper function.

5. Installing New Components

Now, it's time to install your new TRQ components.

• Caliper Bracket Reinstallation: Slide the cleaned caliper bracket back over the new rotor. Insert the 21-millimeter caliper bracket bolts. You may choose to apply a small amount of thread lock adhesive to these bolts for added security, though it's often not strictly necessary if torqued correctly. Tighten these bolts using your torque wrench to the manufacturer's specified torque of 130-foot pounds. This precise tightening is crucial for safety and preventing loosening.
• Brake Pad Installation: Take your new TRQ brake pads. They typically come with new pad clips (also known as hardware). Slide these clips onto the brake pads, ensuring the spring part of the clip faces towards the outside of the pad. Once the clips are on, slide the pads into their designated slots on the caliper bracket. Ensure they sit flush and can move slightly within the bracket.
• Piston Compression: Retrieve the brake caliper from its hanger. Before reinstalling it, you must compress the pistons back into the caliper body to make room for the thicker new pads. Use a brake caliper tool for this; it compresses the pistons slowly and evenly. Watch the brake fluid reservoir during this step, as the fluid level will rise. Ensure the brake hose isn't twisted or strained during compression.
• Caliper Reinstallation: With the pistons fully compressed, carefully slide the caliper over the new brake pads and align it with the caliper bracket. Insert the two 13-millimeter caliper bolts. If the slides want to spin, use pliers to hold them steady. Torque these bolts to 31-foot pounds.

6. Final Assembly and Post-Installation Checks

You're almost done! The final steps ensure everything is secure and the braking system is ready for use.

• Wheel Reinstallation: Remove the temporary lug nut securing the rotor. Carefully lift the wheel back onto the wheel studs. Install all the lug nuts by hand first, ensuring they are not cross-threaded.
• Torquing Lug Nuts: Lower the vehicle slightly so the wheel just touches the ground, but the full weight isn't on it. Using your torque wrench, tighten the lug nuts to 130-foot pounds. It's essential to tighten them in a star pattern (alternating nuts across the hub) to ensure the wheel is seated evenly and securely. Once all nuts are snug, lower the vehicle completely.
• Brake Pedal Pumping: This is a critical step. Before driving, get into the vehicle and slowly pump the brake pedal. Initially, the pedal will feel soft and go almost to the floor. This is normal, as there's an air gap between the newly compressed brake caliper pistons and the new brake pads. Continue pumping slowly until the pedal feels firm and consistent. Do not rush this step.
• Brake Fluid Reservoir Check: After pumping the pedal, open your bonnet and double-check the brake fluid reservoir. The fluid level should be at or close to the 'MAX' line. If it's low, top it up with the correct type of brake fluid specified for your vehicle.

Important Post-Installation Considerations: Bedding In Your New Brakes

Once your new TRQ brake pads and rotors are installed, the job isn't quite finished. You must 'bed in' the new components. This process transfers a thin, even layer of friction material from the pads to the rotors, creating optimal braking performance and preventing premature wear or noise. The exact procedure can vary, but a common method involves:

1. Driving at a moderate speed (e.g., 30-40 mph).
2. Applying the brakes firmly but not to a complete stop, slowing down to about 5-10 mph.
3. Repeating this process 5-6 times, allowing a few minutes between stops for the brakes to cool slightly.
4. After these initial stops, drive for a longer period (e.g., 10-15 minutes) without heavy braking to allow the brakes to cool down thoroughly.

Avoid harsh braking or sudden stops for the first 100-200 miles after installation, and be mindful of your braking distances as the new components achieve their full performance.

Frequently Asked Questions About Brake Replacement

How often should I replace my brake pads and rotors?

The lifespan of brake pads and rotors varies greatly depending on driving habits, vehicle type, and environment. Generally, brake pads might last anywhere from 25,000 to 70,000 miles, while rotors can last longer, often needing replacement every two pad changes or if they show signs of warping or excessive wear. Regular inspection is key.

What are the signs of worn brake pads or damaged rotors?

Common signs include a squealing or grinding noise when braking, a pulsating brake pedal (often indicating warped rotors), a longer stopping distance, a spongy brake pedal, or the vehicle pulling to one side when braking. Visually inspecting the pad thickness and rotor surface is also crucial.

Do I need special tools for this job?

While a basic socket set and wrenches will get you started, specific tools like a torque wrench, brake caliper tool, and caliper hanger make the job safer, easier, and ensure proper installation. These are highly recommended for a successful DIY brake job.

Why is cleaning the hub surface so important?

Rust and debris on the hub surface can prevent the new rotor from sitting perfectly flat. Even a tiny amount of unevenness can lead to brake pulsation, vibrations, and premature wear of your new components. A clean surface ensures flush mounting and optimal performance.

Why use anti-seize compound?

Anti-seize compound acts as a barrier against corrosion between the metal hub and the rotor. This is particularly useful in areas with high moisture or road salt. It ensures that the rotor doesn't seize to the hub, making future removal much easier and preventing damage.

Why do I need to clean the new rotors before installing them?

New rotors come with a thin, oily protective coating to prevent rust during shipping and storage. This coating must be removed with brake parts cleaner before installation. If left on, it can contaminate the brake pads, reduce initial braking performance, and cause noise or shuddering.

What does 'bedding in' new brakes mean?

'Bedding in' is the process of gently heating and cooling new brake pads and rotors to transfer a thin, even layer of friction material from the pads onto the rotor surface. This creates an optimal friction interface, improving braking performance, reducing noise, and extending the life of your brakes. Skipping this step can lead to reduced performance, noise, and premature wear.

What if my brake fluid reservoir is low after the job?

A slight drop in brake fluid after installing new, thicker pads is normal, as the pistons are now retracted further into the caliper. However, the fluid level should still be within the 'MIN' and 'MAX' lines. If it's below the 'MIN' line, top it up with the manufacturer-specified brake fluid. A significant drop might indicate a leak, which requires immediate attention.

By following this comprehensive guide, you can confidently replace your TRQ brake pads and rotors, ensuring your vehicle remains safe and reliable on the road. Remember, patience and attention to detail are your best tools in any DIY automotive project.
