Replacing Your Oil Tank Float Gauge

Understanding and Replacing Your Oil Tank Float Gauge

Are you finding yourself unsure of the exact fuel level in your oil tank? This common predicament often points to a malfunctioning oil gauge. While many homeowners might opt to call in a professional, understanding the mechanics of your oil tank's float gauge and how to replace it can be a rewarding DIY task. This guide will walk you through the process, from understanding how the gauge works to its eventual replacement, and even introduce you to more modern alternatives.

What You'll Need for the Job

Before embarking on this task, ensure you have the necessary tools and attire. Working with heating oil can be a messy affair, so preparation is key. Here’s a list of essentials:

• Rubber Gloves: To protect your hands from the oil.
• Old Clothes: Heating oil has a distinct and persistent odour. Wearing old, disposable clothing is highly recommended to avoid ruining your good garments.
• A Sturdy Pipe Wrench: A 14-inch or larger wrench is typically required for loosening the gauge fitting.
• Pipe Dope or Thread Sealant: This is crucial for ensuring a leak-free seal when installing the new gauge.
• Penetrating Oil/Liquid Wrench (Optional but Recommended): For stubborn fittings that haven't been loosened in a while, a penetrating oil can make the job significantly easier.

How Your Float Gauge Operates

To effectively replace your float gauge, it's beneficial to understand its fundamental operation. At its core, a float gauge consists of a long metal rod, often referred to as an arm, connected to a float. This float, which can be a buoyant ball or a disc, rests directly on the surface of the oil within the tank. As the oil level fluctuates, the float rises or falls accordingly. The metal arm acts as a lever, transmitting this movement to a visible indicator on the surface. This indicator is typically a coloured disc housed within a clear plastic vial. The position of this disc provides a visual approximation of the amount of oil remaining in the tank. Essentially, the 'bobber' or float provides the primary measurement, and the gauge translates this into a readable format. However, it's worth noting that the float can occasionally become stuck, leading to inaccurate readings.

Common Reasons for Float Gauge Failure

Float gauges, while simple in design, can unfortunately fail for a variety of reasons, necessitating replacement. The most frequent culprit is the accumulation of sludge and debris on the float itself. This build-up can prevent the float from moving freely, thus rendering the gauge inaccurate. In the image provided, you can clearly see how this sludge can coat the float. The metal arm connecting the float to the gauge can also become bent over time, especially if excessive force is applied. Mishandling, such as pushing down too hard on the indicator disc, can lead to the delicate hinge mechanism breaking or bending. Another common issue is the entire gauge assembly rotating within the tank's fitting. This rotation can cause the float to snag on the inner walls of the tank, immobilising it and making the gauge unresponsive. When any of these problems occur, replacing the entire gauge assembly is often the most effective solution.

The build-up of sludge is a primary reason for gauge failure. Once coated, cleaning becomes difficult, making wireless or smart oil gauges a more reliable and cleaner alternative.

Step-by-Step Replacement Guide

Replacing your float gauge is a manageable process if followed carefully. Remember to work in a well-ventilated area and have your cleanup supplies ready.

Step 1: Loosen the Fitting

Begin by carefully removing the plastic vial that houses the indicator disc. This is usually a simple unscrewing action by hand. Once exposed, place your pipe wrench onto the metal fitting of the gauge assembly. Apply gentle, counter-clockwise pressure to loosen the fitting. It is critical to only loosen it by about half a turn at this stage. Over-loosening too early can cause the float mechanism to snag on the interior of the tank, making removal difficult. If the fitting is particularly tight, a generous application of penetrating oil, left to soak for several hours or even overnight, can significantly ease the process. After the soaking period, attempt to unscrew it again.

Step 2: Lift the Disc and Loosen Completely

With the fitting slightly loosened, you'll need to lift the indicator disc upwards as far as it will go. This action lifts the float within the tank, allowing the entire assembly to be rotated freely without the float catching on the tank's internal surfaces. While this step can be managed by one person, having an assistant to help hold the disc or guide the assembly can be beneficial. Continue to unscrew the gauge assembly from the tank's fitting, pulling it upwards as you go.

Step 3: Removing the Old Float Assembly

Once the gauge assembly is completely unthreaded, it's time for removal. Prepare a garbage bag and paper towels for any residual oil. Gently release the indicator disc, allowing the float to settle back into the oil. Slowly and steadily, pull the entire assembly out of the tank. Immediately place the old gauge into the prepared garbage bag. Use paper towels to wipe away any spilled oil from the tank's opening or surrounding area. This step is often the messiest, so be prepared for minor spillage.

Step 4: Installing Your New Gauge

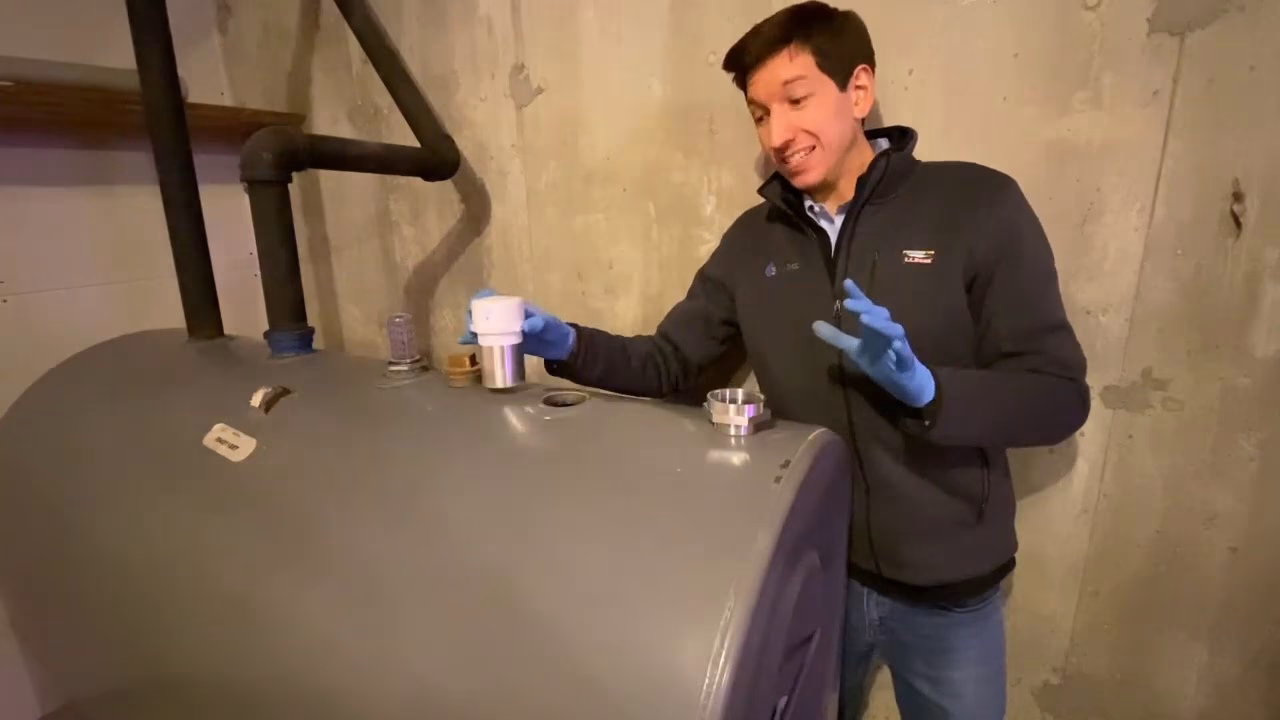

Whether you're installing a direct replacement float gauge or a more advanced smart oil gauge, the process will involve reversing the removal steps. Before fitting the new gauge, thoroughly wipe clean the threaded opening on the top of your tank. Apply a thin, even layer of pipe dope or thread sealant to the threads of the new gauge. This is essential for creating a watertight and airtight seal.

To ensure proper operation, it's advisable to mark the direction in which the float arm should extend once inside the tank. This usually involves orienting the arm towards the open centre of the tank to avoid contact with the walls. Carefully lower the new float assembly into the tank until the threads engage. Gently lift the indicator disc to raise the float out of the oil, then begin to tighten the assembly clockwise until it is snug. Avoid over-tightening, which could damage the threads or the tank fitting. Once the gauge is securely in place and the arm is correctly positioned, reattach the plastic vial, ensuring it is also snug. Your new gauge should now be ready for use.

Pro Tip: Use a marker to pre-mark the tank fitting, indicating the optimal orientation for the float arm before lowering the assembly. This helps ensure it doesn't get caught on the tank's interior.

Introducing the Smart Oil Gauge

For those seeking a more modern and reliable solution, the smart oil gauge offers a compelling alternative to traditional float gauges. These devices utilise ultrasonic sensors to measure the oil level wirelessly. The sensor emits a signal that travels down to the oil's surface and reflects back. Based on the time it takes for the signal to return, and configured tank parameters, the gauge accurately calculates and displays the remaining oil volume. Smart oil gauges are typically straightforward to install, often screwing into an existing spare fitting on the tank. They can even be used in conjunction with existing float gauges for a dual-monitoring system.

The installation process for a smart oil gauge is similar to a manual gauge: apply pipe dope to the threads and tighten it into the tank using a pipe wrench. Many smart oil gauges come with a companion smartphone app. This allows you to monitor your oil levels remotely, receive low-level alerts, and even schedule deliveries, offering unparalleled convenience and peace of mind. The enhanced reliability and cleaner operation make upgrading to a smart oil gauge a worthwhile consideration.

Key Benefits of Smart Oil Gauges:

• Wireless Monitoring: Check levels remotely via smartphone app.
• Increased Accuracy: Less susceptible to sludge build-up.
• Convenience: Receive low-level alerts and schedule deliveries.
• Modern Solution: A cleaner and more reliable alternative.

Frequently Asked Questions

Q1: How often should I check my oil gauge?

It’s advisable to check your oil level regularly, perhaps once a week or bi-weekly, to stay ahead of your heating oil needs.

Q2: Can I just clean the old float gauge instead of replacing it?

While you can attempt to clean off sludge, it is often difficult to remove completely and may not restore full functionality. Replacement is usually the more effective long-term solution.

Q3: What happens if the float gets stuck?

If the float is stuck, the gauge will not provide an accurate reading of your oil level. This is a common reason for gauge replacement.

Q4: Is it safe to install a new gauge myself?

Yes, with the right tools and by following these instructions carefully, it is a safe DIY task. Ensure you have adequate ventilation and take precautions against oil spills.

Q5: Where can I find the best prices for heating oil?

Websites like FuelSnap can help you compare prices from local suppliers to ensure you're getting the best deal on your heating oil.

Conclusion

Monitoring your oil level is crucial for ensuring consistent heating throughout your home. A functional float gauge is your primary tool for this. By understanding its operation and following the steps outlined above, you can successfully replace a faulty gauge. For enhanced accuracy, convenience, and a cleaner experience, consider upgrading to a smart oil gauge. Properly configuring your smart gauge and setting up alerts will help you manage your heating oil efficiently, preventing unexpected shortages. Remember to consult resources like FuelSnap for competitive heating oil pricing in your area.

Happy Heating!

- Hunter
