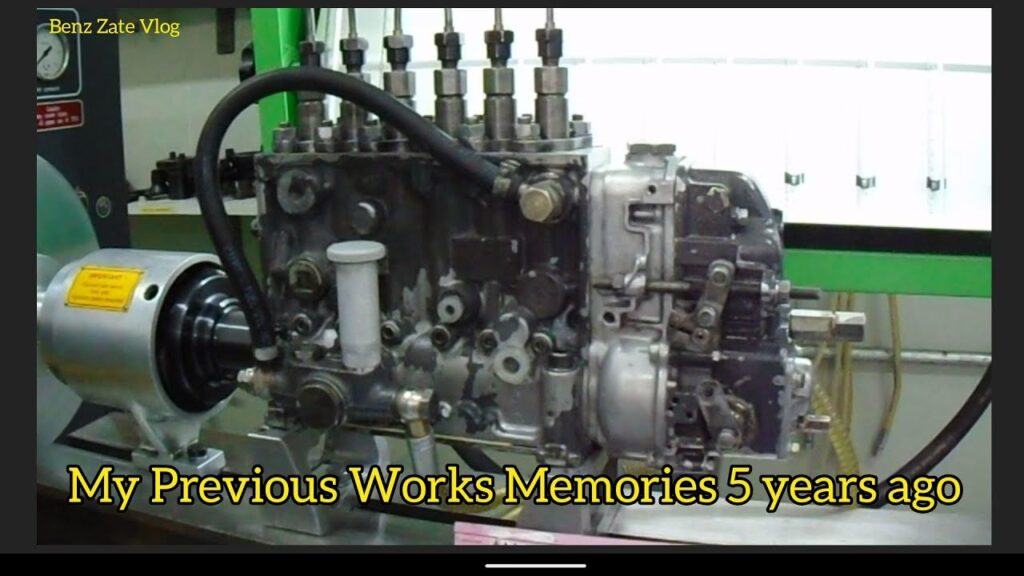

Calibrating Your Fuel Injection Pump

Ensuring your engine receives the correct amount of fuel at the precise moment is crucial for optimal performance, fuel efficiency, and longevity. The fuel injection pump is at the heart of this process, and over time, its calibration can drift, leading to a host of issues. This guide will walk you through the detailed procedure for calibrating a fuel injection pump, a process that can be undertaken with the pump either mounted on or removed from the engine. We'll cover everything from initial disassembly to final checks, equipping you with the knowledge to tackle this essential maintenance task.

Understanding Fuel Injection Pump Calibration

Fuel injection pump calibration involves precisely adjusting the fuel delivery from each injection pump element. This ensures that every cylinder receives an equal and correct volume of fuel, which is vital for balanced engine operation. Incorrect calibration can manifest as rough idling, poor acceleration, increased fuel consumption, and even engine damage if severe imbalances occur. This procedure requires accuracy and the use of specific tooling to achieve the desired results.

Essential Tools and Components

Before you begin, gather the necessary tools and components. Precision is key, so ensure you have the following:

• 3P1546 Calibration Pin: Used to establish a reference point.
• 5P6602 Adapter: Facilitates the installation of the calibration pin.
• 8S7271 Screw: Secures the adapter and calibration pin.
• 3P1540 Calibration Pump: A special tool that replaces a standard injection pump for measurement.
• 3P1568 Dial Indicator (with 3P2226 Collet): The primary measurement tool to gauge plunger movement.
• 1P7379 Microgauge: Used in conjunction with the dial indicator for precise zeroing.
• 8S2243 Wrench: For tightening and loosening specific components.
• 6V0190 Clamp: Used to counteract spring pressure and ensure accurate readings.
• Torque Wrench: For precise tightening of bolts and the calibration pump bushing.
• Clean diesel fuel: For lubrication and cleaning.

Step-by-Step Calibration Procedure

1. Initial Preparations: Removing Covers and Draining Fuel

Begin by carefully removing the protective covers to access the internal components of the fuel injection pump housing. This typically includes the shutoff solenoid, the top cover, and the cover for the torque control group. Once these are removed, you will need to drain any accumulated fuel from both the fuel injection pump housing and the governor housing. This prevents spillage during the calibration process and ensures a clean working environment.

2. Installing the Calibration Pin

Locate the designated calibration hole on the fuel injection pump housing. Install the 3P1546 Calibration Pin into this hole. This pin is critical for setting up the measurement system. Next, install the 5P6602 Adapter onto the fuel injection pump housing using the specified bolts (1D4533 and 1D4538). Ensure the adapter is securely fastened. Then, insert the 8S2241 Screw into the hole that sits over the calibration pin. Tighten this screw to a specific torque of 2.3 to 2.8 N·m (20 to 25 lb in). This secures the pin and sets a preliminary reference.

3. Adjusting the Low Idle Screw

The low idle screw plays a role in setting the initial position of the control rack. Locate the low idle screw (15) and the associated lever (16). Adjust the low idle screw so that the lever is positioned at a specific distance from the governor housing boss: 8.9 ± 1.0 mm (.35 ± .04 in). This adjustment helps ensure consistent operation at low engine speeds.

4. Removing Fuel Injection Pumps for Testing

Using the 8S2243 Wrench, carefully remove the fuel injection pumps that require checking. It is imperative to handle these pumps with extreme care. If a fuel injection pump is removed, the sleeve that sits on the pump plunger must remain with the plunger. If this sleeve becomes dislodged, locate it immediately and reinstall it on the correct pump plunger before proceeding with the removal of any other pumps. The sleeve is specific to its plunger and must not be mixed up.

Important Note on Sleeves: When reinstalling the sleeve onto the pump plunger, ensure the narrower of the two lands on the sleeve is oriented towards the top of the fuel injection pump, nearest to the pump spring. This orientation is crucial for correct seating and operation.

5. Installing the 3P1540 Calibration Pump

Before installing the 3P1540 Calibration Pump, ensure its barrel and plunger are meticulously clean. Lubricate the calibration pump with clean diesel fuel. It's also important to verify that the correct spring is installed in the calibration pump. Earlier calibration pumps may have used a 1P7377 Spring, but for this procedure, the 5P6557 Spring should be used.

To install the 3P1540 Calibration Pump, align the flat spot (20) on its plunger with the tang (17) on the lever (18) within the fuel injection pump housing. Once the calibration pump is fully seated in its bore, rotate it 180 degrees (either clockwise or counterclockwise). This action ensures that the lever's tang engages with the groove (19) on the calibration pump. Subsequently, install the 7W8120 Bushing. Using the 8S2243 Wrench and a torque wrench, tighten the bushing to 80 ± 7 N·m (60 ± 5 lb ft). This 180-degree rotation provides a consistent reference point for all measurements.

Sealing Surface Integrity: Maintain extreme cleanliness on all contact surfaces of the standard bushing, the fuel injection pump, and the fuel injection pump housing. Any scratches or debris can lead to leaks, compromising the accuracy of your measurements. The 7W8120 Bushing and 3P1540 Calibration Pump are designed to work together, and their sealing surfaces are critical.

6. Setting the Dial Indicator to Zero

Accurate zeroing of the dial indicator is fundamental. Mount the 3P1568 Dial Indicator (4) onto the 1P7379 Microgauge (3), holding them firmly together. Loosen the lockscrew (21) and rotate the face of the dial indicator until the pointer rests precisely at the "0" mark. Then, retighten the lockscrew.

To confirm the zero setting, remove the dial indicator from the microgauge and then remount it. Observe the dial indicator's face; the pointer should complete one to one and a half full revolutions before settling back at exactly "0". If the number of revolutions is incorrect, adjust the position of the dial indicator by loosening the locknut on the 3P2226 Collet (23) until the correct zeroing action is achieved. Be aware that an overly tight locknut on the collet can impede the dial indicator's smooth operation.

7. Positioning the Measuring Clamp

The 6V0190 Clamp (25) is used to hold the shaft (24) down against its bearing. Position the clamp adjacent to the transfer pump end of the housing. This clamp, along with the 3P1546 Calibration Pin (held by the 8S7271 Screw), ensures the shaft remains in its normal operating position, counteracting the upward force exerted by the spring within the 3P1540 Calibration Pump. For engines with fuel injection pumps on the "slave" side (opposite the governor control lever), clamps should be applied to both ends of the shaft.

8. Taking the Initial Dial Indicator Reading

Place the 3P1568 Dial Indicator (4) onto the 3P1540 Calibration Pump (1) as illustrated. Secure it firmly. To eliminate any end play in the shaft (24), push it towards the governor end. Furthermore, to remove any slack in the linkage, lift the crossover lever dowel and then release it rapidly. Repeat this action several times. After these steps, observe the reading on the 3P1568 Dial Indicator.

9. Interpreting the Readings and Tolerance

The desired reading for all fuel injection pumps is "0.000". However, a tolerance is allowed. The maximum permissible tolerance for individual fuel injection pump readings within a Fuel Injection Pump Group is 0.100 mm (meaning readings between -0.050 mm and +0.050 mm are acceptable). Additionally, the maximum permissible difference between any two fuel injection pumps in the same group is 0.050 mm.

Total Tolerance refers to the maximum acceptable range for all pointer positions. If any single reading falls outside this range, adjustments are necessary for all affected fuel injection pumps. The term Band, often shown as an example, represents a 0.050 mm range, indicating the maximum allowable difference between any two readings. If any two readings exceed this 0.050 mm difference, recalibration is required.

If the dial indicator reading for a particular pump is close to either end of the Total Tolerance, it's advisable to check another pump. If the subsequent reading is outside the Total Tolerance, or if the difference between the two readings is 0.050 mm or more, proceed to the adjustment steps for all relevant pumps.

The service technician must exercise judgment based on engine symptoms to determine which and how many pumps require calibration.

10. Adjusting Fuel Pump Calibration (If Necessary)

If the initial dial indicator readings are outside the acceptable limits (more than ± 0.050 mm from "0.000"), you will need to perform adjustments. This typically involves a sequence of steps (17 through 20 in the original procedure) focused on fine-tuning the fuel delivery. These adjustments often involve manipulating the low idle screw, as well as other internal settings, based on the specific readings obtained. The exact nature of these adjustments will depend on whether the reading is too high or too low and the specific design of the injection pump.

11. Finalizing Calibration

Once all fuel injection pumps have been checked and, if necessary, adjusted, you can finalize the calibration. If the readings for all pumps fall within the specified limits (Step 13), the calibration is considered acceptable. At this point, remove all the special tooling, including the calibration pump, dial indicator, clamps, and pins. Then, reinstall all the covers and components that were initially removed. Double-check that all connections are secure and that no tools or parts are left behind.

Troubleshooting Tip: If the dial indicator reading for a particular pump is "0" or very close to it, it's a good indication that the calibration of the other pumps is likely within tolerance. However, it's always best practice to verify all pumps.

Common Issues and Troubleshooting

When calibrating a fuel injection pump, several common issues can arise:

• Inaccurate Readings: This can be due to improper zeroing of the dial indicator, play in the linkage, or incorrect positioning of the calibration tools. Ensure all steps for setting up the measuring equipment are followed meticulously.
• Spring Issues: Using the wrong spring in the calibration pump can lead to erroneous measurements. Always confirm you have the correct spring (5P6557 for this procedure).
• Cleanliness: Contamination on sealing surfaces or within the pump components can cause leaks or binding, affecting accuracy. Maintain a rigorous standard of cleanliness throughout the process.
• Worn Components: If internal components of the fuel injection pump or the calibration tools are worn, it can lead to inconsistent or inaccurate readings.

Frequently Asked Questions

Q1: How often should a fuel injection pump be calibrated?

The frequency of calibration depends on usage, operating conditions, and any symptoms of poor engine performance. A general guideline is to check during major engine overhauls or if performance issues arise.

Q2: Can I calibrate the fuel injection pump without special tools?

While some basic adjustments might be possible, accurate calibration of a fuel injection pump typically requires specialized tools like the ones mentioned (calibration pump, dial indicator, etc.). Attempting calibration without them can lead to incorrect settings and potential engine damage.

Q3: What happens if the fuel injection pump is not calibrated correctly?

Incorrect calibration can result in uneven fuel delivery to cylinders, leading to rough running, reduced power, increased fuel consumption, higher emissions, and potentially severe engine damage due to imbalances in combustion or overheating.

Q4: What is the significance of the "Total Tolerance"?

Total Tolerance defines the acceptable overall range of variation for all fuel injection pump measurements. If any pump falls outside this range, it indicates a significant calibration issue that needs to be addressed across the entire set of pumps.

Q5: Is it possible to calibrate the pump with the engine running?

The procedure described here is for static calibration with the pump removed or its drive mechanism disengaged. Dynamic calibration with the engine running is a more complex process typically performed on a test bench.

By following this detailed guide, you can confidently approach the calibration of your fuel injection pump. Precision, the right tools, and meticulous attention to detail are the cornerstones of achieving optimal engine performance and reliability.
