Mastering Pulley Alignment for Peak Machinery Performance

In the intricate world of mechanical systems, the seemingly simple task of ensuring pulleys are correctly aligned plays a profoundly significant role in the overall health and efficiency of your machinery. From industrial power transmission to everyday automotive applications, the precise positioning of pulleys and belts is paramount. When pulleys are out of sync, the consequences can range from minor inefficiencies to catastrophic equipment failure. This guide delves into the critical importance of pulley alignment, explores the revolutionary impact of laser alignment systems, and outlines the essential steps to maintain optimal alignment, ensuring your machinery operates at its peak performance.

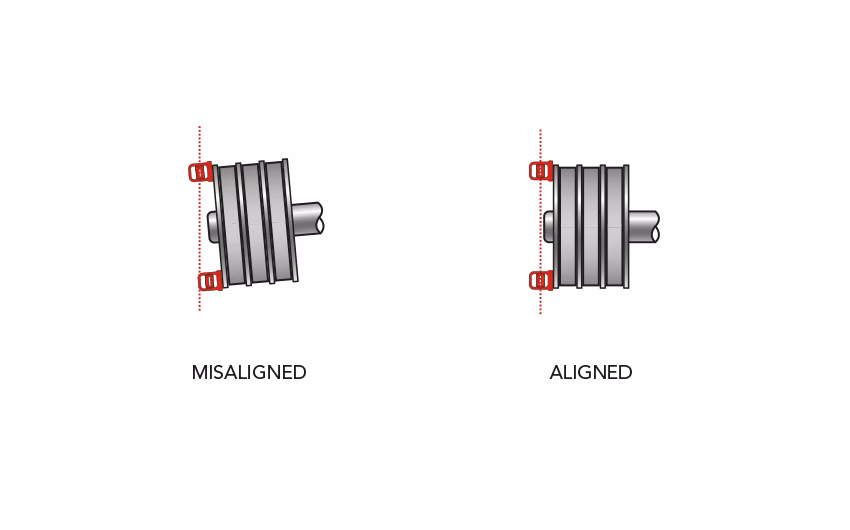

What is a Belt & Pulley Alignment System?

A belt and pulley alignment system is a sophisticated diagnostic tool designed to ensure that pulleys within a belt-driven system are positioned correctly relative to each other. The primary goal is to achieve parallel and co-planar alignment, meaning the pulleys must be perfectly parallel and sit on the same plane. Modern systems, such as the Clavis Pulley Alignment System, leverage advanced technology like laser triangulation to achieve this with exceptional accuracy. These systems typically involve a laser module that clamps onto one pulley and projects a laser line onto the second pulley. An image sensor, positioned at a known distance and angle from the laser source, captures the reflected light. By measuring the position of this reflected light on the sensor, the system can calculate the precise alignment, identifying both angular and offset (parallel) discrepancies. The principle is akin to triangulation: the known distance between the laser and sensor, combined with the angle of the reflected light, allows for a precise determination of the distance to the target object, and importantly, its positional accuracy relative to the other pulley.

How Do Laser Pulley Alignment Systems Work?

Laser pulley alignment systems represent a significant leap forward from traditional methods like using string or straight edges. These advanced tools utilise optical triangulation, often employing a laser line projected onto the target pulley. The light reflected from this line is captured by a high-quality optical system and analysed by a sensor array. Unlike simpler laser pointers, these systems can often acquire both distance (Z-axis) and positional (X-axis) data simultaneously. For instance, a system might project a laser line that, when viewed by a 1280-pixel sensor, can achieve a resolution as fine as 19.53125µm when the target is 66mm away, with the projected beam spanning 25mm. This high precision allows for the detection of minute misalignments that would be imperceptible to the human eye or less sophisticated tools.

Why is Pulley Alignment So Crucial?

The importance of proper pulley alignment cannot be overstated. At its core, it’s about maximising the value and lifespan of your belt drive system. Here’s why it matters:

• Increased Efficiency: When pulleys are perfectly aligned, belts run smoothly, minimising friction and energy loss. This translates directly into improved operational efficiency for the machinery.
• Reduced Premature Wear: Misalignment causes belts to run at an angle or off-centre, leading to uneven stress and rapid wear on the belt's edges, as well as the pulley grooves. Proper alignment ensures the load is distributed evenly, drastically extending the life of both the belt and the pulleys.
• Lower Maintenance Costs: By preventing premature wear, you reduce the frequency of belt and pulley replacements. This direct saving on parts, coupled with reduced labour for replacements, significantly cuts down on maintenance expenditure.
• Prevention of Unplanned Downtime: A misaligned belt is a ticking time bomb for equipment failure. Slipping belts, snapping belts, or damage to bearings and seals can all lead to unexpected shutdowns, halting production and incurring substantial costs. Correct alignment is a key preventative measure.
• Reduced Vibration and Noise: Misalignment often results in increased vibration and noise. This not only creates an unpleasant working environment but can also lead to further mechanical damage to other components, such as bearings and motor mounts.
• Lower Energy Consumption: When belts are misaligned, motors have to work harder to overcome the increased friction and drag. Correct alignment ensures the system runs more smoothly, reducing the energy required and leading to lower power bills.

The Consequences of Misaligned Pulleys

Ignoring pulley alignment can have severe repercussions:

• Reduced Useful Life: Poor pulley alignment can reduce the useful operating life of a belt drive system by as much as 80%.
• Damage to Components: Beyond belt wear, pulleys, bearings, and seals can all be damaged due to misalignment, leading to more extensive and costly repairs.
• Increased Operational Costs: Higher energy consumption and more frequent part replacements directly translate to increased operational costs.
• Safety Risks: In extreme cases, a failing belt or pulley due to misalignment can pose a significant safety hazard to personnel.

What Causes Pulley Misalignment?

Several factors can contribute to pulley misalignment:

• Poor Drive Maintenance: Incorrect belt tension or a failure to address minor misalignments as they develop can lead to significant problems over time.
• Environmental Factors: Extreme temperatures, significant temperature fluctuations, or prolonged exposure to harsh sunlight can sometimes affect the integrity of mounting systems, leading to misalignment.
• Improper Installation: Using the wrong type of belt, forcing belts onto pulleys instead of using hand pressure, or incorrect initial mounting can immediately introduce misalignment.
• Operational Factors: Overloading the machinery or experiencing shock loads that are not adequately managed can stress the drive system and cause components to shift out of alignment.

How to Achieve and Maintain Proper Pulley Alignment

Achieving and maintaining correct pulley alignment is a systematic process:

1. Confirm Misalignment and Initial Checks

Before making any adjustments, it's crucial to confirm the presence and type of misalignment. Always refer to the original equipment manufacturer's (OEM) tolerance recommendations. Begin by checking for radial run-out. If none is apparent, proceed to check for shaft run-out. If shaft run-out is detected, the shaft or associated components will likely need replacement before alignment can be effectively addressed.

2. Address Soft Foot Conditions

A 'soft foot' refers to a situation where one or more of the base feet supporting the machinery are not sitting perfectly flat on the mounting surface. This can happen due to uneven wear, debris, or manufacturing defects. When a soft foot is present, tightening the mounting bolts can warp the base, pulling the drive out of alignment. To check for soft foot:

• Loosen the bolts for one foot at a time.
• Use feeler gauges to measure any gap between the foot and the mounting surface.
• Any gap exceeding 0.002 inches (approximately 0.05 mm) indicates a soft foot condition that needs rectification, typically by shimming or re-levelling.
• Ensure all feet are properly seated and secure before proceeding.

3. Install New Belts Correctly

When installing new belts, ensure they are properly fitted. The slack sides of all belts should be consistently positioned on the same side of the machine (e.g., all at the top or all at the bottom). Crucially, never force or pry belts onto pulleys. They should be fitted using hand pressure only. Forcing belts can immediately introduce misalignment and damage the belt or pulleys.

4. Laser Alignment: The Precision Solution

Laser alignment tools offer unparalleled accuracy and efficiency. The process typically involves:

• Setup: Attach the laser emitter to one pulley and the target/reflector to the other.
• Measurement: Activate the laser. The system will measure angular and parallel (offset) misalignment. Modern systems provide real-time feedback on a display.
• Correction:
• Angular Misalignment: Corrected by shimming the drive or driven unit to make the pulleys parallel.
• Parallel (Offset) Misalignment: Corrected by moving the drive or driven unit axially along its mounting base.
• Re-check: After making adjustments, re-measure with the laser system to confirm that the alignment is within acceptable tolerances.

Laser alignment significantly reduces the time and manpower required compared to traditional methods, yielding more accurate results and preventing costly errors.

Traditional vs. Laser Alignment Methods

While traditional methods like using a straightedge or string can provide a basic indication of alignment, they have significant limitations:

The investment in a laser alignment system pays for itself through reduced downtime, extended component life, and improved efficiency.

How Do I Know if My Belt is Misaligned?

Regularly monitoring your belt-driven systems for signs of misalignment is crucial. Key indicators include:

• Abnormal Noise: Squealing, screeching, or grinding sounds often point to a belt rubbing against pulley flanges or running off-centre.
• Visible Wear and Tear: Inspect the belt for uneven wear, fraying edges, glazing, or cracking. These are classic symptoms of misalignment.
• Excessive Vibration: Unusually high vibration levels in the belt, pulleys, or driven equipment can indicate misalignment.
• Belt Tracking Issues: If the belt consistently drifts towards one side of the pulley or appears to wander, it's a clear sign of misalignment.
• Increased Energy Consumption: A noticeable increase in power usage for the same output can be attributed to the extra effort required by the motor to overcome the drag of a misaligned belt.

Checking for Misalignment: Practical Steps

1. Visual Inspection: Look for the signs mentioned above. Check if the belt is centred on the pulleys.
2. Power Down: Always ensure the machinery is safely powered off and locked out before performing any checks or adjustments.

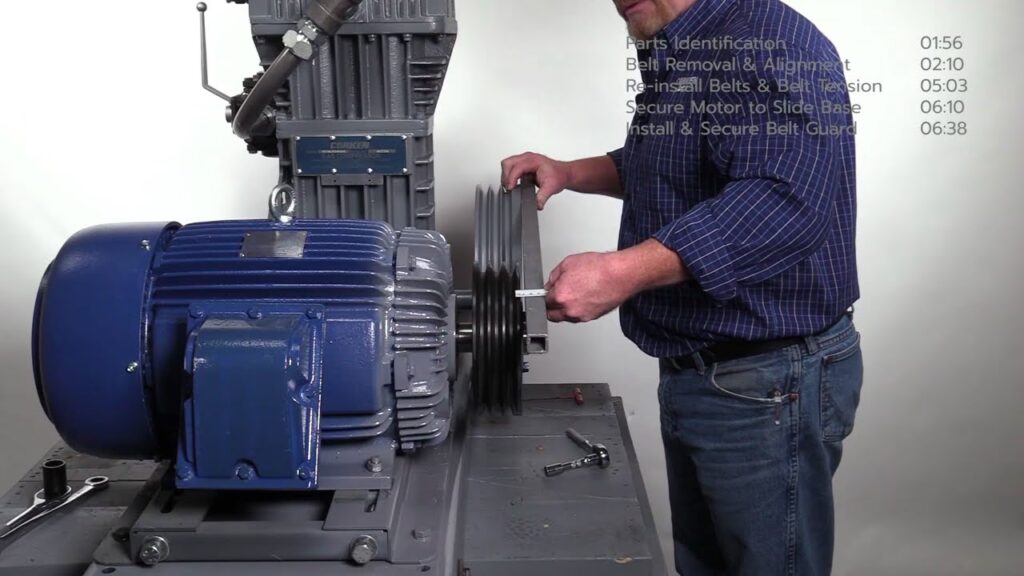

3. Straightedge/String Test: Place a straightedge or taut string across the faces of the pulleys. It should touch both pulley faces evenly without any gaps. Check from multiple angles.
4. Laser Alignment Tool: For definitive diagnosis, use a laser alignment tool as described previously.
5. Pulley Groove Inspection: Examine the pulley grooves for wear. Worn grooves can affect belt seating and contribute to misalignment issues.

Best Practices for Belt Alignment Maintenance

To ensure optimal performance and longevity of your belt-driven machinery:

• Regular Inspections: Incorporate belt and pulley alignment checks into your routine preventive maintenance schedule.
• Use Precision Tools: Invest in and utilise quality laser alignment tools for accurate measurements and adjustments.
• Proper Training: Ensure maintenance personnel are adequately trained in using alignment tools and understanding the principles of good alignment.
• Documentation: Keep detailed records of inspections, adjustments, and part replacements. This historical data can help identify trends and predict potential issues.
• Follow OEM Guidelines: Always adhere to the manufacturer's specifications for belt tension, alignment tolerances, and maintenance procedures.

By embracing these practices and understanding the critical role of pulley alignment, you can significantly enhance the reliability, efficiency, and lifespan of your valuable machinery.
