Mastering Bike Brake Alignment

A perfectly aligned set of brakes is fundamental to both your safety and enjoyment on the road or trail. Few things are as irritating as the constant, subtle rub of a misaligned brake, even if it's not significantly slowing you down. This persistent friction can lead to premature pad wear, reduced braking efficiency, and an overall diminished riding experience. Whether you're grappling with the intricate mechanisms of modern hydraulic disc brakes or fine-tuning the classic simplicity of rim brakes, achieving proper alignment is a skill every cyclist should master. This comprehensive guide will walk you through the essential steps and troubleshooting tips to ensure your brakes operate silently and efficiently, regardless of your bike's setup.

Understanding Brake Alignment: Why It Matters

Brake alignment isn't just about silencing that annoying squeal or rub; it's about optimising your bike's performance and ensuring your safety. When brakes are properly aligned, the pads make even and consistent contact with the braking surface – be it a disc rotor or a rim. This even contact ensures maximum stopping power, predictable modulation, and extended lifespan for your brake pads and rotors/rims. Misalignment, on the other hand, can lead to uneven pad wear, reduced braking force, increased lever pull, and even dangerous brake fade in extreme cases. It's a small adjustment that yields significant benefits.

Diagnosing Disc Brake Rub: The First Step to Resolution

Before you even think about adjusting your hydraulic disc brake caliper, it's crucial to correctly diagnose the source of the rub. While a misaligned caliper is a common culprit, other factors can mimic the symptom of pad-to-rotor contact. A thorough diagnosis will save you time and frustration.

Checking Wheel Seating

A surprising number of brake rub issues stem from an improperly seated wheel. This applies to both thru-axle and quick-release (QR) systems. To check, first, ensure your bike is on a level surface. Loosen the quick-release lever or axle nuts. Apply firm downward pressure on the bike, ensuring the wheel axle is fully seated in the dropouts and the frame is in solid contact. Re-tighten the quick-release lever or axle nuts securely. Spin the wheel and observe for rub. If the rub persists, move on to more detailed checks.

Other Common Causes of Pad/Rotor Rub

Once you've ruled out wheel seating, several other factors can contribute to unwanted pad-to-rotor contact:

• Bent Rotor: It's normal for rotors to have a tiny bit of lateral movement as they spin, but a significantly bent rotor will make proper caliper alignment impossible. If your rotor looks like a wobbly plate, it's likely bent. While some minor truing is possible, a severely bent rotor often requires replacement.
• Rotor Play: Rotors are secured to the hub with either six mounting bolts or a centre-lock ring. If these are loose, the rotor can wobble, causing rub. Ensure they are torqued to the manufacturer's specifications.
• Bearing Play: Play in your wheel hub bearings can cause the entire wheel, and thus the rotor, to wobble. To check, rock the wheel from side to side while it's in the frame. If there's noticeable play, the hub bearings need attention or replacement.
• Sticky Pistons: Hydraulic disc brake calipers use pistons to push the pads against the rotor. Dust, dirt, and old fluid can cause one or both pistons to stick, preventing them from retracting fully or extending unevenly. While you might still achieve temporary alignment, addressing sticky pistons through cleaning and lubrication is the long-term solution.

Here's a quick reference for common issues:

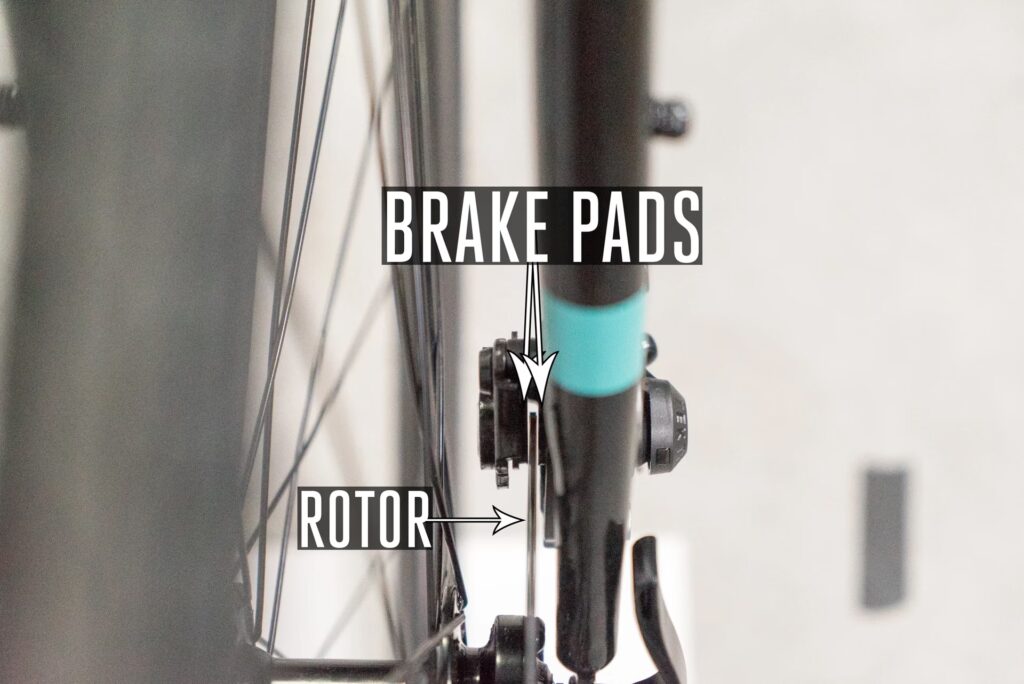

Hydraulic Disc Brake Alignment Procedure

Assuming you've diagnosed and ruled out other issues, you can now proceed with aligning your hydraulic disc brake caliper. The process is generally the same for both front and rear brakes.

1. Loosen Mounting Bolts: Locate the two bolts that secure the caliper to the frame or fork. Using the appropriate Allen key, loosen both bolts just enough so that the caliper body can move freely from side to side. Be aware that on some bikes, these bolts might be less accessible, such as under the chainstay or on a specific bracket.
2. Squeeze Brake Lever: Gently but firmly squeeze the corresponding brake lever (e.g., right lever for the front brake, left for the rear). This action forces the pistons to extend, pushing the pads against the rotor. The natural tendency of the brake system is to self-centre the caliper over the rotor when pressure is applied.
3. Snug Up Mounting Bolts: While still holding the brake lever firmly squeezed, carefully snug up the two caliper mounting bolts. Alternate between the bolts, tightening each a little at a time to ensure even pressure and prevent the caliper from shifting. The goal here is to hold the caliper in its centred position without fully torquing the bolts yet.
4. Release Brake Lever and Test: Once the bolts are snug, release the brake lever. Give the wheel a good spin and carefully observe the gaps between the rotor and both pads. Ideally, you should see an even gap on both sides, with no rubbing. Backlighting the caliper with a torch can make it easier to see these clearances.
5. Secure Mounting Bolts: If there is no rubbing, congratulations! Your caliper is aligned. Now, fully secure the mounting bolts to the manufacturer's recommended torque specification, which is typically around 6–8 Nm. Use a torque wrench for precision, as overtightening can damage threads, and undertightening can lead to loosening during rides.

If you still hear or see rubbing after following these steps, don't despair; it's time for some fine-tuning.

Fine-Tuning Your Disc Brakes

If the initial alignment procedure didn't completely eliminate the rub, you'll need to make minor manual adjustments. This requires a bit more finesse:

7. Identify the Rub Spot: Spin the wheel and carefully observe where the rub is occurring. Is it consistently on one side? Does it happen only at a specific point in the rotor's rotation?
8. Adjust One Bolt at a Time: While the wheel is spinning (exercise extreme caution with your fingers and tools near a moving wheel!), slightly loosen one of the caliper mounting bolts. Gently push or pull the caliper body in the direction opposite to the rub. For example, if the rub is on the left side of the rotor, push the caliper slightly to the right. The goal is to create an even gap on both sides.
9. Test and Re-Torque: Once you believe you've achieved better alignment, snug up the bolt you just adjusted, release the brake lever, and spin the wheel again. If the rub is gone, proceed to fully torque both mounting bolts (6–8 Nm). If the rub persists, try the same procedure with the other mounting bolt, making small, incremental adjustments.

Additional Knowledge for Persistent Issues

Some brake systems incorporate conical washers between the caliper and the frame/fork mounts. These washers are designed to assist in perpendicular alignment, allowing for slight angular adjustment of the caliper. Do not add these washers if your system wasn't originally designed with them, as this can throw off the pad-to-rotor alignment. Similarly, conical washers can sometimes be found between the bolt head and the caliper to ensure proper bolt head alignment. Always put these back if you find them.

If, after all these attempts, you still cannot achieve adequate alignment, the issue might lie with the frame mounts themselves. Frame and fork brake mounts are assumed to be perfectly machined and square with the rotor. However, manufacturing tolerances or damage can sometimes mean they are not perfectly flat or square. In such rare cases, a specialist bike shop can use a tool like the Park Tool DT-5.2 to 'face' or machine the mounts, ensuring a perfectly flat and square surface for the caliper to mount to. This is a highly specialised procedure and should only be performed by experienced mechanics.

Rim Brake Alignment: Getting Your Pads Spot On

Rim brakes, while mechanically simpler than disc brakes, also require precise alignment for optimal performance. Misaligned rim brake pads can lead to ineffective braking, premature pad wear, and even damage to your wheel rims. Here's how to get them right:

1. Check Pad Alignment: With your bike upright, visually inspect your brake pads. They should be aligned with the centre of the rim's braking surface and follow the curve of the rim. Crucially, they should not touch the tyre wall or extend below the rim's braking surface.
2. Loosen Brake Cartridge/Pad: Each brake pad (or its cartridge holder) is typically secured to the caliper arm with an Allen key bolt. Turn this bolt anti-clockwise just enough to allow the pad to move up, down, and rotate, but not so loose that it flops around uncontrollably.
3. Line Up with the Rim: Adjust the brake pad so that it is perfectly flush with the rim's braking surface. Ensure it doesn't rub the tyre and doesn't sit too low, potentially hitting the spokes. While holding the pad firmly in this ideal position, re-tighten the Allen bolt. Be careful, as the pressure from tightening can sometimes cause the pad to shift. If it moves, loosen and re-adjust.
4. Check Caliper Centring: Stand directly behind your bike and look at the brake caliper. You want to see even spacing between both brake pads and the rim. If one pad is closer to the rim than the other, the caliper itself is off-centre.
5. Adjust Caliper Centring: Most rim brake calipers have a fixing bolt where the caliper attaches to the bike's frame (at the brake bridge) or fork. Use a spanner (often 10mm or 13mm) to slightly loosen this bolt. While loose, you can usually push or pull the caliper body gently to centre it over the rim. Once centred, hold it in place and re-tighten the fixing bolt.
6. Tighten Brake Cable: With the pads aligned and the caliper centred, check the distance between the pads and the rim. If they are more than a few millimetres away, you'll need to adjust the cable tension. Find the cable retaining bolt on the caliper (usually an Allen bolt). Loosen it, pull the brake cable tighter through the bolt, and then re-tighten the bolt. This will bring the pads closer to the rim. Ensure there's still enough clearance for the wheel to spin freely without rubbing when the brake is not applied.

Special Considerations: Advanced Rim Brake Pad Adjustment

Some modern or high-performance rim brakes, such as the Omega One mentioned in your query, feature advanced adjustment mechanisms. These often prioritise aerodynamics and precise control. A key feature of such designs is often independent pad adjustment. This means there's a separate fixing screw on each side of the brake that directly controls how far each pad sits from the brake track. This offers several benefits:

• Fine-Tuning: Allows for incredibly precise positioning of each pad relative to the rim.
• Rim Width Compatibility: You can easily adjust the pads outwards to accommodate wider modern rims or inwards as pads wear down, without needing to re-tension the main brake cable.
• Compensating for Imperfections: This independent adjustment can even help to compensate for slightly misaligned wheels or off-centre brake mounts on the frame, ensuring that despite these minor imperfections, the pads still make even contact with the rim.

To adjust these types of brakes, you'd typically loosen the individual pad fixing screws, position each pad precisely as desired (often using a small Allen key or screwdriver), and then re-tighten them. This method bypasses the need for caliper centring via the main mounting bolt, as the pad position itself is independently controlled.

When to Seek Professional Help

While most brake alignment issues can be resolved with a bit of patience and the right tools, there are times when it's best to consult a professional bike mechanic. If you've tried all the above steps for disc brakes and still experience persistent rubbing, especially if you suspect bent frame mounts or a severely damaged rotor, a bike shop has specialist tools and expertise to diagnose and fix the root cause. Similarly, if your rim brakes simply won't centre or the pads wear unevenly despite careful adjustment, there might be underlying issues with the caliper or its mounting that a mechanic can assess.

Frequently Asked Questions (FAQs)

Q1: How often should I check my brake alignment?

It's a good practice to check your brake alignment periodically, ideally before every ride as part of a quick pre-ride safety check. However, a more thorough inspection and adjustment should be performed whenever you hear rubbing, notice reduced braking performance, or after any significant maintenance like wheel removal and reinstallation.

Q2: Can I ride with rubbing brakes?

While a very slight, intermittent rub might not immediately compromise safety, it's not recommended to ride with consistently rubbing brakes. Persistent rub leads to accelerated pad and rotor/rim wear, generates unnecessary heat, and reduces overall braking efficiency. It can also be incredibly annoying and distracting, affecting your focus on the ride.

Q3: What does 'toe-in' mean for rim brakes?

Toe-in refers to the practice of setting rim brake pads so that the front edge of the pad (in the direction of wheel rotation) makes contact with the rim slightly before the rear edge. This creates a small gap at the rear of the pad when the brake is applied. The idea is that as the pad contacts the rim, it flexes slightly and the entire pad surface eventually makes contact, which can help eliminate brake squeal and chatter. It's an optional adjustment, not always necessary, but can be beneficial for noise reduction on some setups.

Q4: My disc brake lever feels spongy even after alignment. What's wrong?

A spongy brake lever is typically a sign of air in the hydraulic system, not a misalignment issue. Air compresses, leading to that soft, vague feeling at the lever. This requires a brake bleed, a process where new hydraulic fluid is pushed through the system to expel any trapped air. This is a separate maintenance task from alignment and often requires specific bleeding kits for your brake brand.

Q5: Is it safe to bend a bent disc rotor back into shape?

For minor bends, especially those visible as a slight wobble, a rotor truing fork or adjustable wrench can be used to carefully bend the rotor back into true. However, this requires a delicate touch and patience. Severely bent rotors, or those with kinks or creases, should be replaced as they can be weakened by repeated bending and may not hold their shape, posing a safety risk. When truing, ensure you're only applying gentle pressure and checking frequently.

Mastering brake alignment is a valuable skill that enhances your cycling experience. By understanding the nuances of both hydraulic disc and rim brake systems, you can ensure your bike is always ready to stop safely and silently, allowing you to focus on the joy of the ride.
