DIY ATV Wheel Alignment: Precision At Home

Ensuring your All-Terrain Vehicle (ATV) has properly aligned wheels is not just about keeping it running smoothly; it's fundamental for safety, handling, and preventing premature tyre wear. An ATV with incorrect wheel alignment can feel unstable, pull to one side, and rapidly chew through your expensive tyres. While professional alignment services are available, learning to perform this crucial task yourself can save you a significant amount of money and give you a deeper understanding of your machine. This guide will walk you through a tried-and-tested DIY method for aligning your ATV's front wheels, focusing on 'toe' adjustment, which is often the most critical aspect for ATV performance.

We've all been there – perhaps you've just replaced tie rod ends, or maybe you've noticed your ATV isn't tracking straight. Whatever the reason, taking the time to precisely align your wheels will pay dividends in improved ride quality and longevity for your ATV's components. This method is surprisingly effective and requires only a few common tools, making it accessible to most home mechanics. Let's dive in and get your ATV tracking perfectly straight.

Understanding Wheel Alignment: The Basics of Toe

Before we get our hands dirty, it's essential to understand what 'toe' alignment actually means. In simple terms, toe refers to how much the front of your wheels points inward or outward when viewed from above. It's measured in degrees or fractions of an inch/millimetre.

• Toe-in: This means the front of the wheels points slightly inward towards each other. On some vehicles, a small amount of toe-in can improve straight-line stability.
• Toe-out: This means the front of the wheels points slightly outward, away from each other. For ATVs, a slight amount of toe-out is often recommended, as it can improve steering response and stability during turns, especially at higher speeds. It helps the ATV 'turn in' more effectively.
• Zero Toe: This means the wheels are perfectly parallel to each other.

For many ATVs, including the Polaris models often used as a benchmark, a slight toe-out setting is preferred. For instance, a common specification is 1/8″ to 1/4″ (approximately 0.3 cm to 0.6 cm) total toe-out. This is the total difference across both front wheels, not per wheel. Achieving this precise measurement is key to optimal handling and reduced tyre wear.

Why Is Correct Toe Alignment So Important?

The correct toe setting is vital for several reasons:

• Handling and Stability: Proper toe ensures your ATV tracks straight, making it easier to control and more predictable, especially at speed or over rough terrain. Incorrect toe can lead to a 'wandering' feel or a constant pull to one side, requiring constant steering correction.
• Tyre Wear: Misaligned wheels drag across the ground rather than rolling smoothly. This 'scrubbing' action rapidly wears down your tyres unevenly, leading to premature replacement. Correct alignment significantly extends tyre life.
• Steering Component Longevity: When wheels are misaligned, the steering components (like tie rods and ball joints) are under constant stress. This can accelerate wear and tear, leading to costly repairs down the line.
• Fuel Efficiency: While perhaps a minor factor for ATVs, severe misalignment can slightly increase drag, potentially impacting fuel economy.

Tools You'll Need for DIY Alignment

The beauty of the string method is its simplicity and minimal tool requirement. Here's what you'll need to gather:

• Smooth, Level Surface: A concrete garage floor or driveway is ideal. This is crucial for accurate measurements.
• Two Ratchet Straps: To secure the handlebars in a perfectly straight position.
• Two Jack Stands: Stable and adjustable, these will hold your alignment string.
• A Length of Strong String or Fishing Line: Long enough to wrap around your ATV and the two jack stands.
• Elastic Bands (Optional but Recommended): A few elastic bands attached to the ends of the string can help with tension and adjustment.
• Two Wrenches: Specifically, two open-ended wrenches of the correct size for your tie rod nuts and ball joints. This is critical to prevent damage.
• Measuring Tape or Ruler: For precise measurements of the string-to-rim distance. A metric ruler or tape measure with fine increments will be most accurate.
• Marker Pen/Chalk (Optional): To mark tyre contact points if desired.

The String Method: A Step-by-Step Guide to ATV Wheel Alignment

This method, often referred to as the 'string box' or 'four-wheel alignment string method', provides a highly accurate way to set your ATV's toe at home. Follow these steps carefully for the best results.

Step 1: Preparation – The Foundation for Accuracy

Begin by positioning your ATV on a smooth, perfectly level surface. This could be a concrete garage floor or a flat, paved driveway. Any incline or unevenness will compromise your measurements. Once the ATV is in place, visually centre the handlebars as accurately as possible. Then, use the two ratchet straps to firmly lock the handlebars in this straight-ahead position. Secure one strap to each side of the handlebars and anchor them to a stable point on the ATV's chassis or wheels. This prevents any movement during the alignment process, which is essential for consistent readings.

Step 2: Setting Up the Alignment String

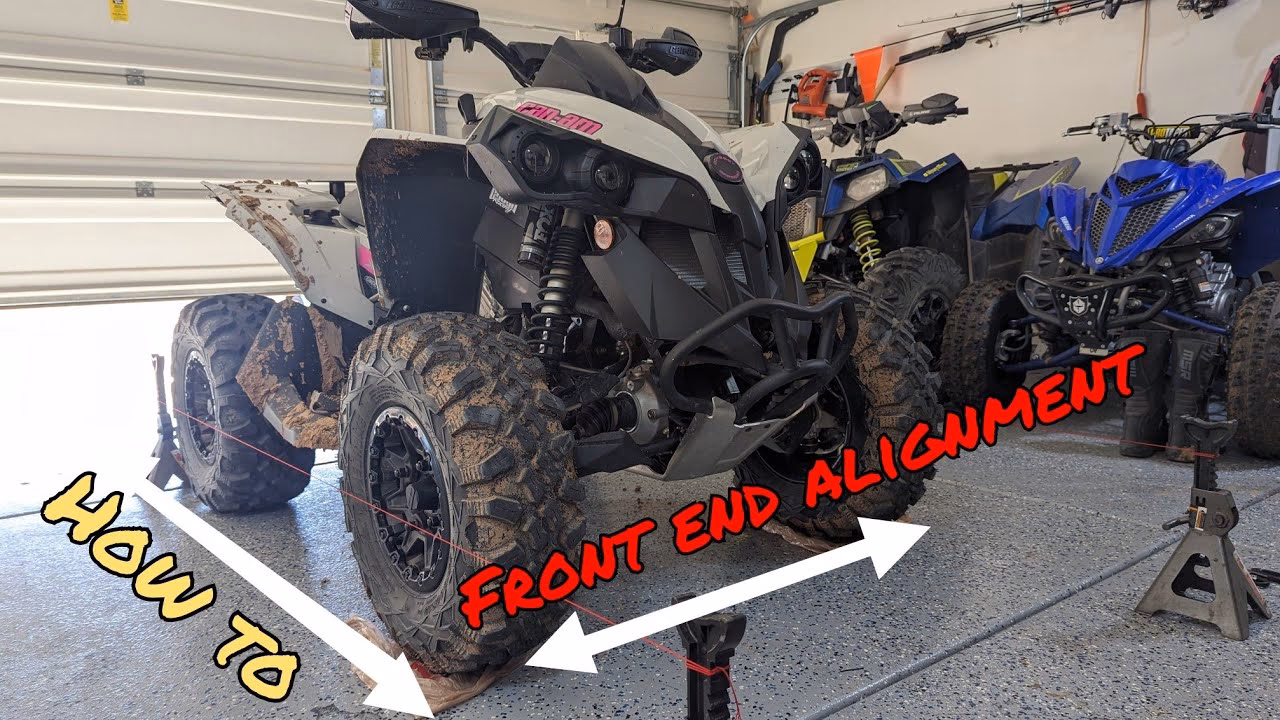

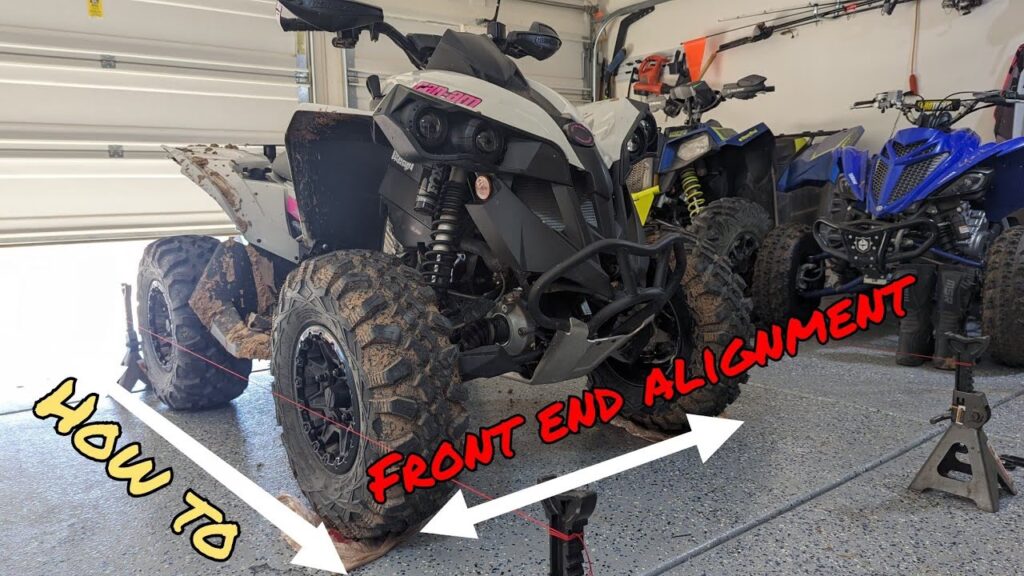

Place your two jack stands approximately 2 feet (60 cm) in front of the ATV, ensuring they are roughly even with the outside edge of the two front wheels. Now, take your length of string. Starting from the rear hitch of your ATV, wrap the string all the way around the ATV and the two jack stands, bringing it back to the rear hitch. The goal is to create a rectangular box of string around the ATV. Crucially, ensure the string is at the exact same height from the ground on all four wheels. You can use a ruler to check this height at various points around the ATV. Attaching a few elastic bands to both ends of the string before securing it to the hitch can make it easier to adjust the tension and position of the strings as you fine-tune the setup.

Step 3: Loosening the Tie Rod Nuts

With the string setup, it's time to prepare for adjustments. Locate the inner and outer tie rod nuts on both front wheels. Using two wrenches, carefully break them loose. This is a critical step: always use two wrenches – one to hold the ball joint stud or the tie rod itself, and the other to turn the nut. Failing to use two wrenches can twist the ball joint, causing internal damage and potentially requiring a costly replacement. Once loosened, the tie rod should be free to rotate.

Step 4: Aligning the String to the Rear Wheels

This is where the precision begins. Adjust the string by carefully moving the jack stands slightly in or out until the string just touches both the front and rear side surfaces of the rear tyres on each side of the ATV. This part requires patience and may take some time to get absolutely perfect. The aim is to make the strings as parallel as possible to the true centerline of the ATV. The strings should be as close to the centerline of the rims as possible, ensuring they run perfectly straight along the sides of the ATV. Take your time here; accuracy in this step directly impacts the final alignment.

Step 5: Measuring Front Wheel Toe

Now, focus on the front rims. With the string perfectly aligned to the rear wheels, you can now measure the toe of the front wheels. On each front rim, measure the distance from the string to the rim at both the front and rear edges of the rim (i.e., the leading and trailing edges of the tyre, relative to the string). For the common Polaris specification of 1/8″ to 1/4″ (0.3 cm to 0.6 cm) total toe-out, your individual wheel measurement should show that the rear measurement (string to the rear edge of the rim) is 1/16″ to 1/8″ (0.2 cm to 0.3 cm) more than the front measurement (string to the front edge of the rim). This indicates that the front of the wheel is slightly further away from the string than the rear, which translates to toe-out.

Step 6: Adjusting the Tie Rods for Toe-Out

If your measurements don't match the desired 1/16″ - 1/8″ difference (or your manufacturer's specific toe-out recommendation), an adjustment is necessary. To do this, turn the tie rod itself (the central bar connecting the inner and outer ball joints) with a wrench or by hand. Make very small increments of adjustment. It doesn't take much rotation of the tie rod to significantly move the tyre, so proceed slowly and deliberately. After each small adjustment, re-check your measurements from the string to the rim. Continue this process of adjusting and re-measuring until you achieve the correct 1/16″ - 1/8″ difference (or your specific desired toe-out) on both front wheels. Remember, consistency between both sides is key for balanced steering.

Step 7: Securing the Adjustments

Once you are completely satisfied that you have the correct toe-out measurements on both front wheels, it's time to lock everything in place. Carefully tighten the inner and outer tie rod nuts on both sides. Again, and this cannot be stressed enough, ensure you use two wrenches. One wrench to hold the tie rod or ball joint stud to prevent it from spinning, and the other to firmly tighten the nut. Overtightening can strip threads, but insufficient tightness can lead to the alignment slipping, potentially causing dangerous handling issues.

Step 8: The Test Drive and Fine-Tuning

With the nuts tightened, remove the ratchet straps and the string setup. Now, take your ATV for a test drive in a safe, open area. Pay close attention to how the ATV handles. Does it track straight? Does it pull to one side? How does it feel when turning? If it still pulls or feels off, don't despair. The beauty of DIY alignment is that you can easily repeat the steps above to tweak the adjustments further until you are completely happy with the handling. It's an iterative process, and sometimes a slight adjustment makes all the difference. The entire process, once you're familiar with it, often takes only about 15-20 minutes.

Tips for a Perfect Alignment

• Patience is a Virtue: Don't rush the process, especially the string setup and the fine adjustments of the tie rods. A few extra minutes of care can save hours of frustration later.
• Double-Check Everything: Before tightening anything, re-measure multiple times. Even slight errors can lead to noticeable issues.
• Clean Threads: If your tie rod threads are dirty or rusty, clean them with a wire brush and apply a little penetrating oil before adjustment. This will make turning them much easier.
• Tyre Pressure: Ensure your tyres are inflated to the manufacturer's recommended pressure before starting the alignment process. Incorrect tyre pressure can affect measurements.
• Load Distribution: If you typically ride with a significant load or a passenger, consider simulating that weight during the alignment, as it can slightly affect suspension geometry.

Frequently Asked Questions About ATV Wheel Alignment

Here are some common questions riders have about ATV wheel alignment:

How often should I check my ATV's wheel alignment?

It's a good practice to check your ATV's alignment at least once a year, or more frequently if you ride aggressively, encounter many obstacles, or perform any suspension work. If you notice uneven tyre wear or poor handling, check it immediately.

What are the signs that my ATV's alignment is off?

Common signs include the ATV pulling to one side, requiring constant steering correction to go straight, uneven or rapid tyre wear (e.g., one side of the tyre wearing down faster than the other), loose or vague steering, or a noticeable vibration through the handlebars.

Is the string method accurate enough for professional results?

For most recreational ATV riders, the string method is remarkably accurate and provides results comparable to, and sometimes even better than, basic shop alignments. Its accuracy largely depends on the care and precision taken during setup and measurement. For competitive racing or highly specialised setups, professional laser alignment might offer a slight edge.

Can I perform this alignment by myself?

Absolutely! The string method is designed to be a one-person job. While an extra pair of hands can be helpful for holding the string or reading measurements, it's entirely feasible to do it solo.

My ATV has toe-in from the factory. Should I change it to toe-out?

Always refer to your specific ATV manufacturer's service manual for their recommended toe specifications. While many ATVs benefit from a slight toe-out for better steering response, some models might be designed for zero toe or even a slight toe-in for specific handling characteristics. Deviating too far from the manufacturer's spec can negatively impact handling and safety.

What if my ATV still pulls after alignment?

If your ATV still pulls after a careful alignment, there might be other underlying issues. These could include bent suspension components (e.g., A-arms, tie rods), worn ball joints or wheel bearings, uneven tyre pressure, or even an issue with the rear axle or frame. A thorough inspection of these components might be necessary.

Conclusion

Mastering DIY ATV wheel alignment is a valuable skill for any ATV owner. Not only does it empower you to maintain your machine with precision, but it also translates into a safer, more enjoyable, and ultimately more economical riding experience. By following this detailed guide and taking the time to perform each step accurately, you can achieve professional-level alignment results right in your own garage. So, grab your tools, set up your string, and get ready to experience the improved handling and extended tyre wear that comes with a perfectly aligned ATV. Happy riding!
