Mastering Wheel Alignment: Toe, Camber, Caster

Imagine your car gliding effortlessly, tyres gripping the road perfectly, and steering feeling precise. That's the ideal driving experience. However, over time, the intricate dance of your car's suspension components can fall out of sync, leading to misaligned wheels. This isn't just an inconvenience; it can significantly impact your vehicle's safety, fuel efficiency, and the lifespan of your expensive tyres. Understanding the core principles of wheel alignment – namely toe, camber, and caster – is fundamental for any car owner looking to maintain their vehicle's optimal performance and ensure a smooth, secure journey on British roads.

Your car's wheels aren't simply bolted on straight. Their angles are meticulously set by the manufacturer to ensure optimal contact with the road under various driving conditions. When these angles deviate, typically due to wear and tear on joints and components, or impacts from potholes and kerbs, your car's handling suffers, and tyres wear prematurely. Fortunately, these angles are adjustable, allowing skilled technicians to bring your vehicle back into its factory-specified alignment. The three primary angles we focus on are toe, camber, and caster, each playing a distinct yet interconnected role in how your car drives.

Toe: The Directional Commander

Of the three alignment properties, toe is often the easiest to visualise. Think about your own feet: if your toes point inwards towards each other, that's 'toe-in'. If they splay outwards, that's 'toe-out'. In automotive terms, toe refers to how much the front edges of your tyres point inwards or outwards relative to each other when viewed from above. It’s a measurement of the difference in distance between the front and rear of the tyres on the same axle. Even slight variations, often measured in fractions of an inch or millimetres, can have a profound effect.

Toe-In vs. Toe-Out

When the front of the tyres on an axle are closer together than the rear of the tyres, you have toe-in. This means the wheels are angled slightly towards the centreline of the vehicle. Conversely, if the front of the tyres are further apart than the rear, you have toe-out, with the wheels angled slightly away from the centreline. While 'zero toe' – where the tyres are perfectly parallel – is the theoretical ideal for minimum rolling resistance, most vehicles are designed with a slight amount of toe-in or toe-out to compensate for forces experienced while driving, ensuring the tyres become parallel under load.

Impact on Driving

The toe setting significantly influences your car's straight-line stability and responsiveness during cornering. It's a fine balance between a relaxed drive and agile handling.

Toe-In for Stability: If your driving primarily involves long stretches of motorway or extensive highway travel, a small amount of toe-in can be highly beneficial. This setup encourages the wheels to resist minor steering inputs, helping the car track straighter with less driver effort. It effectively pre-loads the steering system, making the car less susceptible to wandering due to road imperfections or crosswinds. The added benefit is a more comfortable journey, as you're not constantly making small corrections to keep the car on course. However, this stability comes at a slight cost: a reduction in maximum steering angle. The wheels are already angled inwards, so they reach their physical turning limit sooner, making sharp, low-speed turns feel less nimble.

Toe-Out for Cornering: For those who prioritise dynamic handling and responsive steering, particularly in performance vehicles or race cars, a touch of toe-out is often preferred. This setting makes the car eager to 'snap' into a turn, as the wheels are already pointing slightly in the direction of the turn. It maximises the effective turning angles, allowing for quicker and tighter cornering. The trade-off, however, is reduced straight-line stability. A car with toe-out can feel 'twitchy' or over-sensitive to steering wheel movements. Even minor hand adjustments or road camber changes can translate into noticeable directional shifts, requiring more driver attention and making long straight drives more fatiguing.

Impact on Tyre Wear

Excessive toe, whether in or out, is a leading cause of premature tyre wear. Because the tyres are constantly scrubbing across the road surface rather than rolling purely forward, friction increases dramatically, eroding the tread.

Feathering: A common symptom of incorrect toe is 'feathering'. If you run your hand across the tyre tread, you'll notice that one side of the tread blocks feels sharp, while the other side feels smooth. This jagged, saw-tooth pattern indicates that the tyre is being dragged sideways as it rotates. Feathering reduces the tyre's ability to disperse water effectively, compromising wet weather grip, and significantly shortens the tyre's lifespan, necessitating earlier replacement.

Inner or Outer Tread Wear: While feathering is a tell-tale sign, severe toe issues can also lead to more pronounced wear on either the inner or outer edge of the tyre. Excessive toe-out causes the tyre's inner edge to contact the road more forcefully, leading to accelerated wear on the inside shoulder. Conversely, significant toe-in can cause increased wear on the outer edge of the tyre. Observing uneven wear patterns on your tyres is one of the clearest indicators that an alignment check is overdue.

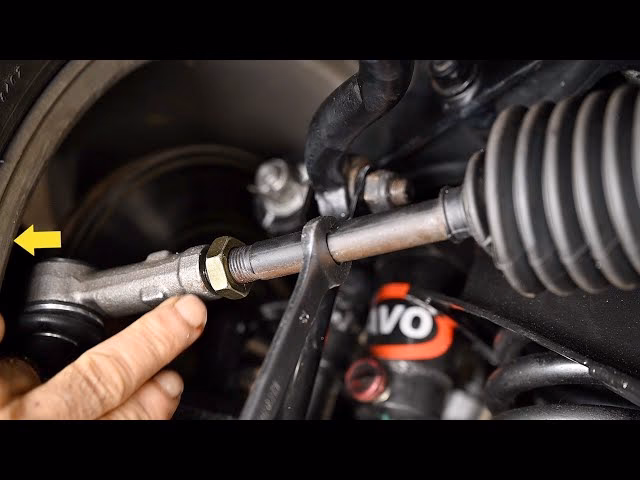

When to Adjust Toe

Your vehicle's manufacturer specifies a precise toe setting, often found in your owner's manual or service schedule. For most commuter cars, a very neutral or slight toe-in setting is common for balanced performance. However, experienced drivers or those with specific driving preferences might opt to deviate slightly from factory settings. If you spend most of your time on motorways, a little extra toe-in could enhance comfort. If you enjoy spirited driving on twisty B-roads, a fractional amount of toe-out might sharpen the steering response. Since toe adjustments are made in very small increments, experimentation under controlled conditions can help you find a setting that perfectly suits your driving style, though it should always be performed by a professional with accurate equipment.

Camber: The Vertical Lean

Camber refers to the inward or outward tilt of the tyre when viewed from the front of the vehicle. It's measured in degrees from the vertical.

Positive Camber vs. Negative Camber

If the top of the tyre leans outwards away from the vehicle, it has 'positive camber'. If the top of the tyre leans inwards towards the vehicle, it has 'negative camber'. 'Zero camber' means the tyre is perfectly vertical. The ideal camber setting is crucial for ensuring the tyre makes even contact with the road surface, especially during cornering.

Impact on Tyre Wear and Cornering

An incorrect camber angle can lead to uneven tyre wear. Excessive positive camber will cause the outer edge of the tyre to wear prematurely, as more of the tyre's load is concentrated on that side. Conversely, too much negative camber will result in accelerated wear on the inner edge. While excessive camber is detrimental to tyre life, a slight amount of negative camber is often designed into performance vehicles. As a car corners, the vehicle's weight shifts, causing the suspension to compress and the car to roll. Negative camber helps to keep the entire tyre tread flat on the road during a turn, maximising grip and improving cornering stability. However, too much negative camber can compromise straight-line stability and braking performance due to reduced contact patch.

Caster: The Steering Stability Angle

Caster is arguably the most complex of the three angles to visualise. It refers to the forward or backward tilt of the steering axis when viewed from the side of the vehicle. Imagine a line running through the upper and lower ball joints (or pivot points) of your suspension; caster measures the angle of this imaginary line relative to a true vertical line.

Positive Caster vs. Negative Caster

Most modern vehicles utilise 'positive caster', where the top of the steering axis is tilted rearward (towards the driver). 'Negative caster' means the top of the steering axis is tilted forward. 'Zero caster' would mean the steering axis is perfectly vertical.

Impact on Steering and Handling

Unlike toe and camber, caster does not directly affect tyre wear. Instead, its primary role is to influence steering feel, straight-line stability, and the self-centring action of the steering wheel. Think of a shopping trolley wheel: it has positive caster, which is why it always wants to trail behind the pivot point, making it self-centre. Similarly, positive caster in a car helps the wheels to return to a straight-ahead position after a turn. It provides a 'trailing' effect, enhancing straight-line stability, reducing wandering, and improving high-speed stability. More positive caster generally means heavier steering effort at low speeds but a more stable and self-centring feel at higher speeds. Negative caster, conversely, would make the steering feel light and vague, reducing straight-line stability and making the car prone to wandering.

Signs Your Wheels Need Alignment

Paying attention to your car's behaviour and the condition of your tyres can alert you to alignment issues before they become serious. Here are the key indicators:

• Uneven Tyre Wear: This is often the first and most obvious sign. Look for feathering, excessive wear on the inner or outer edges of the tyre, or bald spots. Inspect all four tyres regularly.
• Vehicle Pulling to One Side: If your car consistently drifts or pulls to the left or right when driving on a flat, straight road, even when the steering wheel is held straight, it's a strong indicator of misalignment.
• Off-Centre Steering Wheel: When driving straight, your steering wheel should be perfectly centred. If it's tilted to one side, even slightly, but the car is going straight, your alignment is off.
• Steering Wheel Vibration: While this can also be a sign of unbalanced tyres, a vibrating steering wheel, especially at certain speeds, can indicate an alignment problem.
• Poor Handling or Loose Steering: If your car feels 'loose', 'wandering', or less responsive than usual, or if you constantly have to make small corrections to keep it going straight, misalignment could be the culprit.
• Squealing Tyres: Tyres that squeal during normal cornering (not aggressive driving) can suggest that they are not rolling correctly, often due to incorrect toe or camber.

Wheel Alignment vs. Wheel Balancing: A Crucial Distinction

It's a common misconception that wheel alignment and wheel balancing are the same thing. While both are vital for optimal tyre performance, they address entirely different issues:

Wheel Alignment: This involves adjusting the angles of the wheels so they are perpendicular to the ground and parallel to each other, and to the car's chassis. It corrects issues related to the direction and angle at which your tyres meet the road. Think of it as ensuring your tyres are 'pointing' and 'tilting' correctly for optimal contact and rolling.

Wheel Balancing: This addresses the weight distribution around the tyre and wheel assembly. Tyres are rarely perfectly uniform in weight. Balancing involves adding small weights to the wheel rim to counteract any heavy spots, ensuring the tyre rotates smoothly without wobbling or vibrating. An unbalanced wheel typically causes vibrations felt through the steering wheel or seat, especially at higher speeds.

In short, alignment deals with angles, while balancing deals with weight distribution. Both are essential for a smooth, safe, and efficient drive.

When to Get a Wheel Alignment

Regular alignment checks are a proactive measure that can save you money and headaches in the long run. Here are situations when you should definitely consider getting an alignment:

• After Hitting a Pothole or Kerb: Any significant impact can knock your alignment out of whack.
• When Installing New Tyres: It's highly recommended to get an alignment whenever you fit new tyres. This ensures your expensive new rubber starts its life with the correct angles, maximising its lifespan and performance.
• After Replacing Suspension or Steering Components: Parts like tie rod ends, ball joints, control arms, or shock absorbers directly affect wheel angles. An alignment is essential after their replacement.
• If You Notice Any of the Signs of Misalignment: Don't ignore pulling, uneven wear, or an off-centre steering wheel.
• As Part of Routine Maintenance: Many manufacturers recommend checking alignment every 10,000-15,000 miles or annually, even if you don't notice any obvious issues. This helps catch minor deviations before they cause significant problems.
• If You Modify Your Vehicle's Ride Height: Lowering or raising your car significantly alters the suspension geometry, necessitating a full alignment.

Benefits of Proper Wheel Alignment

Investing in regular wheel alignment is not just about fixing a problem; it's about optimising your vehicle for safety, economy, and driving pleasure. The benefits are substantial:

• Extended Tyre Life: By ensuring your tyres roll true and make even contact with the road, proper alignment dramatically reduces uneven tyre wear, meaning your tyres last significantly longer, saving you money on replacements.
• Improved Fuel Efficiency: Misaligned wheels cause increased rolling resistance, forcing your engine to work harder to maintain speed. Correct alignment reduces this friction, leading to better fuel economy.
• Enhanced Driving Safety: A properly aligned vehicle handles predictably and responds accurately to steering inputs, reducing the risk of accidents, especially in emergency manoeuvres or adverse weather conditions.
• Better Handling and Comfort: Your car will track straighter, feel more stable, and steer more precisely. Long journeys become less fatiguing, and the overall driving experience is simply more enjoyable.
• Reduced Wear on Suspension Components: When wheels are misaligned, they put undue stress on various suspension and steering components like ball joints, tie rods, and shock absorbers. Proper alignment reduces this strain, prolonging the life of these expensive parts.

Comparative Overview of Alignment Angles

Frequently Asked Questions (FAQs)

Q: How often should I get my wheels aligned?

A: It's generally recommended to have your alignment checked every 10,000 to 15,000 miles or at least once a year, even if you don't notice any immediate issues. However, if you hit a significant pothole, replace suspension components, or notice any of the misalignment symptoms, get it checked immediately.

Q: Can I perform a wheel alignment myself?

A: While basic DIY checks for toe might be possible, accurate wheel alignment requires specialised, precise equipment and expert knowledge. Modern alignment systems use lasers and computerised measurements to ensure angles are set to manufacturer specifications. It's best left to qualified professionals to ensure optimal results and avoid further issues.

Q: What is 'thrust angle' and how does it relate to alignment?

A: Thrust angle refers to the direction that the rear wheels are pointing relative to the vehicle's centreline. If the rear axle isn't perpendicular to the vehicle's chassis, it can cause the car to 'dog track' (drive slightly sideways) and force the front wheels to steer off-centre to compensate. A complete four-wheel alignment will measure and adjust the thrust angle to ensure all four wheels are working in harmony.

Q: How long does a wheel alignment take?

A: Typically, a professional wheel alignment can take anywhere from 30 minutes to an hour, depending on the vehicle type, the severity of the misalignment, and whether any seized components need freeing up. More complex adjustments or if parts need replacing can extend this time.

Conclusion

Proper wheel alignment is far more than just a maintenance task; it's a cornerstone of vehicle safety, efficiency, and driving pleasure. By understanding the roles of toe, camber, and caster, and recognising the signs of misalignment, you empower yourself to make informed decisions about your vehicle's health. Don't let misaligned wheels lead to premature tyre wear or a compromised driving experience. Regular checks and professional adjustments ensure your car remains stable, responsive, and economical, keeping you safely and comfortably on the road for many miles to come.
