The Bosch K-Jetronic, often affectionately referred to as "Jetronic," is a name that resonates deeply with enthusiasts of classic and performance vehicles from the 1970s and 1980s. Unlike the electronically controlled systems that became commonplace, the K-Jetronic is a purely mechanical fuel injection system. This robust and, for its time, sophisticated design offered significant advantages in terms of power and fuel efficiency over carburetted engines. However, its mechanical nature also means it requires a specific understanding and approach to maintenance and troubleshooting. This article will delve into the core principles of the K-Jetronic system, its key components, how it operates, common problems encountered, and crucial maintenance advice to keep your beloved vehicle running smoothly.
What is the K-Jetronic System?
At its heart, the K-Jetronic system is a continuous injection system. This means that fuel is injected continuously into the intake manifold at each cylinder's intake port, regardless of whether the intake valve is open or closed. This contrasts with later electronic fuel injection (EFI) systems that precisely time fuel delivery to coincide with the intake valve opening. The "K" in K-Jetronic refers to the German word "Kontinuierlich," meaning continuous. The "Jetronic" part signifies its fuel injection nature.
The system's operation is governed by a series of mechanical components that work in harmony to deliver the correct amount of fuel to the engine based on airflow. This intricate dance of mechanical precision is what makes the K-Jetronic a fascinating piece of automotive engineering. It's a system that, when understood and maintained correctly, can provide years of reliable service.
Key Components of the K-Jetronic System
To truly appreciate how the K-Jetronic works, it's essential to understand its primary components:
- Air Flow Meter (AFM): This is arguably the most critical component. It measures the amount of air entering the engine by using a precisely calibrated plate, often called a "wing" or "flap." As more air enters the engine, this plate is pushed upwards. The position of this plate directly controls the fuel delivery.

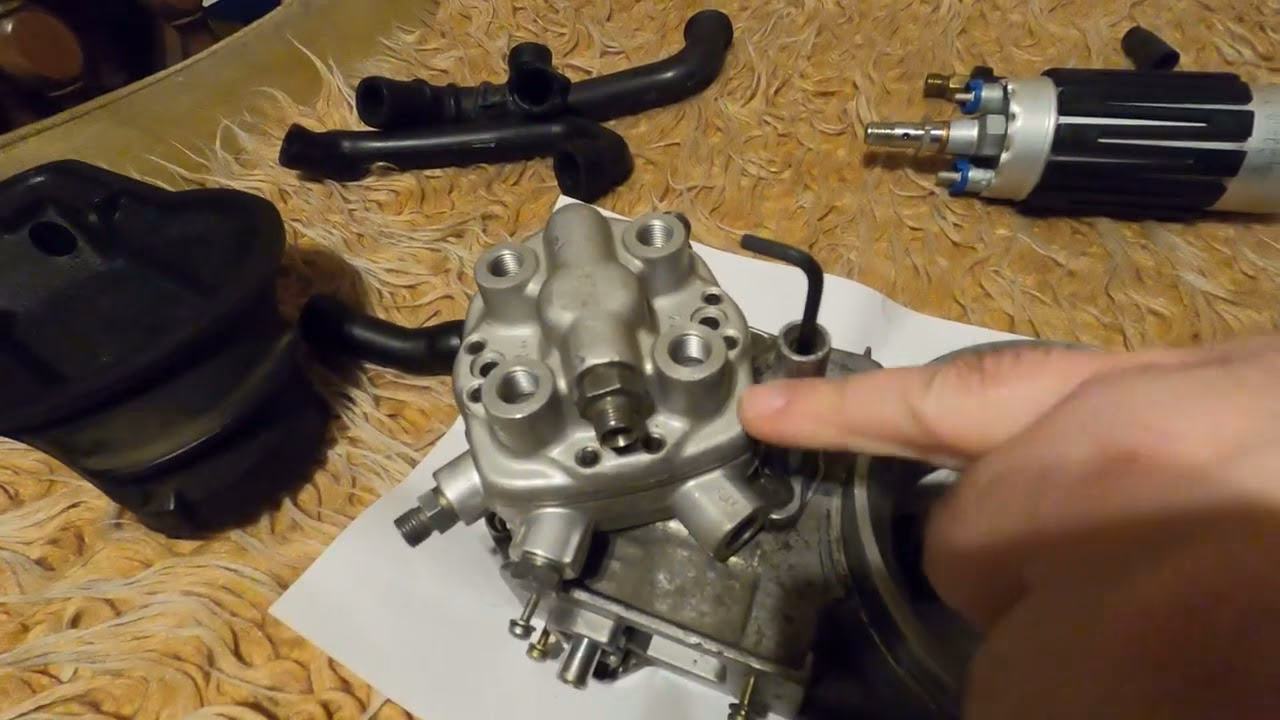

- Fuel Distributor: This unit acts as the central hub for fuel. It receives fuel from the fuel pump and, based on the signals from the AFM, distributes the correct amount of fuel to each injector. It typically has a central plunger that is moved by the AFM's control mechanism.
- Fuel Injectors: These are typically cold-start injectors and main injectors. The main injectors are mechanically actuated and open continuously to spray fuel into the intake manifold. Cold-start injectors provide a richer fuel mixture during engine startup, especially in colder temperatures.
- Warm-Up Regulator (WUR): Also known as the Control Pressure Regulator (CPR), the WUR plays a vital role in managing the fuel mixture based on engine temperature. It adjusts the control pressure within the fuel distributor, enriching the mixture when the engine is cold and leaning it out as it warms up. This is achieved through a temperature-sensitive diaphragm and a heating element.
- Fuel Pump: A robust electric fuel pump provides the necessary pressure to the system.
- Fuel Accumulator: This component maintains system pressure after the engine is shut off, aiding in easier restarts, particularly when the engine is still warm.
- System Pressure Regulator: This ensures the overall fuel system pressure remains within the specified operating range.
How the K-Jetronic System Works
The operation of the K-Jetronic system is a beautiful example of mechanical engineering. Here's a simplified breakdown:
- Air Intake: When the engine draws in air, the air flow meter's flap is deflected.
- AFM to Fuel Distributor Link: The movement of the AFM flap is mechanically linked to a control plunger within the fuel distributor.
- Fuel Distribution: As the plunger moves, it opens or closes ports within the fuel distributor, controlling the flow of fuel to each injector. More air means the flap moves further, pushing the plunger to allow more fuel to be distributed.
- Fuel Injection: The fuel is continuously sprayed from the main injectors into the intake ports.
- Temperature Influence (WUR): The Warm-Up Regulator modulates the control pressure. When cold, it creates higher control pressure, forcing more fuel through the distributor, enriching the mixture. As the engine warms up, the WUR reduces control pressure, leaning out the mixture.
This continuous injection, modulated by airflow and temperature, provides a remarkably consistent fuel delivery. It’s a system that relies on precise mechanical tolerances rather than electronic sensors and computer calculations.
Advantages of the K-Jetronic System
Despite being a mechanical system, the K-Jetronic offered several advantages over its carburetted predecessors:
- Improved Fuel Economy: By precisely metering fuel based on airflow, K-Jetronic systems generally offered better fuel economy than comparable carburetted engines.
- Enhanced Power and Performance: The consistent and accurate fuel delivery led to smoother power delivery and often more horsepower.
- Better Cold Starting: The WUR system ensured a richer mixture for cold starts, improving drivability in cooler conditions.
- Simplicity (relatively): While complex in its own right, it eliminated the need for complex electronic control units (ECUs) and a multitude of sensors common in later EFI systems. This can make it easier to diagnose for those with the right knowledge.
Common Problems and Troubleshooting
Like any mechanical system, K-Jetronic systems can develop issues over time. Here are some common problems and their potential causes:
| Symptom | Possible Cause(s) | Troubleshooting Steps |
|---|---|---|
| Rough idle or stalling | Vacuum leaks, dirty injectors, faulty AFM, incorrect fuel pressure, WUR issues | Check for vacuum leaks, clean or replace injectors, check fuel pressure, test WUR |
| Poor acceleration or lack of power | Clogged fuel filter, weak fuel pump, AFM plate sticking, incorrect fuel mixture | Replace fuel filter, check fuel pump output, clean AFM, adjust mixture if possible |
| Engine runs rich (black smoke, poor MPG) | Faulty WUR, high fuel pressure, leaking injectors | Test WUR, check system pressure, test injectors for leaks |
| Engine runs lean (hesitation, misfires) | Low fuel pressure, clogged fuel distributor, faulty AFM | Check fuel pump, clean fuel distributor, check AFM calibration |
| Difficulty starting (especially when warm) | Faulty fuel accumulator, leaking injectors, WUR issues | Test accumulator, check injectors, test WUR |
Maintenance and Tuning
Proper maintenance is key to keeping a K-Jetronic system in optimal condition. Here are some essential tips:
- Fuel Filter: Regularly replace the fuel filter. This is a critical component that prevents debris from clogging the sensitive parts of the system.
- Air Filter: Ensure the air filter is clean to allow unrestricted airflow to the AFM.
- AFM Cleaning: The AFM's flap can become gummed up or stick. Carefully cleaning it with a specific cleaner (never use carb cleaner on the flap itself unless specified by the manufacturer) can resolve many idle and performance issues. Handle with extreme care as the flap and its pivot are delicate.
- Injector Cleaning: Over time, injectors can become clogged. Professional cleaning or replacement might be necessary.
- Fuel Pressure Checks: Regularly checking system fuel pressure and control pressure is vital for correct operation. Specialized gauges are required for this.
- Mixture Adjustment: The idle mixture can be adjusted via a small screw, usually accessed through the AFM. This requires a CO meter for accurate setting.
- Lubrication: While not a traditional oiling, ensuring the AFM flap pivots are free and clean is a form of mechanical lubrication.
The "Manual" Aspect: Bosch Technical Instructions
When people refer to a "K-Jetronic manual," they are often referring to the highly detailed technical documentation produced by Bosch itself. These are not user-friendly guides for the average car owner but rather in-depth technical instructions for mechanics and engineers. They contain precise specifications, diagnostic procedures, repair instructions, and system schematics. Owning or accessing these Bosch Technical Instructions is invaluable for anyone undertaking serious work on a K-Jetronic system. They provide the definitive information required for accurate diagnosis and repair.
Frequently Asked Questions
Q1: Can I convert my K-Jetronic system to electronic fuel injection?
Yes, it's possible, but it's a complex conversion that requires significant modifications, including replacing the AFM, fuel distributor, and injectors with electronic equivalents, and installing an ECU. It's often undertaken by dedicated enthusiasts for performance reasons.
Q2: How often should I service my K-Jetronic system?
Regular maintenance, like fuel filter changes and air filter checks, should be done according to your vehicle's service schedule. Deeper checks of fuel pressure and WUR function might be needed every 30,000-50,000 miles or if symptoms arise.
Q3: Is K-Jetronic reliable?
When properly maintained, the K-Jetronic system is incredibly reliable and robust. Its mechanical nature means it's less susceptible to some electronic failures, but it does require attention to its specific mechanical needs.
Q4: Where can I find K-Jetronic parts?
Specialist classic car parts suppliers, online automotive forums, and some performance tuning shops are good sources for K-Jetronic components. Original Bosch parts are preferred for reliability.
Conclusion
The Bosch K-Jetronic system is a testament to ingenious mechanical engineering. While it may seem archaic compared to modern electronic systems, its simplicity, robustness, and performance capabilities are highly valued by many. Understanding its components and how they interact is the first step to effective maintenance and troubleshooting. By following proper procedures and utilizing the wealth of knowledge available, you can ensure your K-Jetronic-equipped vehicle continues to provide an engaging and reliable driving experience for years to come. Remember, for definitive guidance, always refer to the specific Bosch Technical Instructions relevant to your vehicle model.
