When it comes to vehicle safety, few components are as vital as your car's braking system. Among its many intricate parts, the brake pads play a starring role, directly responsible for bringing your vehicle to a halt. While often overlooked until an issue arises, understanding the importance of brake pad thickness is paramount for every driver in the UK. Neglecting this seemingly minor detail can lead to significantly reduced stopping power, increased risk of accidents, and potentially costly damage to other braking components.
What Exactly Are Brake Pads Made Of?
At their core, brake pads are engineered composites designed to create friction and dissipate heat. They fundamentally consist of two main parts: a robust backing plate and the crucial friction material. The backing plate, typically made of steel, provides structural integrity and a solid base for the friction material. It's the friction material, however, that does the heavy lifting, coming into direct contact with the brake disc (rotor) to slow down your vehicle.
Over time, through constant friction and heat generation, this friction material naturally wears down. The composition of this material is key to the pad's performance, noise levels, and longevity. Historically, brake pads contained asbestos, but due to health concerns, modern pads utilise a variety of safer materials, broadly categorised into three main types:
- Organic Non-Asbestos (NAO) Pads: These are typically made from a blend of fibres (like glass, carbon, or rubber), resins, and other fillers. They are quieter and produce less dust, making them suitable for everyday driving. However, they tend to wear faster and may not perform as well under extreme heat or heavy braking.
- Semi-Metallic Pads: Comprising 30-65% metal by weight (iron, copper, steel wool, etc.), mixed with organic fillers and graphite lubricant. These pads offer excellent braking performance and heat transfer, making them durable and effective in various conditions. They can, however, be noisier and produce more brake dust.
- Ceramic Pads: Formulated from ceramic fibres, fillers, and bonding agents, ceramic pads are renowned for their clean operation (low dust), quietness, and excellent performance across a wide temperature range. They are generally more expensive but offer superior durability and consistent braking, often found in higher-end vehicles.
Why Brake Pad Thickness is Absolutely Critical
The thickness of the friction material on your brake pads directly correlates with your vehicle's ability to stop safely and efficiently. As the friction material wears down, several critical aspects of your braking system are compromised:
- Reduced Stopping Power: Thinner pads have less friction material to generate the necessary grip on the brake disc. This translates to significantly longer stopping distances, which is incredibly dangerous in emergency braking situations.
- Increased Heat Buildup: A thick pad acts as an insulator, absorbing and dissipating the immense heat generated during braking. As the pad thins, its ability to manage heat diminishes. This leads to excessive heat transfer to the brake fluid and other components, potentially causing brake fade – a dangerous loss of braking effectiveness due to overheating.
- Damage to Brake Discs: Once the friction material wears past a safe limit, the metal backing plate of the brake pad can come into direct contact with the metal brake disc. This metal-on-metal grinding will rapidly score and warp your expensive brake discs, necessitating their costly replacement in addition to new pads.
- Compromised Brake System Integrity: Extremely thin pads can cause the brake caliper piston to overextend. This can lead to seals failing, fluid leaks, and a spongy brake pedal, potentially resulting in complete brake failure.
- Audible Warning Signs: Many brake pads are designed with a small metal tab called a wear indicator. When the pad reaches a critically low thickness, this tab scrapes against the rotor, producing a distinctive squealing noise. This is your car's way of telling you it's time for immediate attention.
Understanding Brake Pad Wear and Its Causes
Brake pads are designed to wear out; it's their job. However, the rate at which they wear can vary significantly based on several factors:
- Driving Style: Aggressive driving, involving frequent hard braking and rapid acceleration, will dramatically accelerate pad wear. Gentle, anticipatory driving, on the other hand, prolongs their life.
- Vehicle Weight and Type: Heavier vehicles, such as SUVs, vans, or those frequently carrying heavy loads, exert more force on the brakes and will wear pads quicker than lighter cars. Performance vehicles also often have softer, higher-performance pads that wear faster but offer superior stopping.
- Driving Environment: Stop-and-go city driving with frequent braking cycles wears pads much faster than consistent motorway driving. Hilly terrain also demands more from your brakes.
- Brake Pad Material: As discussed, different materials have different wear rates. Organic pads tend to wear fastest, while ceramic pads offer superior longevity.
- Condition of Other Brake Components: A seized caliper, warped brake disc, or contaminated brake fluid can cause uneven wear or premature wear of the pads.
Checking Your Brake Pad Thickness
Regular inspection is key to monitoring brake pad thickness. While it's always best to have a qualified mechanic perform thorough checks during servicing, you can conduct a basic visual inspection yourself:
- Visual Inspection (Wheels On): For many vehicles, you can visually inspect the outer brake pad by looking through the spokes of your wheels. Use a torch to illuminate the caliper and pad. You should be able to see the friction material between the caliper and the rotor.

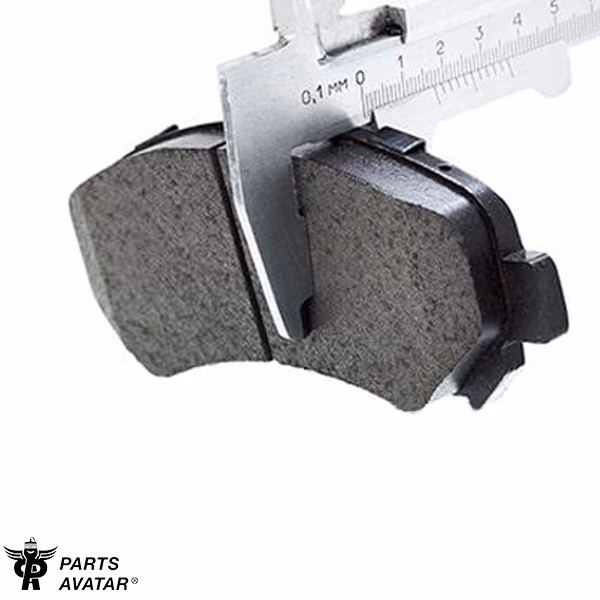

- Visual Inspection (Wheels Off): For a more accurate assessment, safely jack up your vehicle and remove the wheel. This provides a clear view of both the inner and outer brake pads. Use a ruler or a specific brake pad thickness gauge to measure the remaining friction material.
- Listen for Warning Signs: The most common audible warning is a high-pitched squeal when you apply the brakes. This is often the wear indicator. A grinding noise, however, indicates severe wear, meaning metal-on-metal contact, which requires immediate attention.
- Feel the Brake Pedal: A soft, spongy, or unusually long pedal travel can indicate critically low pads or other hydraulic issues. Pulsation through the pedal often points to warped discs, which can be a consequence of thin pads.
Most manufacturers recommend replacing brake pads when they reach a thickness of 3mm or less. Some even suggest replacement at 4mm to maintain optimal performance and safety. New pads typically have a thickness of around 10-12mm.
Types of Brake Pads: A Comparative Overview
Choosing the right brake pad can influence performance, noise, dust, and longevity. Here's a quick comparison:
| Pad Type | Pros | Cons | Ideal Use |
|---|---|---|---|
| Organic (NAO) | Quiet, low dust, rotor-friendly, affordable | Lower performance, wear faster, less effective in extreme conditions | Everyday city driving, light vehicles |
| Semi-Metallic | Good all-around performance, durable, effective in various temperatures | Can be noisy, higher dust, harder on rotors | General driving, heavier vehicles, performance-oriented driving |
| Ceramic | Very quiet, very low dust, excellent performance, long life | More expensive, less effective in extreme cold | Luxury vehicles, daily driving, performance applications where noise/dust are concerns |
Maintaining Your Brake Pads and System
Beyond simply replacing worn pads, there are practices that can help extend their life and ensure optimal braking performance:
- Regular Servicing: Adhere to your vehicle's service schedule. Mechanics will inspect your brakes thoroughly, identify issues early, and perform necessary maintenance.
- Bedding-In New Pads: After new pads are installed, it's crucial to 'bed them in' properly. This involves a series of gentle stops from moderate speeds, allowing the pad material to transfer evenly onto the rotor, creating an optimal friction surface and preventing judder. Your mechanic can advise on the specific procedure.
- Avoid Harsh Braking: Where possible, anticipate traffic and brake smoothly and progressively rather than suddenly and forcefully. This reduces heat and wear.
- Check Brake Fluid: Ensure your brake fluid is at the correct level and replaced according to manufacturer guidelines. Old or low fluid can compromise braking performance.
Frequently Asked Questions About Brake Pads
Q: What is the minimum legal brake pad thickness in the UK?
While there isn't a specific legal minimum thickness for brake pads stated in the MOT test criteria, pads are considered a 'major defect' if 'insufficient material' is present or if they are 'likely to cause failure'. Generally, industry experts and manufacturers recommend replacement when pads reach 3mm of friction material remaining. Some garages may advise replacement at 4mm for optimal safety and performance.
Q: How often should I have my brake pads checked?
It's advisable to have your brake pads inspected during every service, or at least once a year, regardless of mileage. If you notice any of the warning signs (noise, reduced performance, spongy pedal), have them checked immediately.
Q: Can I drive with low brake pads?
Driving with low brake pads is extremely dangerous. It significantly compromises your vehicle's ability to stop, increases stopping distances, and can lead to complete brake failure. It also risks severe damage to your brake discs, turning a relatively inexpensive pad replacement into a much costlier repair involving both pads and discs.
Q: What causes brake pads to wear quickly?
Aggressive driving habits (hard braking), frequent stop-and-go city driving, driving with heavy loads, and the type of brake pad material (softer pads wear faster) are common causes of rapid wear. A malfunctioning caliper that isn't retracting properly can also cause premature wear.
Q: Are all brake pads the same?
No, brake pads vary significantly in size, shape, and material composition. They are designed specifically for different vehicle makes and models, and for different driving requirements. Always ensure you use the correct pads specified for your vehicle.
Q: What are brake wear indicators?
Most modern brake pads have built-in wear indicators. These are small metal tabs that scrape against the brake disc when the friction material wears down to a critical level, producing a distinctive high-pitched squealing noise. This audible warning alerts the driver that it's time to replace the pads.
In conclusion, the thickness of your brake pads is far more than just a measurement; it's a direct indicator of your vehicle's stopping power and your personal safety. Regular checks, timely replacement, and understanding the nuances of brake pad wear are essential for maintaining a reliable and safe vehicle on the road. Don't wait for the grinding sound or a close call; be proactive about your brake health.
