The vacuum pump is an often-overlooked yet critical component in many modern vehicles. It plays a vital role in various systems, from your car's braking assistance to climate control and even the operation of the automatic transmission. Like any hardworking mechanical part, the vacuum pump relies on lubrication to function efficiently and avoid premature wear. This lubrication comes in the form of specialised vacuum pump oil. However, just like engine oil, vacuum pump oil degrades over time and with use, necessitating regular changes. But how do you know when it's time to change this essential fluid? Understanding the signs and recommended intervals can save you from costly repairs and ensure your vehicle operates smoothly.
The Importance of Vacuum Pump Oil
Vacuum pump oil serves several key functions within the pump. Primarily, it provides lubrication, reducing friction between the moving parts of the pump, such as rotors, vanes, or diaphragms. This lubrication prevents excessive heat build-up and metal-on-metal contact, which can lead to rapid wear and eventual failure. Secondly, the oil acts as a coolant, dissipating the heat generated by the pump's operation. Thirdly, it helps to seal small clearances within the pump, enhancing its efficiency in creating and maintaining a vacuum. Finally, it can also help to clean the internal components by carrying away small particles of debris.

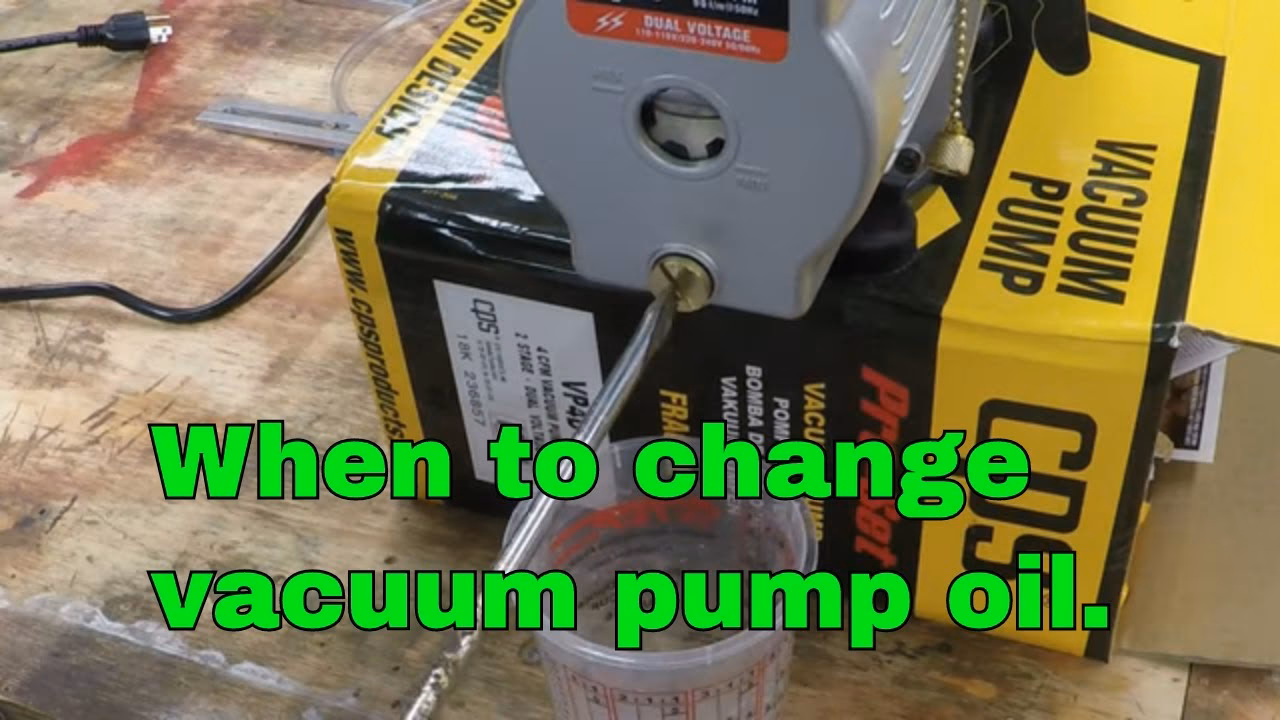

When to Change Vacuum Pump Oil: Key Indicators
The lifespan of vacuum pump oil is not fixed and depends heavily on several factors, including the type of pump, the quality of the oil used, and, crucially, the operating environment. Here are the primary indicators to watch out for:
1. Oil Colour and Condition
This is often the most straightforward indicator. Fresh vacuum pump oil typically has a light, clear appearance, perhaps with a slight amber hue. Over time, as the oil is subjected to heat, pressure, and contamination, it will begin to darken.
- Darkening: If you notice the oil becoming progressively darker, turning from light amber to a deep brown, it's a strong sign that the oil is breaking down and losing its lubricating properties.
- Cloudiness or Emulsification: If the oil appears cloudy or milky, it suggests that water or other contaminants have entered the system. This is particularly detrimental as water can accelerate corrosion and reduce the oil's effectiveness.
- Presence of Debris: In some cases, you might be able to see small metallic particles or other foreign matter suspended in the oil. This indicates internal wear within the pump and that the oil is no longer effectively filtering these particles.
2. Oil Level Fluctuations
Monitoring the oil level in the vacuum pump's reservoir is also crucial. Significant and unexplained changes in the oil level can signal a problem:
- Sudden Increase in Oil Level: If the oil level rises considerably without any apparent addition of oil, it could indicate that non-condensable gases are dissolving into the oil. While some gas absorption is normal, a large increase might point to a system issue or a particular type of contamination.
- Significant Drop in Oil Level: A noticeable decrease in the oil level, especially if it occurs rapidly, can suggest either an oil spray phenomenon (where oil is being ejected from the pump, often due to excessive speed or pressure) or excessive oil misting due to prolonged air pumping or high operating temperatures. This indicates the pump is consuming oil at an unsustainable rate.
3. Performance Issues
Changes in the way your vehicle operates can sometimes be linked to a vacuum pump issue, including degraded oil. While not a direct indicator of the oil itself, these symptoms warrant an inspection:
- Braking Performance: A weakened vacuum assist can result in a firmer brake pedal, requiring more effort to stop the vehicle.
- Climate Control: Malfunctioning HVAC systems, particularly issues with vent selection or recirculation modes, can sometimes be attributed to insufficient vacuum.
- Transmission Shifting: In older automatic transmissions, vacuum played a role in shift quality. While less common in modern vehicles, it's worth considering if shifting feels rough or delayed.
4. Operating Hours and Time Intervals
While visual inspection and performance checks are vital, adhering to recommended service intervals is also a good preventative measure. The general guidelines provided suggest:
- Ideal Conditions: In a clean, dry environment with a consistent working temperature below 100°C, and when pumping clean, dry gas, the vacuum pump oil might last between 500-2000 working hours or approximately every six months.
- Adverse Conditions: If the vacuum pump operates in a harsh environment, where contaminants (dust, moisture, or corrosive substances) are likely to enter the system, the oil should be replaced more frequently, potentially within 500 working hours.
Vacuum Pump Oil Types: Mineral vs. Synthetic
Vacuum pump oils are generally categorised into two main types: mineral oil and synthetic oil. The choice of oil can influence its lifespan and performance:
| Feature | Mineral Oil | Synthetic Oil |
|---|---|---|
| Cost | Generally more affordable | Typically more expensive |
| Thermal Stability | Lower; can break down at higher temperatures | Higher; maintains properties at extreme temperatures |
| Oxidation Resistance | Lower; more prone to oxidation and sludge formation | Higher; resists oxidation, leading to a longer service life |
| Lubricity | Good, but can degrade faster | Excellent and more consistent |
| Contaminant Tolerance | Lower; more susceptible to contamination effects | Higher; can handle a wider range of contaminants better |
| Recommended Use | Less demanding applications, where operating temperatures are moderate | Demanding applications, high temperatures, or when extended service intervals are desired |
Always refer to your vehicle's service manual or the vacuum pump manufacturer's specifications for the correct type of oil to use. Using the wrong type of oil can lead to poor performance and damage.
When to Replace vs. Top-Up
It's important to distinguish between topping up the oil and performing a full oil change. If the oil level is low but the oil still appears to be in good condition (light colour, no visible contaminants), a simple top-up with the correct type of vacuum pump oil might suffice. However, if the oil is discoloured, contaminated, or you're approaching a recommended service interval, a complete oil change is necessary. A full oil change involves draining the old oil, flushing the system if recommended by the manufacturer, and refilling with fresh, correct-specification oil.
Frequently Asked Questions (FAQs)
Q1: Can I use regular engine oil in my vacuum pump?
No, it is generally not recommended. Vacuum pump oil is specifically formulated with additives to handle the unique operating conditions and potential contaminants encountered in a vacuum pump system. Engine oil has different properties and may not provide adequate lubrication or sealing, potentially leading to pump damage.
Q2: How often should I check the vacuum pump oil level?
It's a good practice to check the oil level whenever you check your engine oil, or at least every few months. Regular checks can help you spot potential issues like leaks or excessive oil consumption early on.
Q3: What happens if I don't change the vacuum pump oil?
Neglecting to change the vacuum pump oil can lead to a number of problems. The oil will lose its lubricating and cooling properties, causing increased friction and heat. This can result in accelerated wear of the pump's internal components, reduced efficiency, eventual pump failure, and potential impact on the systems that rely on that vacuum, such as your brakes or climate control.
Q4: Is there a filter for the vacuum pump oil?
Some vacuum pump systems may incorporate a filter, particularly in more complex industrial applications. However, in most automotive vacuum pumps, there isn't a separate, user-serviceable oil filter. The integrity of the oil itself and the cleanliness of the system are paramount.
Conclusion
Maintaining the vacuum pump oil is a straightforward yet essential aspect of vehicle upkeep. By paying attention to the colour and condition of the oil, monitoring its level, and being aware of your vehicle's operating environment, you can accurately determine when it's time for a change. Don't wait for noticeable performance issues to arise. Regular checks and timely replacement of your vacuum pump oil will help ensure the longevity and reliable operation of this vital component, keeping your vehicle running smoothly and safely.
