Oil Pan Drain Plug Repair: Your Comprehensive Guide

Finding an oil leak staining your driveway or garage floor is never a welcome sight, and often, the culprit is a compromised oil pan drain plug. This common issue frequently arises after an oil change, particularly if undertaken at a quick-lube establishment where inexperienced hands or improper tools can lead to stripped or cross-threaded drain plug threads. Fortunately, in many instances, this costly problem can be effectively remedied with a specialised oil pan thread repair kit, saving you significant time and money compared to a full pan replacement.

Why Do Oil Pan Threads Strip?

The primary reason for stripped oil pan threads often boils down to a combination of factors, most notably the use of inappropriate tools and a lack of mechanical finesse. Quick oil change services, while convenient, sometimes employ staff with limited mechanical training. When these individuals utilise pneumatic or electric powered drivers to remove and, more critically, replace oil pan drain plugs, the risk of damage skyrockets. These power tools can apply excessive torque, easily overpowering the delicate threads of the oil pan.

The susceptibility to damage is particularly high with aluminium oil pans due to the inherent softness of the metal. Aluminium, while lightweight and excellent for heat dissipation, is far less forgiving than steel when subjected to over-tightening. However, it's crucial to note that even steel oil pans are not immune to this type of damage, especially if the plug is cross-threaded or subjected to extreme force. A cross-threaded plug, where the threads are misaligned before tightening, forces the plug into the pan at an incorrect angle, effectively carving new, damaged threads as it's driven in. Understanding these underlying causes is the first step in appreciating the value of a proper repair.

Repair vs. Replacement: The Smart Choice for Your Wallet

When faced with a stripped oil pan drain plug, the immediate thought might be that the entire oil pan needs replacing. While this is a viable solution, it is almost always the most expensive and labour-intensive option. Removing an oil pan is a significant undertaking, often requiring the disconnection of various engine components, exhaust pipes, or even lifting the engine in some vehicle models. The labour costs alone can run into hundreds of pounds, not to mention the price of a new oil pan and gasket.

The best and most cost-effective solution is to repair the damaged threads in the existing pan. This can often be accomplished while the oil pan remains attached to the engine, drastically reducing the complexity, time, and expense involved. For many vehicle owners, particularly those with a modest level of DIY aptitude, this makes the repair option incredibly appealing.

Assessing Your DIY Readiness: When to Call a Mechanic

While an oil pan thread repair is a highly recommended DIY endeavour for many, it's essential to realistically assess your vehicle's accessibility and your own mechanical skills. Some vehicles offer relatively straightforward access to the oil drain hole, allowing you to perform the repair even when lying on your back with the vehicle safely jacked up on axle stands. However, other models might have various obstructions, such as exhaust components, suspension parts, or chassis elements, making access extremely difficult without specialist tools or a vehicle lift.

If your vehicle falls into the latter category, or if you feel uncomfortable working underneath your car, taking it to a qualified mechanic remains your best option. A professional will have the necessary equipment, experience, and specialised tools to ensure the repair is carried out correctly and safely. However, if you consider yourself a 'gearhead' with confidence in your mechanical abilities, and your vehicle provides reasonable access, the DIY approach can be incredibly rewarding. It's not an inherently easy task, requiring patience and precision, but with the appropriate oil pan thread repair kit and careful adherence to instructions, a professional-quality repair is well within reach.

Understanding Oil Pan Thread Repair Kit Types

When it comes to fixing a stripped oil pan drain, there are primarily two types of repair kits available, each with its own advantages and disadvantages. Understanding these differences is crucial for selecting the best kit for your specific situation and vehicle.

1. Insert Thread Replacement Kits

This method involves drilling out the damaged threads to a larger diameter, then tapping new threads into the enlarged hole, and finally, installing a threaded insert. This insert effectively restores the drain hole to its original thread size, or very close to it.

Pros:

• Generally considered the most robust and permanent repair.
• For aluminium oil pans, the inserts are often made from stronger carbon steel, making the repaired threads significantly more durable than the original aluminium.
• Allows for the use of the original drain plug (if undamaged) or a standard OEM replacement plug, maintaining the vehicle's original specifications.
• Provides a 'better-than-new' condition for aluminium pans.

Cons:

• Can be more challenging to install, requiring precise drilling and tapping.
• Often necessitates additional tools beyond those supplied in some basic kits, such as a tap handle.
• Repair kits for this method tend to be more expensive due to the precision-engineered tools and inserts.

2. Enlarging Original Drain Hole Kits (Oversized Plugs)

This approach involves drilling out the damaged threads to a slightly larger diameter and then tapping new, larger threads directly into the oil pan. A new, oversized drain plug is then used to fit these newly created threads.

Pros:

• Generally easier to perform than installing an insert, requiring a slightly lower skill level.
• Kits typically include the correct size drill bit, tap, and a selection of oversized drain plugs.
• Can be used effectively on both steel and aluminium oil pans.
• Often a quicker repair process.

Cons:

• Enlarging the original drain hole size could, conceivably, diminish the vehicle's value or originality, though this is often negligible for a daily driver.
• If applied to an aluminium pan, the new, larger threads will still be made of aluminium, making them just as vulnerable to future stripping as the original threads if not handled carefully.
• Requires using a non-standard, oversized drain plug for all future oil changes.

Comparison Table: Insert vs. Oversized Plug Kits

Recommended Oil Pan Thread Repair Kits

Based on their effectiveness, comprehensive nature, and professional reputation, here are some of the best oil pan thread repair kits available that accommodate most makes and models. These kits typically contain the necessary tools to repair the damaged female thread in the pan, plus a replacement plug or inserts.

1. TIME-SERT #1415A-WI, M14 x 1.50 Metric Drain Plug Kit

• Application: Specifically designed to replace damaged aluminium oil pan drain hole threads.
• Thread Size: M14 x 1.50.
• Number of Inserts: Five (5) inserts, each 9.4mm in length.
• Tools Included: Drill, Counterbore, Tap, Tap Guide, and Driver.
• Overview: The TIME-SERT Kit #1415A-WI is widely regarded as one of the premier drain plug repair kits, especially for aluminium oil pans. Manufactured in the USA, this kit provides all the essential tools and parts for a professional-grade repair on pans with M14 x 1.50 threads. Its key advantage lies in its design to replace the compromised original threads with a robust carbon steel insert. This insert creates threads that are significantly stronger and more durable than the original aluminium, offering a long-lasting solution. A notable benefit is the ability to reuse your original drain plug if its threads are intact, or simply use an OEM replacement. The included drill bit, tap, counterbore, and driver feature square-headed shanks, allowing them to be turned with a tap handle (not included) or a 12-point socket. This kit is a favourite among professional mechanics and serious DIYers, with replacement inserts (Part #14155) readily available.

2. TIME-SERT #1212C, M12 x 1.25 Metric Drain Plug Repair Kit

• Application: Replaces damaged aluminium oil pan drain hole threads.
• Thread Size: M12 x 1.25.
• Number of Inserts: Five (5).
• Tools Included: Drill, Counterbore, Tap, Tap Guide, and Driver.
• Overview: This kit operates on the exact same principle and offers the same high quality as the TIME-SERT #1415A-WI kit, but it is specifically configured for repairing aluminium oil pans with M12 x 1.25 threads. It provides the same robust, stronger-than-original repair by utilising carbon steel inserts, ensuring durability and peace of mind for your vehicle's oil pan.

3. Lisle 58850 Oil Pan Plug Rethread Kit

• Application: Repairs oil pan sump drain threads on both soft steel and aluminium pans.
• Thread Size: Can be used to repair 1/2 inch, 12mm, and 14mm threads.
• Number of Inserts/Plugs: Five (5) magnetic plugs with heavy-duty washers.
• Tools Included: Piloted Drill Bit, Spring-Loaded Tap, and Storage Case.
• Overview: The Lisle 58850 kit is an excellent choice for repairing damaged sump plug threads directly in the pan, without the need for inserts. What sets this kit apart is its ingenious design, which significantly simplifies the otherwise challenging task of drilling and tapping a perfectly square hole. Drilling out damaged threads and keeping the drill bit precisely 90 degrees to the oil pan can be incredibly difficult, even for experienced mechanics, especially when working underneath a jacked-up vehicle. The Lisle 58850 addresses this with a step drill featuring a built-in guide, ensuring the bit remains perpendicular to the pan. Once the hole is opened, a plug tap with a guide facilitates accurate rethreading. The repair is completed by screwing in one of the new, oversized drain plugs included in the kit. The five magnetic drain plugs, coupled with heavy-duty gaskets, are a thoughtful inclusion, helping to catch any metallic debris in the oil and ensuring a leak-free seal. While there are cheaper kits on the market, few offer the specialised guiding tools that make the Lisle 58850 a truly professional and reliable solution. Considering the cost and effort of replacing an entire oil pan, this repair kit offers exceptional value.

4. Highking Tool 114pcs Oil Pan Drain Sump Plug Thread Repair Kit

• Application: Comprehensive kit for repairing damaged oil pan drain threads across a wide range of vehicles, including Audi, VW, BMW, Citroen, Fiat, Ford, Seat, Honda, Mazda, Mitsubishi, Opel, Peugeot, Renault, Toyota, and Volvo.
• Thread Size: Includes six (6) each of replacement plugs in various sizes: M13 x 1.25, M13 x 1.5, M15 x 1.5, M17 x 1.5, M20 x 1.5, and M22 x 1.5.
• Tools Included: Six (6) taps in corresponding sizes (M13 x 1.25P / M13 x 1.5P / M15 x 1.5P / M17 x 1.5P / M20 x 1.5P / M22 x 1.5P), and seventy-two (72) copper washers (24 x M13, 12 x M15, 12 x M17, 12 x M20, 12 x M22).
• Overview: The Highking Tool 114pcs kit is a versatile and extensive solution for repairing stripped or cross-threaded oil pan drain ports. This kit works by enlarging the damaged drain hole and re-threading it to a larger size, making it suitable for both aluminium and steel oil pans. It provides a comprehensive assortment of plugs and taps, allowing you to choose the next larger size than your original damaged thread. For example, to repair an M14 thread, you would select the M15 tap, drill out the hole with the appropriate tap drill size (which you will need to provide, as drill bits are not included), tap the hole, and then install the M15 drain plug and washer from the set. This kit is ideal for DIYers with moderate mechanical skills seeking a broad range of repair options for various vehicles. While it enables a professional repair, it's worth noting that changing the size of the original threads could potentially diminish the vehicle's originality, although for most everyday vehicles, this is a minor consideration.

The Crucial Step: Removing Metal Chips from the Oil Pan

Regardless of which repair option you choose – whether it's installing an insert or enlarging the original drain hole – a critical aspect of the repair process is managing and removing metal chips. As you drill and tap the oil pan, metallic shavings will inevitably be created, and some will fall into the oil pan. Needless to say, these chips absolutely must be removed to prevent catastrophic damage to your engine. Even a tiny metal shard circulating with the engine oil can cause significant wear to bearings, cylinder walls, and other vital components. Here are several effective methods to ensure your oil pan is free of debris after the repair:

1. Grease Application

Before you begin drilling or tapping, generously apply wheel bearing grease to the flutes of your drill bit, reamer, and tap. This simple yet highly effective hack causes most of the metal chips to become embedded in the grease as the tool cuts, preventing them from falling into the pan. Ensure you load up the flutes thoroughly. Crucially, when using a drill, operate your drill motor at a slow RPM. A high speed will cause the grease to spin off and the chips to scatter. Even with this method, a few chips might still escape into the pan, necessitating further removal steps.

2. Oil Flushing

Once the repair is complete and the new drain plug is installed, one of the most effective ways to remove any remaining chips is by flushing the oil pan with old or inexpensive new oil. Pour several litres of oil into the engine, allow it to drain through the pan, carrying away any loose metal particles. You may need to repeat this process several times to ensure all chips are flushed out. While effective, this method consumes extra oil.

3. Magnetic Telescoping Pick-Up Tool

A magnetic telescoping pick-up tool can be invaluable for retrieving chips that have fallen into the pan. Extend the tool's magnet through the drain hole and carefully sweep the bottom of the pan. The magnet will attract ferrous metal chips. While effective, keep in mind that the magnetised tip might also stick to the steel oil pan itself, making it a bit tricky to manoeuvre and release the collected chips. Be patient and gentle when using this method.

4. Shop Vacuum with Narrow Hose

Rigging a shop vacuum with a small enough diameter hose can provide an excellent way to vacuum out any chips from the drain hole. You might need to improvise with an adapter or a smaller diameter tube attached to the main hose. This method allows you to directly reach into the pan through the drain opening and suction out any loose debris. It's a clean and efficient way to ensure the pan is clear.

The key takeaway here is that you must be meticulous in removing all metal chips. This step is as important as the repair itself for the long-term health of your engine.

Maintaining Your Oil Pan for Longevity

Once you've successfully repaired your oil pan's drain plug threads, it's vital to implement best practices to prevent future damage. The most common cause of stripped threads is over-tightening. Always use a torque wrench when replacing your drain plug and tighten it to the manufacturer's specified torque setting. These specifications are designed to ensure a secure, leak-free seal without putting excessive stress on the threads. Avoid using power tools for tightening the drain plug. Hand-tightening until snug, followed by a precise turn with a torque wrench, is the ideal method. Replacing the drain plug washer (crush washer) with every oil change is also crucial for a proper seal and reduces the need to over-tighten the plug.

Frequently Asked Questions (FAQs)

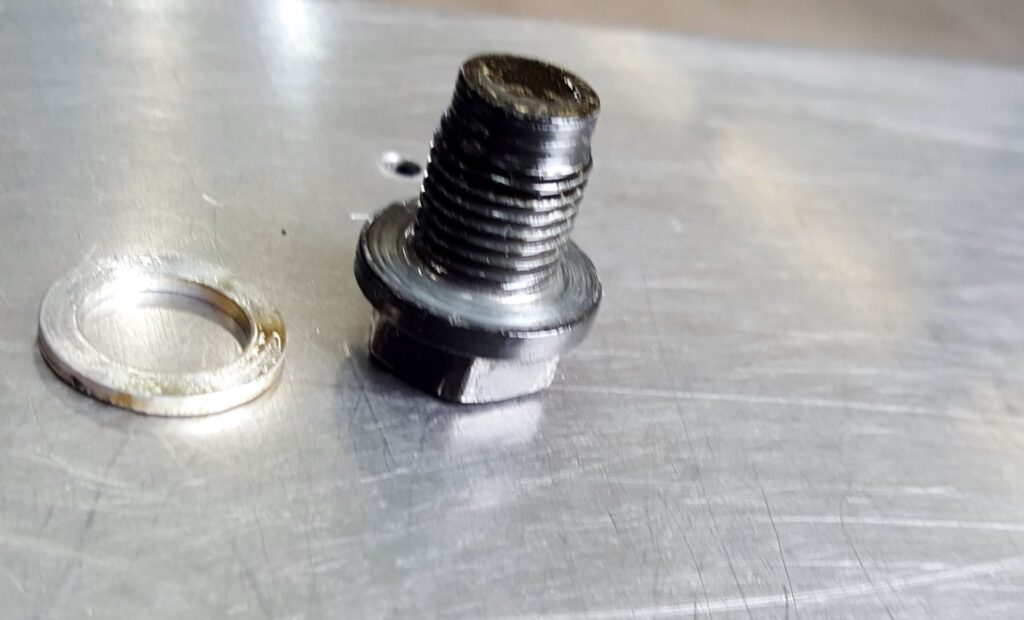

Can oil pan drain plugs be replaced?

Absolutely, yes! Oil pan drain plugs are designed to be removable and replaceable. In fact, they are routinely removed and reinstalled during every engine oil change. The issue arises when the threads in the oil pan itself become damaged, not typically the plug itself. If the plug's threads are damaged, it can and should be replaced with a new one. If the pan's threads are damaged, then a repair kit is the solution, often allowing you to reuse the old plug or install a new, appropriately sized one.

How often should you change engine oil?

The frequency of engine oil changes depends heavily on your vehicle's manufacturer recommendations, driving conditions, and the type of oil used. Modern vehicles often have service intervals ranging from 5,000 to 10,000 miles, or typically once a year, whichever comes first. Always consult your vehicle's owner's manual for the precise recommended interval. Factors like frequent short trips, heavy towing, or driving in extreme temperatures may necessitate more frequent oil changes. Regular oil changes are crucial for engine longevity, as old, degraded oil loses its lubricating properties and can lead to increased wear and tear.

Is repairing a stripped oil pan drain plug permanent?

When performed correctly with a high-quality repair kit, especially an insert-type kit that uses stronger materials like carbon steel inserts in aluminium pans, the repair can be very durable and effectively permanent. The new threads created by the repair kit are often stronger than the original. However, the permanence also depends on future maintenance practices. If the drain plug is consistently over-tightened or cross-threaded again in subsequent oil changes, even a repaired thread can be damaged again. Proper torque specifications and careful handling are key to the longevity of the repair.

What tools do I need for this repair?

Beyond the specific oil pan thread repair kit, you will need some basic automotive tools. These typically include: a socket wrench and appropriate socket for your drain plug, an oil drain pan (at least 5 litres capacity), axle stands or ramps for safely lifting the vehicle, safety goggles, gloves, and a torque wrench. Depending on the kit, you might also need a tap handle for the tapping tool. For chip removal, a shop vacuum, magnetic pickup tool, or even just some spare oil for flushing will be useful.

Can I use a universal kit for any car?

While some kits, like the Highking Tool 114pcs kit, offer a wide range of sizes and can accommodate many different vehicle makes and models, there isn't truly a 'universal' kit for every single vehicle. Different manufacturers use various drain plug thread sizes (e.g., M12x1.5, M14x1.25, M14x1.5, etc.). It is absolutely crucial to determine your vehicle's specific oil pan drain plug thread size before purchasing a repair kit. This information can usually be found in your vehicle's owner's manual or by consulting a repair manual or online database specific to your car's make and model. Using the wrong size kit will not only fail to fix the problem but could also cause further damage.

Dealing with a stripped oil pan drain plug can be daunting, but with the right knowledge, tools, and a bit of patience, it's a perfectly manageable DIY repair. By choosing the appropriate repair kit and following the instructions meticulously, especially regarding the crucial step of removing metal chips, you can restore your oil pan to full functionality and keep your vehicle running smoothly without costly garage visits.
