Scooter Gear Oil Change Guide

The smooth operation of your scooter relies heavily on its drivetrain, and at the heart of this system is the gear oil. This specialized lubricant is crucial for ensuring that your gears mesh seamlessly, reducing friction, and prolonging the life of vital transmission components. Without the correct gear oil, your scooter's performance can suffer, leading to rough gear changes, increased wear, and potentially costly repairs down the line. This guide will walk you through everything you need to know about scooter gear oil, from its composition and types to the essential steps involved in changing it yourself.

Understanding the Crucial Role of Gear Oil

Gear oil is not just any lubricant; it's a high-performance fluid engineered to withstand the demanding conditions within a scooter's transmission. Unlike engine oil, which lubricates the engine's moving parts, gear oil is specifically designed to handle the immense pressure and heat generated by meshing gears. Its primary function is to create a protective film between these metal surfaces, preventing direct contact and thereby minimising friction and wear. This lubrication is vital for efficient power transfer from the engine to the rear wheel, ensuring crisp gear changes and a responsive ride.

The Composition of Scooter Gear Oil

At its core, gear oil is a carefully formulated mixture of base oils and a sophisticated package of additives. The base oil provides the fundamental lubricating properties, determining the oil's viscosity and its ability to form a protective film. The true magic, however, lies in the additives. These chemical enhancers are added to boost the oil's performance in several key areas:

• Anti-wear additives: These form a sacrificial layer on metal surfaces, protecting them from damage under extreme pressure.
• Extreme Pressure (EP) additives: These react chemically with metal surfaces under high load conditions to prevent scuffing and seizing.
• Friction modifiers: These help to control the level of friction, ensuring smooth operation without slippage.
• Anti-foaming agents: These prevent the oil from forming foam, which can compromise its lubricating ability.
• Rust and corrosion inhibitors: These protect metal components from degradation caused by moisture and contaminants.

The precise blend of these components dictates the oil's suitability for different scooter transmissions and operating conditions.

Types of Gear Oil for Scooters

When it comes to choosing gear oil for your scooter, you'll typically encounter three main categories:

Mineral-Based Gear Oil

Derived from refined crude oil, mineral-based gear oils are the most traditional and often the most affordable option. They offer a good level of protection for everyday use and are perfectly adequate for many standard scooter applications. However, they may not perform as optimally in very high or very low temperatures and can break down more quickly under sustained heavy loads compared to their synthetic counterparts.

Synthetic Gear Oil

Engineered in laboratories using advanced chemical processes, synthetic gear oils offer superior performance across the board. They exhibit excellent thermal stability, meaning they maintain their viscosity and lubricating properties over a much wider temperature range. This translates to better protection in extreme conditions, reduced friction for improved efficiency, and a longer service life. While typically more expensive, the enhanced protection and longevity often make them a worthwhile investment.

Semi-Synthetic Gear Oil

Striking a balance between the two, semi-synthetic gear oils are a blend of mineral and synthetic base oils. They aim to provide enhanced performance over conventional mineral oils without the premium price tag of full synthetics. This makes them a popular choice for many scooter owners who want a good compromise between performance and cost-effectiveness.

Choosing the Right Gear Oil: What You Need to Know

Selecting the correct gear oil is paramount for the health of your scooter's transmission. Using the wrong type or viscosity can lead to accelerated wear, poor performance, and potentially catastrophic failure. Always consult your scooter's owner's manual for the manufacturer's specific recommendations. Key factors to consider include:

Viscosity Grade

Viscosity refers to an oil's resistance to flow. It's usually expressed as a number (e.g., 75W-90, 80W-90). The 'W' stands for winter, indicating its performance at lower temperatures. A lower viscosity oil flows more easily, which is beneficial for cold starts, while a higher viscosity oil provides a thicker film at operating temperatures for better protection under load. Your manual will specify the correct viscosity for your scooter's transmission, often depending on the ambient temperatures you typically ride in.

API Service Classification

The American Petroleum Institute (API) categorises gear oils based on their performance characteristics and the types of gear sets they are designed to protect. Common classifications include GL-1 through GL-6, with higher numbers generally indicating greater levels of protection, particularly against extreme pressure. Ensure the gear oil you choose meets or exceeds the API classification recommended in your owner's manual.

Manufacturer Approvals

Some manufacturers may have specific approvals or recommendations for certain brands or types of gear oil. Adhering to these can ensure you are using a product that has been tested and proven to work optimally with your scooter's transmission design.

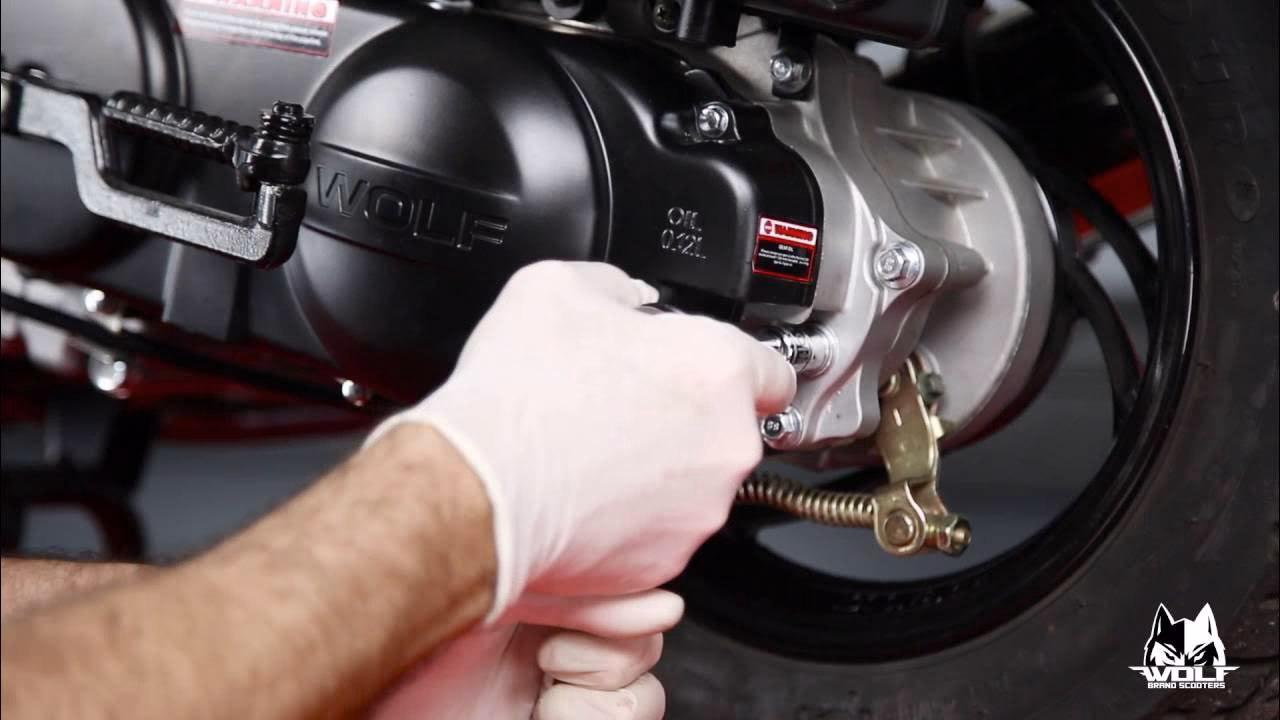

How to Change Your Scooter's Gear Oil: A Step-by-Step Guide

Changing your scooter's gear oil is a manageable DIY task that can save you money and ensure your transmission stays in top condition. Ensure you have the correct replacement oil and the necessary tools before you begin.

Safety First!

Before starting any maintenance, safety should be your top priority. Park your scooter on a firm, level surface. Allow the engine and transmission to cool down completely, as hot oil can cause severe burns. Always wear appropriate personal protective equipment (PPE), including sturdy gloves and safety glasses, to protect yourself from spills and potential splashes.

Tools and Materials You'll Need:

• New, correct specification gear oil
• A clean drain pan capable of holding the old oil
• A funnel with a narrow spout
• The correct size socket wrench or spanner for the drain and fill plugs
• A clean rag or shop towels
• (Optional) A torque wrench for tightening plugs
• (Optional) New crush washers for the drain and fill plugs

The Procedure:

1. Locate the Plugs: Most scooters have two plugs for the transmission oil: a drain plug (usually at the lowest point of the transmission casing) and a fill plug (typically on the side of the casing, often with a dipstick or a level mark). Consult your owner's manual if you're unsure of their location.
2. Prepare for Draining: Position the drain pan directly beneath the drain plug.
3. Remove the Drain Plug: Using the appropriate socket wrench or spanner, carefully loosen and remove the drain plug. Be prepared for the old oil to start flowing out immediately. Allow all the old oil to drain completely into the pan. This may take several minutes.
4. Inspect and Clean the Drain Plug: Once the oil has drained, inspect the drain plug for any metal shavings or debris. Clean the plug thoroughly with a rag. If your scooter uses crush washers, it's good practice to replace them with new ones to ensure a proper seal.
5. Reinstall the Drain Plug: Once clean and with a new washer (if applicable), carefully thread the drain plug back into the transmission casing by hand to avoid cross-threading. Then, tighten it securely with your wrench. Avoid over-tightening, which can damage the threads. Refer to your manual for the correct torque specification if you have a torque wrench.
6. Locate the Fill Plug: Now, find the fill plug. You may need to remove a dipstick or a specific cover to access it.
7. Add New Gear Oil: Insert the funnel into the fill hole. Slowly and carefully pour in the new gear oil. The amount and level are critical. Your owner's manual will specify the exact quantity required or the correct level to fill to. Many scooters have a fill plug with an integrated dipstick, or a specific level indicated by a mark on the casing. Don't overfill!
8. Check the Level: If using a dipstick, ensure it's screwed in (or seated correctly) and then pull it out to check the oil level. It should be within the designated markings. If there's no dipstick, fill until the oil just begins to overflow from the fill hole when the scooter is perfectly level.
9. Reinstall the Fill Plug: Once the correct level is achieved, replace the fill plug (and any associated covers or dipsticks). Tighten it securely, again being mindful not to over-tighten.
10. Final Checks: Wipe away any spilled oil from the transmission casing. Start the engine and let it idle for a few minutes. While it's running, carefully check both the drain and fill plug areas for any signs of leaks. After a short ride, re-check the oil level to ensure it hasn't dropped and that there are no leaks.

The Tangible Benefits of Regular Gear Oil Changes

Keeping up with your scooter's gear oil changes offers significant advantages:

• Reduced Friction and Wear: A clean, fresh supply of gear oil ensures optimal lubrication, minimising the abrasive forces between gear teeth and bearings, thus reducing wear.
• Improved Transmission Efficiency: Less friction means less wasted energy. This translates to smoother gear changes, better acceleration, and potentially improved fuel economy.
• Extended Component Life: By consistently protecting vital transmission parts from wear and damage, regular oil changes significantly prolong their lifespan, saving you from costly repairs or replacements.
• Protection Against Extreme Temperatures: The right gear oil maintains its protective properties whether your scooter is starting up on a cold morning or being ridden hard on a hot day.
• Quieter Operation: Well-lubricated gears and bearings operate more smoothly and quietly, reducing the noise and vibration levels for a more pleasant and refined riding experience.

When Should You Change Your Scooter's Gear Oil?

The most reliable source for this information is your scooter's owner's manual. However, as a general guideline, most manufacturers recommend a gear oil change every 5,000 to 10,000 kilometres (approximately 3,000 to 6,000 miles), or annually, whichever comes first. Factors like riding style (frequent stop-and-go traffic versus steady cruising) and environmental conditions can influence this interval. If you notice any changes in shifting performance, unusual noises from the transmission, or if the oil appears dark or contaminated, it's wise to check and potentially change the gear oil sooner.

Frequently Asked Questions (FAQs)

Q1: What's the difference between gear oil and engine oil?

A: Engine oil is designed to lubricate the engine's combustion chambers, pistons, crankshaft, etc., and often contains detergents to keep the engine clean. Gear oil is specifically formulated for the high-pressure, shear forces found in transmissions and lacks the detergents found in engine oil, but contains specialised extreme pressure additives.

Q2: Can I use car gear oil in my scooter?

A: Generally, it's not recommended. Car gear oils may have different viscosity requirements and additive packages that are not suitable for the smaller, high-revving transmissions found in most scooters. Always use oil specifically designed for motorcycle or scooter transmissions, as specified by your manufacturer.

Q3: What happens if I don't change my scooter's gear oil?

A: Over time, gear oil breaks down, loses its lubricating properties, and can become contaminated with metal particles. This leads to increased friction, accelerated wear on gears and bearings, potential transmission damage, rough shifting, and ultimately, a shortened lifespan for your transmission components.

Q4: How do I check the gear oil level?

A: Most scooters have either a sight glass on the transmission casing or a dipstick located near the fill plug. Ensure the scooter is perfectly level, and then check the oil level against the indicated marks. Always refer to your owner's manual for the precise method.

Q5: Is it okay to use automatic transmission fluid (ATF) in my scooter?

A: Only if your scooter's manual specifically states that ATF is the correct fluid for its transmission (often the case for scooters with Continuously Variable Transmissions or CVTs). Using ATF in a transmission designed for traditional gear oil can cause severe damage due to the different additive packages.

By understanding the importance of gear oil and following these simple maintenance steps, you can ensure your scooter's transmission operates smoothly and reliably for many miles to come. Regular checks and timely changes are key to preventing costly repairs and enjoying your ride to the fullest.
