Haldex Fluid Change: Your AWD System's Lifeline

In the intricate world of modern automotive engineering, all-wheel drive (AWD) systems play a pivotal role in delivering superior traction, stability, and control, especially in challenging driving conditions. At the heart of many popular AWD vehicles, particularly those from the Volkswagen Audi Group (VAG), lies the sophisticated Haldex coupling system. This clever piece of kit seamlessly distributes power between the front and rear axles, ensuring optimal grip when you need it most. However, like any complex mechanical system, the Haldex unit relies on diligent maintenance, specifically the regular changing of its specialised fluid, to function correctly and reliably. Neglecting this crucial service can lead to a myriad of issues, potentially culminating in costly repairs and a significant degradation of your vehicle's performance. But how often should this vital fluid be changed, and what exactly does a comprehensive Haldex service entail?

The Unseen Workhorse: What is Haldex and Why Its Fluid Matters

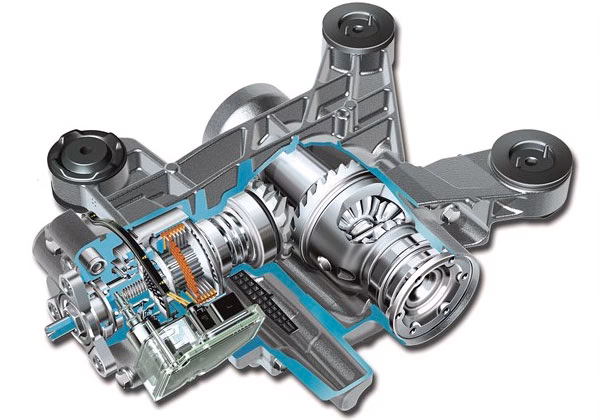

The Haldex system is an electronically controlled, multi-plate clutch that acts as a central differential, managing power distribution to the rear wheels only when necessary. Unlike traditional permanent four-wheel-drive systems, Haldex is reactive, engaging the rear axle almost instantaneously upon detecting slip in the front wheels. This design optimises fuel efficiency while providing the benefits of AWD. The system's intricate clutch packs and hydraulic pump rely entirely on a highly specialised fluid for lubrication, cooling, and the precise operation of the clutch engagement mechanisms. Over time, this fluid degrades due to heat, friction, and contamination from microscopic wear particles generated within the unit. This degradation compromises its ability to lubricate effectively, dissipate heat, and maintain the correct hydraulic pressure needed for the clutch operation.

The fluid's integrity is paramount. It's not just about lubrication; it's about the fluid's specific chemical composition allowing it to withstand extreme pressures and temperatures while preventing wear and corrosion within the delicate internal components. As it breaks down, its viscosity can change, and its protective additives deplete, leading to increased friction, heat buildup, and eventual mechanical failure. This is why the condition of the fluid is so critical, even if its appearance might not tell the full story.

Dispelling the Myth: Fluid Colour is Not an Indicator of Health

One of the most common misconceptions in automotive maintenance is that the colour of a fluid indicates its ability to lubricate or resist heat. This is a dangerous oversimplification, particularly when it comes to highly engineered fluids like those found in Haldex systems. A perfect example of this phenomenon can be observed with fresh engine oil in a modern Gasoline Direct Injection (GDI) engine. After just a few miles of driving, brand new engine oil can often appear dark and even smell faintly of fuel. This rapid change in appearance does not, however, mean the oil has lost its lubricating properties or its ability to protect the engine. It simply reflects its designed function of suspending contaminants and detergents working effectively.

The same principle applies to Haldex fluid. While fresh fluid is typically clear or light in colour, it can quickly darken in service. This darkening is often due to the normal operation of the clutch plates and the fluid's absorption of microscopic wear particles and heat by-products. Relying solely on visual inspection to determine if a fluid requires changing is highly unreliable and could lead to premature wear or even failure of expensive components. The only definitive way to confirm the chemical integrity and remaining protective qualities of a specific fluid is through laboratory testing. Services like Blackstone Laboratories offer detailed oil analysis, which can provide scientific evidence regarding the fluid's condition and help determine if extending service intervals is genuinely feasible. However, for most vehicle owners, the cost of such testing often outweighs the cost of the actual recommended service, making routine fluid replacement the more practical and safer option.

How Often Should Your Haldex System Be Serviced?

Manufacturer recommendations provide a baseline, but real-world driving conditions often necessitate more frequent attention. While specific intervals can vary slightly by model and generation of Haldex system, a general guideline has emerged from both manufacturers and experienced specialists:

• Standard Driving Conditions: For most drivers under typical conditions, we strongly recommend changing the Haldex oil every 30,000 miles. This interval ensures that the internal components remain adequately lubricated and the system operates correctly, preventing the build-up of harmful contaminants.
• High-Powered or Aggressively Driven Vehicles: If your vehicle is high-powered, frequently subjected to spirited driving, or regularly used for towing or in demanding conditions (e.g., track days, heavy off-road use), the Haldex system experiences significantly greater stress and heat. In these scenarios, more frequent changes are advised, typically around every 15,000-20,000 miles. The increased thermal load and friction accelerate fluid degradation, making these shorter intervals a crucial preventative measure.

It's important to view these intervals as preventative maintenance. The relatively low cost of a Haldex service, especially when compared to the potential expense of repairing or replacing a damaged unit, makes adherence to these recommendations a wise investment in your vehicle's longevity and performance.

What Does a Comprehensive Haldex Oil Change Service Entail?

Many vehicle owners assume a Haldex service is a simple drain and refill, akin to an engine oil change. However, a truly comprehensive and effective Haldex service goes far beyond merely swapping out the fluid. Crucially, it involves addressing a component that many official dealerships surprisingly overlook: the Haldex filter. The provided information explicitly states that 'VW/Audi group dealerships do not include the cleaning of this filter as an official step in the Haldex maintenance requirements… “A simple oil change is enough.”' This is a critical omission that can lead to significant problems down the line.

Here's what a complete, thorough Haldex oil change service should include:

• Old Fluid Drainage: The first step involves carefully draining the old, contaminated oil from the Haldex unit. This is done while the system is warm to ensure maximum drainage of impurities.
• Filter Removal and Cleaning/Replacement: This is perhaps the most vital step often neglected. The Haldex system contains a small but critical filter designed to trap metallic wear particles and other contaminants. Over time, this filter can become blocked or 'gunked' up, severely restricting fluid flow and starving the Haldex pump of lubrication. This blockage can lead to mechanical failures within the drivetrain system, as the pump struggles or fails to generate the necessary pressure for clutch engagement. A proper service will involve removing, inspecting, and either thoroughly cleaning or replacing this filter, depending on its condition and the service provider's protocol.
• Housing Cleaning: The area around the filter and pump can also accumulate sludge and debris. A comprehensive service includes cleaning out this housing to ensure no residual contaminants remain that could quickly pollute the new fluid or impede the pump.
• New Fluid Refill: The system is then refilled with fresh, high-grade Haldex-specific oil. It is paramount that the fluid meets or exceeds the manufacturer's specifications. These fluids are specially formulated with particular viscosities and additive packages to cope with the unique demands of the Haldex clutch system. Using incorrect fluid can lead to premature wear, poor performance, and system failure.
• System Inspection: Beyond the fluid and filter, a thorough service includes a detailed visual inspection of the Haldex unit itself, checking for any signs of leaks, damage, or excessive wear on external components. This proactive inspection can identify potential issues before they escalate into major problems.
• Diagnostic Scan (Optional but Recommended): Some workshops will also perform a diagnostic scan of the Haldex control unit to check for any stored fault codes and ensure the system is operating within its parameters after the service. This can help confirm proper function.
• Front Differential Servicing (If Applicable): For many vehicles equipped with a Haldex AWD system, the front differential is a separate but equally important component that requires its own maintenance. Some specialists offer combined Haldex and front differential servicing. While the Haldex system manages power to the rear, the front differential handles power distribution to the front wheels. Its oil also degrades and requires replacement. Combining these services can be more convenient and cost-effective.

The Consequences of Neglecting Haldex Maintenance

Ignoring the recommended Haldex service intervals can lead to a cascade of problems, ranging from minor performance issues to catastrophic component failure:

• Reduced AWD Performance: As the fluid degrades and the filter clogs, the Haldex system's ability to react quickly and effectively diminishes. This can result in delayed power transfer to the rear wheels, leading to reduced traction, especially in slippery conditions or during spirited acceleration. You might experience more front-wheel spin than usual.
• Pump Failure: A clogged filter starves the Haldex pump of fluid, forcing it to work harder and potentially leading to premature failure. The pump is a critical and expensive component of the system.
• Clutch Pack Wear: Contaminated or degraded fluid provides inadequate lubrication and cooling to the multi-plate clutch packs. This accelerates wear, leading to slipping clutches, excessive heat, and ultimately, the need for costly clutch pack replacement.
• Error Codes and Warning Lights: As the system malfunctions, the vehicle's onboard diagnostics may register fault codes (e.g., 'AWD Malfunction') and illuminate warning lights on your dashboard.
• Complete System Failure: In severe cases of neglect, the entire Haldex unit can seize or fail completely, rendering your AWD system inoperable. This not only eliminates the benefit of AWD but can also result in significant repair bills, often running into thousands of pounds for replacement parts and labour.

Given the relatively minor cost of routine maintenance versus the substantial expense of repairing or replacing a damaged Haldex unit, proactive servicing is undoubtedly the most prudent approach.

Haldex Service at a Glance

To summarise the key differences and considerations for your Haldex maintenance:

Frequently Asked Questions About Haldex Servicing

Q: Can I perform a Haldex fluid change myself?
A: While technically possible for experienced DIY mechanics, it's generally not recommended. The process involves specific tools for draining and refilling, and critically, access to the Haldex filter and the knowledge to properly clean or replace it. Incorrect procedures can lead to air in the system, fluid contamination, or damage to components. Given the complexity and importance of the system, professional service is always advised.

Q: What type of fluid does my Haldex system use?
A: Haldex systems require a very specific type of fluid designed for multi-plate clutch applications. It is crucial to use only genuine OEM (Original Equipment Manufacturer) Haldex fluid or an approved equivalent that meets the exact specifications for your vehicle's Haldex generation. Using generic or incorrect fluid can cause severe damage.

Q: How do I know if my Haldex system is failing?
A: Common symptoms of a failing Haldex system include: a warning light on the dashboard (e.g., 'AWD Malfunction' or '4x4 System Error'), loss of traction in slippery conditions, unusual noises (whining, grinding) from the rear differential area, or a noticeable change in handling, particularly when accelerating or cornering.

Q: Is a Haldex service expensive?
A: The cost of a Haldex service is relatively modest, especially when compared to other major vehicle services or, crucially, the cost of repairing a failed Haldex unit. Prices can vary depending on your vehicle model, the specific generation of Haldex system, and the workshop you choose, but it is a small investment for the protection it offers.

Q: Does every AWD car have a Haldex system?
A: No. While Haldex is prevalent in many VAG group vehicles (Volkswagen, Audi, Skoda, SEAT) and some Volvos, Land Rovers, and Fords, many other manufacturers use different AWD technologies. If you're unsure whether your vehicle has a Haldex system, consult your owner's manual or a qualified mechanic.

Q: Can I just top up the Haldex fluid instead of changing it?
A: No. Haldex fluid should be changed, not just topped up. Topping up does not remove contaminants or degraded fluid from the system, and it will not address a clogged filter. A full fluid change is necessary for proper maintenance.

Conclusion: Proactive Maintenance is Key

The Haldex all-wheel drive system is a marvel of engineering, providing enhanced safety and driving dynamics for millions of vehicle owners across the UK and beyond. However, its sophisticated nature demands a proactive approach to maintenance. Relying on visual cues like fluid colour is a misleading practice that can lead to significant mechanical issues. Instead, adhering to recommended service intervals – every 30,000 miles for standard driving, or as frequently as 15,000-20,000 miles for more demanding use – is absolutely paramount. Crucially, ensure that any Haldex service includes not just a fluid change, but also the vital inspection and cleaning or replacement of the Haldex filter. Choosing a specialist who understands the intricacies of these systems can make all the difference, safeguarding your vehicle's performance, preventing costly repairs, and ensuring your AWD system remains a reliable asset for years to come. Don't let neglect turn a simple service into an expensive nightmare; invest in the longevity of your vehicle's most dynamic feature.
