Troubleshooting Your EGS Actuator: A Comprehensive Guide to Hydraulic Reservoir Maintenance
Many Citroën C4 owners have encountered frustrating issues with their EGS (Electronic Gearbox System) actuators, often manifesting as difficulty engaging gears, getting stuck in a particular gear, or spontaneously shifting into neutral, especially on inclines. These symptoms are frequently linked to low hydraulic fluid levels in the actuator's reservoir. This guide, compiled from real-world owner experiences, provides a step-by-step approach to identifying, refilling, and maintaining this crucial component.
Locating the EGS Actuator Reservoir
The EGS actuator and its hydraulic reservoir are not immediately obvious. According to owner 'bens3lte', a straightforward method to access it involves:
- Removing the air intake pipe located behind the passenger-side headlight.
- Looking straight down underneath the battery.

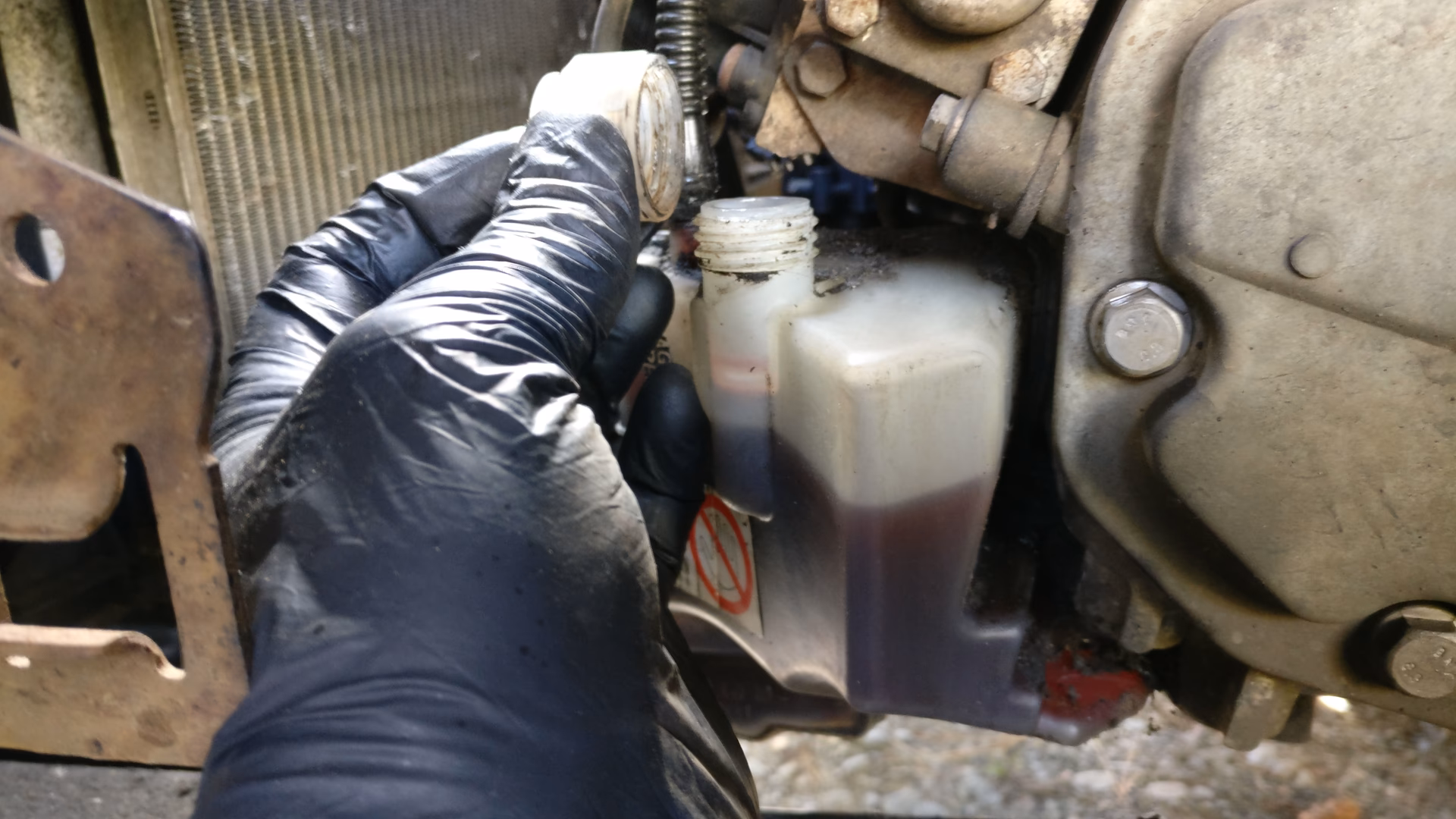

Once you've located the actuator, the reservoir will be situated below it. The reservoir typically has clearly marked 'max' and 'min' levels.
Identifying Low Fluid Levels and Potential Leaks
A significant indicator of low fluid is the symptoms described above. However, visual inspection can confirm this. 'bens3lte' also shared an ingenious method for a more accurate reading:
- Open the bonnet.
- Shine a light (sunlight is effective if outdoors) into the engine bay.
- Look through the vents near the fog light. This allows you to see directly into the reservoir without the angled distortion that looking from above might cause.
Leaks are a common cause of low fluid levels. 'bens3lte' identified a potential culprit: the black return hose. This hose can rub against a sharp edge on the actuator's plastic casing, leading to wear and fluid loss. Owners have reported finding a fair amount of actuator fluid around this area. The casing is usually held in place by four Torx screws and can be removed for better access and inspection.
The Refilling Process: Tools and Techniques
Topping up the reservoir requires a bit of precision. 'bens3lte' successfully used a 60ml syringe with a length of tubing to reach down into the reservoir. Approximately 500ml of fluid was needed to bring the level up to the 'max' mark in their case.
Key steps for refilling:
- Gather your tools: A syringe (e.g., 60ml) and suitable tubing are essential. Ensure you have the correct hydraulic fluid, often referred to as EGS fluid or specific hydraulic transmission fluid compatible with your vehicle.
- Access the reservoir: Follow the steps above to locate and get a clear view of the reservoir.
- Carefully fill: Insert the tubing into the reservoir and slowly add the fluid using the syringe. Monitor the level against the 'max' and 'min' markers. Avoid overfilling.
- Initial circulation: After filling, start the car to allow the system to circulate the fluid.
- Re-check and top up: Turn the engine off and re-check the fluid level. It's common to need a small top-up after the initial circulation, as the system might have drawn more fluid through.
Post-Refill Observations and Potential Solutions
Immediately after refilling, owners have reported a significant improvement in gear engagement. 'bens3lte' noted a full restoration of Reverse, Auto, and Manual modes. However, some experienced a slight hesitation in second gear, which they suspected might require a software update or adjustment via a diagnostic tool.
If a leak is confirmed, particularly from the return hose, replacement is necessary. 'GJT' and 'bens3lte' both successfully replaced this worn hose. The process involved:
- Removing the old hose, which may require cutting it off.
- Lubricating the ends of the new hose with a bit of actuator fluid to aid installation.
- Fitting the new hose, often starting with the top connection due to space constraints. A combination of pushing and twisting (clockwise and counter-clockwise) can help. The bottom connection usually slides on more easily.
It's worth noting that the sharp edge on the actuator casing that can cause the hose to wear is a design flaw, as pointed out by 'GJT'. Some owners have considered filing this edge down or adding protective material to prevent future wear.
Common Issues and Troubleshooting Table
Here's a summary of common problems and their potential causes related to the EGS actuator:
| Symptom | Likely Cause | Potential Solution |
|---|---|---|
| Difficulty engaging gears (especially reverse) | Low hydraulic fluid level | Top up reservoir, check for leaks |
| Car stuck in gear or neutral | Low hydraulic fluid, internal actuator fault, software issue | Top up fluid, check for leaks, diagnostic scan for software updates or faults |
| Gearbox warning light illuminated | Various: low fluid, sensor fault, actuator malfunction, wiring issue | Check fluid level, diagnostic scan |
| Whirring or grinding noise from actuator | Actuator struggling to engage, low fluid, internal fault | Check fluid level, listen for noise source, diagnostic scan |
| Oil around actuator or hoses | Leaking hose, faulty seal, damaged reservoir nipple | Inspect hoses and connections, replace damaged parts, consider professional repair for nipple damage |
Frequently Asked Questions (FAQs)
Q1: What type of fluid should I use for the EGS actuator reservoir?
Specific hydraulic fluid is required, often labelled as EGS fluid. Consult your vehicle's manual or a reputable parts supplier for the exact specification. Using the wrong fluid can cause significant damage.
Q2: How often should I check the EGS actuator fluid level?
It's good practice to check it during regular vehicle maintenance, perhaps every 6 months or 10,000 miles, especially if you've experienced any gear selection issues.
Q3: My reservoir nipple is broken. What can I do?
If a garage caused the damage, they should be responsible for the repair. If not, you may need to source a replacement reservoir or seek professional advice on repairing the nipple, as it's a critical connection point.
Q4: Can I drive the car if the fluid level is low?
Driving with critically low fluid levels can cause severe damage to the gearbox and actuator. It's best to address the issue as soon as possible. If the car is undrivable, consider towing it to a qualified mechanic.
Q5: What does a "software update" for the EGS actuator refer to?
The EGS system is electronically controlled. Sometimes, the control unit's software may need updating to optimise performance, correct minor hesitations, or resolve specific electronic faults. This typically requires diagnostic equipment at a dealership or specialist garage.
Q6: Is it possible to replace the actuator itself?
Yes, the actuator can be replaced, but it's a more complex job and often requires recalibration afterwards. If you suspect the actuator itself is faulty, it's advisable to consult a professional mechanic.
Final Thoughts and Preventative Measures
Maintaining the correct fluid level in your EGS actuator is crucial for smooth gear operation. By following the steps outlined in this guide, you can effectively diagnose and rectify low fluid issues. Regular checks and prompt attention to any signs of leaks or unusual gear behaviour can prevent more serious and costly repairs down the line. Remember to always prioritize safety when working on your vehicle and consult a professional if you're unsure about any step.
